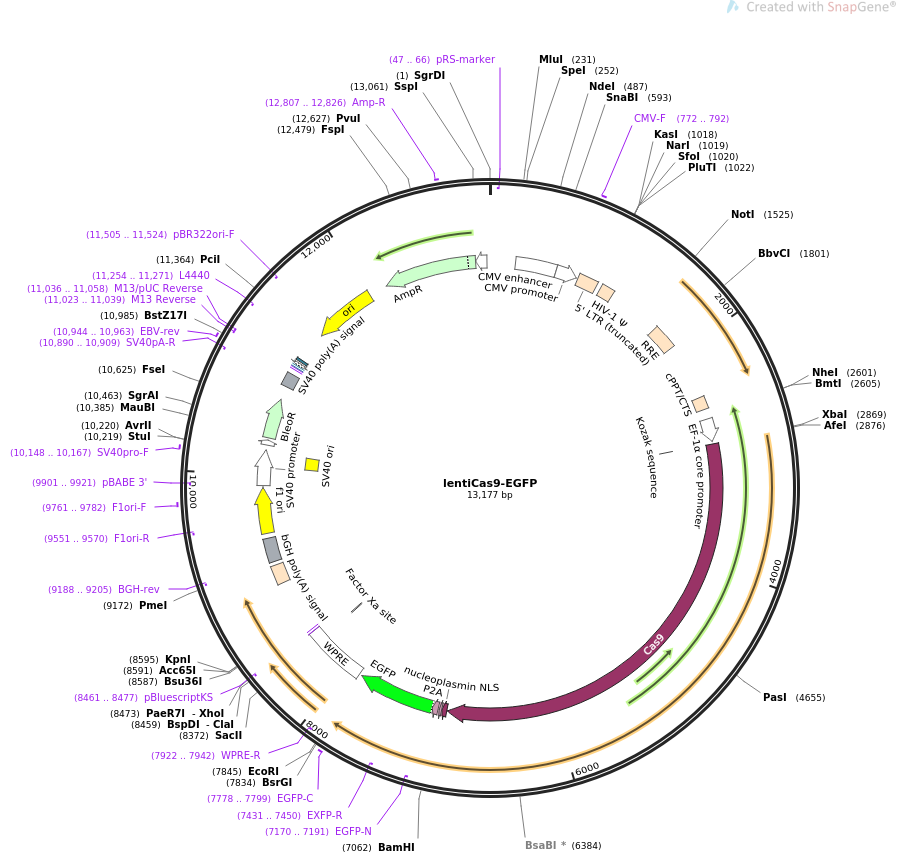

lentiCas9-EGFP

LOCUS       lentiCas9-EGFP               13177 bp ds-DNA     circular SYN 18-JAN-2019
DEFINITION  Expresses human codon-optimized S. pyogenes Cas9 protein and EGFP
            from EFS promoter. 3rd generation lentiviral backbone. .
ACCESSION   .
VERSION     .
KEYWORDS    lentiCas9-EGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 13177)
  AUTHORS   Chen S, Sanjana NE, Zheng K, Shalem O, Lee K, Shi X, Scott DA, Song
            J, Pan JQ, Weissleder R, Lee H, Zhang F, Sharp PA
  TITLE     Genome-wide CRISPR screen in a mouse model of tumor growth and
            metastasis.
  JOURNAL   Cell. 2015 Mar 12;160(6):1246-60. doi: 10.1016/j.cell.2015.02.038.
            Epub 2015 Mar 5.
  PUBMED    25748654
REFERENCE   2  (bases 1 to 13177)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jan 18, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..13177
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(47..66)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     772..792
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             835..1015
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1680..1913
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2440..2557
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2650..2861
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     regulatory      2880..2889
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             2886..6989
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK
                     NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES
                     FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK
                     FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL
                     ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ
                     IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR
                     QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL
                     RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG
                     NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY
                     FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD
                     SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER
                     LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM
                     QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR
                     HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY
                     LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP
                     SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH
                     VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL
                     NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT
                     EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK
                     ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI
                     TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE
                     LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD
                     ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL
                     DATLIHQSITGLYETRIDLSQLGGD"
     CDS             6990..7037
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             7038..7061
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             7071..7127
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             7128..7844
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKA
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     primer_bind     complement(7170..7191)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(7431..7450)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     7778..7799
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    7869..8457
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(7922..7942)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(8340..8351)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     complement(8460..8476)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(8461..8477)
                     /label=pBluescriptKS
                     /note="For pBluescript vector"
     LTR             8982..9162
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     primer_bind     complement(9188..9205)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    9194..9418
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      9464..9892
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(9551..9570)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     9761..9782
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(9901..9921)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        9906..10235
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      10086..10221
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     10148..10167
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     promoter        10283..10330
                     /label=EM7 promoter
                     /note="synthetic bacterial promoter "
     CDS             10349..10723
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     polyA_signal    10853..10974
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(10890..10909)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     10944..10963
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(11023..11039)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(11023..11039)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(11036..11058)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    11047..11063
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(11071..11101)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    11116..11137
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(11254..11271)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(11425..12013)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(11505..11524)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(12184..13044)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     12807..12826
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(13045..13149)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg ctgatcttca gacctggagg aggagatatg
     1561 agggacaatt ggagaagtga attatataaa tataaagtag taaaaattga accattagga
     1621 gtagcaccca ccaaggcaaa gagaagagtg gtgcagagag aaaaaagagc agtgggaata
     1681 ggagctttgt tccttgggtt cttgggagca gcaggaagca ctatgggcgc agcgtcaatg
     1741 acgctgacgg tacaggccag acaattattg tctggtatag tgcagcagca gaacaatttg
     1801 ctgagggcta ttgaggcgca acagcatctg ttgcaactca cagtctgggg catcaagcag
     1861 ctccaggcaa gaatcctggc tgtggaaaga tacctaaagg atcaacagct cctggggatt
     1921 tggggttgct ctggaaaact catttgcacc actgctgtgc cttggaatgc tagttggagt
     1981 aataaatctc tggaacagat ttggaatcac acgacctgga tggagtggga cagagaaatt
     2041 aacaattaca caagcttaat acactcctta attgaagaat cgcaaaacca gcaagaaaag
     2101 aatgaacaag aattattgga attagataaa tgggcaagtt tgtggaattg gtttaacata
     2161 acaaattggc tgtggtatat aaaattattc ataatgatag taggaggctt ggtaggttta
     2221 agaatagttt ttgctgtact ttctatagtg aatagagtta ggcagggata ttcaccatta
     2281 tcgtttcaga cccacctccc aaccccgagg ggacccgaca ggcccgaagg aatagaagaa
     2341 gaaggtggag agagagacag agacagatcc attcgattag tgaacggatc ggcactgcgt
     2401 gcgccaattc tgcagacaaa tggcagtatt catccacaat tttaaaagaa aaggggggat
     2461 tggggggtac agtgcagggg aaagaatagt agacataata gcaacagaca tacaaactaa
     2521 agaattacaa aaacaaatta caaaaattca aaattttcgg gtttattaca gggacagcag
     2581 agatccagtt tggttaatta gctagctagg tcttgaaagg agtgggaatt ggctccggtg
     2641 cccgtcagtg ggcagagcgc acatcgccca cagtccccga gaagttgggg ggaggggtcg
     2701 gcaattgatc cggtgcctag agaaggtggc gcggggtaaa ctgggaaagt gatgtcgtgt
     2761 actggctccg cctttttccc gagggtgggg gagaaccgta tataagtgca gtagtcgccg
     2821 tgaacgttct ttttcgcaac gggtttgccg ccagaacaca ggaccggttc tagagcgctg
     2881 ccaccatgga caagaagtac agcatcggcc tggacatcgg caccaactct gtgggctggg
     2941 ccgtgatcac cgacgagtac aaggtgccca gcaagaaatt caaggtgctg ggcaacaccg
     3001 accggcacag catcaagaag aacctgatcg gagccctgct gttcgacagc ggcgaaacag
     3061 ccgaggccac ccggctgaag agaaccgcca gaagaagata caccagacgg aagaaccgga
     3121 tctgctatct gcaagagatc ttcagcaacg agatggccaa ggtggacgac agcttcttcc
     3181 acagactgga agagtccttc ctggtggaag aggataagaa gcacgagcgg caccccatct
     3241 tcggcaacat cgtggacgag gtggcctacc acgagaagta ccccaccatc taccacctga
     3301 gaaagaaact ggtggacagc accgacaagg ccgacctgcg gctgatctat ctggccctgg
     3361 cccacatgat caagttccgg ggccacttcc tgatcgaggg cgacctgaac cccgacaaca
     3421 gcgacgtgga caagctgttc atccagctgg tgcagaccta caaccagctg ttcgaggaaa
     3481 accccatcaa cgccagcggc gtggacgcca aggccatcct gtctgccaga ctgagcaaga
     3541 gcagacggct ggaaaatctg atcgcccagc tgcccggcga gaagaagaat ggcctgttcg
     3601 gaaacctgat tgccctgagc ctgggcctga cccccaactt caagagcaac ttcgacctgg
     3661 ccgaggatgc caaactgcag ctgagcaagg acacctacga cgacgacctg gacaacctgc
     3721 tggcccagat cggcgaccag tacgccgacc tgtttctggc cgccaagaac ctgtccgacg
     3781 ccatcctgct gagcgacatc ctgagagtga acaccgagat caccaaggcc cccctgagcg
     3841 cctctatgat caagagatac gacgagcacc accaggacct gaccctgctg aaagctctcg
     3901 tgcggcagca gctgcctgag aagtacaaag agattttctt cgaccagagc aagaacggct
     3961 acgccggcta cattgacggc ggagccagcc aggaagagtt ctacaagttc atcaagccca
     4021 tcctggaaaa gatggacggc accgaggaac tgctcgtgaa gctgaacaga gaggacctgc
     4081 tgcggaagca gcggaccttc gacaacggca gcatccccca ccagatccac ctgggagagc
     4141 tgcacgccat tctgcggcgg caggaagatt tttacccatt cctgaaggac aaccgggaaa
     4201 agatcgagaa gatcctgacc ttccgcatcc cctactacgt gggccctctg gccaggggaa
     4261 acagcagatt cgcctggatg accagaaaga gcgaggaaac catcaccccc tggaacttcg
     4321 aggaagtggt ggacaagggc gcttccgccc agagcttcat cgagcggatg accaacttcg
     4381 ataagaacct gcccaacgag aaggtgctgc ccaagcacag cctgctgtac gagtacttca
     4441 ccgtgtataa cgagctgacc aaagtgaaat acgtgaccga gggaatgaga aagcccgcct
     4501 tcctgagcgg cgagcagaaa aaggccatcg tggacctgct gttcaagacc aaccggaaag
     4561 tgaccgtgaa gcagctgaaa gaggactact tcaagaaaat cgagtgcttc gactccgtgg
     4621 aaatctccgg cgtggaagat cggttcaacg cctccctggg cacataccac gatctgctga
     4681 aaattatcaa ggacaaggac ttcctggaca atgaggaaaa cgaggacatt ctggaagata
     4741 tcgtgctgac cctgacactg tttgaggaca gagagatgat cgaggaacgg ctgaaaacct
     4801 atgcccacct gttcgacgac aaagtgatga agcagctgaa gcggcggaga tacaccggct
     4861 ggggcaggct gagccggaag ctgatcaacg gcatccggga caagcagtcc ggcaagacaa
     4921 tcctggattt cctgaagtcc gacggcttcg ccaacagaaa cttcatgcag ctgatccacg
     4981 acgacagcct gacctttaaa gaggacatcc agaaagccca ggtgtccggc cagggcgata
     5041 gcctgcacga gcacattgcc aatctggccg gcagccccgc cattaagaag ggcatcctgc
     5101 agacagtgaa ggtggtggac gagctcgtga aagtgatggg ccggcacaag cccgagaaca
     5161 tcgtgatcga aatggccaga gagaaccaga ccacccagaa gggacagaag aacagccgcg
     5221 agagaatgaa gcggatcgaa gagggcatca aagagctggg cagccagatc ctgaaagaac
     5281 accccgtgga aaacacccag ctgcagaacg agaagctgta cctgtactac ctgcagaatg
     5341 ggcgggatat gtacgtggac caggaactgg acatcaaccg gctgtccgac tacgatgtgg
     5401 accatatcgt gcctcagagc tttctgaagg acgactccat cgacaacaag gtgctgacca
     5461 gaagcgacaa gaaccggggc aagagcgaca acgtgccctc cgaagaggtc gtgaagaaga
     5521 tgaagaacta ctggcggcag ctgctgaacg ccaagctgat tacccagaga aagttcgaca
     5581 atctgaccaa ggccgagaga ggcggcctga gcgaactgga taaggccggc ttcatcaaga
     5641 gacagctggt ggaaacccgg cagatcacaa agcacgtggc acagatcctg gactcccgga
     5701 tgaacactaa gtacgacgag aatgacaagc tgatccggga agtgaaagtg atcaccctga
     5761 agtccaagct ggtgtccgat ttccggaagg atttccagtt ttacaaagtg cgcgagatca
     5821 acaactacca ccacgcccac gacgcctacc tgaacgccgt cgtgggaacc gccctgatca
     5881 aaaagtaccc taagctggaa agcgagttcg tgtacggcga ctacaaggtg tacgacgtgc
     5941 ggaagatgat cgccaagagc gagcaggaaa tcggcaaggc taccgccaag tacttcttct
     6001 acagcaacat catgaacttt ttcaagaccg agattaccct ggccaacggc gagatccgga
     6061 agcggcctct gatcgagaca aacggcgaaa ccggggagat cgtgtgggat aagggccggg
     6121 attttgccac cgtgcggaaa gtgctgagca tgccccaagt gaatatcgtg aaaaagaccg
     6181 aggtgcagac aggcggcttc agcaaagagt ctatcctgcc caagaggaac agcgataagc
     6241 tgatcgccag aaagaaggac tgggacccta agaagtacgg cggcttcgac agccccaccg
     6301 tggcctattc tgtgctggtg gtggccaaag tggaaaaggg caagtccaag aaactgaaga
     6361 gtgtgaaaga gctgctgggg atcaccatca tggaaagaag cagcttcgag aagaatccca
     6421 tcgactttct ggaagccaag ggctacaaag aagtgaaaaa ggacctgatc atcaagctgc
     6481 ctaagtactc cctgttcgag ctggaaaacg gccggaagag aatgctggcc tctgccggcg
     6541 aactgcagaa gggaaacgaa ctggccctgc cctccaaata tgtgaacttc ctgtacctgg
     6601 ccagccacta tgagaagctg aagggctccc ccgaggataa tgagcagaaa cagctgtttg
     6661 tggaacagca caagcactac ctggacgaga tcatcgagca gatcagcgag ttctccaaga
     6721 gagtgatcct ggccgacgct aatctggaca aagtgctgtc cgcctacaac aagcaccggg
     6781 ataagcccat cagagagcag gccgagaata tcatccacct gtttaccctg accaatctgg
     6841 gagcccctgc cgccttcaag tactttgaca ccaccatcga ccggaagagg tacaccagca
     6901 ccaaagaggt gctggacgcc accctgatcc accagagcat caccggcctg tacgagacac
     6961 ggatcgacct gtctcagctg ggaggcgaca agcgacctgc cgccacaaag aaggctggac
     7021 aggctaagaa gaagaaagat tacaaagacg atgacgataa gggatccggc gcaacaaact
     7081 tctctctgct gaaacaagcc ggagatgtcg aagagaatcc tggaccggtg agcaagggcg
     7141 aggagctgtt caccggggtg gtgcccatcc tggtcgagct ggacggcgac gtaaacggcc
     7201 acaagttcag cgtgtctggc gagggcgagg gcgatgccac ctacggcaag ctgaccctga
     7261 agttcatctg caccaccggc aagctgcccg tgccctggcc caccctcgtg accaccctga
     7321 cctacggcgt gcagtgcttc agccgctacc ccgaccacat gaagcagcac gacttcttca
     7381 agtccgccat gcccgaaggc tacgtccagg agcgcaccat cttcttcaag gacgacggca
     7441 actacaagac ccgcgccgag gtgaagttcg agggcgacac cctggtgaac cgcatcgagc
     7501 tgaagggcat cgacttcaag gaggacggca acatcctggg gcacaagctg gagtacaact
     7561 acaacagcca caacgtctat atcatggccg acaagcagaa gaacggcatc aaggcgaact
     7621 tcaagatccg ccacaacatc gaggacggca gcgtgcagct cgccgaccac taccagcaga
     7681 acacccccat cggcgacggc cccgtgctgc tgcccgacaa ccactacctg agcacccagt
     7741 ccgccctgag caaagacccc aacgagaagc gcgatcacat ggtcctgctg gagttcgtga
     7801 ccgccgccgg gatcactctc ggcatggacg agctgtacaa gtaagaattc gatatcaagc
     7861 ttatcggtaa tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact
     7921 atgttgctcc ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg
     7981 cttcccgtat ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg
     8041 aggagttgtg gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa
     8101 cccccactgg ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc
     8161 ccctccctat tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg
     8221 ctcggctgtt gggcactgac aattccgtgg tgttgtcggg gaaatcatcg tcctttcctt
     8281 ggctgctcgc ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt
     8341 cggccctcaa tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc
     8401 cgcgtcttcg ccttcgccct cagacgagtc ggatctccct ttgggccgcc tccccgcatc
     8461 gataccgtcg acctcgagac ctagaaaaac atggagcaat cacaagtagc aatacagcag
     8521 ctaccaatgc tgattgtgcc tggctagaag cacaagagga ggaggaggtg ggttttccag
     8581 tcacacctca ggtaccttta agaccaatga cttacaaggc agctgtagat cttagccact
     8641 ttttaaaaga aaagggggga ctggaagggc taattcactc ccaacgaaga caagatatcc
     8701 ttgatctgtg gatctaccac acacaaggct acttccctga ttggcagaac tacacaccag
     8761 ggccagggat cagatatcca ctgacctttg gatggtgcta caagctagta ccagttgagc
     8821 aagagaaggt agaagaagcc aatgaaggag agaacacccg cttgttacac cctgtgagcc
     8881 tgcatgggat ggatgacccg gagagagaag tattagagtg gaggtttgac agccgcctag
     8941 catttcatca catggcccga gagctgcatc cggactgtac tgggtctctc tggttagacc
     9001 agatctgagc ctgggagctc tctggctaac tagggaaccc actgcttaag cctcaataaa
     9061 gcttgccttg agtgcttcaa gtagtgtgtg cccgtctgtt gtgtgactct ggtaactaga
     9121 gatccctcag acccttttag tcagtgtgga aaatctctag cagggcccgt ttaaacccgc
     9181 tgatcagcct cgactgtgcc ttctagttgc cagccatctg ttgtttgccc ctcccccgtg
     9241 ccttccttga ccctggaagg tgccactccc actgtccttt cctaataaaa tgaggaaatt
     9301 gcatcgcatt gtctgagtag gtgtcattct attctggggg gtggggtggg gcaggacagc
     9361 aagggggagg attgggaaga caatagcagg catgctgggg atgcggtggg ctctatggct
     9421 tctgaggcgg aaagaaccag ctggggctct agggggtatc cccacgcgcc ctgtagcggc
     9481 gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga ccgctacact tgccagcgcc
     9541 ctagcgcccg ctcctttcgc tttcttccct tcctttctcg ccacgttcgc cggctttccc
     9601 cgtcaagctc taaatcgggg gctcccttta gggttccgat ttagtgcttt acggcacctc
     9661 gaccccaaaa aacttgatta gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg
     9721 gtttttcgcc ctttgacgtt ggagtccacg ttctttaata gtggactctt gttccaaact
     9781 ggaacaacac tcaaccctat ctcggtctat tcttttgatt tataagggat tttgccgatt
     9841 tcggcctatt ggttaaaaaa tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt
     9901 ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     9961 aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc tccccagcag
    10021 gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg cccctaactc
    10081 cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat ggctgactaa
    10141 ttttttttat ttatgcagag gccgaggccg cctctgcctc tgagctattc cagaagtagt
    10201 gaggaggctt ttttggaggc ctaggctttt gcaaaaagct cccgggagct tgtatatcca
    10261 ttttcggatc tgatcagcac gtgttgacaa ttaatcatcg gcatagtata tcggcatagt
    10321 ataatacgac aaggtgagga actaaaccat ggccaagttg accagtgccg ttccggtgct
    10381 caccgcgcgc gacgtcgccg gagcggtcga gttctggacc gaccggctcg ggttctcccg
    10441 ggacttcgtg gaggacgact tcgccggtgt ggtccgggac gacgtgaccc tgttcatcag
    10501 cgcggtccag gaccaggtgg tgccggacaa caccctggcc tgggtgtggg tgcgcggcct
    10561 ggacgagctg tacgccgagt ggtcggaggt cgtgtccacg aacttccggg acgcctccgg
    10621 gccggccatg accgagatcg gcgagcagcc gtgggggcgg gagttcgccc tgcgcgaccc
    10681 ggccggcaac tgcgtgcact tcgtggccga ggagcaggac tgacacgtgc tacgagattt
    10741 cgattccacc gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg
    10801 ctggatgatc ctccagcgcg gggatctcat gctggagttc ttcgcccacc ccaacttgtt
    10861 tattgcagct tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc
    10921 atttttttca ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt
    10981 ctgtataccg tcgacctcta gctagagctt ggcgtaatca tggtcatagc tgtttcctgt
    11041 gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa
    11101 agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc
    11161 tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag
    11221 aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt
    11281 cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga
    11341 atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg
    11401 taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa
    11461 aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt
    11521 tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct
    11581 gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct
    11641 cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc
    11701 cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt
    11761 atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc
    11821 tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag tatttggtat
    11881 ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa
    11941 acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa
    12001 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
    12061 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
    12121 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
    12181 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
    12241 catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg
    12301 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
    12361 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
    12421 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
    12481 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
    12541 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa
    12601 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
    12661 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
    12721 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
    12781 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
    12841 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
    12901 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
    12961 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
    13021 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
    13081 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
    13141 ggttccgcgc acatttcccc gaaaagtgcc acctgac
//
