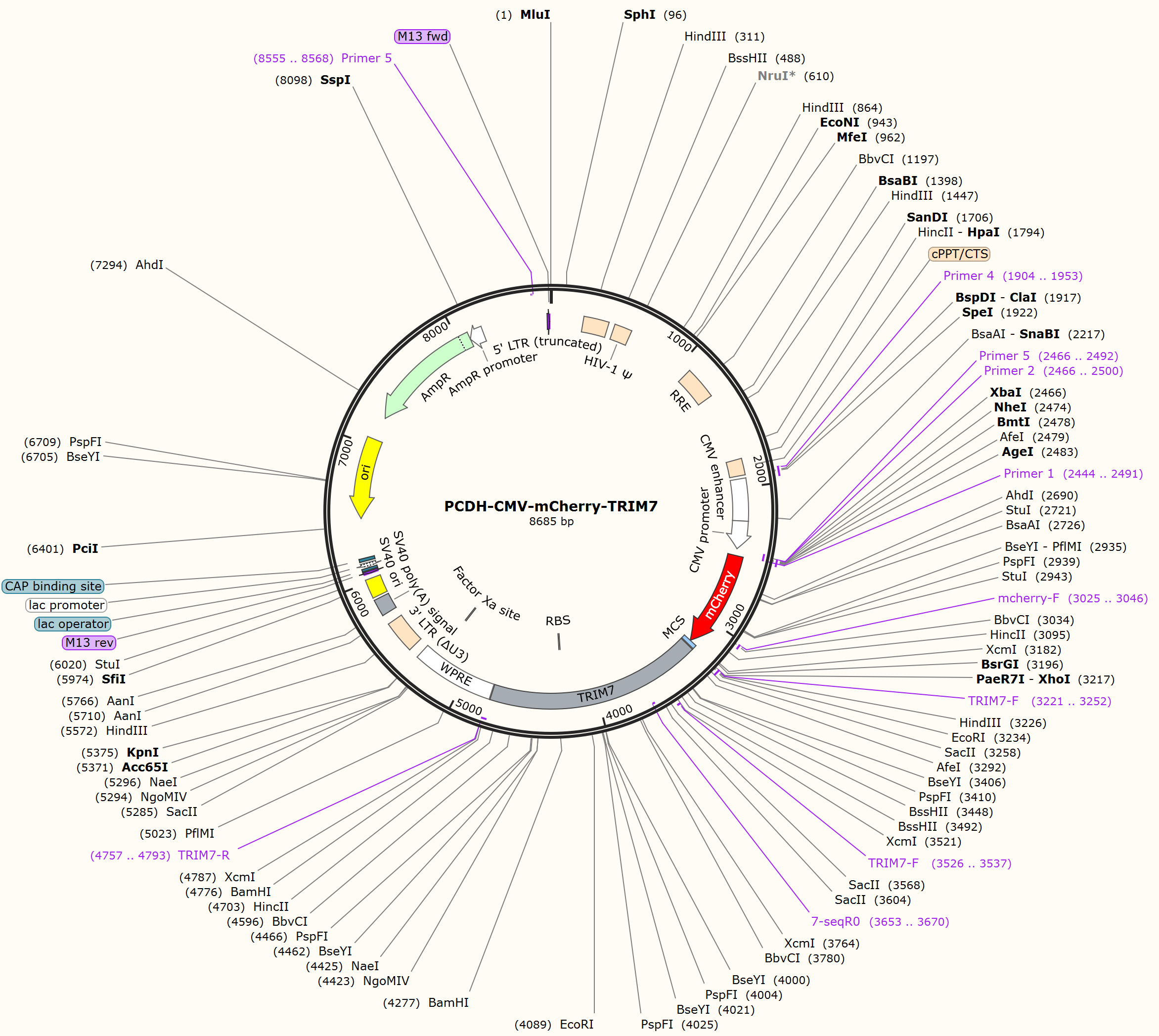

PCDH-CMV-mCherry-TRIM7

LOCUS       PCDH-CMV-mCherry-TRIM7             8685 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8685)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8685
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3221..3252
                     /label=TRIM7-F
     misc_feature    3240..4775
                     /label=TRIM7
     primer_bind     3526..3537
                     /label=TRIM7-F
     primer_bind     complement(3653..3670)
                     /label=7-seqR0
     RBS             4251..4262
                     /note="strong bacterial ribosome binding site (Elowitz and
                     Leibler, 2000)"
     primer_bind     complement(4757..4793)
                     /label=TRIM7-R
     misc_feature    4782..5369
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5253..5264)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5442..5675
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5747..5868
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5887..6022
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6060..6076)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6084..6100
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6108..6138)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6153..6174
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6462..7050)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7221..8081)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8082..8186)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8555..8568)
                     /label=Primer 5
     primer_bind     8660..8676
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcggctgt gggaccgcgg accggccccg gaaccggcgc cgaggctcta gcgctggcgg
     3301 cagagctgca gggcgaggcg acgtgctcca tctgcctaga gctctttcgt gagccggtgt
     3361 ccgtcgagtg cggccacagc ttctgccgcg cctgcatagg gcgctgctgg gagcgcccgg
     3421 gcgcggggtc tgttggggcc gccacccgcg cgcccccctt cccactgccc tgtccgcagt
     3481 gccgcgagcc cgcgcgcccc agtcagctgc ggcccaaccg gcagctggcg gcagtggcca
     3541 cgctcctgcg gcgcttcagc ctgcccgcgg ctgccccggg agagcacggg tctcaggcgg
     3601 ccgcggcccg ggcagcggct gcccgctgcg ggcagcatgg cgaacccttc aagctctact
     3661 gccaggacga cggacgcgcc atctgcgtgg tgtgcgaccg cgcccgcgag caccgcgagc
     3721 acgccgtgct gccgctggac gaggcggtgc aggaggccaa ggagctcttg gagtccaggc
     3781 tgagggtctt gaagaaggaa ctggaggact gtgaggtgtt ccggtccacg gaaaagaagg
     3841 agagcaagga gctgctgaaa cagatggcag cggagcagga gaaggtgggg gcagagttcc
     3901 aggcactgag ggctttcctg gtggagcagg agggtcggct gctaggccgc ctggaggaac
     3961 tgtcccggga ggtggcacag aagcagaatg agaacctggc ccagctcggg gttgagatca
     4021 cccagctgtc caagctcagc agccagatcc aggagacagc tcaaaagcct gaccttgact
     4081 ttctccagga attcaaaagc acgctgagca ggtgtagcaa tgtgcctggc cccaagccaa
     4141 ccacagtctc ttctgagatg aagaataaag tctggaatgt ttctctcaag acctttgtct
     4201 taaaagggat gctgaagaag ttcaaagagg accttcgggg agagctggag aaagaggaga
     4261 aagtggagct caccttggat cccgacacgg ccaacccgcg cctcatcctc tctctggatc
     4321 ttaagggcgt gcgcctcggc gagcgggccc aggacctgcc caaccacccc tgccgcttcg
     4381 acaccaacac ccgcgtcctg gcgtcctgcg gcttctcctc gggccggcat cactgggagg
     4441 tggaggtggg ctctaaggac ggctgggcct ttggcgtggc ccgcgagagc gtgcgccgaa
     4501 agggcctgac gcccttcact cccgaggagg gcgtctgggc cctgcagctc aacggcggcc
     4561 agtactgggc cgtgaccagc cccgagcggt cgcccctcag ctgcgggcac ctgtcgcgcg
     4621 tgcgggtggc cctggacctg gaggtgggag ccgtgtcctt ctacgctgtg gaggacatgc
     4681 gccacctcta caccttccgc gtcaacttcc aggagcgcgt gttcccgctt ttctctgttt
     4741 gctccacggg cacctacttg cgaatctggc cttgaggatc caatcaacct ctggattaca
     4801 aaatttgtga aagattgact ggtattctta actatgttgc tccttttacg ctatgtggat
     4861 acgctgcttt aatgcctttg tatcatgcta ttgcttcccg tatggctttc attttctcct
     4921 ccttgtataa atcctggttg ctgtctcttt atgaggagtt gtggcccgtt gtcaggcaac
     4981 gtggcgtggt gtgcactgtg tttgctgacg caacccccac tggttggggc attgccacca
     5041 cctgtcagct cctttccggg actttcgctt tccccctccc tattgccacg gcggaactca
     5101 tcgccgcctg ccttgcccgc tgctggacag gggctcggct gttgggcact gacaattccg
     5161 tggtgttgtc ggggaagctg acgtcctttc catggctgct cgcctgtgtt gccacctgga
     5221 ttctgcgcgg gacgtccttc tgctacgtcc cttcggccct caatccagcg gaccttcctt
     5281 cccgcggcct gctgccggct ctgcggcctc ttccgcgtct ccgccttcgc cctcagacga
     5341 gtcggatctc cctttggccg cctccccgcc ggtaccttta agaccaatga cttacaaggc
     5401 agctgtagat cttagccact ttttaaaaga aaagggggga ctggaagggc taattcactc
     5461 ccaacgaaaa taagatctgc tttttgcttg tactgggtct ctctggttag accagatctg
     5521 agcctgggag ctctctggct aactagggaa cccactgctt aagcctcaat aaagcttgcc
     5581 ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac tctggtaact agagatccct
     5641 cagacccttt tagtcagtgt ggaaaatctc tagcagtagt agttcatgtc atcttattat
     5701 tcagtattta taacttgcaa agaaatgaat atcagagagt gagaggaact tgtttattgc
     5761 agcttataat ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt
     5821 ttcactgcat tctagttgtg gtttgtccaa actcatcaat gtatcttatc atgtctggct
     5881 ctagctatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     5941 atttttttta tttatgcaga ggccgaggcc gcctcggcct ctgagctatt ccagaagtag
     6001 tgaggaggct tttttggagg cctagacttt tgcagagacg gcccaaattc gtaatcatgg
     6061 tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc
     6121 ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg
     6181 ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc
     6241 ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact
     6301 gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta
     6361 atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag
     6421 caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc
     6481 cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta
     6541 taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg
     6601 ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc
     6661 tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac
     6721 gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac
     6781 ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg
     6841 aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga
     6901 aggacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt
     6961 agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag
     7021 cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct
     7081 gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg
     7141 atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat
     7201 gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc
     7261 tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg
     7321 gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct
     7381 ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca
     7441 actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg
     7501 ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg
     7561 tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc
     7621 cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag
     7681 ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg
     7741 ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag
     7801 tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat
     7861 agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg
     7921 atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca
     7981 gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca
     8041 aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat
     8101 tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag
     8161 aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtctaa
     8221 gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag gccctttcgt
     8281 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
     8341 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
     8401 gttggcgggt gtcggggctg gcttaactat gcggcatcag agcagattgt actgagagtg
     8461 caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg catcaggcgc
     8521 cattcgccat tcaggctgcg caactgttgg gaagggcgat cggtgcgggc ctcttcgcta
     8581 ttacgccagc tggcgaaagg gggatgtgct gcaaggcgat taagttgggt aacgccaggg
     8641 ttttcccagt cacgacgttg taaaacgacg gccagtgcca agctg
//
