pSL1632

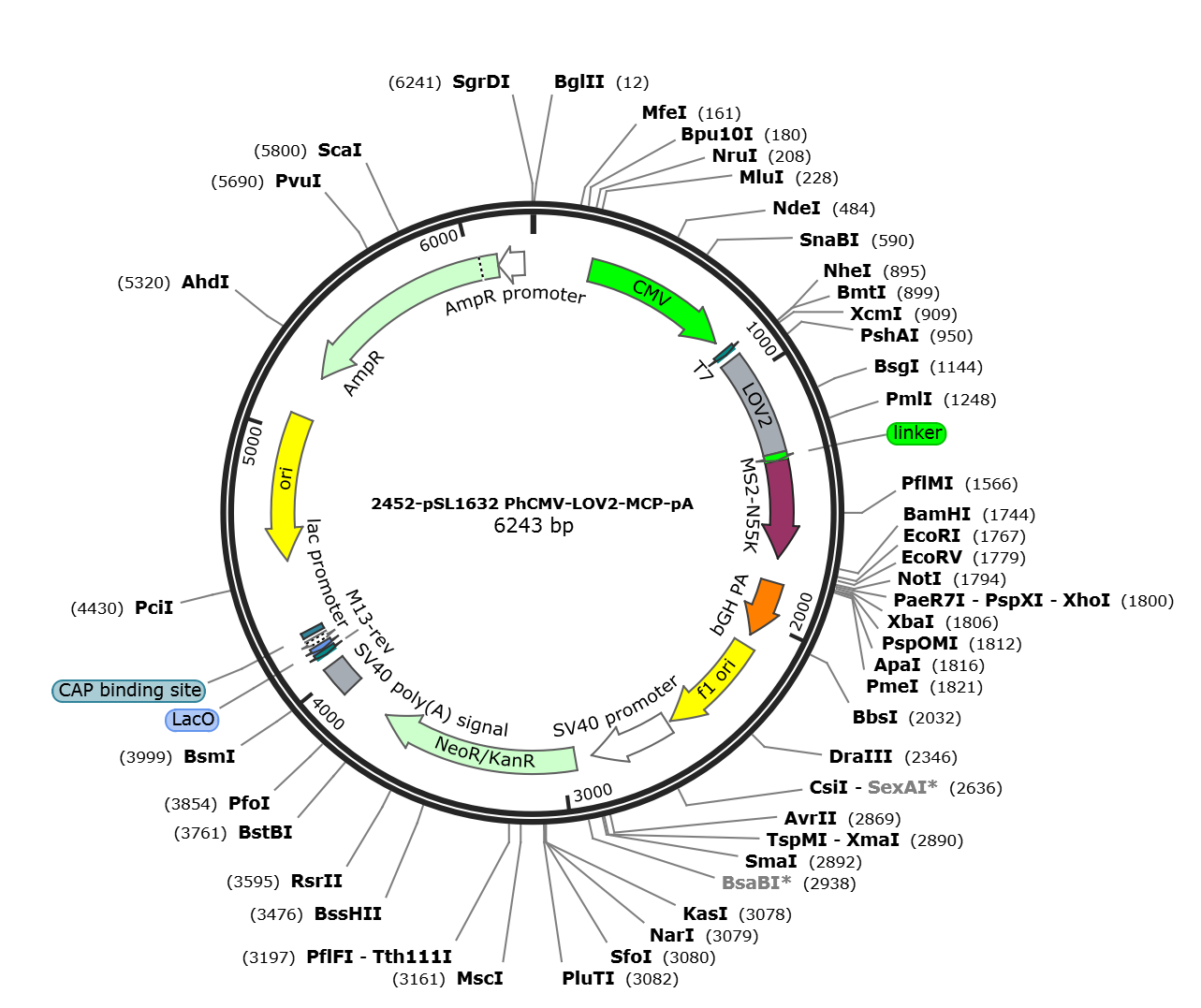

LOCUS      pSL1632          6243 bp DNA     circular SYN 09-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6243)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6243
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     881..930
                     /label=oSCL2662
     misc_feature    910..1323
                     /label=LOV2
     primer_bind     910..930
                     /label=oSCL1757
     primer_bind     910..930
                     /label=oSCL1819
     primer_bind     complement(1302..1343)
                     /label=oSCL2663
     primer_bind     complement(1302..1323)
                     /label=oSCL1758
     primer_bind     1316..1343
                     /label=oSCL1192
     primer_bind     1316..1341
                     /label=oLZ147 NS3a F
     primer_bind     1316..1340
                     /label=oYF0033
     primer_bind     1324..1375
                     /label=oSCL2664
     misc_feature    1324..1353
                     /label=linker
     primer_bind     1324..1353
                     /label=oSCL388
     primer_bind     1324..1353
                     /label=oSCL388a
     primer_bind     1324..1343
                     /label=oLZ048 NSP3-F
     primer_bind     1333..1353
                     /label=oSCL327
     primer_bind     complement(1334..1354)
                     /label=oSCL1119
     primer_bind     complement(1334..1353)
                     /label=oSCL075
     primer_bind     1339..1354
                     /label=oSCL1819
     CDS             1354..1743
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGVAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(1720..1763)
                     /label=oSCL2211
     primer_bind     complement(1720..1749)
                     /label=Oscl32-2
     primer_bind     complement(1720..1740)
                     /label=oSCL093
     terminator      1840..2067
                     /label=bGH PA
     rep_origin      2113..2541
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2555..2884
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     CDS             2951..3745
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3919..4040
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4085..4105)
                     /label=M13-rev
     misc_binding    complement(4111..4133)
                     /label=LacO
     promoter        complement(4137..4167)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4182..4203
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4491..5076)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5247..6107)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6108..6212)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgg gtttggaacg tatcgaaaag aattttgtca tcacggaccc gcgtctgccc
      961 gacaatccga ttatcttcgc gtcagactct ttcttacaac tgactgagta tagtagagag
     1021 gagatattgg ggcgtaactg tagatttctt caggggccag aaactgatcg ggctaccgtt
     1081 cgcaagatac gtgacgcaat agacaaccag accgaggtga cggtgcagct gattaactac
     1141 acaaagtctg ggaagaagtt ctggaacctg tttcatttac aacctatgag ggaccaaaaa
     1201 ggtgacgttc aatatttcat cggggttcag ttagatggga ctgagcacgt gagagatgca
     1261 gcagaaagag agggtgtaat gcttattaaa aaaacagccg agaatatcga cgaagccgct
     1321 ggtgccagcg gaagtggcgg aggaggcgac gtcgcttcaa actttactca gttcgtgctc
     1381 gtggacaatg gtgggacagg ggatgtgaca gtggctcctt ctaatttcgc taatggggtg
     1441 gcagagtgga tcagctccaa ctcacggagc caggcctaca aggtgacatg cagcgtcagg
     1501 cagtctagtg cccagaagag aaagtatacc atcaaggtgg aggtccccaa agtggctacc
     1561 cagacagtgg gcggagtcga actgcctgtc gccgcttgga ggtcctacct gaacatggag
     1621 ctcactatcc caattttcgc taccaattct gactgtgaac tcatcgtgaa ggcaatgcag
     1681 gggctcctca aagacggtaa tcctatccct tccgccatcg ccgctaactc aggtatctac
     1741 taaggatcca ctagtccagt gtggtggaat tctgcagata tccagcacag tggcggccgc
     1801 tcgagtctag agggcccgtt taaacccgct gatcagcctc gactgtgcct tctagttgcc
     1861 agccatctgt tgtttgcccc tcccccgtgc cttccttgac cctggaaggt gccactccca
     1921 ctgtcctttc ctaataaaat gaggaaattg catcgcattg tctgagtagg tgtcattcta
     1981 ttctgggggg tggggtgggg caggacagca agggggagga ttgggaagac aatagcaggc
     2041 atgctgggga tgcggtgggc tctatggctt ctgaggcgga aagaaccagc tggggctcta
     2101 gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc
     2161 gcagcgtgac cgctacactt gccagcgccc tagcgcccgc tcctttcgct ttcttccctt
     2221 cctttctcgc cacgttcgcc ggctttcccc gtcaagctct aaatcggggg ctccctttag
     2281 ggttccgatt tagtgcttta cggcacctcg accccaaaaa acttgattag ggtgatggtt
     2341 cacgtagtgg gccatcgccc tgatagacgg tttttcgccc tttgacgttg gagtccacgt
     2401 tctttaatag tggactcttg ttccaaactg gaacaacact caaccctatc tcggtctatt
     2461 cttttgattt ataagggatt ttgccgattt cggcctattg gttaaaaaat gagctgattt
     2521 aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt cagttagggt gtggaaagtc
     2581 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccag
     2641 gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta
     2701 gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc
     2761 cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc
     2821 ctctgcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg
     2881 caaaaagctc ccgggagctt gtatatccat tttcggatct gatcaagaga caggatgagg
     2941 atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga
     3001 gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt
     3061 ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct
     3121 gaatgaactg caggacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg
     3181 cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt
     3241 gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc
     3301 tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc
     3361 gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga
     3421 tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgcg
     3481 catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat
     3541 ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg
     3601 ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc
     3661 tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta
     3721 tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg
     3781 acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc
     3841 ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg
     3901 gagttcttcg cccaccccaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     3961 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     4021 aaactcatca atgtatctta tcatgtctgt ataccgtcga cctctagcta gagcttggcg
     4081 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     4141 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     4201 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     4261 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     4321 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     4381 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     4441 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     4501 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     4561 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     4621 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     4681 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     4741 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     4801 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     4861 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     4921 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     4981 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt ttttgtttgc
     5041 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     5101 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     5161 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     5221 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     5281 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     5341 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     5401 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     5461 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     5521 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     5581 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     5641 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     5701 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     5761 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     5821 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     5881 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     5941 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     6001 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     6061 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     6121 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     6181 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     6241 gtc
//
