pSL674

LOCUS       pSL674                6236 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6236)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

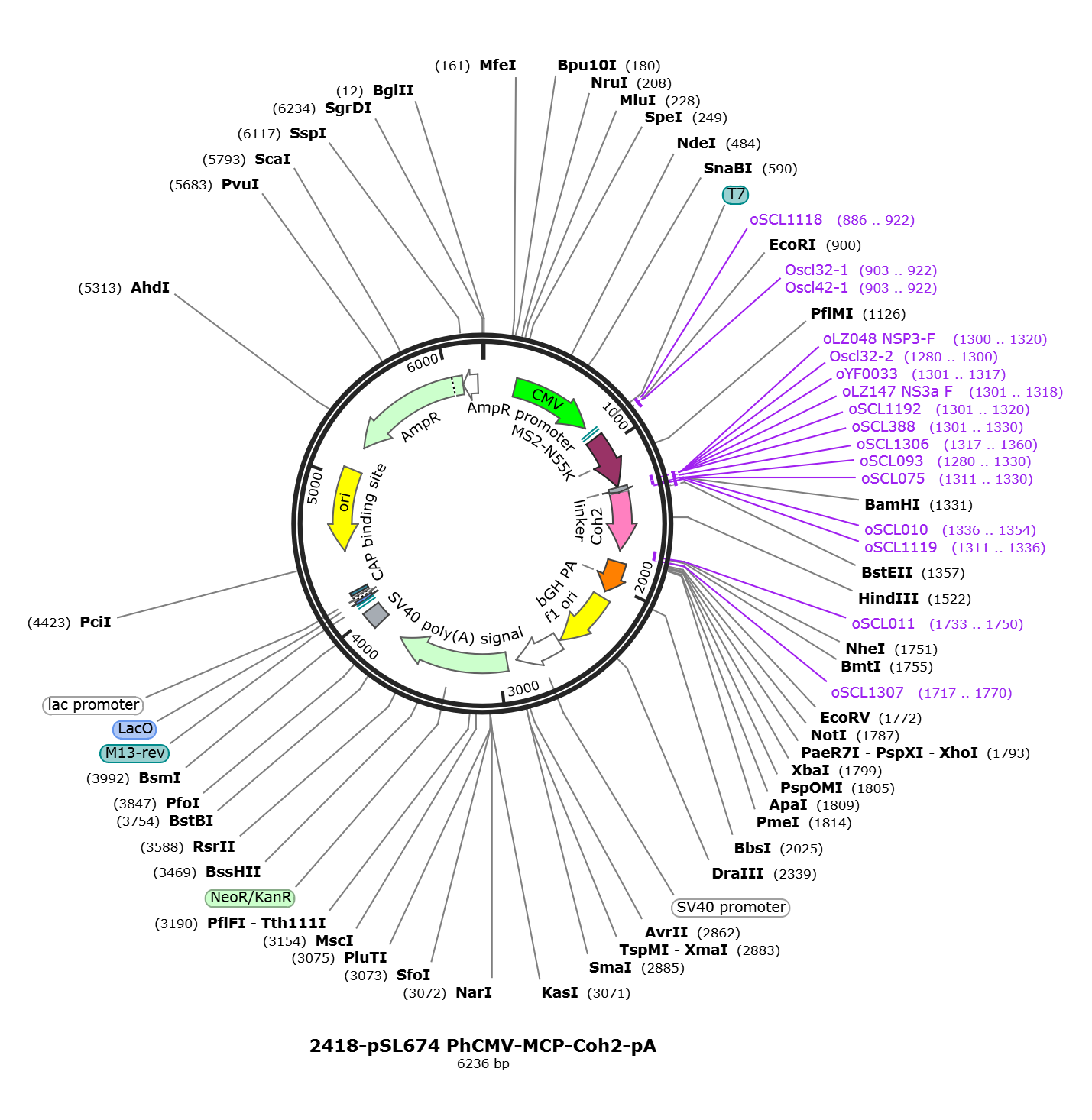

FEATURES             Location/Qualifiers
     source          1..6236
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     886..922
                     /label=oSCL1118
     primer_bind     903..922
                     /label=Oscl32-1
     primer_bind     903..922
                     /label=Oscl42-1
     regulatory      906..914
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             914..1300
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGVAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(1280..1330)
                     /label=oSCL093
     primer_bind     complement(1280..1300)
                     /label=Oscl32-2
     primer_bind     1300..1320
                     /label=oLZ048 NSP3-F
     misc_feature    1301..1336
                     /label=linker
     misc_feature    1301..1335
                     /label=linker
     primer_bind     1301..1330
                     /label=oSCL388
     primer_bind     1301..1320
                     /label=oSCL1192
     primer_bind     1301..1318
                     /label=oLZ147 NS3a F
     primer_bind     1301..1317
                     /label=oYF0033
     primer_bind     complement(1311..1336)
                     /label=oSCL1119
     primer_bind     complement(1311..1330)
                     /label=oSCL075
     primer_bind     1317..1360
                     /label=oSCL1306
     primer_bind     1336..1354
                     /label=oSCL010
     misc_feature    1337..1750
                     /label=Coh2
     primer_bind     complement(1717..1770)
                     /label=oSCL1307
     primer_bind     complement(1733..1750)
                     /label=oSCL011
     terminator      1833..2060
                     /label=bGH PA
     polyA_signal    1836..2060
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2106..2534
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2548..2877
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2728..2863
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2728..2805
                     /label=SV40 ORI
     CDS             2944..3738
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             2947..3738
                     /label=Kan/neoR
     polyA_signal    3912..4033
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4078..4098)
                     /label=M13-rev
     primer_bind     complement(4082..4098)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4104..4126)
                     /label=LacO
     protein_bind    4106..4122
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4130..4160)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4131..4160)
                     /label=lac
     protein_bind    4175..4196
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4484..5069)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5240..6100)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(5243..5902)
                     /label=AmpR
     promoter        complement(6101..6205)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(6142..6170)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagg
      901 aattcccacc atggcttcaa actttactca gttcgtgctc gtggacaatg gtgggacagg
      961 ggatgtgaca gtggctcctt ctaatttcgc taatggggtg gcagagtgga tcagctccaa
     1021 ctcacggagc caggcctaca aggtgacatg cagcgtcagg cagtctagtg cccagaagag
     1081 aaagtatacc atcaaggtgg aggtccccaa agtggctacc cagacagtgg gcggagtcga
     1141 actgcctgtc gccgcttgga ggtcctacct gaacatggag ctcactatcc caattttcgc
     1201 taccaattct gactgtgaac tcatcgtgaa ggcaatgcag gggctcctca aagacggtaa
     1261 tcctatccct tccgccatcg ccgctaactc aggtatctac gccagcggaa gtggcggagg
     1321 aggcgacgtc ggatccgtgg tggtggagat cggcaaggtg accggcagcg tgggaaccac
     1381 cgtggagatc cccgtgtact tcagaggcgt gcccagcaag ggcatcgcca actgcgactt
     1441 cgtgttcagg tacgacccca acgtgctgga gatcatcggc atcgaccccg gcgacatcat
     1501 cgtggacccc aaccccacca aaagcttcga caccgccatc taccccgaca ggaagatcat
     1561 cgtgttcctg tttgccgagg acagcggcac cggagcctac gccatcacca aggacggcgt
     1621 gttcgccaag atcagggcca ccgtgaagtc ctccgcccct ggctacatca ccttcgacga
     1681 ggtgggcggc ttcgccgaca acgacctggt ggagcagaag gtgagcttca tcgacggcgg
     1741 cgtgaacgtg gctagctaga aattctgcag atatccagca cagtggcggc cgctcgagtc
     1801 tagagggccc gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt gccagccatc
     1861 tgttgtttgc ccctcccccg tgccttcctt gaccctggaa ggtgccactc ccactgtcct
     1921 ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg
     1981 gggtggggtg gggcaggaca gcaaggggga ggattgggaa gacaatagca ggcatgctgg
     2041 ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc agctggggct ctagggggta
     2101 tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
     2161 gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct
     2221 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
     2281 atttagtgct ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag
     2341 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
     2401 tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga
     2461 tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa
     2521 atttaacgcg aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc
     2581 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga
     2641 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     2701 accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat
     2761 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc
     2821 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag
     2881 ctcccgggag cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt
     2941 cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta
     3001 ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg
     3061 tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa
     3121 ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct
     3181 gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg
     3241 caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca
     3301 atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat
     3361 cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac
     3421 gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc
     3481 gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa
     3541 aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag
     3601 gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc
     3661 ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt
     3721 cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca
     3781 acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa
     3841 tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct
     3901 tcgcccaccc caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca
     3961 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca
     4021 tcaatgtatc ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat
     4081 ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag
     4141 ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg
     4201 cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa
     4261 tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca
     4321 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     4381 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     4441 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     4501 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     4561 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     4621 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     4681 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     4741 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     4801 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     4861 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     4921 gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     4981 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tttttttgtt tgcaagcagc
     5041 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     5101 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     5161 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     5221 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     5281 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     5341 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     5401 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     5461 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     5521 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     5581 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     5641 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     5701 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     5761 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     5821 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     5881 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     5941 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     6001 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     6061 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     6121 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     6181 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtc
//
