pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG载体质粒基本信息

质粒名称: pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG
出品公司: Wekwikgene
目录编号: 0001885
产品用途: 3' AAVLINK plasmid for TET2 expression
存储实验室: Zhonghua Lu Lab

载体骨架基本信息
载体名称: pAAV-MCS2
表达系统: 腺病毒
启动子: SCP1
拷贝数: 高拷贝
载体抗性: 氨苄霉素
生长温度: 37 ℃
宿主菌: DH5alpha

插入基因信息
插入基因名称: TET2
物种来源: H.sapiens
密码子优化: 未优化

文献引用方法
参考文献部分:
AAVLINK: A Potent DNA-Recombination Method for Large Cargo Delivery in Gene Therapy
Jianbang Lin, Yunping Lin, Sijia Wen, Wenhua Cao, Jianqing Zhang, Yujing Zhang, Zexuan Hong, Wenhui Liao, Yunyi Lin, Hanhe Liu, Qiwei Liu, Qi Li, Baiming Chen, Mengqi Li, Ziwei Luo, Luyu Yang, Yi Yang, Stephanie H. Zheng, Youcui Wang, Hongyuan Chu, Yu Hu, Yifan Qin, Brooke X. Luo, Shiyu Tian, Yefei Chen, Ting Yan, Lixin Yang, Hong Wang, Taian Liu, Yuwu Jiang, and Zhonghua Lu.
Under Review

pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG质粒图谱载体图谱和pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG载体序列质粒序列多克隆位点信息

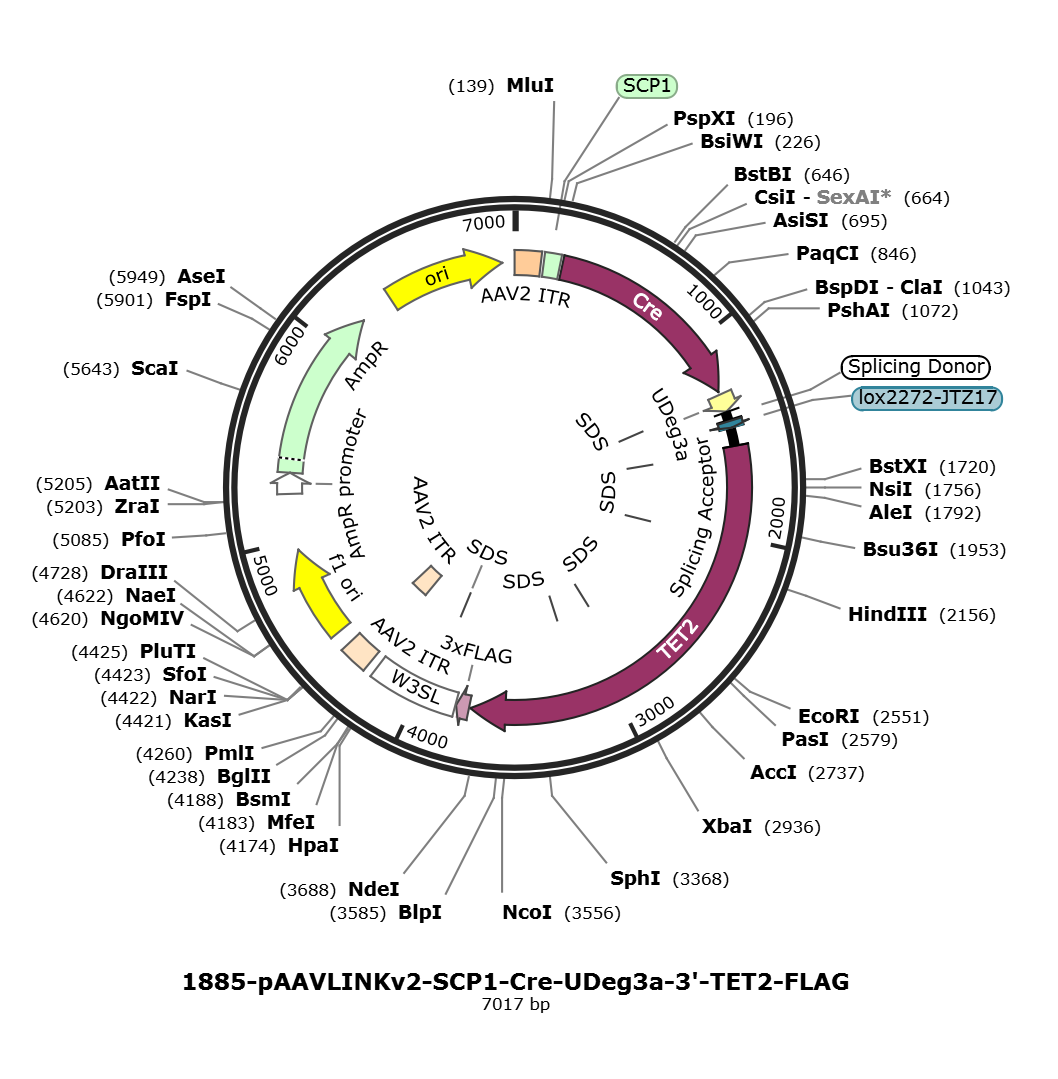

pAAVLINKv2-SCP1-Cre-UDeg3a-3-TET2-FLAG载体图谱

pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG质粒载体简介

pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG质粒序列载体序列

LOCUS       pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG               7017 bp DNA     circular SYN 25-NOV-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7017)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported Jun 12, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7017
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
                     /note="color: #ffe4c4"
     misc_feature    145..225
                     /label=SCP1
     CDS             237..1265
                     /codon_start=1
                     /product="site-specific recombinase"
                     /label=Cre
                     /note="Cre is a site-specific recombinase from
                     bacteriophage P1. Recombination occurs at loxP sequences."
                     /translation="MSNLLTVHQNLPALPVDATSDEVRKNLMDMFRDRQAFSEHTWKML
                     LSVCRSWAAWCKLNNRKWFPAEPEDVRDYLLYLQARGLAVKTIQQHLGQLNMLHRRSGL
                     PRPSDSNAVSLVMRRIRKENVDAGERAKQALAFERTDFDQVRSLMENSDRCQDIRNLAF
                     LGIAYNTLLRIAEIARIRVKDISRTDGGRMLIHIGRTKTLVSTAGVEKALSLGVTKLVE
                     RWISVSGVADDPNNYLFCRVRKNGVAAPSATSQLSTRALEGIFEATHRLIYGAKDDSGQ
                     RYLAWSGHSARVGAARDMARAGVSIPEIMQAGGWTNVNIVMNYIRNLDSETGAMVRLLE
                     DGD"
     CDS             1281..1370
                     /codon_start=1
                     /label=UDeg3a
                     /translation="LLLKLLLLGGGSGPRPRGTRGKGRRIHYKG"
     misc_feature    1295..1300
                     /label=SDS
     misc_feature    1298..1303
                     /label=SDS
     intron          1374..1414
                     /label=Splicing Donor
     protein_bind    1421..1454
                     /label=lox2272-JTZ17
                     /bound_moiety="Cre recombinase"
                     /note="Right element (RE) mutant of loxP (Araki et al.,
                     2010). Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     intron          1455..1546
                     /label=Splicing Acceptor
                     /note="Splicing acceptor"
     CDS             1547..3730
                     /codon_start=1
                     /gene="TET2"
                     /gene_synonym="IMD75; KIAA1546; MDS"
                     /product="methylcytosine dioxygenase TET2 isoform a"
                     /EC_number="1.14.11.80"
                     /label=TET2
                     /note="isoform a is encoded by transcript variant
                     1;probable methylcytosine dioxygenase TET2; tet oncogene
                     family member 2; ten-eleven translocation 2"
                     /db_xref="GI:187761317"
                     /db_xref="CCDS:CCDS47120.1"
                     /db_xref="GeneID:54790"
                     /db_xref="HGNC:HGNC:25941"
                     /db_xref="MIM:612839"
                     /protein_id="NP_001120680.1"
                     /translation="GLDPETCGASFSFGCSWSMYYNGCKFARSKIPRKFKLLGDDPKEE
                     EKLESHLQNLSTLMAPTYKKLAPDAYNNQIEYEHRAPECRLGLKEGRPFSGVTACLDFC
                     AHAHRDLHNMQNGSTLVCTLTREDNREFGGKPEDEQLHVLPLYKVSDVDEFGSVEAQEE
                     KKRSGAIQVLSSFRRKVRMLAEPVKTCRQRKLEAKKAAAEKLSSLENSSNKNEKEKSAP
                     SRTKQTENASQAKQLAELLRLSGPVMQQSQQPQPLQKQPPQPQQQQRPQQQQPHHPQTE
                     SVNSYSASGSTNPYMRRPNPVSPYPNSSHTSDIYGSTSPMNFYSTSSQAAGSYLNSSNP
                     MNPYPGLLNQNTQYPSYQCNGNLSVDNCSPYLGSYSPQSQPMDLYRYPSQDPLSKLSLP
                     PIHTLYQPRFGNSQSFTSKYLGYGNQNMQGDGFSSCTIRPNVHHVGKLPPYPTHEMDGH
                     FMGATSRLPPNLSNPNMDYKNGEHHSPSHIIHNYSAAPGMFNSSLHALHLQNKENDMLS
                     HTANGLSKMLPALNHDRTACVQGGLHKLSDANGQEKQPLALVQGVASGAEDNDEVWSDS
                     EQSFLDPDIGGVAVAPTHGSILIECAKRELHATTPLKNPNRNHPTRISLVFYQHKSMNE
                     PKHGLALWEAKMAEKAREKEEECEKYGPDYVPQKSHGKKVKREPAEPHETSEPTYLRFI
                     KSLAERTMSVTTDSTVTTSPYAFTRVTGPYNRYI"
     misc_feature    1572..1577
                     /label=SDS
     misc_feature    2028..2033
                     /label=SDS
     misc_feature    2888..2893
                     /label=SDS
     misc_feature    3163..3168
                     /label=SDS
     CDS             3737..3802
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     terminator      3806..4237
                     /label=W3SL
                     /note="Short WPRE and SV40 polyA"
     misc_feature    3950..3955
                     /label=SDS
     repeat_region   4280..4420
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     misc_feature    4280..4409
                     /label=AAV2 ITR
     repeat_region   4281..4421
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     rep_origin      4495..4950
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        5232..5336
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5337..6197
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      6368..6956
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtgtactt atataagggg gtgggggcgc gttcgtcctc
      181 agtcgcgatc gaacactcga gccgagcaga cgtgcctacg gaccgcgtac gccaccatgt
      241 ccaatttact gaccgtacac caaaatttgc ctgcattacc ggtcgatgca acgagtgatg
      301 aggttcgcaa gaacctgatg gacatgttca gggatcgcca ggcgttttct gagcatacct
      361 ggaaaatgct tctgtccgtt tgccggtcgt gggcggcatg gtgcaagttg aataaccgga
      421 aatggtttcc cgcagaacct gaagatgttc gcgattatct tctatatctt caggcgcgcg
      481 gtctggcagt aaaaaccatc cagcaacatt tgggccagct aaacatgctt catcgtcggt
      541 ccgggctgcc acgaccaagt gacagcaatg ctgtttcact ggttatgcgg cggatccgaa
      601 aagaaaacgt tgatgccggt gaacgtgcaa aacaggctct agcgttcgaa cgcactgatt
      661 tcgaccaggt tcgttcactc atggaaaata gcgatcgctg ccaggatata cgtaatctgg
      721 catttctggg gattgcttat aacaccctgt tacgtatagc cgaaattgcc aggatcaggg
      781 ttaaagatat ctcacgtact gacggtggga gaatgttaat ccatattggc agaacgaaaa
      841 cgctggttag caccgcaggt gtagagaagg cacttagcct gggggtaact aaactggtcg
      901 agcgatggat ttccgtctct ggtgtagctg atgatccgaa taactacctg ttttgccggg
      961 tcagaaaaaa tggtgttgcc gcgccatctg ccaccagcca gctatcaact cgcgccctgg
     1021 aagggatttt tgaagcaact catcgattga tttacggcgc taaggatgac tctggtcaga
     1081 gatacctggc ctggtctgga cacagtgccc gtgtcggagc cgcgcgagat atggcccgcg
     1141 ctggagtttc aataccggag atcatgcaag ctggtggctg gaccaatgta aatattgtaa
     1201 tgaactatat ccgtaacctg gatagtgaaa caggggcaat ggtgcgcctg ctggaagatg
     1261 gcgatggagg tggatctggt ctgctgctga aactcctcct cctcggtggt ggttctggtc
     1321 ctcgtccccg tggtactcgt ggtaaaggtc gccgtattca ctacaaagga taagtaagta
     1381 tcaaggttac aagacaggtt taaggagacc aataactagt ataacttcgt ataggatact
     1441 ttatagcaat ttatgaaact gggcttgtcg agacagagaa gactcttgcg tttctgatag
     1501 gcacctattg gtcttactga catccacttt gcctttctct ccacaggggc tggatccaga
     1561 aacctgtggt gcctccttct cttttggttg ttcatggagc atgtactaca atggatgtaa
     1621 gtttgccaga agcaagatcc caaggaagtt taagctgctt ggggatgacc caaaagagga
     1681 agagaaactg gagtctcatt tgcaaaacct gtccactctt atggcaccaa catataagaa
     1741 acttgcacct gatgcatata ataatcagat tgaatatgaa cacagagcac cagagtgccg
     1801 tctgggtctg aaggaaggcc gtccattctc aggggtcact gcatgtttgg acttctgtgc
     1861 tcatgcccac agagacttgc acaacatgca gaatggcagc acattggtat gcactctcac
     1921 tagagaagac aatcgagaat ttggaggaaa acctgaggat gagcagcttc acgttctgcc
     1981 tttatacaaa gtctctgacg tggatgagtt tgggagtgtg gaagctcagg aggagaaaaa
     2041 acggagtggt gccattcagg tactgagttc ttttcggcga aaagtcagga tgttagcaga
     2101 gccagtcaag acttgccgac aaaggaaact agaagccaag aaagctgcag ctgaaaagct
     2161 ttcctccctg gagaacagct caaataaaaa tgaaaaggaa aagtcagccc catcacgtac
     2221 aaaacaaact gaaaacgcaa gccaggctaa acagttggca gaacttttgc gactttcagg
     2281 accagtcatg cagcagtccc agcagcccca gcctctacag aagcagccac cacagcccca
     2341 gcagcagcag agaccccagc agcagcagcc acatcaccct cagacagagt ctgtcaactc
     2401 ttattctgct tctggatcca ccaatccata catgagacgg cccaatccag ttagtcctta
     2461 tccaaactct tcacacactt cagatatcta tggaagcacc agccctatga acttctattc
     2521 cacctcatct caagctgcag gttcatattt gaattcttct aatcccatga acccttaccc
     2581 tgggcttttg aatcagaata cccaatatcc atcatatcaa tgcaatggaa acctatcagt
     2641 ggacaactgc tccccatatc tgggttccta ttctccccag tctcagccga tggatctgta
     2701 taggtatcca agccaagacc ctctgtctaa gctcagtcta ccacccatcc atacacttta
     2761 ccagccaagg tttggaaata gccagagttt tacatctaaa tacttaggtt atggaaacca
     2821 aaatatgcag ggagatggtt tcagcagttg taccattaga ccaaatgtac atcatgtagg
     2881 gaaattgcct ccttatccca ctcatgagat ggatggccac ttcatgggag ccacctctag
     2941 attaccaccc aatctgagca atccaaacat ggactataaa aatggtgaac atcattcacc
     3001 ttctcacata atccataact acagtgcagc tccgggcatg ttcaacagct ctcttcatgc
     3061 cctgcatctc caaaacaagg agaatgacat gctttcccac acagctaatg ggttatcaaa
     3121 gatgcttcca gctcttaacc atgatagaac tgcttgtgtc caaggaggct tacacaaatt
     3181 aagtgatgct aatggtcagg aaaagcagcc attggcacta gtccagggtg tggcttctgg
     3241 tgcagaggac aacgatgagg tctggtcaga cagcgagcag agctttctgg atcctgacat
     3301 tgggggagtg gccgtggctc caactcatgg gtcaattctc attgagtgtg caaagcgtga
     3361 gctgcatgcc acaacccctt taaagaatcc caataggaat caccccacca ggatctccct
     3421 cgtcttttac cagcataaga gcatgaatga gccaaaacat ggcttggctc tttgggaagc
     3481 caaaatggct gaaaaagccc gtgagaaaga ggaagagtgt gaaaagtatg gcccagacta
     3541 tgtgcctcag aaatcccatg gcaaaaaagt gaaacgggag cctgctgagc cacatgaaac
     3601 ttcagagccc acttacctgc gtttcatcaa gtctcttgcc gaaaggacca tgtccgtgac
     3661 cacagactcc acagtaacta catctccata tgccttcact cgggtcacag ggccttacaa
     3721 cagatatata tgtacagact acaaagacca tgacggtgat tataaagatc atgacatcga
     3781 ctacaaggat gacgatgaca agtaactcga gataatcaac ctctggatta caaaatttgt
     3841 gaaagattga ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct
     3901 ttaatgcctt tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat
     3961 aaatcctggt tagttcttgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg
     4021 acaggggctc ggctgttggg cactgacaat tccgtggtgt ttatttgtga aatttgtgat
     4081 gctattgctt tatttgtaac catctagctt tatttgtgaa atttgtgatg ctattgcttt
     4141 atttgtaacc attataagct gcaataaaca agttaacaac aacaattgca ttcattttat
     4201 gtttcaggtt cagggggaga tgtgggaggt tttttaaaga tctggagacc ggtgtggcac
     4261 gtgcggaccg agcggccgca ggaaccccta gtgatggagt tggccactcc ctctctgcgc
     4321 gctcgctcgc tcactgaggc cgggcgacca aaggtcgccc gacgcccggg ctttgcccgg
     4381 gcggcctcag tgagcgagcg agcgcgcagc tgcctgcagg ggcgcctgat gcggtatttt
     4441 ctccttacgc atctgtgcgg tatttcacac cgcatacgtc aaagcaacca tagtacgcgc
     4501 cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg accgctacac
     4561 ttgccagcgc cttagcgccc gctcctttcg ctttcttccc ttcctttctc gccacgttcg
     4621 ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga tttagtgctt
     4681 tacggcacct cgaccccaaa aaacttgatt tgggtgatgg ttcacgtagt gggccatcgc
     4741 cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat agtggactct
     4801 tgttccaaac tggaacaaca ctcaactcta tctcgggcta ttcttttgat ttataaggga
     4861 ttttgccgat ttcggtctat tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga
     4921 attttaacaa aatattaacg tttacaattt tatggtgcac tctcagtaca atctgctctg
     4981 atgccgcata gttaagccag ccccgacacc cgccaacacc cgctgacgcg ccctgacggg
     5041 cttgtctgct cccggcatcc gcttacagac aagctgtgac cgtctccggg agctgcatgt
     5101 gtcagaggtt ttcaccgtca tcaccgaaac gcgcgagacg aaagggcctc gtgatacgcc
     5161 tatttttata ggttaatgtc atgataataa tggtttctta gacgtcaggt ggcacttttc
     5221 ggggaaatgt gcgcggaacc cctatttgtt tatttttcta aatacattca aatatgtatc
     5281 cgctcatgag acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtatga
     5341 gtattcaaca tttccgtgtc gcccttattc ccttttttgc ggcattttgc cttcctgttt
     5401 ttgctcaccc agaaacgctg gtgaaagtaa aagatgctga agatcagttg ggtgcacgag
     5461 tgggttacat cgaactggat ctcaacagcg gtaagatcct tgagagtttt cgccccgaag
     5521 aacgttttcc aatgatgagc acttttaaag ttctgctatg tggcgcggta ttatcccgta
     5581 ttgacgccgg gcaagagcaa ctcggtcgcc gcatacacta ttctcagaat gacttggttg
     5641 agtactcacc agtcacagaa aagcatctta cggatggcat gacagtaaga gaattatgca
     5701 gtgctgccat aaccatgagt gataacactg cggccaactt acttctgaca acgatcggag
     5761 gaccgaagga gctaaccgct tttttgcaca acatggggga tcatgtaact cgccttgatc
     5821 gttgggaacc ggagctgaat gaagccatac caaacgacga gcgtgacacc acgatgcctg
     5881 tagcaatggc aacaacgttg cgcaaactat taactggcga actacttact ctagcttccc
     5941 ggcaacaatt aatagactgg atggaggcgg ataaagttgc aggaccactt ctgcgctcgg
     6001 cccttccggc tggctggttt attgctgata aatctggagc cggtgagcgt gggtctcgcg
     6061 gtatcattgc agcactgggg ccagatggta agccctcccg tatcgtagtt atctacacga
     6121 cggggagtca ggcaactatg gatgaacgaa atagacagat cgctgagata ggtgcctcac
     6181 tgattaagca ttggtaactg tcagaccaag tttactcata tatactttag attgatttaa
     6241 aacttcattt ttaatttaaa aggatctagg tgaagatcct ttttgataat ctcatgacca
     6301 aaatccctta acgtgagttt tcgttccact gagcgtcaga ccccgtagaa aagatcaaag
     6361 gatcttcttg agatcctttt tttctgcgcg taatctgctg cttgcaaaca aaaaaaccac
     6421 cgctaccagc ggtggtttgt ttgccggatc aagagctacc aactcttttt ccgaaggtaa
     6481 ctggcttcag cagagcgcag ataccaaata ctgttcttct agtgtagccg tagttaggcc
     6541 accacttcaa gaactctgta gcaccgccta catacctcgc tctgctaatc ctgttaccag
     6601 tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt ggactcaaga cgatagttac
     6661 cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg cacacagccc agcttggagc
     6721 gaacgaccta caccgaactg agatacctac agcgtgagct atgagaaagc gccacgcttc
     6781 ccgaagggag aaaggcggac aggtatccgg taagcggcag ggtcggaaca ggagagcgca
     6841 cgagggagct tccaggggga aacgcctggt atctttatag tcctgtcggg tttcgccacc
     6901 tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg gcggagccta tggaaaaacg
     6961 ccagcaacgc ggccttttta cggttcctgg ccttttgctg gccttttgct cacatgt
//

pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG载体图谱质粒图谱pdf版和pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG载体序列质粒序列等相关资料下载

pAAVLINKv2-SCP1-Cre-UDeg3a-3'-TET2-FLAG质粒载体应用举例

分享到：
推荐 7

全部质粒载体分类

相关质粒载体

相关质粒载体文章

相关载体质粒问答

关于我们 加入生物风 网站地图 Sitemap
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
