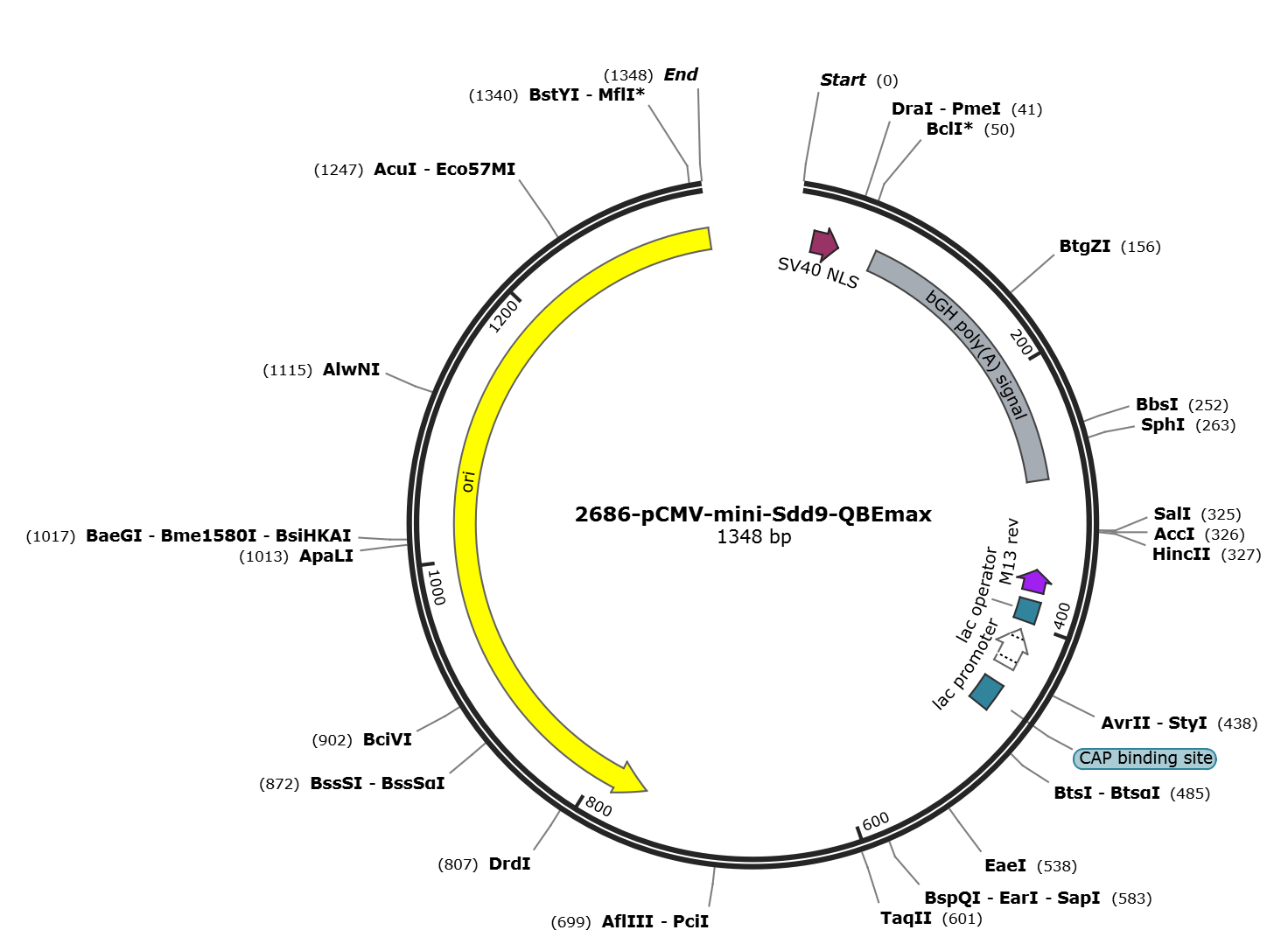

pCMV-mini-Sdd9-QBEmax

LOCUS       pCMV-mini-Sdd9-QBEmax          1348 bp DNA     linear   UNA 17-JUN-2026
DEFINITION  natural linear DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      natural DNA sequence
  ORGANISM  unspecified
REFERENCE   1  (bases 1 to 1348)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..1348
                     /mol_type="genomic DNA"
                     /organism="unspecified"
     CDS             14..34
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     polyA_signal    63..287
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(358..374)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    382..398
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(406..436)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    451..472
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(760..1348)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 ctcagagttc gagcccaaaa agaagcggaa agtgtaagtt taaacccgct gatcagcctc
       61 gactgtgcct tctagttgcc agccatctgt tgtttgcccc tcccccgtgc cttccttgac
      121 cctggaaggt gccactccca ctgtcctttc ctaataaaat gaggaaattg catcgcattg
      181 tctgagtagg tgtcattcta ttctgggggg tggggtgggg caggacagca agggggagga
      241 ttgggaagac aatagcaggc atgctgggga tgcggtgggc tctatggctt ctgaggcgga
      301 aagaaccagc tggggctcga taccgtcgac ctctagctag agcttggcgt aatcatggtc
      361 atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg
      421 aagcataaag tgtaaagcct agggtgccta atgagtgagc taactcacat taattgcgtt
      481 gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg
      541 ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga
      601 ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat
      661 acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca
      721 aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc
      781 tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata
      841 aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc
      901 gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc
      961 acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga
     1021 accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc
     1081 ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag
     1141 gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag
     1201 aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag
     1261 ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca
     1321 gattacgcgc agaaaaaaag gatctcaa
//
