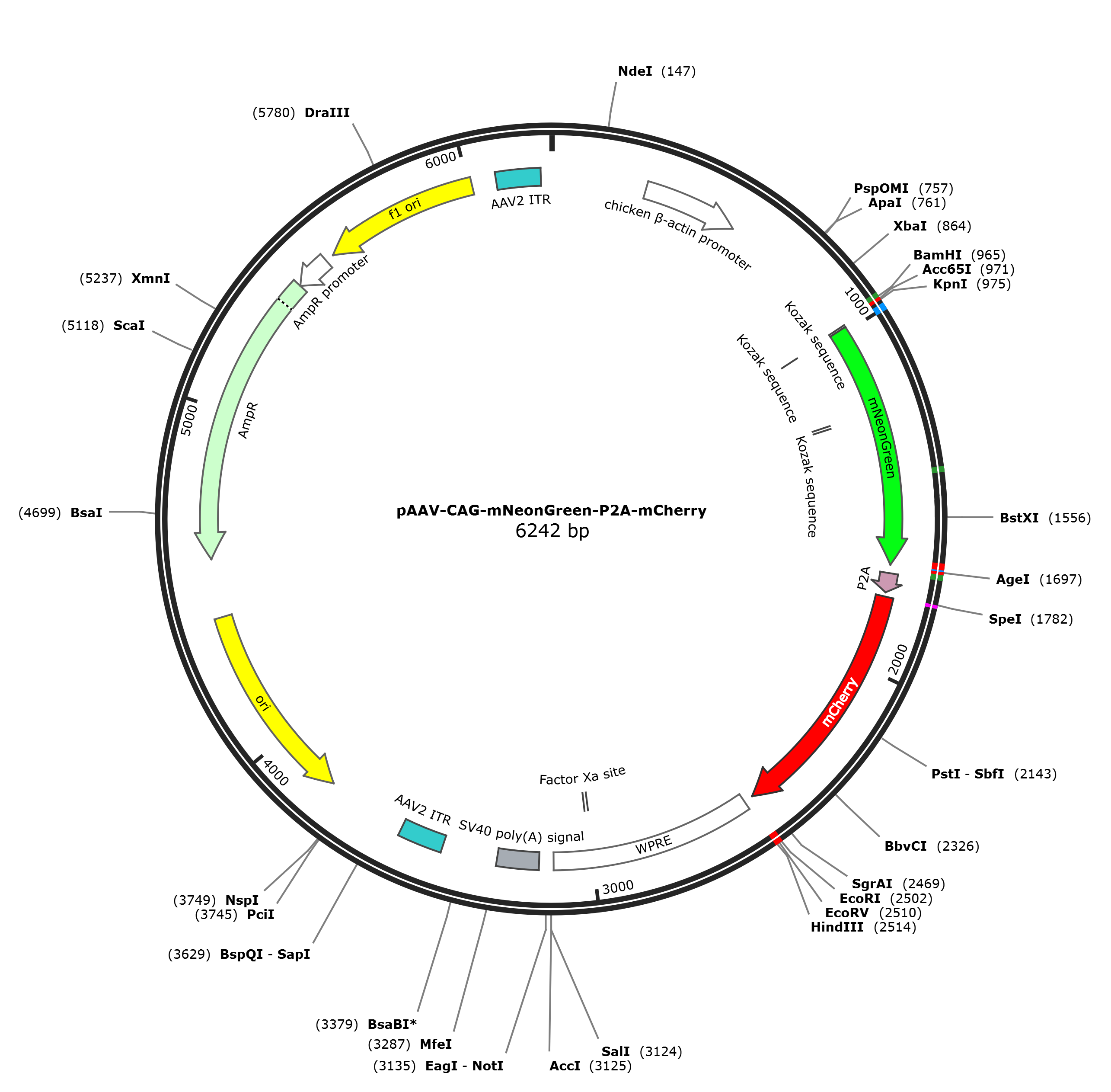

pAAV-CAG-mNeonGreen-P2A-mCherry

LOCUS       pAAV-CAG-mNeonGreen-P2A-mCherry        6242 bp DNA     circular SYN 01-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6242)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jul 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6242
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     misc_feature    981..986
                     /label=Kozak sequence
     CDS             987..1694
                     /codon_start=1
                     /product="bright monomeric yellow-green fluorescent protein
                     derived from LanYFP (Shaner et al., 2013)"
                     /label=mNeonGreen
                     /translation="MVSKGEEDNMASLPATHELHIFGSINGVDFDMVGQGTGNPNDGYE
                     ELNLKSTKGDLQFSPWILVPHIGYGFHQYLPYPDGMSPFQAAMVDGSGYQVHRTMQFED
                     GASLTVNYRYTYEGSHIKGEAQVKGTGFPADGPVMTNSLTAADWCRSKKTYPNDKTIIS
                     TFKWSYTTGNGKRYRSTARTTYTFAKPMAANYLKNQPMYVFRKTELKHSKTELNFKEWQ
                     KAFTDVMGMDELYK"
     regulatory      987..990
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     regulatory      1242..1251
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             1719..1775
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             1788..2498
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    2526..3114
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(2997..3008)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3157..3278
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     repeat_region   3440..3569
                     /label=AAV2 ITR
     rep_origin      complement(3806..4394)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4565..5425)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5426..5530)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5556..6011)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     repeat_region   6083..6212
                     /label=AAV2 ITR
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccctaa gccaccatgg tgagcaaggg cgaggaggat aacatggcct
     1021 ctctcccagc gacacatgag ttacacatct ttggctccat caacggtgtg gactttgaca
     1081 tggtgggtca gggcaccggc aatccaaatg atggttatga ggagttaaac ctgaagtcca
     1141 ccaagggtga cctccagttc tccccctgga ttctggtccc tcatatcggg tatggcttcc
     1201 atcagtacct gccctaccct gacgggatgt cgcctttcca ggccgccatg gtagatggct
     1261 ccggctacca agtccatcgc acaatgcagt ttgaagatgg tgcctccctt actgttaact
     1321 accgctacac ctacgaggga agccacatca aaggagaggc ccaggtgaag gggactggtt
     1381 tccctgctga cggtcctgtg atgaccaact cgctgaccgc tgcggactgg tgcaggtcga
     1441 agaagactta ccccaacgac aaaaccatca tcagtacctt taagtggagt tacaccacgg
     1501 gaaatggcaa gcgctaccgg agcactgcgc ggaccaccta cacctttgcc aagccaatgg
     1561 cggctaacta tctgaagaac cagccgatgt acgtgttccg taagacggag ctcaagcact
     1621 ccaagaccga gctcaacttc aaggagtggc aaaaggcctt taccgatgtg atgggcatgg
     1681 acgagctgta caagcgaccg gttcacgtgg gaagtggggc tacaaacttc tcactgctga
     1741 aacaggccgg ggatgtggag gaaaacccag gaccacacgt gactagtatg gtgagcaagg
     1801 gcgaggagga taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg
     1861 gctccgtgaa cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg
     1921 gcacccagac cgccaagctg aaggtgacca agggtggccc cctgcccttc gcctgggaca
     1981 tcctgtcccc tcagttcatg tacggctcca aggcctacgt gaagcacccc gccgacatcc
     2041 ccgactactt gaagctgtcc ttccccgagg gcttcaagtg ggagcgcgtg atgaacttcg
     2101 aggacggcgg cgtggtgacc gtgacccagg actcctccct gcaggacggc gagttcatct
     2161 acaaggtgaa gctgcgcggc accaacttcc cctccgacgg ccccgtaatg cagaagaaga
     2221 ccatgggctg ggaggcctcc tccgagcgga tgtaccccga ggacggcgcc ctgaagggcg
     2281 agatcaagca gaggctgaag ctgaaggacg gcggccacta cgacgctgag gtcaagacca
     2341 cctacaaggc caagaagccc gtgcagctgc ccggcgccta caacgtcaac atcaagttgg
     2401 acatcacctc ccacaacgag gactacacca tcgtggaaca gtacgaacgc gccgagggcc
     2461 gccactccac cggcggcatg gacgagctgt acaagtagta agaattcgat atcaagctta
     2521 tcgataatca acctctggat tacaaaattt gtgaaagatt gactggtatt cttaactatg
     2581 ttgctccttt tacgctatgt ggatacgctg ctttaatgcc tttgtatcat gctattgctt
     2641 cccgtatggc tttcattttc tcctccttgt ataaatcctg gttgctgtct ctttatgagg
     2701 agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac tgtgtttgct gacgcaaccc
     2761 ccactggttg gggcattgcc accacctgtc agctcctttc cgggactttc gctttccccc
     2821 tccctattgc cacggcggaa ctcatcgccg cctgccttgc ccgctgctgg acaggggctc
     2881 ggctgttggg cactgacaat tccgtggtgt tgtcggggaa atcatcgtcc tttccttggc
     2941 tgctcgcctg tgttgccacc tggattctgc gcgggacgtc cttctgctac gtcccttcgg
     3001 ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc ggctctgcgg cctcttccgc
     3061 gtcttcgcct tcgccctcag acgagtcgga tctccctttg ggccgcctcc ccgcatcgat
     3121 accgtcgacc cgggcggccg cttcgagcag acatgataag atacattgat gagtttggac
     3181 aaaccacaac tagaatgcag tgaaaaaaat gctttatttg tgaaatttgt gatgctattg
     3241 ctttatttgt aaccattata agctgcaata aacaagttaa caacaacaat tgcattcatt
     3301 ttatgtttca ggttcagggg gagatgtggg aggtttttta aagcaagtaa aacctctaca
     3361 aatgtggtaa aatcgataag gatcttccta gagcatggct acgtagataa gtagcatggc
     3421 gggttaatca ttaactacaa ggaaccccta gtgatggagt tggccactcc ctctctgcgc
     3481 gctcgctcgc tcactgaggc cgggcgacca aaggtcgccc gacgcccggg ctttgcccgg
     3541 gcggcctcag tgagcgagcg agcgcgcagc tgcattaatg aatcggccaa cgcgcgggga
     3601 gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg
     3661 tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag
     3721 aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc
     3781 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     3841 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     3901 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     3961 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     4021 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     4081 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     4141 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     4201 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     4261 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     4321 aacaaaccac cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa
     4381 aaaaaggatc tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg
     4441 aaaactcacg ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc
     4501 ttttaaatta aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg
     4561 acagttacca atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat
     4621 ccatagttgc ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg
     4681 gccccagtgc tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa
     4741 taaaccagcc agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca
     4801 tccagtctat taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc
     4861 gcaacgttgt tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt
     4921 cattcagctc cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa
     4981 aagcggttag ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat
     5041 cactcatggt tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct
     5101 tttctgtgac tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga
     5161 gttgctcttg cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag
     5221 tgctcatcat tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga
     5281 gatccagttc gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca
     5341 ccagcgtttc tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg
     5401 cgacacggaa atgttgaata ctcatactct tcctttttca atattattga agcatttatc
     5461 agggttattg tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag
     5521 gggttccgcg cacatttccc cgaaaagtgc cacctaaatt gtaagcgtta atattttgtt
     5581 aaaattcgcg ttaaattttt gttaaatcag ctcatttttt aaccaatagg ccgaaatcgg
     5641 caaaatccct tataaatcaa aagaatagac cgagataggg ttgagtgttg ttccagtttg
     5701 gaacaagagt ccactattaa agaacgtgga ctccaacgtc aaagggcgaa aaaccgtcta
     5761 tcagggcgat ggcccactac gtgaaccatc accctaatca agttttttgg ggtcgaggtg
     5821 ccgtaaagca ctaaatcgga accctaaagg gagcccccga tttagagctt gacggggaaa
     5881 gccggcgaac gtggcgagaa aggaagggaa gaaagcgaaa ggagcgggcg ctagggcgct
     5941 ggcaagtgta gcggtcacgc tgcgcgtaac caccacaccc gccgcgctta atgcgccgct
     6001 acagggcgcg tcccattcgc cattcaggct gcgcaactgt tgggaagggc gatcggtgcg
     6061 ggcctcttcg ctattacgcc agctgcgcgc tcgctcgctc actgaggccg cccgggcaaa
     6121 gcccgggcgt cgggcgacct ttggtcgccc ggcctcagtg agcgagcgag cgcgcagaga
     6181 gggagtggcc aactccatca ctaggggttc cttgtagtta atgattaacc cgccatgcta
     6241 ct
//
