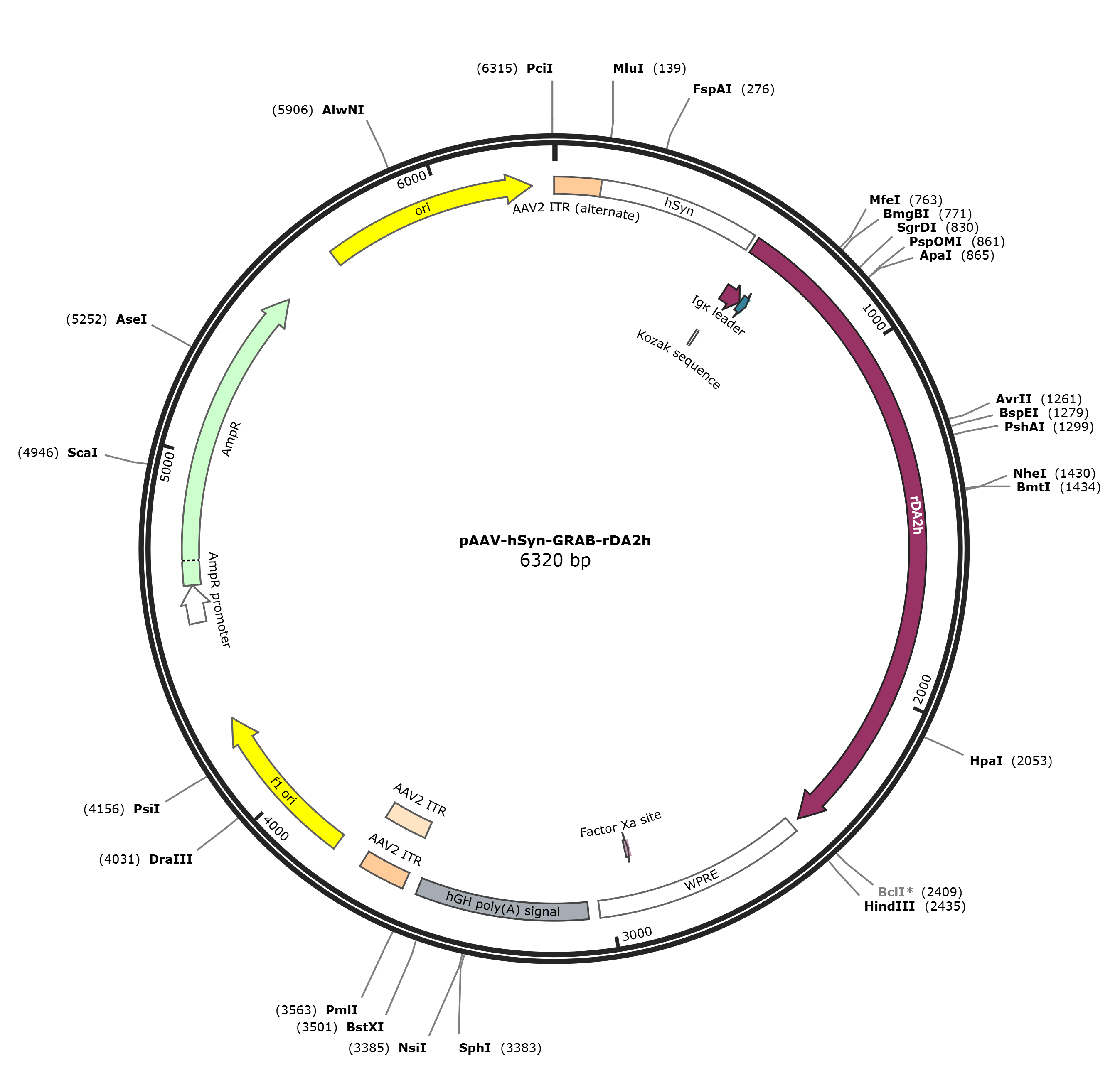

pAAV-hSyn-GRAB-rDA2h

LOCUS       pAAV-hSyn-GRAB-rDA2h      6320 bp DNA     circular SYN 23-JAN-2024
DEFINITION  Expresses the genetically-encoded fluorescent dopamine (DA) sensor
            GRAB_rDA2h in neurons.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-hSyn-GRAB-rDA2h
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6320)
  TITLE     Improved dual-color GRAB sensors for monitoring dopaminergic
            activity in vivo
REFERENCE   2  (bases 1 to 6320)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 9, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"
FEATURES             Location/Qualifiers
     source          1..6320
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR (alternate)
                     /note="Functional equivalent of wild-type AAV2 ITR"
     promoter        131..574
                     /label=hSyn
     regulatory      581..590
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             587..2422
                     /codon_start=1
                     /label=rDA2h
                     /translation="METDTLLLWVLLLWVPGSTGDTSLYKKVGTTGINRLNYSVLVNLT
                     AYYDGGAGLNLSSVNCTSSIVAGGAVRPGECAGTAGVDEKSNANSWWALILVIVPCLTL
                     FGNVLVILAVVKERTLQTVTNYFIVSLAVADLLVAVLVMPFAVYVLVNGSWSLPGFVCD
                     FYIAMDVTCSTSSIFNLVAISIDRYIAVTQPIKYAKHKNNRRVWLTILLVWAISAAIGS
                     PIVLGLNNTPDRIPDACLFYNTDFIIYSSLSSFYIPCIIMVFLYYNIFKALRNRAKLFR
                     ASCVCSEVMYPEDGALKSEIWKGLRLKDGGHYAAEVKTTYKAKKPVQLPGAYIVDIKLD
                     IVSHNEDYTIVEQCERAEARHSTGGMDELYKGGTGGSLVSKGEEDNMAIIKEFMRFKVH
                     MEGSVNGHEFEIEGEGEGRPYEAFQTAKLKVTKGGPLPFTWDILSPQFMYGSKAYIKHP
                     ADIPDYFKLSFPEGFRWERVMNFEDGGIIHVNQDSSLQDGYFIYKVKLRGTNFPPDGPV
                     MQKKTMGWELTVLERKASKPLAIVLGVFLICWVPFFTCNIMDAICTKLTKACQPGVTAF
                     IVTSWLGYMNSFVNPVIYTVFNPEFRKAFRKLISI"
     sig_peptide     587..649
                     /codon_start=1
                     /product="leader sequence from mouse immunoglobulin kappa
                     light chain"
                     /label=Ig-kappa leader
                     /translation="METDTLLLWVLLLWVPGSTGD"
     protein_bind    650..674
                     /gene="mutant version of attB"
                     /label=attB1
                     /bound_moiety="BP Clonase(TM)"
                     /note="recombination site for the Gateway(R) BP reaction"
     primer_bind     2131..2150
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     misc_feature    2447..3035
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2500..2520)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(2918..2929)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3067..3543
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(3266..3285)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   3583..3723
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   3583..3712
                     /label=AAV2 ITR
     rep_origin      3798..4253
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3885..3904)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4095..4116
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(4270..4289)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4389..4411
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4449..4467)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4535..4639
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4640..5500
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(4858..4877)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      5671..6259
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6160..6179
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtatgagg cggggtgggg gtgcctacct gacgaccgac
      181 cccgacccac tggacaagca cccaaccccc attccccaaa ttgcgcatcc cctatcagag
      241 agggggaggg gaaacaggat gcggcgaggc gcgtgcgcac tgccagcttc agcaccgcgg
      301 acagtgcctt cgcccccgcc tggcggcgcg cgccaccgcc gcctcagcac tgaaggcgcg
      361 ctgacgtcac tcgccggtcc cccgcaaact ccccttcccg gccaccttgg tcgcgtccgc
      421 gccgccgccg gcccagccgg accgcaccac gcgaggcgcg agataggggg gcacgggcgc
      481 gaccatctgc gctgcggcgc cggcgactca gcgctgcctc agtctgcggt gggcagcgga
      541 ggagtcgtgt cgtgcctgag agcgcagtcg agaaaccggt gccaccatgg agacagacac
      601 actcctgcta tgggtactgc tgctctgggt tccaggttcc actggtgaca caagtttgta
      661 caaaaaagtt ggcaccaccg gtatcaaccg actgaactac agcgtcctcg tgaacctgac
      721 ggcctactac gacggcggcg cgggtctgaa tctcagcagc gtcaattgca cgtcgtcgat
      781 agtcgccggg ggtgccgtta gaccgggcga gtgcgctgga accgccggcg tcgacgagaa
      841 gtctaacgcg aacagctggt gggccctgat acttgtgatc gtgccgtgtt tgacgctctt
      901 cggtaatgtg ctcgtcatcc tagcggtggt gaaagaacga acgctgcaga ctgtcactaa
      961 ctacttcatc gtcagtttgg cggtcgccga tcttctcgtg gcggtgctcg ttatgccgtt
     1021 cgcggtctac gtgctggtga acggatcctg gagtttaccc gggtttgttt gtgattttta
     1081 tatcgcaatg gatgtgactt gcagcaccag ctctatattc aatctcgtgg ctatttcaat
     1141 agacagatac atagcggtga cccagccgat aaagtacgcg aagcacaaga acaatagaag
     1201 agtatggttg acgatactgt tggtctgggc gatatcggcc gcgatcggca gcccgattgt
     1261 cctaggcttg aataacactc cggaccggat cccggacgca tgtctgttct acaatacgga
     1321 tttcatcatc tactcgagcc tgtccagctt ctacataccc tgcatcatca tggtattcct
     1381 ttactacaat atattcaagg ctctacgaaa cagagcgaaa ctttttcgtg ctagctgcgt
     1441 gtgttccgag gttatgtacc ccgaggacgg cgccctgaag agcgagatct ggaaggggct
     1501 gaggctgaag gacggcggcc actacgccgc cgaggtcaag accacctaca aggccaagaa
     1561 gcccgtgcag ctgcccggcg cctacatcgt cgacatcaag ttggacatcg tgtcccacaa
     1621 cgaggactac accatcgtgg aacagtgcga acgcgccgag gcccgccact ccaccggcgg
     1681 catggacgag ctgtacaagg gaggtacagg cgggagtctg gtgagcaagg gcgaggagga
     1741 taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg gctccgtgaa
     1801 cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg cctttcagac
     1861 cgctaagctg aaggtgacca agggtggccc cctgcccttc acttgggaca tcctgtcccc
     1921 tcagttcatg tacggctcca aggcctacat taagcaccca gccgacatcc ccgactactt
     1981 caagctgtcc ttccccgagg gcttcaggtg ggagcgcgtg atgaacttcg aggacggcgg
     2041 cattattcac gttaaccagg actcctccct gcaggacggc tacttcatct acaaggtgaa
     2101 gctgcgcggc accaacttcc cccccgacgg ccccgtaatg cagaagaaga ccatgggctg
     2161 ggagctgacg gtcctcgagc gcaaggccag taagcccctg gcgatcgtgt taggtgtctt
     2221 tctaatatgc tgggtgccct tcttcacttg taacatcatg gatgcaatct gcacgaagct
     2281 gacgaaggct tgtcagcctg gcgttacagc cttcatcgtc acttcctggt tgggctacat
     2341 gaacagcttc gtaaatcccg taatatacac tgtgttcaac cccgaattcc gtaaggcctt
     2401 ccgcaagctg atcagcatat aagaattcga tatcaagctt atcgataatc aacctctgga
     2461 ttacaaaatt tgtgaaagat tgactggtat tcttaactat gttgctcctt ttacgctatg
     2521 tggatacgct gctttaatgc ctttgtatca tgctattgct tcccgtatgg ctttcatttt
     2581 ctcctccttg tataaatcct ggttgctgtc tctttatgag gagttgtggc ccgttgtcag
     2641 gcaacgtggc gtggtgtgca ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc
     2701 caccacctgt cagctccttt ccgggacttt cgctttcccc ctccctattg ccacggcgga
     2761 actcatcgcc gcctgccttg cccgctgctg gacaggggct cggctgttgg gcactgacaa
     2821 ttccgtggtg ttgtcgggga aatcatcgtc ctttccttgg ctgctcgcct atgttgccac
     2881 ctggattctg cgcgggacgt ccttctgcta cgtcccttcg gccctcaatc cagcggacct
     2941 tccttcccgc ggcctgctgc cggctctgcg gcctcttccg cgtcttcgcc ttcgccctca
     3001 gacgagtcgg atctcccttt gggccgcctc cccgcatcga taccgagcgc tgctcgagag
     3061 atctacgggt ggcatccctg tgacccctcc ccagtgcctc tcctggccct ggaagttgcc
     3121 actccagtgc ccaccagcct tgtcctaata aaattaagtt gcatcatttt gtctgactag
     3181 gtgtccttct ataatattat ggggtggagg ggggtggtat ggagcaaggg gcaagttggg
     3241 aagacaacct gtagggcctg cggggtctat tgggaaccaa gctggagtgc agtggcacaa
     3301 tcttggctca ctgcaatctc cgcctcctgg gttcaagcga ttctcctgcc tcagcctccc
     3361 gagttgttgg gattccaggc atgcatgacc aggctcagct aatttttgtt tttttggtag
     3421 agacggggtt tcaccatatt ggccaggctg gtctccaact cctaatctca ggtgatctac
     3481 ccaccttggc ctcccaaatt gctgggatta caggcgtgaa ccactgctcc cttccctgtc
     3541 cttctgattt tgtaggtaac cacgtgcgga ccgagcggcc gcaggaaccc ctagtgatgg
     3601 agttggccac tccctctctg cgcgctcgct cgctcactga ggccgggcga ccaaaggtcg
     3661 cccgacgccc gggctttgcc cgggcggcct cagtgagcga gcgagcgcgc agctgcctgc
     3721 aggggcgcct gatgcggtat tttctcctta cgcatctgtg cggtatttca caccgcatac
     3781 gtcaaagcaa ccatagtacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt
     3841 tacgcgcagc gtgaccgcta cacttgccag cgccttagcg cccgctcctt tcgctttctt
     3901 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc
     3961 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg atttgggtga
     4021 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc
     4081 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaact ctatctcggg
     4141 ctattctttt gatttataag ggattttgcc gatttcggtc tattggttaa aaaatgagct
     4201 gatttaacaa aaatttaacg cgaattttaa caaaatatta acgtttacaa ttttatggtg
     4261 cactctcagt acaatctgct ctgatgccgc atagttaagc cagccccgac acccgccaac
     4321 acccgctgac gcgccctgac gggcttgtct gctcccggca tccgcttaca gacaagctgt
     4381 gaccgtctcc gggagctgca tgtgtcagag gttttcaccg tcatcaccga aacgcgcgag
     4441 acgaaagggc ctcgtgatac gcctattttt ataggttaat gtcatgataa taatggtttc
     4501 ttagacgtca ggtggcactt ttcggggaaa tgtgcgcgga acccctattt gtttattttt
     4561 ctaaatacat tcaaatatgt atccgctcat gagacaataa ccctgataaa tgcttcaata
     4621 atattgaaaa aggaagagta tgagtattca acatttccgt gtcgccctta ttcccttttt
     4681 tgcggcattt tgccttcctg tttttgctca cccagaaacg ctggtgaaag taaaagatgc
     4741 tgaagatcag ttgggtgcac gagtgggtta catcgaactg gatctcaaca gcggtaagat
     4801 ccttgagagt tttcgccccg aagaacgttt tccaatgatg agcactttta aagttctgct
     4861 atgtggcgcg gtattatccc gtattgacgc cgggcaagag caactcggtc gccgcataca
     4921 ctattctcag aatgacttgg ttgagtactc accagtcaca gaaaagcatc ttacggatgg
     4981 catgacagta agagaattat gcagtgctgc cataaccatg agtgataaca ctgcggccaa
     5041 cttacttctg acaacgatcg gaggaccgaa ggagctaacc gcttttttgc acaacatggg
     5101 ggatcatgta actcgccttg atcgttggga accggagctg aatgaagcca taccaaacga
     5161 cgagcgtgac accacgatgc ctgtagcaat ggcaacaacg ttgcgcaaac tattaactgg
     5221 cgaactactt actctagctt cccggcaaca attaatagac tggatggagg cggataaagt
     5281 tgcaggacca cttctgcgct cggcccttcc ggctggctgg tttattgctg ataaatctgg
     5341 agccggtgag cgtgggtctc gcggtatcat tgcagcactg gggccagatg gtaagccctc
     5401 ccgtatcgta gttatctaca cgacggggag tcaggcaact atggatgaac gaaatagaca
     5461 gatcgctgag ataggtgcct cactgattaa gcattggtaa ctgtcagacc aagtttactc
     5521 atatatactt tagattgatt taaaacttca tttttaattt aaaaggatct aggtgaagat
     5581 cctttttgat aatctcatga ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc
     5641 agaccccgta gaaaagatca aaggatcttc ttgagatcct ttttttctgc gcgtaatctg
     5701 ctgcttgcaa acaaaaaaac caccgctacc agcggtggtt tgtttgccgg atcaagagct
     5761 accaactctt tttccgaagg taactggctt cagcagagcg cagataccaa atactgttct
     5821 tctagtgtag ccgtagttag gccaccactt caagaactct gtagcaccgc ctacatacct
     5881 cgctctgcta atcctgttac cagtggctgc tgccagtggc gataagtcgt gtcttaccgg
     5941 gttggactca agacgatagt taccggataa ggcgcagcgg tcgggctgaa cggggggttc
     6001 gtgcacacag cccagcttgg agcgaacgac ctacaccgaa ctgagatacc tacagcgtga
     6061 gctatgagaa agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg
     6121 cagggtcgga acaggagagc gcacgaggga gcttccaggg ggaaacgcct ggtatcttta
     6181 tagtcctgtc gggtttcgcc acctctgact tgagcgtcga tttttgtgat gctcgtcagg
     6241 ggggcggagc ctatggaaaa acgccagcaa cgcggccttt ttacggttcc tggccttttg
     6301 ctggcctttt gctcacatgt
//
