pYSJ6

LOCUS      pYSJ6          6314 bp DNA     circular SYN 22-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6314)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

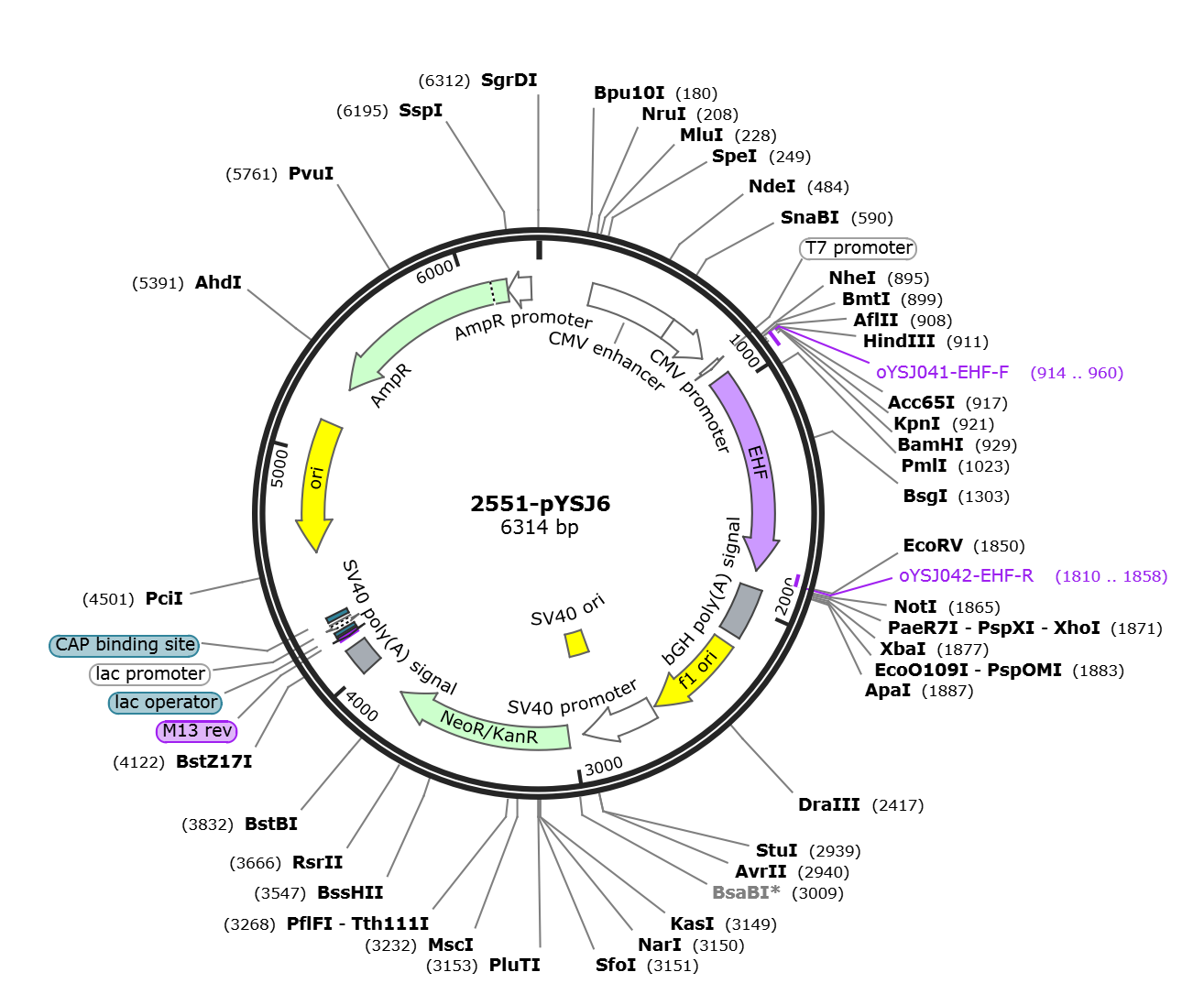

FEATURES             Location/Qualifiers
     source          1..6314
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..960
                     /label=oYSJ041-EHF-F
     CDS             935..1837
                     /codon_start=1
                     /label=EHF
                     /translation="MILEGGGVMNLNPGNNLLHQPPAWTDSYSTCNVSSGFFGGQWHEI
                     HPQYWTKYQVWEWLQHLLDTNQLDANCIPFQEFDINGEHLCSMSLQEFTRAAGTAGQLL
                     YSNLQHLKWNGQCSSDLFQSTHNVIVKTEQTEPSIMNTWKDENYLYDTNYGSTVDLLDS
                     KTFCRAQISMTTTSHLPVAESPDMKKEQDPPAKCHTKKHNPRGTHLWEFIRDILLNPDK
                     NPGLIKWEDRSEGVFRFLKSEAVAQLWGKKKNNSSMTYEKLSRAMRYYYKREILERVDG
                     RRLVYKFGKNARGWRENEN"
     primer_bind     complement(1810..1858)
                     /label=oYSJ042-EHF-R
     polyA_signal    1914..2138
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2184..2612
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2626..2955
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2806..2941
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3022..3816
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3990..4111
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4160..4176)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4184..4200
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4208..4238)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4253..4274
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4562..5147)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5318..6178)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6179..6283)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgatt ctggaaggag gtggtgtaat
      961 gaatctcaac cccggcaaca acctccttca ccagccgcca gcctggacag acagctactc
     1021 cacgtgcaat gtttccagtg ggttttttgg aggccagtgg catgaaattc atcctcagta
     1081 ctggaccaag taccaggtgt gggagtggct ccagcacctc ctggacacca accagctgga
     1141 tgccaattgt atccctttcc aagagttcga catcaacggc gagcacctct gcagcatgag
     1201 tttgcaggag ttcacccggg cggcagggac ggcggggcag ctcctctaca gcaacttgca
     1261 gcatctgaag tggaacggcc agtgcagtag tgacctgttc cagtccacac acaatgtcat
     1321 tgtcaagact gaacaaactg agccttccat catgaacacc tggaaagacg agaactattt
     1381 atatgacacc aactatggta gcacagtaga tttgttggac agcaaaactt tctgccgggc
     1441 tcagatctcc atgacaacca ccagtcacct tcctgttgca gagtcacctg atatgaaaaa
     1501 ggagcaagac ccccctgcca agtgccacac caaaaagcac aacccgagag ggactcactt
     1561 atgggaattc atccgcgaca tcctcttgaa cccagacaag aacccaggat taataaaatg
     1621 ggaagaccga tctgagggcg tcttcaggtt cttgaaatca gaggcagtgg ctcagctatg
     1681 gggtaaaaag aagaacaaca gcagcatgac ctatgaaaag ctcagccgag ctatgagata
     1741 ttactacaaa agagaaattc tggagcgtgt ggatggacga agactggtat ataaatttgg
     1801 gaagaatgcc cgaggatgga gagaaaatga aaactgagaa ttctgcagat atccagcaca
     1861 gtggcggccg ctcgagtcta gagggcccgt ttaaacccgc tgatcagcct cgactgtgcc
     1921 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     1981 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag
     2041 gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga
     2101 caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag
     2161 ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt
     2221 ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc
     2281 tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg
     2341 gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta
     2401 gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt
     2461 ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat
     2521 ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa
     2581 tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg
     2641 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2701 tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     2761 catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact
     2821 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     2881 gccgaggccg cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     2941 ctaggctttt gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag
     3001 acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc
     3061 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     3121 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     3181 tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg
     3241 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     3301 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     3361 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     3421 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     3481 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     3541 ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     3601 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     3661 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     3721 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     3781 atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga
     3841 ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg
     3901 aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg
     3961 atctcatgct ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca
     4021 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     4081 gtggtttgtc caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct
     4141 agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa
     4201 ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga
     4261 gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt
     4321 gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct
     4381 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
     4441 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
     4501 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
     4561 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
     4621 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
     4681 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
     4741 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
     4801 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
     4861 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
     4921 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
     4981 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
     5041 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtt
     5101 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     5161 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     5221 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     5281 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     5341 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     5401 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     5461 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     5521 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     5581 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     5641 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     5701 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     5761 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     5821 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     5881 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     5941 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     6001 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     6061 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     6121 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     6181 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     6241 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     6301 tgccacctga cgtc
//
