| 出品公司: | -- |
|---|---|
| 载体名称: | pZsYellow |
| 质粒类型: | 大肠杆菌表达载体 |
| 高拷贝/低拷贝: | -- |
| 克隆方法: | 限制性内切酶，多克隆位点 |
| 启动子: | lac |
| 载体大小: | 3331 bp |
| 5' 测序引物及序列: | -- |
| 3' 测序引物及序列: | -- |
| 载体标签: | ZsYellow (Cterm) |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | -- |
| 克隆菌株: | -- |
| 宿主细胞（系）: | -- |
| 备注: | -- |
| 产品目录号: | -- |
| 稳定性: | -- |
| 组成型/诱导型: | -- |
| 病毒/非病毒: | -- |
买家导航
pZsYellow载体质粒基本信息

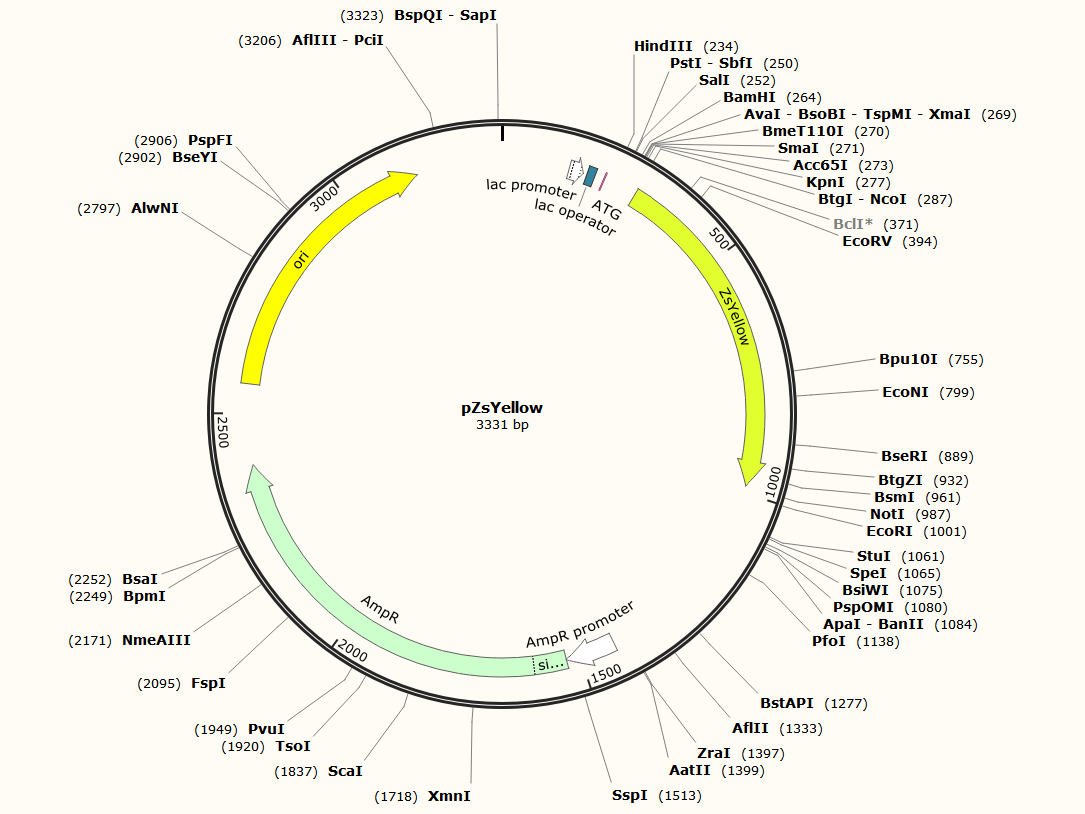

pZsYellow质粒图谱载体图谱和pZsYellow载体序列质粒序列多克隆位点信息
pZsYellow质粒载体简介
pZsYellow质粒序列载体序列
LOCUS pZsYellow 3331 bp ds-DNA circular SYN 19-OCT-2017
DEFINITION Vector for expressing ZsYellow1 in bacteria.
ACCESSION .
VERSION .
KEYWORDS pZsYellow
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 3331)
AUTHORS Clontech (TaKaRa)
TITLE Direct Submission
JOURNAL Exported Thursday, June 25, 2020 from SnapGene Viewer 3.1.4
http://www.snapgene.com
COMMENT Translation from the lacZ start codon produces a fusion protein in
E. coli.
FEATURES Location/Qualifiers
source 1..3331
/organism="synthetic DNA construct"
/lab_host="Escherichia coli"
/mol_type="other DNA"
promoter 143..173
/note="lac promoter"
/note="promoter for the E. coli lac operon"
protein_bind 181..197
/bound_moiety="lac repressor encoded by lacI"
/note="lac operator"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
CDS 217..219
/codon_start=1
/product="lacZ start codon"
/note="ATG"
/translation="M"
CDS 289..984
/codon_start=1
/product="Zoanthus yellow fluorescent protein"
/label=ZsYellow
/note="ZsYellow"
/translation="MAHSKHGLKEEMTMKYHMEGCVNGHKFVITGEGIGYPFKGKQTIN
LCVIEGGPLPFSEDILSAGFKYGDRIFTEYPQDIVDYFKNSCPAGYTWGRSFLFEDGAV
CICNVDITVSVKENCIYHKSIFNGVNFPADGPVMKKMTTNWEASCEKIMPVPKQGILKG
DVSMYLLLKDGGRYRCQFDTVYKAKSVPSKMPEWHFIQHKLLREDRSDAKNQKWQLTEH
AIAFPSALA"
promoter 1426..1530
/gene="bla"
/note="AmpR promoter"
CDS 1531..2391
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/note="AmpR"
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
rep_origin 2562..3150
/direction=RIGHT
/note="ori"
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
ORIGIN
1 agcgcccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc
61 acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc
121 tcactcatta ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa
181 ttgtgagcgg ataacaattt cacacaggaa acagctatga ccatgattac gccaagcttg
241 catgcctgca ggtcgactct agaggatccc cgggtaccgg tcgccaccat ggctcattca
301 aagcacggtc taaaagaaga aatgacaatg aaataccaca tggaagggtg cgtcaacgga
361 cataaatttg tgatcacggg cgaaggcatt ggatatccgt tcaaagggaa acagactatt
421 aatctgtgtg tgatcgaagg gggaccattg ccattttccg aagacatatt gtcagctggc
481 tttaagtacg gagacaggat tttcactgaa tatcctcaag acatagtaga ctatttcaag
541 aactcgtgtc ctgctggata tacatggggc aggtcttttc tctttgagga tggagcagtc
601 tgcatatgca atgtagatat aacagtgagt gtcaaagaaa actgcattta tcataagagc
661 atatttaatg gagtgaattt tcctgctgat ggacctgtga tgaaaaagat gacaactaac
721 tgggaagcat cctgcgagaa gatcatgcca gtacctaagc aggggatact gaaaggggat
781 gtctccatgt acctccttct gaaggatggt gggcgttacc ggtgccagtt cgacacagtt
841 tacaaagcaa agtctgtgcc aagtaagatg ccggagtggc acttcatcca gcataagctc
901 ctccgtgaag accgcagcga tgctaagaat cagaagtggc agctgacaga gcatgctatt
961 gcattccctt ctgccttggc ctgaagcggc cgcgactcta gaattccaac tgagcgccgg
1021 tcgctaccat taccaacttg tctggtgtca aaaataatag gcctactagt cggccgtacg
1081 ggccctttcg tctcgcgcgt ttcggtgatg acggtgaaaa cctctgacac atgcagctcc
1141 cggagacggt cacagcttgt ctgtaagcgg atgccgggag cagacaagcc cgtcagggcg
1201 cgtcagcggg tgttggcggg tgtcggggct ggcttaacta tgcggcatca gagcagattg
1261 tactgagagt gcaccatatg cggtgtgaaa taccgcacag atgcgtaagg agaaaatacc
1321 gcatcaggcg gccttaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata
1381 ataatggttt cttagacgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt
1441 tgtttatttt tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa
1501 atgcttcaat aatattgaaa aaggaagagt atgagtattc aacatttccg tgtcgccctt
1561 attccctttt ttgcggcatt ttgccttcct gtttttgctc acccagaaac gctggtgaaa
1621 gtaaaagatg ctgaagatca gttgggtgca cgagtgggtt acatcgaact ggatctcaac
1681 agcggtaaga tccttgagag ttttcgcccc gaagaacgtt ttccaatgat gagcactttt
1741 aaagttctgc tatgtggcgc ggtattatcc cgtattgacg ccgggcaaga gcaactcggt
1801 cgccgcatac actattctca gaatgacttg gttgagtact caccagtcac agaaaagcat
1861 cttacggatg gcatgacagt aagagaatta tgcagtgctg ccataaccat gagtgataac
1921 actgcggcca acttacttct gacaacgatc ggaggaccga aggagctaac cgcttttttg
1981 cacaacatgg gggatcatgt aactcgcctt gatcgttggg aaccggagct gaatgaagcc
2041 ataccaaacg acgagcgtga caccacgatg cctgtagcaa tggcaacaac gttgcgcaaa
2101 ctattaactg gcgaactact tactctagct tcccggcaac aattaataga ctggatggag
2161 gcggataaag ttgcaggacc acttctgcgc tcggcccttc cggctggctg gtttattgct
2221 gataaatctg gagccggtga gcgtgggtct cgcggtatca ttgcagcact ggggccagat
2281 ggtaagccct cccgtatcgt agttatctac acgacgggga gtcaggcaac tatggatgaa
2341 cgaaatagac agatcgctga gataggtgcc tcactgatta agcattggta actgtcagac
2401 caagtttact catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc
2461 taggtgaaga tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc
2521 cactgagcgt cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg
2581 cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg
2641 gatcaagagc taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca
2701 aatactgttc ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg
2761 cctacatacc tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg
2821 tgtcttaccg ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga
2881 acggggggtt cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac
2941 ctacagcgtg agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat
3001 ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc
3061 tggtatcttt atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga
3121 tgctcgtcag gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc
3181 ctggcctttt gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg
3241 gataaccgta ttaccgcctt tgagtgagct gataccgctc gccgcagccg aacgaccgag
3301 cgcagcgagt cagtgagcga ggaagcggaa g
//
