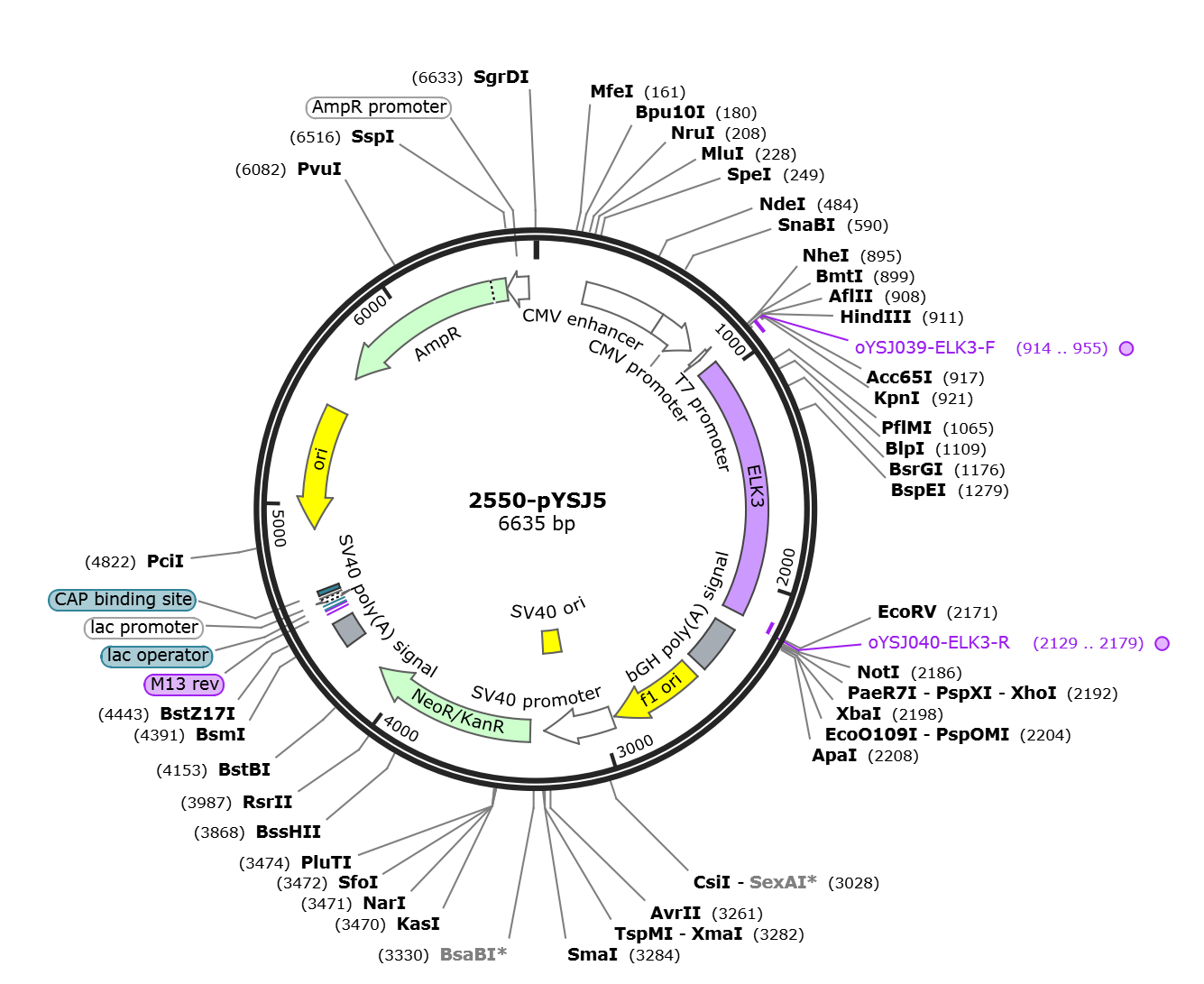

pYSJ5

LOCUS       pYSJ5               6635 bp DNA     circular SYN 22-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6635)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6635
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..955
                     /label=oYSJ039-ELK3-F
     misc_feature    935..2158
                     /label=ELK3
     primer_bind     complement(2129..2179)
                     /label=oYSJ040-ELK3-R
     polyA_signal    2235..2459
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2505..2933
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2947..3276
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3127..3262
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3343..4137
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4311..4432
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4481..4497)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4505..4521
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4529..4559)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4574..4595
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4883..5468)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5639..6499)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6500..6604)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggag agtgcaatca cgctgtggca
      961 gttcctgttg cagttgctgc tggatcagaa acatgagcat ttgatctgct ggacctcgaa
     1021 cgatggtgaa ttcaagctcc tcaaagcaga agaagtggcc aagctgtggg gactccgaaa
     1081 aaacaaaaca aatatgaact atgataagct gagcagagcc ctgcgatact attatgacaa
     1141 gaacatcatc aagaaggtga tcgggcagaa gtttgtgtac aagtttgtct ctttcccgga
     1201 gatcctgaag atggatcctc acgcggtgga gatcagccgg gagagccttc tgctgcagga
     1261 cagcgactgc aaggcgtctc cggagggccg cgaggcccac aaacacggcc tggccgccct
     1321 cagaagcacg agccgcaacg aatacatcca ctcaggcctg tactcgtcct tcaccattaa
     1381 ttccctgcag aacccaccag acgccttcaa ggccatcaag acggagaagc tggaggagcc
     1441 gcccgaagac agcccccccg tggaagaagt caggactgtg atcaggtttg tgaccaataa
     1501 aaccgacaag cacgtcacca ggccggtggt gtccctgcct tccacgtcag aggctgcggc
     1561 ggcgtccgcc ttcctggcct cgtccgtctc ggccaagatc tcctctttaa tgttgccaaa
     1621 cgctgccagt atttcatccg cctcaccctt ctcatctcgg tccccgtccc tgtcccccaa
     1681 ctcacccctc ccttctgaac acagaagcct cttcctggag gccgcctgcc atgactccga
     1741 ttccctggag cccttgaacc tgtcatcggg ctccaagacc aagtctccat ctcttccccc
     1801 aaaggccaaa aaacccaaag gcttggaaat ctcagcgccc ccgctggtgc tctccggcac
     1861 cgacatcggc tccatcgccc tcaacagccc agccctcccc tcgggatccc tcaccccagc
     1921 cttcttcacc gcacagacac caaatggatt gcttctgact ccgagtccac tgctctccag
     1981 catacatttc tggagcagcc ttagtccagt tgctccgctg agtcctgcca ggctgcaagg
     2041 gccaagcacg ctgttccagt tccccacact gcttaatggc cacatgccag tgccaatccc
     2101 cagtctggac agagctgctt ctccagtact gctttcttca aactctcaga aatcctgaga
     2161 attctgcaga tatccagcac agtggcggcc gctcgagtct agagggcccg tttaaacccg
     2221 ctgatcagcc tcgactgtgc cttctagttg ccagccatct gttgtttgcc cctcccccgt
     2281 gccttccttg accctggaag gtgccactcc cactgtcctt tcctaataaa atgaggaaat
     2341 tgcatcgcat tgtctgagta ggtgtcattc tattctgggg ggtggggtgg ggcaggacag
     2401 caagggggag gattgggaag acaatagcag gcatgctggg gatgcggtgg gctctatggc
     2461 ttctgaggcg gaaagaacca gctggggctc tagggggtat ccccacgcgc cctgtagcgg
     2521 cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg accgctacac ttgccagcgc
     2581 cctagcgccc gctcctttcg ctttcttccc ttcctttctc gccacgttcg ccggctttcc
     2641 ccgtcaagct ctaaatcggg ggctcccttt agggttccga tttagtgctt tacggcacct
     2701 cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt gggccatcgc cctgatagac
     2761 ggtttttcgc cctttgacgt tggagtccac gttctttaat agtggactct tgttccaaac
     2821 tggaacaaca ctcaacccta tctcggtcta ttcttttgat ttataaggga ttttgccgat
     2881 ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga attaattctg
     2941 tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     3001 caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca
     3061 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact
     3121 ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     3181 atttttttta tttatgcaga ggccgaggcc gcctctgcct ctgagctatt ccagaagtag
     3241 tgaggaggct tttttggagg cctaggcttt tgcaaaaagc tcccgggagc ttgtatatcc
     3301 attttcggat ctgatcaaga gacaggatga ggatcgtttc gcatgattga acaagatgga
     3361 ttgcacgcag gttctccggc cgcttgggtg gagaggctat tcggctatga ctgggcacaa
     3421 cagacaatcg gctgctctga tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt
     3481 ctttttgtca agaccgacct gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg
     3541 ctatcgtggc tggccacgac gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa
     3601 gcgggaaggg actggctgct attgggcgaa gtgccggggc aggatctcct gtcatctcac
     3661 cttgctcctg ccgagaaagt atccatcatg gctgatgcaa tgcggcggct gcatacgctt
     3721 gatccggcta cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact
     3781 cggatggaag ccggtcttgt cgatcaggat gatctggacg aagagcatca ggggctcgcg
     3841 ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg
     3901 acccatggcg atgcctgctt gccgaatatc atggtggaaa atggccgctt ttctggattc
     3961 atcgactgtg gccggctggg tgtggcggac cgctatcagg acatagcgtt ggctacccgt
     4021 gatattgctg aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc
     4081 gccgctcccg attcgcagcg catcgccttc tatcgccttc ttgacgagtt cttctgagcg
     4141 ggactctggg gttcgaaatg accgaccaag cgacgcccaa cctgccatca cgagatttcg
     4201 attccaccgc cgccttctat gaaaggttgg gcttcggaat cgttttccgg gacgccggct
     4261 ggatgatcct ccagcgcggg gatctcatgc tggagttctt cgcccacccc aacttgttta
     4321 ttgcagctta taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat
     4381 ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct
     4441 gtataccgtc gacctctagc tagagcttgg cgtaatcatg gtcatagctg tttcctgtgt
     4501 gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag
     4561 cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt
     4621 tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag
     4681 gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg
     4741 ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat
     4801 caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta
     4861 aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa
     4921 atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc
     4981 cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt
     5041 ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca
     5101 gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg
     5161 accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat
     5221 cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta
     5281 cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct
     5341 gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac
     5401 aaaccaccgc tggtagcggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag
     5461 gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact
     5521 cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag atccttttaa
     5581 attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg tctgacagtt
     5641 accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt tcatccatag
     5701 ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca tctggcccca
     5761 gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca gcaataaacc
     5821 agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc tccatccagt
     5881 ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg
     5941 ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca
     6001 gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg
     6061 ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca
     6121 tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg
     6181 tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct
     6241 cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta aaagtgctca
     6301 tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca
     6361 gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact ttcaccagcg
     6421 tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata agggcgacac
     6481 ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt tatcagggtt
     6541 attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa ataggggttc
     6601 cgcgcacatt tccccgaaaa gtgccacctg acgtc
//
