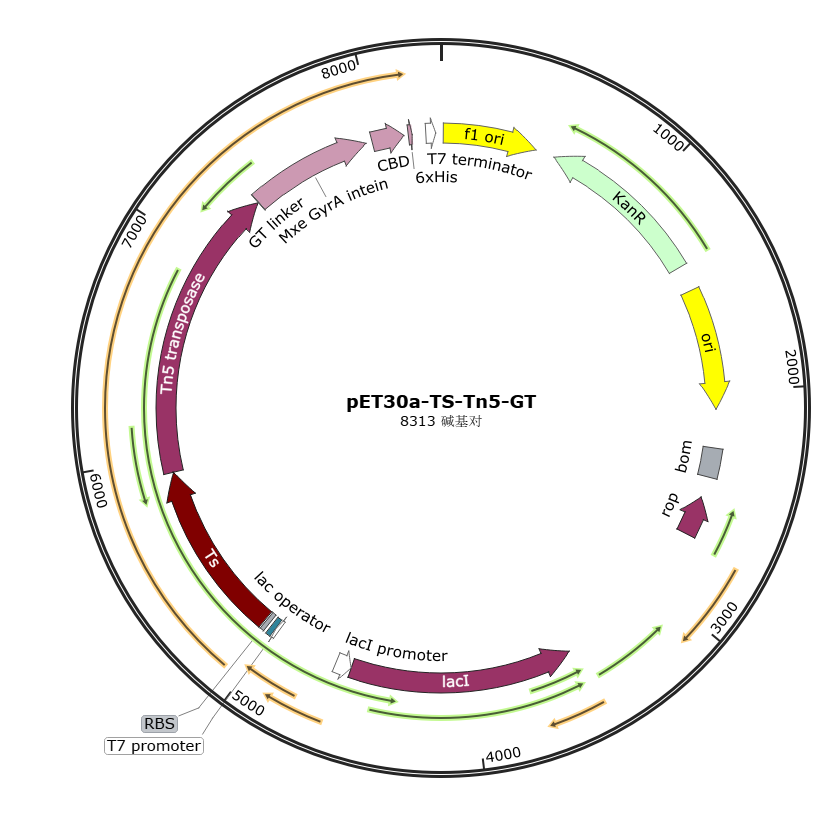

pET30a-TS-Tn5-GT

LOCUS       pET30a-TS-Tn5-GT               8313 bp DNA     circular SYN 20-FEB-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8313)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Apr 18, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8313
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     rep_origin      12..467
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     CDS             complement(560..1375)
                     /codon_start=1
                     /gene="aph(3')-Ia"
                     /product="aminoglycoside phosphotransferase"
                     /label=KanR
                     /note="confers resistance to kanamycin in bacteria or G418
                     (Geneticin(R)) in eukaryotes"
                     /translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
                     KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
                     TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
                     SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
                     ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
     rep_origin      1497..2085
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    2271..2413
                     /label=bom
                     /note="basis of mobility region from pBR322"
     CDS             complement(2515..2706)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /label=rop
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
     CDS             complement(3515..4597)
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /label=lacI
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     promoter        complement(4598..4675)
                     /gene="lacI"
                     /label=lacI promoter
     promoter        4988..5006
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     protein_bind    5007..5031
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             5046..5068
                     /note="efficient ribosome binding site from bacteriophage
                     T7 gene 10 (Olins and Rangwala, 1989)"
     gene            5076..5924
                     /label=Ts
     CDS             5925..7349
                     /codon_start=1
                     /product="transposase from the bacterial Tn5 transposon
                     (Reznikoff, 1993)"
                     /label=Tn5 transposase
                     /translation="ITSALHRAADWAKSVFSSAALGDPRRTARLVNVAAQLAKYSGKSI
                     TISSEGSKAMQEGAYRFIRNPNVSAEAIRKAGAMQTVKLAQEFPELLAIEDTTSLSYRH
                     QVAEELGKLGSIQDKSRGWWVHSVLLLEATTFRTVGLLHQEWWMRPDDPADADEKESGK
                     WLAAAATSRLRMGSMMSNVIAVCDREADIHAYLQDKLAHNERFVVRSKHPRKDVESGLY
                     LYDHLKNQPELGGYQISIPQKGVVDKRGKRKNRPARKASLSLRSGRITLKQGNITLNAV
                     LAEEINPPKGETPLKWLLLTSEPVESLAQALRVIDIYTHRWRIEEFHKAWKTGAGAERQ
                     RMEEPDNLERMVSILSFVAVRLLQLRESFTPPQALRAQGLLKEAEHVESQSAETVLTPD
                     ECQLLGYLDKGKRKRKEKAGSLQWAYMAIARLGGFMDSKRTGIASWGALWEGWEALQSK
                     LDGFLAAKDLMAQGIKI"
     misc_feature    7350..7355
                     /label=GT linker
     CDS             7356..7949
                     /codon_start=1
                     /gene="Mycobacterium xenopi gyrA"
                     /product="modified GyrA intein (Southworth et al., 1999)"
                     /label=Mxe GyrA intein
                     /note="N-terminal cleavage of this intein can be induced by
                     thiols."
                     /translation="CITGDALVALPEGESVRIADIVPGARPNSDNAIDLKVLDRHGNPV
                     LADRLFHSGEHPVYTVRTVEGLRVTGTANHPLLCLVDVAGVPTLLWKLIDEIKPGDYAV
                     IQRSAFSVDCAGFARGKPEFAPTTYTVGVPGLVRFLEAHHRDPDAQAIADELTDGRFYY
                     AKVASVTDAGVQPVYSLRVDTADHAFITNGFVSHA"
     CDS             7980..8135
                     /codon_start=1
                     /gene="Bacillus circulans chiA"
                     /product="chitin binding domain from chitinase A1 (Watanabe
                     et al., 1994)"
                     /label=CBD
                     /translation="TTNPGVSAWQVNTAYTAGQLVTYNGKTYKCLQPHTSLAGWEPSNV
                     PALWQLQ"
     CDS             8157..8174
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     terminator      8241..8288
                     /label=T7 terminator
                     /note="transcription terminator for bacteriophage T7 RNA
                     polymerase"
ORIGIN
        1 tggcgaatgg gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
       61 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
      121 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
      181 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
      241 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
      301 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
      361 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
      421 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt
      481 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
      541 tccgctcatg aattaattct tagaaaaact catcgagcat caaatgaaac tgcaatttat
      601 tcatatcagg attatcaata ccatattttt gaaaaagccg tttctgtaat gaaggagaaa
      661 actcaccgag gcagttccat aggatggcaa gatcctggta tcggtctgcg attccgactc
      721 gtccaacatc aatacaacct attaatttcc cctcgtcaaa aataaggtta tcaagtgaga
      781 aatcaccatg agtgacgact gaatccggtg agaatggcaa aagtttatgc atttctttcc
      841 agacttgttc aacaggccag ccattacgct cgtcatcaaa atcactcgca tcaaccaaac
      901 cgttattcat tcgtgattgc gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac
      961 aattacaaac aggaatcgaa tgcaaccggc gcaggaacac tgccagcgca tcaacaatat
     1021 tttcacctga atcaggatat tcttctaata cctggaatgc tgttttcccg gggatcgcag
     1081 tggtgagtaa ccatgcatca tcaggagtac ggataaaatg cttgatggtc ggaagaggca
     1141 taaattccgt cagccagttt agtctgacca tctcatctgt aacatcattg gcaacgctac
     1201 ctttgccatg tttcagaaac aactctggcg catcgggctt cccatacaat cgatagattg
     1261 tcgcacctga ttgcccgaca ttatcgcgag cccatttata cccatataaa tcagcatcca
     1321 tgttggaatt taatcgcggc ctagagcaag acgtttcccg ttgaatatgg ctcataacac
     1381 cccttgtatt actgtttatg taagcagaca gttttattgt tcatgaccaa aatcccttaa
     1441 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     1501 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     1561 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     1621 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
     1681 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     1741 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     1801 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     1861 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     1921 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     1981 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     2041 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     2101 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     2161 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
     2221 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
     2281 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatatggtgc actctcagta
     2341 caatctgctc tgatgccgca tagttaagcc agtatacact ccgctatcgc tacgtgactg
     2401 ggtcatggct gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
     2461 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
     2521 gttttcaccg tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc
     2581 gtgaagcgat tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag
     2641 aagcgttaat gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt
     2701 ggtcactgat gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa
     2761 acgagagagg atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg
     2821 ttgtgagggt aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg
     2881 tcaatgccag cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc
     2941 tgcgatgcag atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta
     3001 cgaaacacgg aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca
     3061 gcagtcgctt cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc
     3121 ccgccagcct agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggggccgc
     3181 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
     3241 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
     3301 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
     3361 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
     3421 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgagatc ccggtgccta
     3481 atgagtgagc taacttacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     3541 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     3601 tgggcgccag ggtggttttt cttttcacca gtgagacggg caacagctga ttgcccttca
     3661 ccgcctggcc ctgagagagt tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa
     3721 aatcctgttt gatggtggtt aacggcggga tataacatga gctgtcttcg gtatcgtcgt
     3781 atcccactac cgagatgtcc gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg
     3841 cgcccagcgc catctgatcg ttggcaacca gcatcgcagt gggaacgatg ccctcattca
     3901 gcatttgcat ggtttgttga aaaccggaca tggcactcca gtcgccttcc cgttccgcta
     3961 tcggctgaat ttgattgcga gtgagatatt tatgccagcc agccagacgc agacgcgccg
     4021 agacagaact taatgggccc gctaacagcg cgatttgctg gtgacccaat gcgaccagat
     4081 gctccacgcc cagtcgcgta ccgtcttcat gggagaaaat aatactgttg atgggtgtct
     4141 ggtcagagac atcaagaaat aacgccggaa cattagtgca ggcagcttcc acagcaatgg
     4201 catcctggtc atccagcgga tagttaatga tcagcccact gacgcgttgc gcgagaagat
     4261 tgtgcaccgc cgctttacag gcttcgacgc cgcttcgttc taccatcgac accaccacgc
     4321 tggcacccag ttgatcggcg cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca
     4381 gggccagact ggaggtggca acgccaatca gcaacgactg tttgcccgcc agttgttgtg
     4441 ccacgcggtt gggaatgtaa ttcagctccg ccatcgccgc ttccactttt tcccgcgttt
     4501 tcgcagaaac gtggctggcc tggttcacca cgcgggaaac ggtctgataa gagacaccgg
     4561 catactctgc gacatcgtat aacgttactg gtttcacatt caccaccctg aattgactct
     4621 cttccgggcg ctatcatgcc ataccgcgaa aggttttgcg ccattcgatg gtgtccggga
     4681 tctcgacgct ctcccttatg cgactcctgc attaggaagc agcccagtag taggttgagg
     4741 ccgttgagca ccgccgccgc aaggaatggt gcatgcaagg agatggcgcc caacagtccc
     4801 ccggccacgg ggcctgccac catacccacg ccgaaacaag cgctcatgag cccgaagtgg
     4861 cgagcccgat cttccccatc ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg
     4921 gcgccggtga tgccggccac gatgcgtccg gcgtagagga tcgagatcga tctcgatccc
     4981 gcgaaattaa tacgactcac tataggggaa ttgtgagcgg ataacaattc ccctctagaa
     5041 ataattttgt ttaactttaa gaaggagata tacatatggc tgaaattacc gcatccctgg
     5101 taaaagagct gcgtgagcgt actggcgcag gcatgatgga ttgcaaaaaa gcactgactg
     5161 aagctaacgg cgacatcgag ctggcaatcg aaaacatgcg taagtccggt gctattaaag
     5221 cagcgaaaaa agcaggcaac gttgctgctg acggcgtgat caaaaccaaa atcgacggca
     5281 actacggcat cattctggaa gttaactgcc agactgactt cgttgcaaaa gacgctggtt
     5341 tccaggcgtt cgcagacaaa gttctggacg cagctgttgc tggcaaaatc actgacgttg
     5401 aagttctgaa agcacagttc gaagaagaac gtgttgcgct ggtagcgaaa attggtgaaa
     5461 acatcaacat tcgccgcgtt gctgcgctgg aaggcgacgt tctgggttct tatcagcacg
     5521 gtgcgcgtat cggcgttctg gttgctgcta aaggcgctga cgaagagctg gttaaacaca
     5581 tcgctatgca cgttgctgca agcaagccag aattcatcaa accggaagac gtatccgctg
     5641 aagtggtaga aaaagaatac caggtacagc tggatatcgc gatgcagtct ggtaagccga
     5701 aagaaatcgc agagaaaatg gttgaaggcc gcatgaagaa attcaccggc gaagtttctc
     5761 tgaccggtca gccgttcgtt atggaaccaa gcaaaactgt tggtcagctg ctgaaagagc
     5821 ataacgctga agtgactggc ttcatccgct tcgaagtggg tgaaggcatc gagaaagttg
     5881 agactgactt tgcagcagaa gttgctgcga tgtccaagca gtctattacc agtgcactgc
     5941 atcgtgcggc ggattgggcg aaaagcgtgt tttctagtgc tgcgctgggt gatccgcgtc
     6001 gtaccgcgcg tctggtgaat gttgcggcgc aactggccaa atatagcggc aaaagcatta
     6061 ccattagcag cgaaggcagc aaagccatgc aggaaggcgc gtatcgtttt attcgtaatc
     6121 cgaacgtgag cgcggaagcg attcgtaaag cgggtgccat gcagaccgtg aaactggccc
     6181 aggaatttcc ggaactgctg gcaattgaag ataccacctc tctgagctat cgtcatcagg
     6241 tggcggaaga actgggcaaa ctgggtagca ttcaggataa aagccgtggt tggtgggtgc
     6301 atagcgtgct gctgctggaa gcgaccacct ttcgtaccgt gggcctgctg catcaagaat
     6361 ggtggatgcg tccggatgat ccggcggatg cggatgaaaa agaaagcggc aaatggctgg
     6421 ccgctgctgc aacttcgcgt ctgagaatgg gcagcatgat gagcaacgtg attgcggtgt
     6481 gcgatcgtga agcggatatt catgcgtatc tgcaagataa actggcccat aacgaacgtt
     6541 ttgtggtgcg tagcaaacat ccgcgtaaag atgtggaaag cggcctgtat ctgtatgatc
     6601 acctgaaaaa ccagccggaa ctgggcggct atcagattag cattccgcag aaaggcgtgg
     6661 tggataaacg tggcaaacgt aaaaaccgtc cggcgcgtaa agcgagcctg agcctgcgta
     6721 gcggccgtat taccctgaaa cagggcaaca ttaccctgaa cgcggtgctg gccgaagaaa
     6781 ttaatccgcc gaaaggcgaa accccgctga aatggctgct gctgaccagc gagccggtgg
     6841 aaagtctggc ccaagcgctg cgtgtgattg atatttatac ccatcgttgg cgcattgaag
     6901 aatttcacaa agcgtggaaa acgggtgcgg gtgcggaacg tcagcgtatg gaagaaccgg
     6961 ataacctgga acgtatggtg agcattctga gctttgtggc ggtgcgtctg ctgcaactgc
     7021 gtgaatcttt tactccgccg caagcactgc gtgcgcaggg cctgctgaaa gaagcggaac
     7081 acgttgaaag ccagagcgcg gaaaccgtgc tgaccccgga tgaatgccaa ctgctgggct
     7141 atctggataa aggcaaacgc aaacgcaaag aaaaagcggg cagcctgcaa tgggcgtata
     7201 tggcgattgc gcgtctgggc ggctttatgg atagcaaacg taccggcatt gcgagctggg
     7261 gtgcgctgtg ggaaggttgg gaagcgctgc aaagcaaact ggatggcttt ctggccgcga
     7321 aagacctgat ggcgcagggc attaaaatcg gtacctgcat cacgggagat gcactagttg
     7381 ccctacccga gggcgagtcg gtacgcatcg ccgacatcgt gccgggtgcg cggcccaaca
     7441 gtgacaacgc catcgacctg aaagtccttg accggcatgg caatcccgtg ctcgccgacc
     7501 ggctgttcca ctccggcgag catccggtgt acacggtgcg tacggtcgaa ggtctgcgtg
     7561 tgacgggcac cgcgaaccac ccgttgttgt gtttggtcga cgtcgccggg gtgccgaccc
     7621 tgctgtggaa gctgatcgac gaaatcaagc cgggcgatta cgcggtgatt caacgcagcg
     7681 cattcagcgt cgactgtgca ggttttgccc gcgggaaacc cgaatttgcg cccacaacct
     7741 acacagtcgg cgtccctgga ctggtgcgtt tcttggaagc acaccaccga gacccggacg
     7801 cccaagctat cgccgacgag ctgaccgacg ggcggttcta ctacgcgaaa gtcgccagtg
     7861 tcaccgacgc cggcgtgcag ccggtgtata gccttcgtgt cgacacggca gaccacgcgt
     7921 ttatcacgaa cgggttcgtc agccacgcta ctggcctcac cggtctgaac tcaggcctca
     7981 cgacaaatcc tggtgtatcc gcttggcagg tcaacacagc ttatactgcg ggacaattgg
     8041 tcacatataa cggcaagacg tataaatgtt tgcagcccca cacctccttg gcaggatggg
     8101 aaccatccaa cgttcctgcc ttgtggcagc ttcaaaagct tgcggccgca ctcgagcacc
     8161 accaccacca ccactgagat ccggctgcta acaaagcccg aaaggaagct gagttggctg
     8221 ctgccaccgc tgagcaataa ctagcataac cccttggggc ctctaaacgg gtcttgaggg
     8281 gttttttgct gaaaggagga actatatccg gat
//
