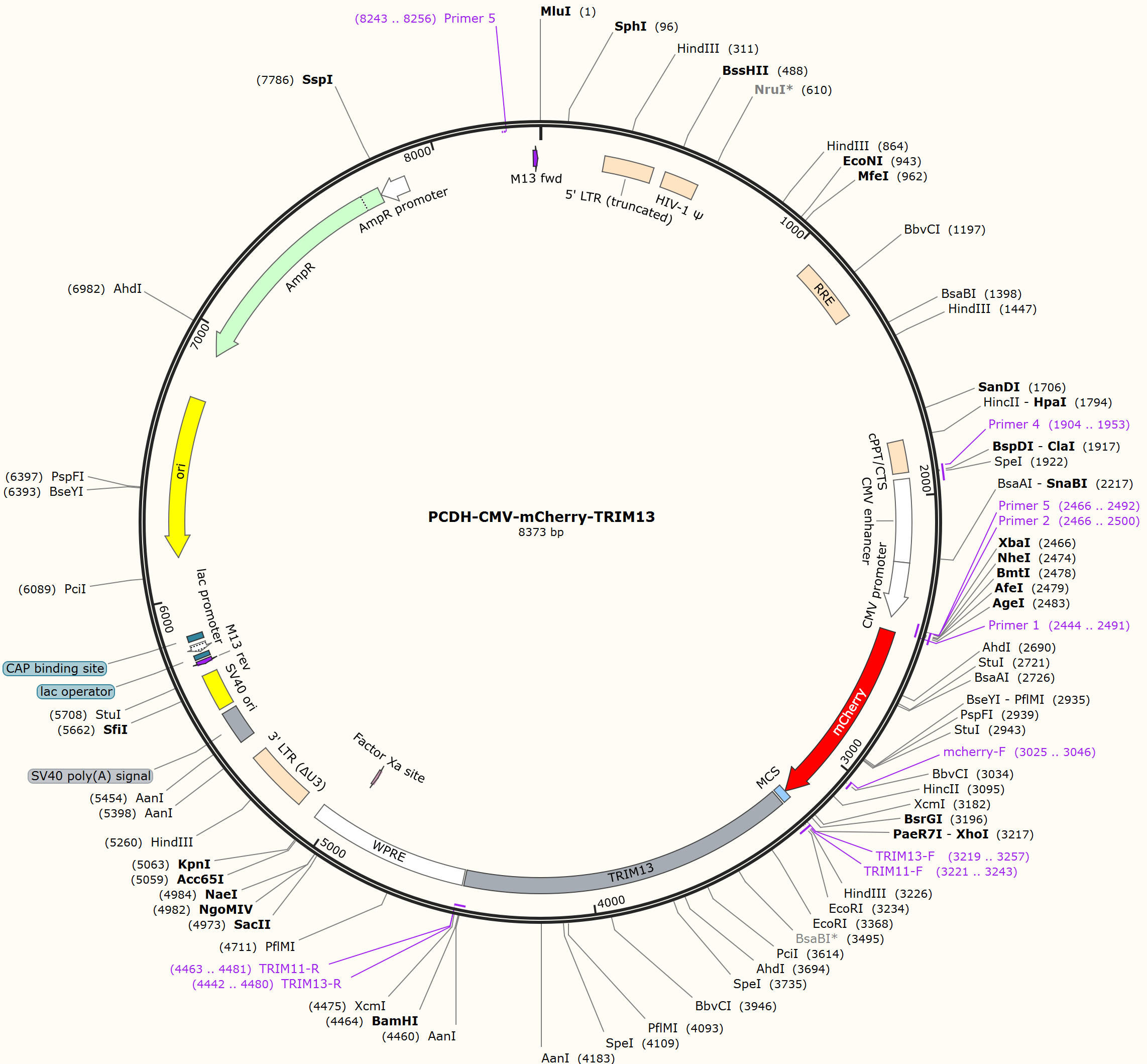

PCDH-CMV-mCherry-TRIM13

LOCUS      PCDH-CMV-mCherry-TRIM13              8373 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8373)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8373
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3257
                     /label=TRIM13-F
     primer_bind     3221..3243
                     /label=TRIM11-F
     misc_feature    3240..4463
                     /label=TRIM13
     primer_bind     complement(4442..4480)
                     /label=TRIM13-R
     primer_bind     complement(4463..4481)
                     /label=TRIM11-R
     misc_feature    4470..5057
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4941..4952)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5130..5363
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5435..5556
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5575..5710
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5748..5764)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5772..5788
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5796..5826)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5841..5862
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6150..6738)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6909..7769)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7770..7874)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8243..8256)
                     /label=Primer 5
     primer_bind     8348..8364
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggagctgct tgaagaagat ctcacatgcc ctatttgttg tagtctgttt gatgatccac
     3301 gggttttgcc ttgctcccac aacttctgca aaaaatgctt agaaggtatc ttagaaggga
     3361 gtgtgcggaa ttccttgtgg agaccagctc cattcaagtg tcctacatgc cgtaaggaaa
     3421 cttcagctac tggaattaat agcctgcagg ttaattactc cctgaagggt attgtggaaa
     3481 agtataacaa gatcaagatc tctcccaaaa tgccagtatg caaaggacac ttggggcagc
     3541 ctctcaacat tttctgcctg actgatatgc agctgatttg tgggatctgt gctactcgtg
     3601 gggagcacac caaacatgtc ttctgttcta ttgaagatgc ctatgctcag gaaagggatg
     3661 cctttgagtc cctcttccag agctttgaga cctggcgtcg gggagatgct ctttctcgct
     3721 tggatacctt ggaaactagt aagaggaaat ccctacagtt actgactaaa gattcagata
     3781 aagtgaagga attttttgag aagttacaac acacactgga tcaaaagaag aatgaaattc
     3841 tgtctgactt tgagaccatg aaacttgctg ttatgcaagc atatgaccca gagatcaaca
     3901 aactcaacac catcttgcag gagcaacgga tggcctttaa cattgctgag gctttcaaag
     3961 atgtgtcaga acccattgta tttctgcaac agatgcagga gtttagagag aaaatcaaag
     4021 taatcaagga aactccttta cctccctcta atttgcctgc aagcccttta atgaagaact
     4081 ttgataccag tcagtgggaa gacataaaac tagtcgatgt ggataaactt tctttgcctc
     4141 aagacactgg cacattcatt agcaagattc cctggagctt ttataagtta tttttgctaa
     4201 tccttctgct tggccttgtc attgtctttg gtcctaccat gttcctagaa tggtcattat
     4261 ttgatgacct ggcaacttgg aaaggctgtc tttcaaactt cagttcctat ctgactaaaa
     4321 cagccgattt catagaacaa tcagtttttt actgggaaca ggtgacagat gggtttttca
     4381 ttttcaatga aagattcaag aattttactt tggtggtact gaacaatgtg gcagaatttg
     4441 tgtgcaaata taaactatta taaggatcca atcaacctct ggattacaaa atttgtgaaa
     4501 gattgactgg tattcttaac tatgttgctc cttttacgct atgtggatac gctgctttaa
     4561 tgcctttgta tcatgctatt gcttcccgta tggctttcat tttctcctcc ttgtataaat
     4621 cctggttgct gtctctttat gaggagttgt ggcccgttgt caggcaacgt ggcgtggtgt
     4681 gcactgtgtt tgctgacgca acccccactg gttggggcat tgccaccacc tgtcagctcc
     4741 tttccgggac tttcgctttc cccctcccta ttgccacggc ggaactcatc gccgcctgcc
     4801 ttgcccgctg ctggacaggg gctcggctgt tgggcactga caattccgtg gtgttgtcgg
     4861 ggaagctgac gtcctttcca tggctgctcg cctgtgttgc cacctggatt ctgcgcggga
     4921 cgtccttctg ctacgtccct tcggccctca atccagcgga ccttccttcc cgcggcctgc
     4981 tgccggctct gcggcctctt ccgcgtctcc gccttcgccc tcagacgagt cggatctccc
     5041 tttggccgcc tccccgccgg tacctttaag accaatgact tacaaggcag ctgtagatct
     5101 tagccacttt ttaaaagaaa aggggggact ggaagggcta attcactccc aacgaaaata
     5161 agatctgctt tttgcttgta ctgggtctct ctggttagac cagatctgag cctgggagct
     5221 ctctggctaa ctagggaacc cactgcttaa gcctcaataa agcttgcctt gagtgcttca
     5281 agtagtgtgt gcccgtctgt tgtgtgactc tggtaactag agatccctca gaccctttta
     5341 gtcagtgtgg aaaatctcta gcagtagtag ttcatgtcat cttattattc agtatttata
     5401 acttgcaaag aaatgaatat cagagagtga gaggaacttg tttattgcag cttataatgg
     5461 ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc
     5521 tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggctct agctatcccg
     5581 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     5641 tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt
     5701 tttggaggcc tagacttttg cagagacggc ccaaattcgt aatcatggtc atagctgttt
     5761 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     5821 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     5881 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     5941 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     6001 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     6061 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     6121 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     6181 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     6241 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     6301 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     6361 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     6421 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     6481 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     6541 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag gacagtattt
     6601 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     6661 ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca gattacgcgc
     6721 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     6781 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     6841 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     6901 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     6961 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     7021 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     7081 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     7141 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     7201 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     7261 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     7321 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     7381 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     7441 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     7501 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     7561 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     7621 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     7681 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     7741 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     7801 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     7861 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtctaaga aaccattatt
     7921 atcatgacat taacctataa aaataggcgt atcacgaggc cctttcgtct cgcgcgtttc
     7981 ggtgatgacg gtgaaaacct ctgacacatg cagctcccgg agacggtcac agcttgtctg
     8041 taagcggatg ccgggagcag acaagcccgt cagggcgcgt cagcgggtgt tggcgggtgt
     8101 cggggctggc ttaactatgc ggcatcagag cagattgtac tgagagtgca ccatatgcgg
     8161 tgtgaaatac cgcacagatg cgtaaggaga aaataccgca tcaggcgcca ttcgccattc
     8221 aggctgcgca actgttggga agggcgatcg gtgcgggcct cttcgctatt acgccagctg
     8281 gcgaaagggg gatgtgctgc aaggcgatta agttgggtaa cgccagggtt ttcccagtca
     8341 cgacgttgta aaacgacggc cagtgccaag ctg
//
