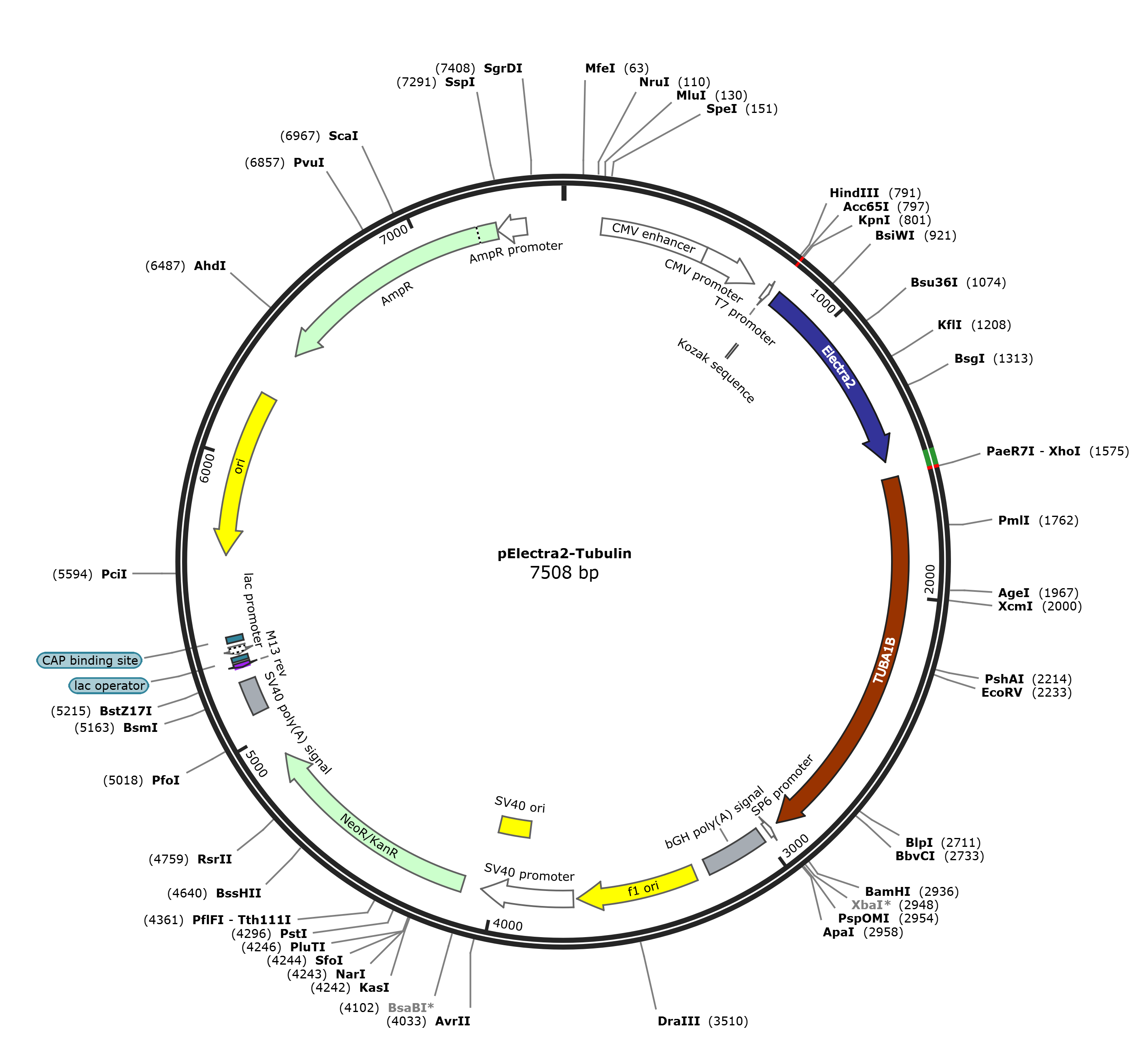

pElectra2-Tubulin

LOCUS       pElectra2-Tubulin               7508 bp DNA     circular SYN 29-MAY-2023
DEFINITION  Human alpha-tubulin labeling with near-infrared fluorescent protein
            miRFP670nano.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7508)
  AUTHORS   Oliinyk OS, Shemetov AA, Pletnev S, Shcherbakova DM, Verkhusha VV
  TITLE     Smallest near-infrared fluorescent protein evolved from
            cyanobacteriochrome as versatile tag for spectral multiplexing.
  JOURNAL   Nat Commun. 2019 Jan 17;10(1):279. doi: 10.1038/s41467-018-08050-8.
  PUBMED    30655515
REFERENCE   2  (bases 1 to 7508)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Commun."; date: "2019-01-17"; volume: "10(1):279. doi"; pages: "
            10.1038/s41467-018-08050-8"
FEATURES             Location/Qualifiers
     source          1..7508
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        137..516
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        517..720
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     671..691
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     765..784
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        765..783
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      803..812
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             809..1519
                     /codon_start=1
                     /label=Electra2
                     /translation="MVSKGEELIEENMRMKVVMEGSVNGHQFKCTGEGEGRPYEGVQTM
                     RIKVIEGGPLPFAFDILATSFLFGSKTFIKYPADIPDFFEQSFPEGFTWERVTRYEDGG
                     VVTVTQDTSLEDGGLVYNVKVRGVNFHSKGPVMQKKTEGWEPFTEMMYPADGGLRGYTD
                     IALKVDGGGHLHANIVTTYRSKKTVGNIKMPGVHAVDYRLERIEESDNETYVVLREVAV
                     AKYSNLGGGMDELFK"
     primer_bind     1316..1336
                     /label=0623-CalypsoMid
     CDS             1580..2935
                     /codon_start=1
                     /label=TUBA1B
                     /translation="VRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGG
                     DDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYA
                     RGHYTIGKEIIDLVLDRIRKLADQCTGLQGFLVFHSFGGGTGSGFTSLLMERLSVDYGK
                     KSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERP
                     TYTNLNRLISQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKA
                     YHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRS
                     IQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMY
                     AKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY"
     primer_bind     1580..1604
                     /label=0312TUBA1B-F
     promoter        complement(2963..2981)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(2964..2981)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(3001..3018)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    3007..3231
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3277..3705
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3364..3383)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3574..3595
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3714..3734)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3719..4048
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3899..4034
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3961..3980
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             4115..4909
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(4169..4188)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4779..4798
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    5083..5204
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5120..5139)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     5174..5193
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(5174..5193)
                     /label=SV40-R-Universal
     primer_bind     complement(5253..5269)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5253..5269)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(5266..5288)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    5277..5293
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5301..5331)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5346..5367
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(5484..5501)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5655..6243)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5735..5754)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6414..7274)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     7037..7056
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7275..7379)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(7454..7473)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 ttggaggtcg ctgagtagtg cgcgagcaaa atttaagcta caacaaggca aggcttgacc
       61 gacaattgca tgaagaatct gcttagggtt aggcgttttg cgctgcttcg cgatgtacgg
      121 gccagatata cgcgttgaca ttgattattg actagttatt aatagtaatc aattacgggg
      181 tcattagttc atagcccata tatggagttc cgcgttacat aacttacggt aaatggcccg
      241 cctggctgac cgcccaacga cccccgccca ttgacgtcaa taatgacgta tgttcccata
      301 gtaacgccaa tagggacttt ccattgacgt caatgggtgg agtatttacg gtaaactgcc
      361 cacttggcag tacatcaagt gtatcatatg ccaagtacgc cccctattga cgtcaatgac
      421 ggtaaatggc ccgcctggca ttatgcccag tacatgacct tatgggactt tcctacttgg
      481 cagtacatct acgtattagt catcgctatt accatggtga tgcggttttg gcagtacatc
      541 aatgggcgtg gatagcggtt tgactcacgg ggatttccaa gtctccaccc cattgacgtc
      601 aatgggagtt tgttttggca ccaaaatcaa cgggactttc caaaatgtcg taacaactcc
      661 gccccattga cgcaaatggg cggtaggcgt gtacggtggg aggtctatat aagcagagct
      721 ctctggctaa ctagagaacc cactgcttac tggcttatcg aaattaatac gactcactat
      781 agggagaccc aagcttggta ccgccaccat ggtgtctaag ggcgaagagc tgatcgagga
      841 aaatatgcgt atgaaggtgg tcatggaagg ttcggtcaac ggccaccaat tcaaatgcac
      901 aggtgaagga gaaggcagac cgtacgaggg agtgcaaacc atgaggatca aagtcatcga
      961 gggaggaccc ctgccatttg cctttgacat tcttgccacg tcgttcctgt tcggcagcaa
     1021 gacctttatc aagtacccgg ccgacatccc tgatttcttc gaacagtcct ttcctgaggg
     1081 ctttacttgg gaaagagtta cgagatacga agatggtgga gtagtcaccg tcacgcagga
     1141 caccagcctt gaggatggtg ggctcgtcta caacgtcaag gtcagagggg taaactttca
     1201 ctccaagggt cccgtgatgc agaagaagac cgagggttgg gagcctttca cagagatgat
     1261 gtatccagca gatggtggtc tgagaggata taccgacatc gcactgaaag ttgatggtgg
     1321 tggccatctg cacgccaaca tcgtgacaac ttacaggtca aaaaagaccg tcgggaacat
     1381 caagatgccc ggtgtccatg ccgttgatta ccgcctggaa aggatcgaag agagtgacaa
     1441 tgaaacctac gtagtgctaa gagaagtggc agttgccaaa tacagcaacc ttggtggtgg
     1501 catggacgag ctgttcaagg gaggtggtgg atcaggagga ggtggttctg gaggtggtgg
     1561 atcaggagga agatctcgag tgcgtgagtg catctccatc cacgttggcc aggctggtgt
     1621 ccagattggc aatgcctgct gggagctcta ctgcctggaa cacggcatcc agcccgatgg
     1681 ccagatgcca agtgacaaga ccattggggg aggagatgac tccttcaaca ccttcttcag
     1741 tgagacgggc gctggcaagc acgtgccccg ggctgtgttt gtagacttgg aacccacagt
     1801 cattgatgaa gttcgcactg gcacctaccg ccagctcttc caccctgagc agctcatcac
     1861 aggcaaggaa gatgctgcca ataactatgc ccgagggcac tacaccattg gcaaggagat
     1921 cattgacctt gtgttggacc gaattcgcaa gctggctgac cagtgcaccg gtcttcaggg
     1981 cttcttggtt ttccacagct ttggtggggg aactggttct gggttcacct ccctgctcat
     2041 ggaacgtctc tcagttgatt atggcaagaa gtccaagctg gagttctcca tttacccagc
     2101 accccaggtt tccacagctg tagttgagcc ctacaactcc atcctcacca cccacaccac
     2161 cctggagcac tctgattgtg ccttcatggt agacaatgag gccatctatg acatctgtcg
     2221 tagaaacctc gatatcgagc gcccaaccta cactaacctt aaccgcctta ttagccagat
     2281 tgtgtcctcc atcactgctt ccctgagatt tgatggagcc ctgaatgttg acctgacaga
     2341 attccagacc aacctggtgc cctacccccg catccacttc cctctggcca catatgcccc
     2401 tgtcatctct gctgagaaag cctaccatga acagctttct gtagcagaga tcaccaatgc
     2461 ttgctttgag ccagccaacc agatggtgaa atgtgaccct cgccatggta aatacatggc
     2521 ttgctgcctg ttgtaccgtg gtgacgtggt tcccaaagat gtcaatgctg ccattgccac
     2581 catcaaaacc aagcgcagca tccagtttgt ggattggtgc cccactggct tcaaggttgg
     2641 catcaactac cagcctccca ctgtggtgcc tggtggagac ctggccaagg tacagagagc
     2701 tgtgtgcatg ctgagcaaca ccacagccat tgctgaggcc tgggctcgcc tggaccacaa
     2761 gtttgacctg atgtatgcca agcgtgcctt tgttcactgg tacgtgggtg aggggatgga
     2821 ggaaggcgag ttttcagagg cccgtgaaga tatggctgcc cttgagaagg attatgagga
     2881 ggttggtgtg gattctgttg aaggagaggg tgaggaagaa ggagaggaat actaaggatc
     2941 caccggatct agagggccct attctatagt gtcacctaaa tgctagagct cgctgatcag
     3001 cctcgactgt gccttctagt tgccagccat ctgttgtttg cccctccccc gtgccttcct
     3061 tgaccctgga aggtgccact cccactgtcc tttcctaata aaatgaggaa attgcatcgc
     3121 attgtctgag taggtgtcat tctattctgg ggggtggggt ggggcaggac agcaaggggg
     3181 aggattggga agacaatagc aggcatgctg gggatgcggt gggctctatg gcttctgagg
     3241 cggaaagaac cagctggggc tctagggggt atccccacgc gccctgtagc ggcgcattaa
     3301 gcgcggcggg tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc
     3361 ccgctccttt cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag
     3421 ctctaaatcg ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca
     3481 aaaaacttga ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc
     3541 gccctttgac gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa
     3601 cactcaaccc tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct
     3661 attggttaaa aaatgagctg atttaacaaa aatttaacgc gaattaattc tgtggaatgt
     3721 gtgtcagtta gggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat
     3781 gcatctcaat tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag caggcagaag
     3841 tatgcaaagc atgcatctca attagtcagc aaccatagtc ccgcccctaa ctccgcccat
     3901 cccgccccta actccgccca gttccgccca ttctccgccc catggctgac taattttttt
     3961 tatttatgca gaggccgagg ccgcctctgc ctctgagcta ttccagaagt agtgaggagg
     4021 cttttttgga ggcctaggct tttgcaaaaa gctcccggga gcttgtatat ccattttcgg
     4081 atctgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc
     4141 aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat
     4201 cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt
     4261 caagaccgac ctgtccggtg ccctgaatga actgcaggac gaggcagcgc ggctatcgtg
     4321 gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag
     4381 ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc
     4441 tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc
     4501 tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga
     4561 agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga
     4621 actgttcgcc aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg tgacccatgg
     4681 cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg
     4741 tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc
     4801 tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc
     4861 cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg
     4921 gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc
     4981 gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc
     5041 ctccagcgcg gggatctcat gctggagttc ttcgcccacc ccaacttgtt tattgcagct
     5101 tataatggtt acaaataaag caatagcatc acaaatttca caaataaagc atttttttca
     5161 ctgcattcta gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg
     5221 tcgacctcta gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt
     5281 tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt
     5341 gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg
     5401 ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg
     5461 cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg
     5521 cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat
     5581 aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc
     5641 gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc
     5701 tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga
     5761 agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt
     5821 ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg
     5881 taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc
     5941 gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg
     6001 gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc
     6061 ttgaagtggt ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg
     6121 ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc
     6181 gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct
     6241 caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt
     6301 taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa
     6361 aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa
     6421 tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc
     6481 tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct
     6541 gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca
     6601 gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt
     6661 aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt
     6721 gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc
     6781 ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc
     6841 tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt
     6901 atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact
     6961 ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc
     7021 ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt
     7081 ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg
     7141 atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct
     7201 gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa
     7261 tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt
     7321 ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc
     7381 acatttcccc gaaaagtgcc acctgacgtc gacggatcgg gagatctccc gatcccctat
     7441 ggtgcactct cagtacaatc tgctctgatg ccgcatagtt aagccagtat ctgctccctg
     7501 cttgtgtg
//
