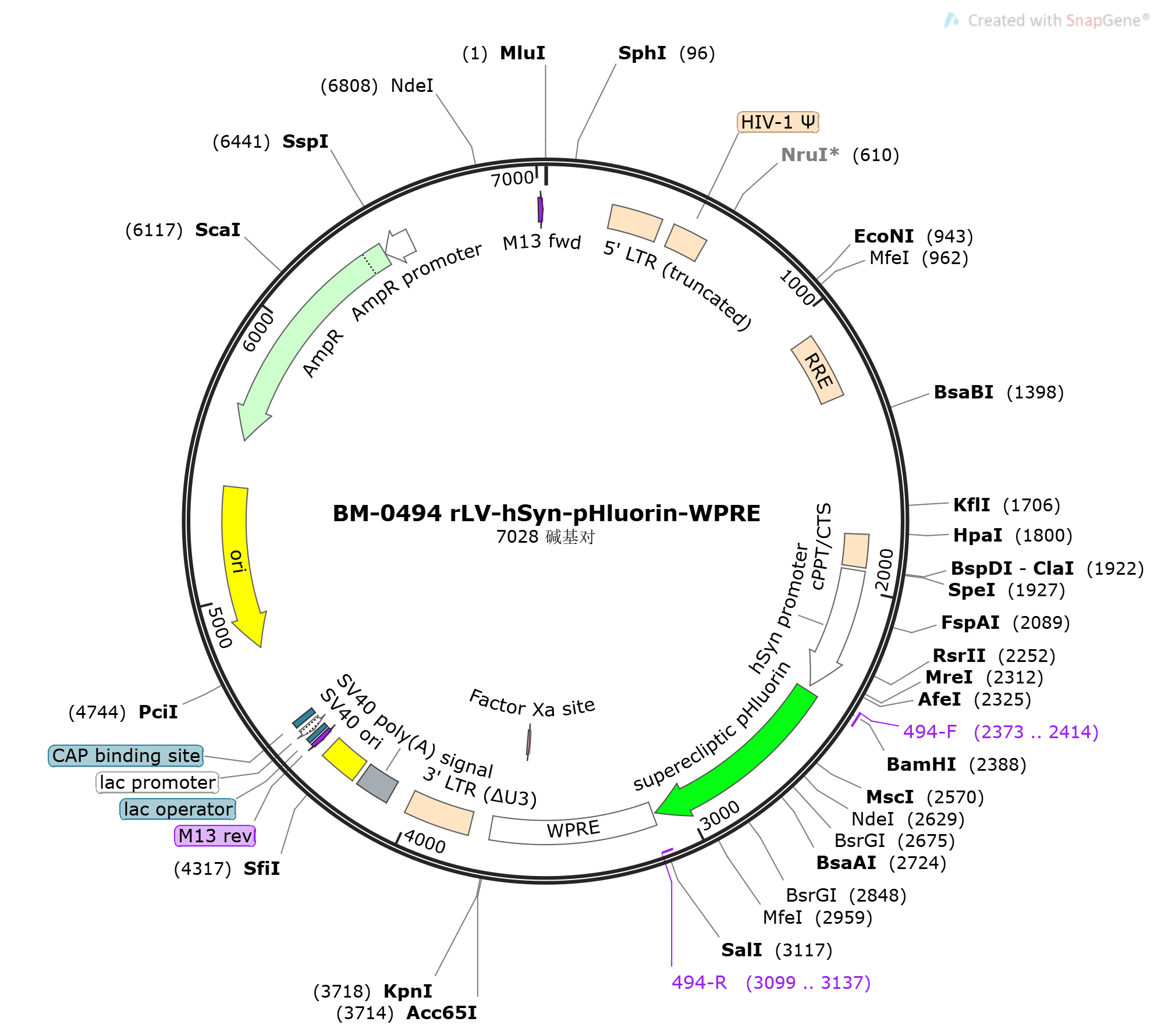

pLV-hSyn-pHluorin-WPRE

LOCUS       pLV-hSyn-pHluorin-WPRE        7028 bp DNA     circular SYN 27-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7028)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Aug 31, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7028
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1804..1920
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        1933..2380
                     /label=hSyn promoter
                     /note="human synapsin I promoter; confers neuron-specific
                     expression (Kugler et al., 2003)"
     primer_bind     2293..2312
                     /label=HSYN-F
     primer_bind     2373..2414
                     /label=494-F
     CDS             2400..3113
                     /codon_start=1
                     /product="pH-sensitive mutant of green fluorescent protein
                     (Ng et al., 2002)"
                     /label=superecliptic pHluorin
                     /note="excited strongly by blue light at neutral pH but
                     minimally fluorescent at acidic pH"
                     /translation="MSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNDHQVYIMADKQKNGIKA
                     NFKIRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLFTTSTLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     primer_bind     complement(3099..3137)
                     /label=494-R
     misc_feature    3123..3711
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(3176..3196)
                     /label=WPRE-R
     CDS             complement(3594..3605)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             3785..4018
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4090..4211
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4230..4365
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4403..4419)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4427..4443
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4451..4481)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4496..4517
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4805..5393)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5564..6424)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6425..6529)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7003..7019
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggtatcggtt
     1801 aacttttaaa agaaaagggg ggattggggg gtacagtgca ggggaaagaa tagtagacat
     1861 aatagcaaca gacatacaaa ctaaagaatt acaaaaacaa attacaaaat tcaaaatttt
     1921 atcgatacta gtagtgcaag tgggttttag gaccaggatg aggcggggtg ggggtgccta
     1981 cctgacgacc gaccccgacc cactggacaa gcacccaacc cccattcccc aaattgcgca
     2041 tcccctatca gagaggggga ggggaaacag gatgcggcga ggcgcgtgcg cactgccagc
     2101 ttcagcaccg cggacagtgc cttcgccccc gcctggcggc gcgcgccaca gccgcctcag
     2161 cactgaaggc gcgctgacgt cactcgccgg tcccccgcaa actccccttc ccggccacct
     2221 tggtcgcgtc cgcgccgccg ccggcccagc cggaccgcac cacgcgaggc gcgagatagg
     2281 ggggcacggg cgcgaccatc tgcgctgcgg cgccggcgac tcagcgctgc ctcagtctgc
     2341 ggtgggcagc ggaggagtcg tgtcgtgcct gagagcgcag tcgagaagga tccgccacca
     2401 tgagtaaagg agaagaactt ttcactggag ttgtcccaat tcttgttgaa ttagatggtg
     2461 atgttaatgg gcacaaattt tctgtcagtg gagagggtga aggtgatgca acatacggaa
     2521 aacttaccct taaatttatt tgcactactg gaaaactacc tgttccttgg ccaacacttg
     2581 tcactacttt aacttatggt gttcaatgct tttcaagata cccagatcat atgaaacggc
     2641 atgacttttt caagagtgcc atgcccgaag gttatgtaca ggaaagaact atatttttca
     2701 aagatgacgg gaactacaag acacgtgctg aagtcaagtt tgaaggtgat acccttgtta
     2761 atagaatcga gttaaaaggt attgatttta aagaagatgg aaacattctt ggacacaaat
     2821 tggaatacaa ctataacgat caccaggtgt acatcatggc agacaaacaa aagaatggaa
     2881 tcaaagctaa cttcaaaatt agacacaaca ttgaagatgg aggcgttcaa ctagcagacc
     2941 attatcaaca aaatactcca attggcgatg ggcccgtcct tttaccagac aaccattacc
     3001 tgtttacaac ttctactctt tcgaaagatc ccaacgaaaa gagagaccac atggtccttc
     3061 ttgagtttgt aacagctgct gggattacac atggcatgga tgaactatac aaatgagtcg
     3121 acaatcaacc tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg
     3181 ctccttttac gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc
     3241 gtatggcttt cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt
     3301 tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca
     3361 ctggttgggg cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc
     3421 ctattgccac ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc
     3481 tgttgggcac tgacaattcc gtggtgttgt cggggaaatc atcgtccttt ccttggctgc
     3541 tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc
     3601 tcaatccagc ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc
     3661 ttcgccttcg ccctcagacg agtcggatct ccctttgggc cgcctccccg cctggtacct
     3721 ttaagaccaa tgacttacaa ggcagctgta gatcttagcc actttttaaa agaaaagggg
     3781 ggactggaag ggctaattca ctcccaacga aaataagatc tgctttttgc ttgtactggg
     3841 tctctctggt tagaccagat ctgagcctgg gagctctctg gctaactagg gaacccactg
     3901 cttaagcctc aataaagctt gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt
     3961 gactctggta actagagatc cctcagaccc ttttagtcag tgtggaaaat ctctagcagt
     4021 agtagttcat gtcatcttat tattcagtat ttataacttg caaagaaatg aatatcagag
     4081 agtgagagga acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca
     4141 aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc
     4201 aatgtatctt atcatgtctg gctctagcta tcccgcccct aactccgccc agttccgccc
     4261 attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg
     4321 cctctgagct attccagaag tagtgaggag gcttttttgg aggcctagac ttttgcagag
     4381 acggcccaaa ttcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca
     4441 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag
     4501 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt
     4561 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc
     4621 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     4681 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     4741 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     4801 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     4861 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     4921 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     4981 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     5041 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     5101 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     5161 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     5221 ggcctaacta cggctacact agaaggacag tatttggtat ctgcgctctg ctgaagccag
     5281 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     5341 gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct caagaagatc
     5401 ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt taagggattt
     5461 tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa aaatgaagtt
     5521 ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa tgcttaatca
     5581 gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc tgactccccg
     5641 tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct gcaatgatac
     5701 cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca gccggaaggg
     5761 ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt aattgttgcc
     5821 gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt gccattgcta
     5881 caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc ggttcccaac
     5941 gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc
     6001 ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt atggcagcac
     6061 tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact ggtgagtact
     6121 caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa
     6181 tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt
     6241 cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg atgtaaccca
     6301 ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct gggtgagcaa
     6361 aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa tgttgaatac
     6421 tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt ctcatgagcg
     6481 gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc acatttcccc
     6541 gaaaagtgcc acctgacgtc taagaaacca ttattatcat gacattaacc tataaaaata
     6601 ggcgtatcac gaggcccttt cgtctcgcgc gtttcggtga tgacggtgaa aacctctgac
     6661 acatgcagct cccggagacg gtcacagctt gtctgtaagc ggatgccggg agcagacaag
     6721 cccgtcaggg cgcgtcagcg ggtgttggcg ggtgtcgggg ctggcttaac tatgcggcat
     6781 cagagcagat tgtactgaga gtgcaccata tgcggtgtga aataccgcac agatgcgtaa
     6841 ggagaaaata ccgcatcagg cgccattcgc cattcaggct gcgcaactgt tgggaagggc
     6901 gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa agggggatgt gctgcaaggc
     6961 gattaagttg ggtaacgcca gggttttccc agtcacgacg ttgtaaaacg acggccagtg
     7021 ccaagctg
//
