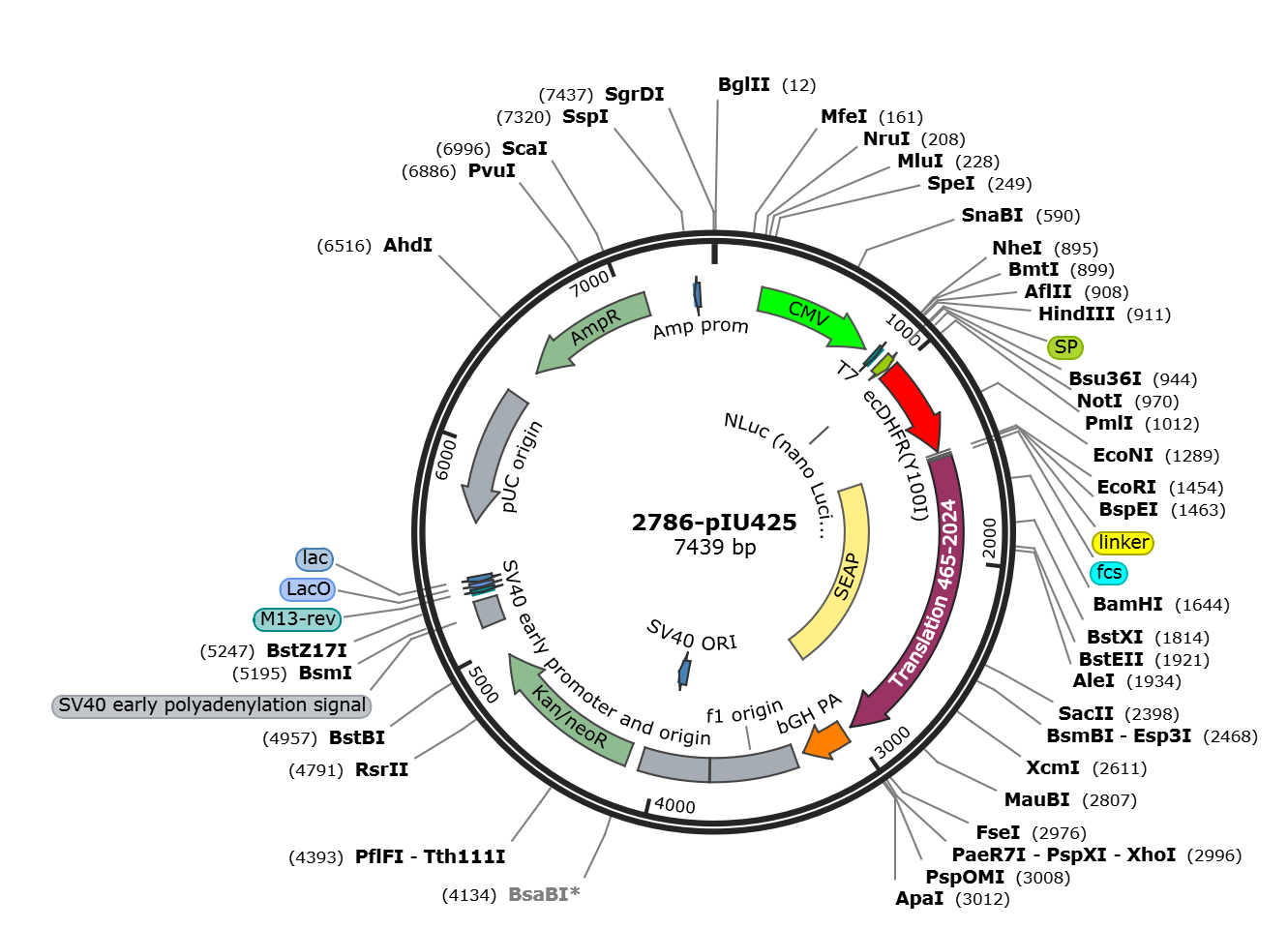

pIU425

LOCUS       pIU425                7439 bp DNA     circular SYN 15-JUL-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7439)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7439
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     897..941
                     /label=oIU54-5
     primer_bind     917..969
                     /label=oIU54-3
     misc_feature    917..967
                     /label=SP
     primer_bind     957..996
                     /label=oIU425-1
     primer_bind     965..992
                     /label=olyl339
     primer_bind     965..992
                     /label=olyl345
     primer_bind     965..992
                     /label=olyl347
     CDS             977..1453
                     /codon_start=1
                     /label=ecDHFR(Y100I)
                     /translation="MISLIAALAVDHVIGMENAMPWNLPADLAWFKRNTLNKPVIMGRH
                     TWESIGRPLPGRKNIILSSQPSTDDRVTWVKSVDEAIAACGDVPEIMVIGGGRVIEQFL
                     PKAQKLYLTHIDAEVEGDTHFPDYEPDDWESVFSEFHDADAQNSHSYCFEILERR"
     primer_bind     977..1000
                     /label=olyl541
     misc_feature    980..982
                     /label=NLuc (nano Luciferase)
                     /label=nonstandard type:  reporter
     primer_bind     993..1032
                     /label=olyl548
     primer_bind     complement(1015..1036)
                     /label=OGT61-mDHFR-R
     primer_bind     1021..1045
                     /label=OGT61-mDHFR-2-F
     primer_bind     complement(1244..1282)
                     /label=OLYL551
     primer_bind     complement(1246..1276)
                     /label=olyl549
     primer_bind     1258..1295
                     /label=olyl550
     primer_bind     complement(1264..1284)
                     /label=OGT62-mDHFR-R
     primer_bind     1269..1289
                     /label=OGT62-mDHFR-2-F
     primer_bind     1276..1303
                     /label=OLYL552
     primer_bind     complement(1425..1473)
                     /label=oIU425-2
     primer_bind     complement(1429..1486)
                     /label=olyl542
     primer_bind     complement(1429..1453)
                     /label=oIU213-2
     misc_feature    1460..1474
                     /label=linker
     primer_bind     1467..1510
                     /label=oIU54-7
     misc_feature    1475..1486
                     /label=fcs
     CDS             1487..2995
                     /codon_start=1
                     /label=Translation 465-2024
                     /translation="IIPVEEENPDFWNREAAEALGAAKKLQPAQTAAKNLIIFLGDGMG
                     VSTVTAARILKGQKKDKLGPEIPLAMDRFPYVALSKTYNVDKHVPDSGATATAYLCGVK
                     GNFQTIGLSAAARFNQCNTTRGNEVISVMNRAKKAGKSVGVVTTTRVQHASPAGTYAHT
                     VNRNWYSDADVPASARQEGCQDIATQLISNMDIDVILGGGRKYMFRMGTPDPEYPDDYS
                     QGGTRLDGKNLVQEWLAKRQGARYVWNRTELMQASLDPSVTHLMGLFEPGDMKYEIHRD
                     STLDPSLMEMTEAALRLLSRNPRGFFLFVEGGRIDHGHHESRAYRALTETIMFDDAIER
                     AGQLTSEEDTLSLVTADHSHVFSFGGYPLRGSSIFGLAPGKARDRKAYTVLLYGNGPGY
                     VLKDGARPDVTESESGSPEYRQQSAVPLDEETHAGEDVAVFARGPQAHLVHGVQEQTFI
                     AHVMAFAACLEPYTACDLAPPAGTTDAAHPGYSRVGAAGRFEQT"
     misc_feature    1487..2995
                     /label=SEAP
     primer_bind     complement(2976..3015)
                     /label=oIU54-8
     primer_bind     complement(2976..2992)
                     /label=oIU53-2
     polyA_signal    2987..2995
                     /label=SV40 late polyA
     terminator      3036..3263
                     /label=bGH PA
     misc_feature    3309..3737
                     /label=f1 origin
     misc_feature    3742..4085
                     /label=SV40 early promoter and origin
     misc_feature    3931..4008
                     /label=SV40 ORI
     CDS             4150..4941
                     /label=Kan/neoR
     misc_feature    5115..5245
                     /label=SV40 early polyadenylation signal
     primer_bind     complement(5281..5301)
                     /label=M13-rev
     misc_binding    complement(5307..5329)
                     /label=LacO
     promoter        complement(5334..5363)
                     /label=lac
     misc_feature    complement(5628..6298)
                     /label=pUC origin
     CDS             complement(6446..7105)
                     /label=AmpR
     promoter        complement(7345..7373)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttatgc tgctgctgct gctgctgctg ggcctgaggc tacagctctc
      961 cctgggcggc ggccgcatga tcagcctgat cgccgccctg gccgtggacc acgtgatcgg
     1021 catggagaac gcgatgccct ggaacctgcc cgccgacctg gcctggttca agagaaacac
     1081 cctgaacaag cccgtgatca tgggcagaca cacctgggag agcatcggca gacccctgcc
     1141 cggcagaaag aacatcatcc tgagcagcca gcccagcacc gacgacagag tgacctgggt
     1201 gaagagcgtg gacgaggcca tcgccgcctg cggcgacgtg cccgagatca tggtgatcgg
     1261 cggcggcaga gtgatcgagc agttcctgcc caaggcccag aagctgtacc tgacccacat
     1321 cgacgccgag gtggagggcg acacccactt ccccgactac gagcccgacg actgggagag
     1381 cgtgttcagc gagttccacg acgccgacgc ccagaacagc cacagctact gcttcgagat
     1441 cctggagaga agagaattcg gttccggagg tggcaggatc aagaggatca tcccagttga
     1501 ggaggagaac ccggacttct ggaaccgcga ggcagccgag gccctgggtg ccgccaagaa
     1561 gctgcagcct gcacagacag ccgccaagaa cctcatcatc ttcctgggcg atgggatggg
     1621 ggtgtctacg gtgacagctg ccaggatcct aaaagggcag aagaaggaca aactggggcc
     1681 tgagataccc ctggccatgg accgcttccc atatgtggct ctgtccaaga catacaatgt
     1741 agacaaacat gtgccagaca gtggagccac agccacggcc tacctgtgcg gggtcaaggg
     1801 caacttccag accattggct tgagtgcagc cgcccgcttt aaccagtgca acacgacacg
     1861 cggcaacgag gtcatctccg tgatgaatcg ggccaagaaa gcagggaagt cagtgggagt
     1921 ggtaaccacc acacgagtgc agcacgcctc gccagccggc acctacgccc acacggtgaa
     1981 ccgcaactgg tactcggacg ccgacgtgcc tgcctcggcc cgccaggagg ggtgccagga
     2041 catcgctacg cagctcatct ccaacatgga cattgacgtg atcctaggtg gaggccgaaa
     2101 gtacatgttt cgcatgggaa ccccagaccc tgagtaccca gatgactaca gccaaggtgg
     2161 gaccaggctg gacgggaaga atctggtgca ggaatggctg gcgaagcgcc agggtgcccg
     2221 gtatgtgtgg aaccgcactg agctcatgca ggcttccctg gacccgtctg tgacccatct
     2281 catgggtctc tttgagcctg gagacatgaa atacgagatc caccgagact ccacactgga
     2341 cccctccctg atggagatga cagaggctgc cctgcgcctg ctgagcagga acccccgcgg
     2401 cttcttcctc ttcgtggagg gtggtcgcat cgaccatggt catcatgaaa gcagggctta
     2461 ccgggcactg actgagacga tcatgttcga cgacgccatt gagagggcgg gccagctcac
     2521 cagcgaggag gacacgctga gcctcgtcac tgccgaccac tcccacgtct tctccttcgg
     2581 aggctacccc ctgcgaggga gctccatctt cgggctggcc cctggcaagg cccgggacag
     2641 gaaggcctac acggtcctcc tatacggaaa cggtccaggc tatgtgctca aggacggcgc
     2701 ccggccggat gttaccgaga gcgagagcgg gagccccgag tatcggcagc agtcagcagt
     2761 gcccctggac gaagagaccc acgcaggcga ggacgtggcg gtgttcgcgc gcggcccgca
     2821 ggcgcacctg gttcacggcg tgcaggagca gaccttcata gcgcacgtca tggccttcgc
     2881 cgcctgcctg gagccctaca ccgcctgcga cctggcgccc cccgccggca ccaccgacgc
     2941 cgcgcacccg ggttactcta gagtcggggc ggccggccgc ttcgagcaga catgactcga
     3001 gtctagaggg cccgtttaaa cccgctgatc agcctcgact gtgccttcta gttgccagcc
     3061 atctgttgtt tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt
     3121 cctttcctaa taaaatgagg aaattgcatc gcattgtctg agtaggtgtc attctattct
     3181 ggggggtggg gtggggcagg acagcaaggg ggaggattgg gaagacaata gcaggcatgc
     3241 tggggatgcg gtgggctcta tggcttctga ggcggaaaga accagctggg gctctagggg
     3301 gtatccccac gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag
     3361 cgtgaccgct acacttgcca gcgccctagc gcccgctcct ttcgctttct tcccttcctt
     3421 tctcgccacg ttcgccggct ttccccgtca agctctaaat cgggggctcc ctttagggtt
     3481 ccgatttagt gctttacggc acctcgaccc caaaaaactt gattagggtg atggttcacg
     3541 tagtgggcca tcgccctgat agacggtttt tcgccctttg acgttggagt ccacgttctt
     3601 taatagtgga ctcttgttcc aaactggaac aacactcaac cctatctcgg tctattcttt
     3661 tgatttataa gggattttgc cgatttcggc ctattggtta aaaaatgagc tgatttaaca
     3721 aaaatttaac gcgaattaat tctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     3781 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     3841 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     3901 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     3961 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctct
     4021 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     4081 aagctcccgg gagcttgtat atccattttc ggatctgatc aagagacagg atgaggatcg
     4141 tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg
     4201 ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg
     4261 ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat
     4321 gaactgcagg acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca
     4381 gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg
     4441 gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat
     4501 gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa
     4561 catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg
     4621 gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgcgcatg
     4681 cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg
     4741 gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat
     4801 caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac
     4861 cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc
     4921 cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac caagcgacgc
     4981 ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg
     5041 gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc atgctggagt
     5101 tcttcgccca ccccaacttg tttattgcag cttataatgg ttacaaataa agcaatagca
     5161 tcacaaattt cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac
     5221 tcatcaatgt atcttatcat gtctgtatac cgtcgacctc tagctagagc ttggcgtaat
     5281 catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac
     5341 gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa
     5401 ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat
     5461 gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc
     5521 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     5581 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     5641 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     5701 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     5761 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     5821 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     5881 atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     5941 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     6001 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     6061 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     6121 ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     6181 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggttttttt gtttgcaagc
     6241 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
     6301 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa
     6361 ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat
     6421 atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga
     6481 tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac
     6541 gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg
     6601 ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg
     6661 caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt
     6721 cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct
     6781 cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat
     6841 cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta
     6901 agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca
     6961 tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat
     7021 agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac
     7081 atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa
     7141 ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt
     7201 cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg
     7261 caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat
     7321 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt
     7381 agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtc
//
