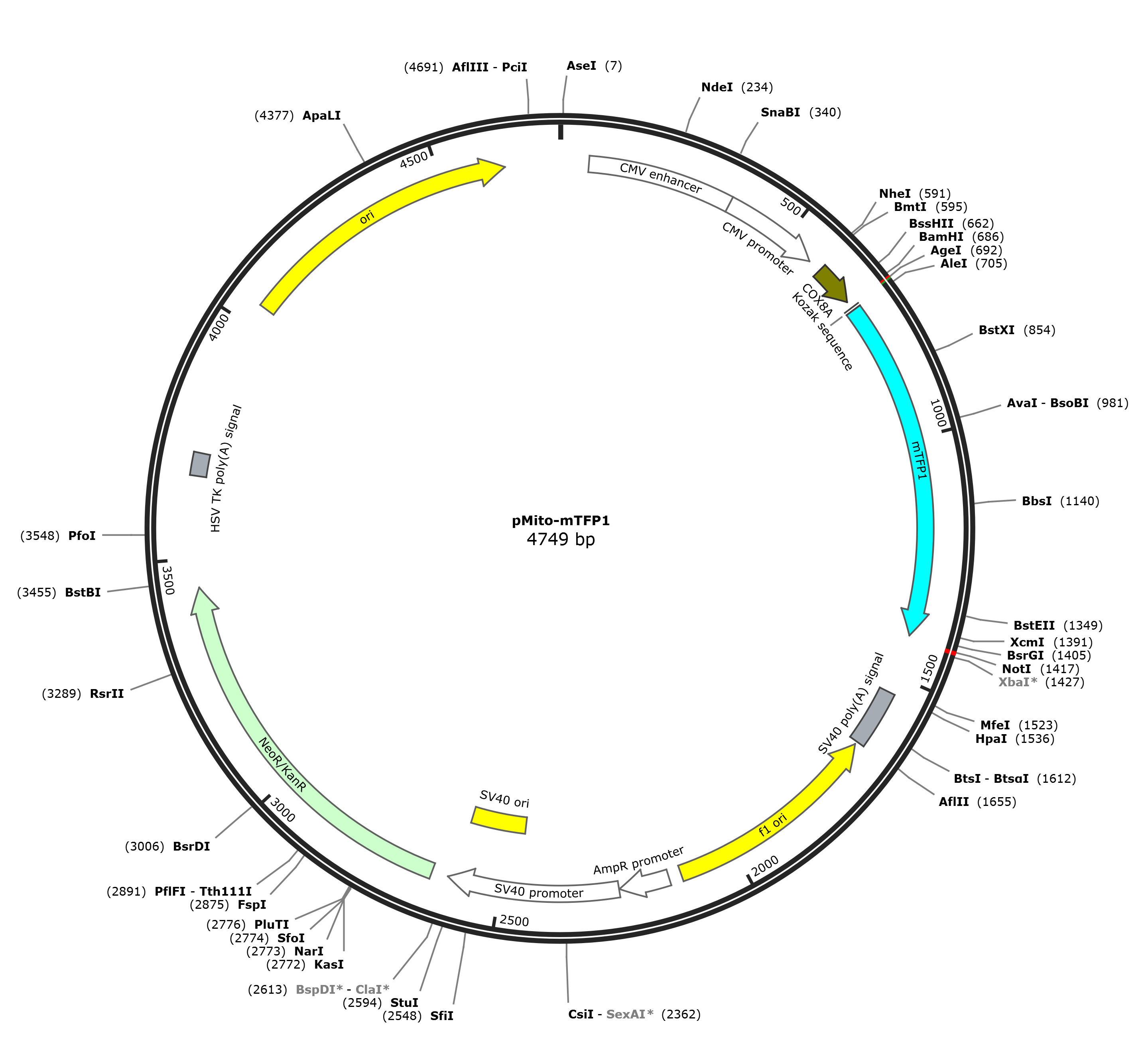

pMito-mTFP1

LOCUS      pMito-mTFP1              4749 bp DNA     circular SYN 18-JUL-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4749)
  AUTHORS   Shcherbakova DM, Verkhusha VV
  TITLE     Near-infrared fluorescent proteins for multicolor in vivo imaging.
  JOURNAL   Nat Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521.
  PUBMED    23770755
REFERENCE   2  (bases 1 to 4749)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521."
FEATURES             Location/Qualifiers
     source          1..4749
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             597..683
                     /codon_start=1
                     /label=COX8A
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAKIHSL"
     regulatory      699..704
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             705..1412
                     /codon_start=1
                     /product="monomeric teal (cyan) fluorescent protein (Ai et
                     al., 2006)"
                     /label=mTFP1
                     /translation="MVSKGEETTMGVIKPDMKIKLKMEGNVNGHAFVIEGEGEGKPYDG
                     TNTINLEVKEGAPLPFSYDILTTAFAYGNRAFTKYPDDIPNYFKQSFPEGYSWERTMTF
                     EDKGIVKVKSDISMEEDSFIYEIHLKGENFPPNGPVMQKKTTGWDASTERMYVRDGVLK
                     GDVKHKLLLEGGGHHRVDFKTIYRAKKAVKLPDYHFVDHRIEILNHDKDYNKVTVYESA
                     VARNSTDGMDELYK"
     primer_bind     705..736
                     /label=Seq-1-TFP
     polyA_signal    1537..1658
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1574..1593)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1628..1647
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1665..2120)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1802..1823)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2014..2033
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2147..2251
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2253..2610
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2276..2296)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2461..2596
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2523..2542
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(2546..2557)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2645..3439
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2699..2718)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3309..3328
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3627..3646)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3671..3718
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4047..4635
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4536..4555
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgt
      601 ccgtcctgac gccgctgctg ctgcggggct tgacaggctc ggcccggcgg ctcccagtgc
      661 cgcgcgccaa gatccattcg ttgggggatc caccggtcgc caccatggtg agcaagggcg
      721 aggagaccac aatgggcgta atcaagcccg acatgaagat caagctgaag atggagggca
      781 acgtgaatgg ccacgccttc gtgatcgagg gcgagggcga gggcaagccc tacgacggca
      841 ccaacaccat caacctggag gtgaaggagg gagcccccct gcccttctcc tacgacattc
      901 tgaccaccgc gttcgcctac ggcaacaggg ccttcaccaa gtaccccgac gacatcccca
      961 actacttcaa gcagtccttc cccgagggct actcttggga gcgcaccatg accttcgagg
     1021 acaagggcat cgtgaaggtg aagtccgaca tctccatgga ggaggactcc ttcatctacg
     1081 agatacacct caagggcgag aacttccccc ccaacggccc cgtgatgcag aagaagacca
     1141 ccggctggga cgcctccacc gagaggatgt acgtgcgcga cggcgtgctg aagggcgacg
     1201 tcaagcacaa gctgctgctg gagggcggcg gccaccaccg cgttgacttc aagaccatct
     1261 acagggccaa gaaggcggtg aagctgcccg actatcactt tgtggaccac cgcatcgaga
     1321 tcctgaacca cgacaaggac tacaacaagg tgaccgttta cgagagcgcc gtggcccgca
     1381 actccaccga cggcatggac gagctgtaca agtaagcggc cgcgactcta gatcataatc
     1441 agccatacca catttgtaga ggttttactt gctttaaaaa acctcccaca cctccccctg
     1501 aacctgaaac ataaaatgaa tgcaattgtt gttgttaact tgtttattgc agcttataat
     1561 ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat
     1621 tctagttgtg gtttgtccaa actcatcaat gtatcttaag gcgtaaattg taagcgttaa
     1681 tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc
     1741 cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt
     1801 tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa
     1861 aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg
     1921 gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg
     1981 acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc
     2041 tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa
     2101 tgcgccgcta cagggcgcgt caggtggcac ttttcgggga aatgtgcgcg gaacccctat
     2161 ttgtttattt ttctaaatac attcaaatat gtatccgctc atgagacaat aaccctgata
     2221 aatgcttcaa taatattgaa aaaggaagag tcctgaggcg gaaagaacca gctgtggaat
     2281 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     2341 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     2401 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     2461 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     2521 tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa gtagtgagga
     2581 ggcttttttg gaggcctagg cttttgcaaa gatcgatcaa gagacaggat gaggatcgtt
     2641 tcgcatgatt gaacaagatg gattgcacgc aggttctccg gccgcttggg tggagaggct
     2701 attcggctat gactgggcac aacagacaat cggctgctct gatgccgccg tgttccggct
     2761 gtcagcgcag gggcgcccgg ttctttttgt caagaccgac ctgtccggtg ccctgaatga
     2821 actgcaagac gaggcagcgc ggctatcgtg gctggccacg acgggcgttc cttgcgcagc
     2881 tgtgctcgac gttgtcactg aagcgggaag ggactggctg ctattgggcg aagtgccggg
     2941 gcaggatctc ctgtcatctc accttgctcc tgccgagaaa gtatccatca tggctgatgc
     3001 aatgcggcgg ctgcatacgc ttgatccggc tacctgccca ttcgaccacc aagcgaaaca
     3061 tcgcatcgag cgagcacgta ctcggatgga agccggtctt gtcgatcagg atgatctgga
     3121 cgaagagcat caggggctcg cgccagccga actgttcgcc aggctcaagg cgagcatgcc
     3181 cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata tcatggtgga
     3241 aaatggccgc ttttctggat tcatcgactg tggccggctg ggtgtggcgg accgctatca
     3301 ggacatagcg ttggctaccc gtgatattgc tgaagagctt ggcggcgaat gggctgaccg
     3361 cttcctcgtg ctttacggta tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct
     3421 tcttgacgag ttcttctgag cgggactctg gggttcgaaa tgaccgacca agcgacgccc
     3481 aacctgccat cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga
     3541 atcgttttcc gggacgccgg ctggatgatc ctccagcgcg gggatctcat gctggagttc
     3601 ttcgcccacc ctagggggag gctaactgaa acacggaagg agacaatacc ggaaggaacc
     3661 cgcgctatga cggcaataaa aagacagaat aaaacgcacg gtgttgggtc gtttgttcat
     3721 aaacgcgggg ttcggtccca gggctggcac tctgtcgata ccccaccgag accccattgg
     3781 ggccaatacg cccgcgtttc ttccttttcc ccaccccacc ccccaagttc gggtgaaggc
     3841 ccagggctcg cagccaacgt cggggcggca ggccctgcca tagcctcagg ttactcatat
     3901 atactttaga ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt
     3961 tttgataatc tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac
     4021 cccgtagaaa agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc
     4081 ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca
     4141 actctttttc cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgtccttcta
     4201 gtgtagccgt agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct
     4261 ctgctaatcc tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg
     4321 gactcaagac gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc
     4381 acacagccca gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta
     4441 tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg
     4501 gtcggaacag gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt
     4561 cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg
     4621 cggagcctat ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg
     4681 ccttttgctc acatgttctt tcctgcgtta tcccctgatt ctgtggataa ccgtattacc
     4741 gccatgcat
//
