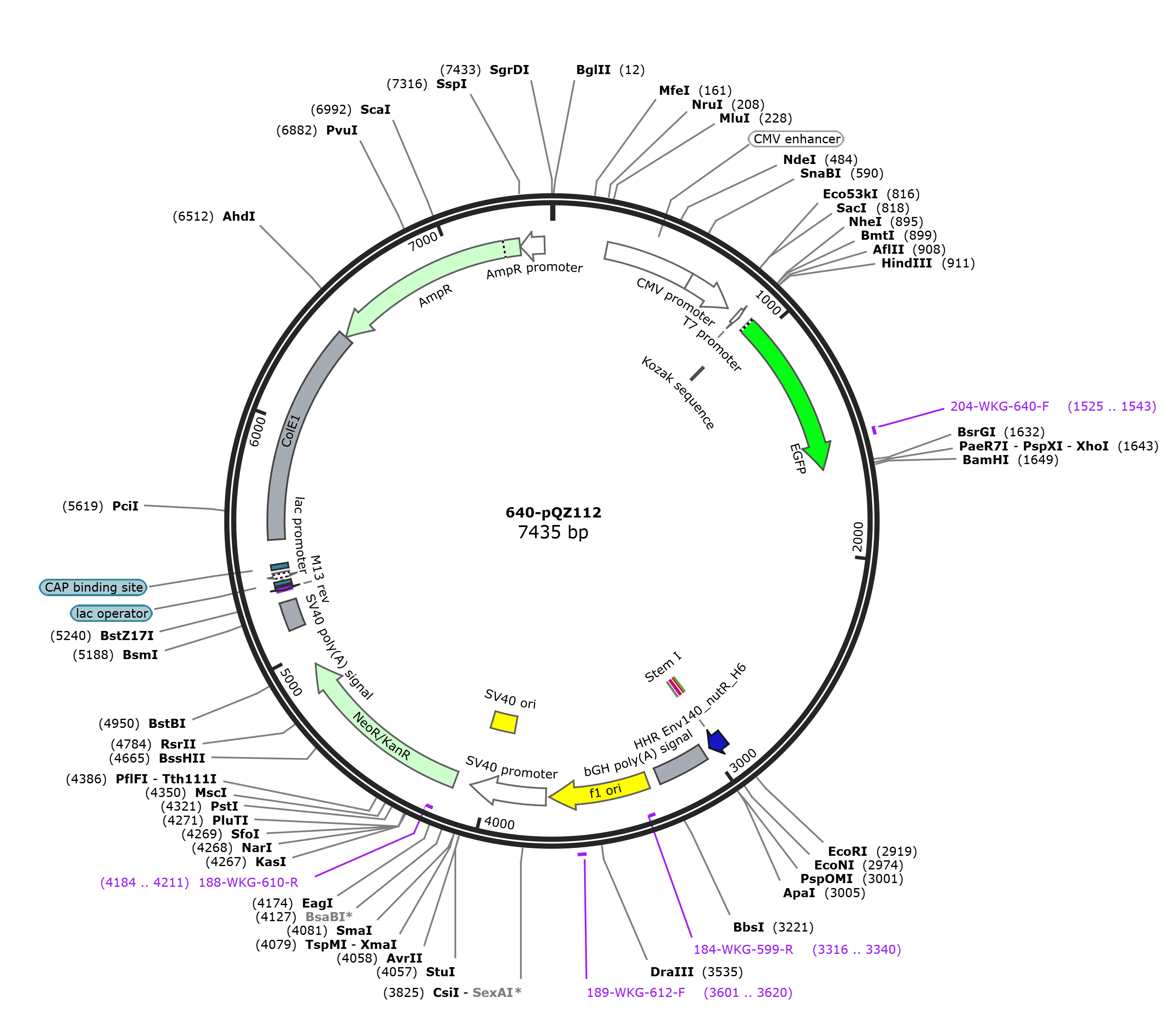

pQZ112

LOCUS       pQZ112               7435 bp DNA     circular SYN 14-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7435)
  AUTHORS   Liuqi Zhao
  TITLE     Direct Submission
  JOURNAL   Exported Jul 20, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7435
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      917..926
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             923..1639
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     1525..1543
                     /label=204-WKG-640-F
     misc_feature    2925..3000
                     /label=HHR Env140_nutR_H6
     misc_feature    complement(2933..2941)
                     /label=Stem III
     misc_feature    2944..2959
                     /label=Stem I
     terminator      2968..2982
                     /label=nutR-boxB
     misc_feature    2986..2994
                     /label=Stem III
     polyA_signal    3032..3256
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3302..3730
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3316..3340)
                     /label=184-WKG-599-R
     primer_bind     3601..3620
                     /label=189-WKG-612-F
     promoter        3744..4073
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3924..4059
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             4140..4934
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(4184..4211)
                     /label=188-WKG-610-R
     polyA_signal    5108..5229
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5278..5294)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5302..5318
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5326..5356)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5371..5392
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    5498..6438
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(6439..7299)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7300..7404)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatggtgag caagggcgag gagctgttca ccggggtggt
      961 gcccatcctg gtcgagctgg acggcgacgt aaacggccac aagttcagcg tgtccggcga
     1021 gggcgagggc gatgccacct acggcaagct gaccctgaag ttcatctgca ccaccggcaa
     1081 gctgcccgtg ccctggccca ccctcgtgac caccctgacc tacggcgtgc agtgcttcag
     1141 ccgctacccc gaccacatga agcagcacga cttcttcaag tccgccatgc ccgaaggcta
     1201 cgtccaggag cgcaccatct tcttcaagga cgacggcaac tacaagaccc gcgccgaggt
     1261 gaagttcgag ggcgacaccc tggtgaaccg catcgagctg aagggcatcg acttcaagga
     1321 ggacggcaac atcctggggc acaagctgga gtacaactac aacagccaca acgtctatat
     1381 catggccgac aagcagaaga acggcatcaa ggtgaacttc aagatccgcc acaacatcga
     1441 ggacggcagc gtgcagctcg ccgaccacta ccagcagaac acccccatcg gcgacggccc
     1501 cgtgctgctg cccgacaacc actacctgag cacccagtcc gccctgagca aagaccccaa
     1561 cgagaagcgc gatcacatgg tcctgctgga gttcgtgacc gccgccggga tcactctcgg
     1621 catggacgag ctgtacaagt aactcgaggg atccaacttg aaccggtaag aattgcaaca
     1681 aacaaatcac caccgtgagg atcacccacg gtggtgaaag ccttagccta gccgtgagga
     1741 tcacccacgg taggcacaag aaattctacc cgtgaggatc acccacgggt agaatcacaa
     1801 agactacagc cgtgaggatc acccacggct gtagactcaa acttaaaaag gatatcttca
     1861 gcaaactgat ccaacttgaa ccggtaagaa ttgcaacaaa caaatcacca ccgtgaggat
     1921 cacccacggt ggtgaaagcc ttagcctagc cgtgaggatc acccacggta ggcacaagaa
     1981 attctacccg tgaggatcac ccacgggtag aatcacaaag actacagccg tgaggatcac
     2041 ccacggctgt agactcaaac ttaaaaagga tatcttcagc aaactgatcc aacttgaacc
     2101 ggtaagaatt gcaacaaaca aatcaccacc gtgaggatca cccacggtgg tgaaagcctt
     2161 agcctagccg tgaggatcac ccacggtagg cacaagaaat tctacccgtg aggatcaccc
     2221 acgggtagaa tcacaaagac tacagccgtg aggatcaccc acggctgtag actcaaactt
     2281 aaaaaggata tcttcagcaa actgatcgga gacgagtccg tctcaaattg caacaaacaa
     2341 atcaccaccg tgaggatcac ccacggtggt gaaagcctta gcctagccgt gaggatcacc
     2401 cacggtaggc acaagaaatt ctacccgtga ggatcaccca cgggtagaat cacaaagact
     2461 acagccgtga ggatcaccca cggctgtaga ctcaaactta aaaaggatat cttcagcaaa
     2521 ctgaattgca acaaacaaat caccaccgtg aggatcaccc acggtggtga aagccttagc
     2581 ctagccgtga ggatcaccca cggtaggcac aagaaattct acccgtgagg atcacccacg
     2641 ggtagaatca caaagactac agccgtgagg atcacccacg gctgtagact caaacttaaa
     2701 aaggatatct tcagcaaact gaattgcaac aaacaaatca ccaccgtgag gatcacccac
     2761 ggtggtgaaa gccttagcct agccgtgagg atcacccacg gtaggcacaa gaaattctac
     2821 ccgtgaggat cacccacggg tagaatcaca aagactacag ccgtgaggat cacccacggc
     2881 tgtagactca aacttaaaaa ggatatcttc agcaaactga attcgtttaa accctcctcg
     2941 tccggggctg tgtcgccccg ctgacgagcc ctgaaaaagg gcgaaacgag gaggactagt
     3001 gggcccgttt aaacccgctg atcagcctcg actgtgcctt ctagttgcca gccatctgtt
     3061 gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc
     3121 taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt
     3181 ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca tgctggggat
     3241 gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag ggggtatccc
     3301 cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc
     3361 gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc
     3421 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt
     3481 agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg
     3541 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt
     3601 ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta
     3661 taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt
     3721 aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc
     3781 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt
     3841 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca
     3901 tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc
     3961 cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc tctgcctctg
     4021 agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctcc
     4081 cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga tcgtttcgca
     4141 tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg
     4201 gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag
     4261 cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc
     4321 aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc
     4381 tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg
     4441 atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc
     4501 ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca
     4561 tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag
     4621 agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc atgcccgacg
     4681 gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg
     4741 gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca
     4801 tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc
     4861 tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg
     4921 acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct
     4981 gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt
     5041 tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc
     5101 ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
     5161 tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa
     5221 tgtatcttat catgtctgta taccgtcgac ctctagctag agcttggcgt aatcatggtc
     5281 atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg
     5341 aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt
     5401 gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg
     5461 ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga
     5521 ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat
     5581 acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca
     5641 aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc
     5701 tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata
     5761 aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc
     5821 gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc
     5881 acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga
     5941 accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc
     6001 ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag
     6061 gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag
     6121 aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag
     6181 ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt ttttttgttt gcaagcagca
     6241 gattacgcgc agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga
     6301 cgctcagtgg aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat
     6361 cttcacctag atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga
     6421 gtaaacttgg tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg
     6481 tctatttcgt tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga
     6541 gggcttacca tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc
     6601 agatttatca gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac
     6661 tttatccgcc tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc
     6721 agttaatagt ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc
     6781 gtttggtatg gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc
     6841 catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt
     6901 ggccgcagtg ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc
     6961 atccgtaaga tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg
     7021 tatgcggcga ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag
     7081 cagaacttta aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat
     7141 cttaccgctg ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc
     7201 atcttttact ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa
     7261 aaagggaata agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta
     7321 ttgaagcatt tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa
     7381 aaataaacaa ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtc
//
