pLZ297

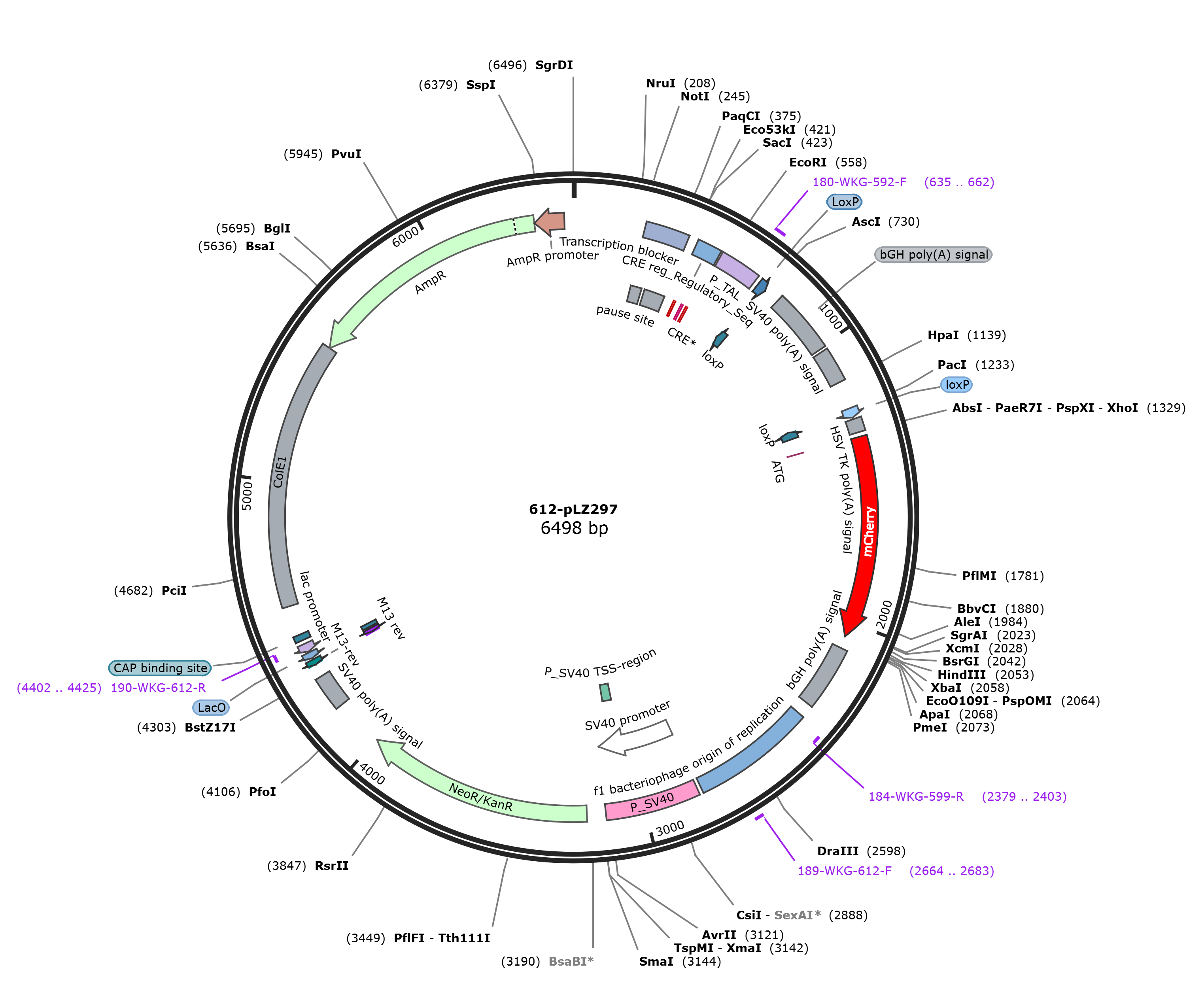

LOCUS       pLZ297            6498 bp DNA     circular SYN 13-JAN-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6498)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Jul 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6498
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     235..251
                     /label=oMH18
     misc_feature    252..405
                     /label=Transcription blocker
                     /label=Transcription\blocker
     polyA_signal    252..300
                     /note="synthetic polyadenylation signal"
     misc_feature    314..405
                     /label=pause site
                     /note="RNA polymerase II transcriptional pause signal from
                     the human alpha-2 globin gene"
     misc_feature    439..525
                     /label=CRE reg_Regulatory_Seq
     misc_feature    450..457
                     /label=CRE
     misc_feature    486..493
                     /label=CRE*
     misc_feature    508..515
                     /label=CRE
     promoter        532..678
                     /label=P_TAL
     primer_bind     635..662
                     /label=180-WKG-592-F
     misc_recomb     694..727
                     /label=LoxP
     protein_bind    complement(694..727)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (ATGTATGC) (Shaw et al., 2021)."
     polyA_signal    783..1007
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     polyA_signal    1018..1139
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     misc_feature    1237..1270
                     /label=loxP
     protein_bind    complement(1237..1270)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (ATGTATGC) (Shaw et al., 2021)."
     polyA_signal    1277..1325
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     CDS             1342..2052
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     CDS             1342
                     /codon_start=1
                     /product="start codon"
                     /label=ATG
                     /translation=""
     polyA_signal    2095..2319
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2365..2793
                     /label=f1 bacteriophage origin of replication
                     /label=f1 bacteriophage origin of replication; arrow _f1
                     ori
     primer_bind     complement(2379..2403)
                     /label=184-WKG-599-R
     primer_bind     2664..2683
                     /label=189-WKG-612-F
     misc_feature    2807..3136
                     /label=P_SV40
                     /label=nonstandard type: promoter_const
     promoter        2807..3136
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     misc_feature    3039..3088
                     /label=P_SV40 TSS-region
     CDS             3203..3997
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4171..4292
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4337..4357)
                     /label=M13-rev
     primer_bind     complement(4341..4357)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4363..4385)
                     /label=LacO
     protein_bind    4365..4381
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4389..4419)
                     /label=lac promoter
     primer_bind     complement(4402..4425)
                     /label=190-WKG-612-R
     protein_bind    4434..4455
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    4561..5501
                     /label=ColE1
                     /note="ColE1"
     CDS             complement(5502..6362)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6363..6467)
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgtggtactt
      241 ggagcggccg caataaaata tctttatttt cattacatct gtgtgttggt tttttgtgtg
      301 aatcgatagt actaacatac gctctccatc aaaacaaaac gaaacaaaac aaactagcaa
      361 aataggctgt ccccagtgca agtgcaggtg ccagaacatt tctctatcga taggtaccga
      421 gctcttacgc gtgctagcgc accagacagt gacgtcagct gccagatccc atggccgtca
      481 tactgtgacg tctttcagac accccattga cgtcaatggg agaacagatc tgccgccccg
      541 actgcatctg cgtgttcgaa ttcgccaatg acaagacgct gggcggggtt tgtgtcatca
      601 tagaactaaa gacatgcaaa tatatttctt ccggggacac cgccagcaaa cgcgagcaac
      661 gggccacggg gatgaagcag aaggctagcg cttataactt cgtatagcat acattatacg
      721 aagttatcgg cgcgccaatg ctccgaatgc atcagtgccc ctgcagggct gatcagcctc
      781 gactgtgcct tctagttgcc agccatctgt tgtttgcccc tcccccgtgc cttccttgac
      841 cctggaaggt gccactccca ctgtcctttc ctaataaaat gaggaaattg catcgcattg
      901 tctgagtagg tgtcattcta ttctgggggg tggggtgggg caggacagca agggggagga
      961 ttgggaagac aatagcaggc atgctgggga tgcggtgggc tctatggctt ctgaggataa
     1021 gatacattga tgagtttgga caaaccacaa ctagaatgca gtgaaaaaaa tgctttattt
     1081 gtgaaatttg tgatgctatt gctttatttg taaccattat aagctgcaat aaacaagtta
     1141 acaacaacaa ttgcattcat tttatgtttc aggttcaggg ggaggtgtgg gaggtttttt
     1201 aaagcgcttg gtaccgtctt tccagtggtt aattaaataa cttcgtatag catacattat
     1261 acgaagttat cgatccgaac aaacgaccca acacccgtgc gttttattct gtctttttat
     1321 tgccgatcct cgaggccacc tatggtgagc aagggcgagg aggataacat ggccatcatc
     1381 aaggagttca tgcgcttcaa ggtgcacatg gagggctccg tgaacggcca cgagttcgag
     1441 atcgagggcg agggcgaggg ccgcccctac gagggcaccc agaccgccaa gctgaaggtg
     1501 accaagggtg gccccctgcc cttcgcctgg gacatcctgt cccctcagtt catgtacggc
     1561 tccaaggcct acgtgaagca ccccgccgac atccccgact acttgaagct gtccttcccc
     1621 gagggcttca agtgggagcg cgtgatgaac ttcgaggacg gcggcgtggt gaccgtgacc
     1681 caggactcct ccctgcagga cggcgagttc atctacaagg tgaagctgcg cggcaccaac
     1741 ttcccctccg acggccccgt aatgcagaag aagaccatgg gctgggaggc ctcctccgag
     1801 cggatgtacc ccgaggacgg cgccctgaag ggcgagatca agcagaggct gaagctgaag
     1861 gacggcggcc actacgacgc tgaggtcaag accacctaca aggccaagaa gcccgtgcag
     1921 ctgcccggcg cctacaacgt caacatcaag ttggacatca cctcccacaa cgaggactac
     1981 accatcgtgg aacagtacga acgcgccgag ggccgccact ccaccggcgg catggacgag
     2041 ctgtacaagt aaaagcttct agagggcccg tttaaacccg ctgatcagcc tcgactgtgc
     2101 cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg accctggaag
     2161 gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat tgtctgagta
     2221 ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag gattgggaag
     2281 acaatagcag gcatgctggg gatgcggtgg gctctatggc ttctgaggcg gaaagaacca
     2341 gctggggctc tagggggtat ccccacgcgc cctgtagcgg cgcattaagc gcggcgggtg
     2401 tggtggttac gcgcagcgtg accgctacac ttgccagcgc cctagcgccc gctcctttcg
     2461 ctttcttccc ttcctttctc gccacgttcg ccggctttcc ccgtcaagct ctaaatcggg
     2521 ggctcccttt agggttccga tttagtgctt tacggcacct cgaccccaaa aaacttgatt
     2581 agggtgatgg ttcacgtagt gggccatcgc cctgatagac ggtttttcgc cctttgacgt
     2641 tggagtccac gttctttaat agtggactct tgttccaaac tggaacaaca ctcaacccta
     2701 tctcggtcta ttcttttgat ttataaggga ttttgccgat ttcggcctat tggttaaaaa
     2761 atgagctgat ttaacaaaaa tttaacgcga attaattctg tggaatgtgt gtcagttagg
     2821 gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta
     2881 gtcagcaacc aggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat
     2941 gcatctcaat tagtcagcaa ccatagtccc gcccctaact ccgcccatcc cgcccctaac
     3001 tccgcccagt tccgcccatt ctccgcccca tggctgacta atttttttta tttatgcaga
     3061 ggccgaggcc gcctctgcct ctgagctatt ccagaagtag tgaggaggct tttttggagg
     3121 cctaggcttt tgcaaaaagc tcccgggagc ttgtatatcc attttcggat ctgatcaaga
     3181 gacaggatga ggatcgtttc gcatgattga acaagatgga ttgcacgcag gttctccggc
     3241 cgcttgggtg gagaggctat tcggctatga ctgggcacaa cagacaatcg gctgctctga
     3301 tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca agaccgacct
     3361 gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg ctatcgtggc tggccacgac
     3421 gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg actggctgct
     3481 attgggcgaa gtgccggggc aggatctcct gtcatctcac cttgctcctg ccgagaaagt
     3541 atccatcatg gctgatgcaa tgcggcggct gcatacgctt gatccggcta cctgcccatt
     3601 cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact cggatggaag ccggtcttgt
     3661 cgatcaggat gatctggacg aagagcatca ggggctcgcg ccagccgaac tgttcgccag
     3721 gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg acccatggcg atgcctgctt
     3781 gccgaatatc atggtggaaa atggccgctt ttctggattc atcgactgtg gccggctggg
     3841 tgtggcggac cgctatcagg acatagcgtt ggctacccgt gatattgctg aagagcttgg
     3901 cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc gccgctcccg attcgcagcg
     3961 catcgccttc tatcgccttc ttgacgagtt cttctgagcg ggactctggg gttcgaaatg
     4021 accgaccaag cgacgcccaa cctgccatca cgagatttcg attccaccgc cgccttctat
     4081 gaaaggttgg gcttcggaat cgttttccgg gacgccggct ggatgatcct ccagcgcggg
     4141 gatctcatgc tggagttctt cgcccacccc aacttgttta ttgcagctta taatggttac
     4201 aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt
     4261 tgtggtttgt ccaaactcat caatgtatct tatcatgtct gtataccgtc gacctctagc
     4321 tagagcttgg cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta tccgctcaca
     4381 attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc ctaatgagtg
     4441 agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg aaacctgtcg
     4501 tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg tattgggcgc
     4561 tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg gcgagcggta
     4621 tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa cgcaggaaag
     4681 aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc gttgctggcg
     4741 tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc aagtcagagg
     4801 tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag ctccctcgtg
     4861 cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct cccttcggga
     4921 agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta ggtcgttcgc
     4981 tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc cttatccggt
     5041 aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc agcagccact
     5101 ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt gaagtggtgg
     5161 cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct gaagccagtt
     5221 accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc tggtagcggt
     5281 ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct
     5341 ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg
     5401 gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt
     5461 aaatcaatct aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt
     5521 gaggcaccta tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc
     5581 gtgtagataa ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg
     5641 cgagacccac gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc
     5701 gagcgcagaa gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg
     5761 gaagctagag taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca
     5821 ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga
     5881 tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct
     5941 ccgatcgttg tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg
     6001 cataattctc ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca
     6061 accaagtcat tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata
     6121 cgggataata ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct
     6181 tcggggcgaa aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact
     6241 cgtgcaccca actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa
     6301 acaggaaggc aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc
     6361 atactcttcc tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga
     6421 tacatatttg aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga
     6481 aaagtgccac ctgacgtc
//
