pMito-dCyOFP2s

LOCUS      pMito-dCyOFP2s              4743 bp DNA     circular SYN 18-JUL-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4743)
  AUTHORS   Shcherbakova DM, Verkhusha VV
  TITLE     Near-infrared fluorescent proteins for multicolor in vivo imaging.
  JOURNAL   Nat Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521.
  PUBMED    23770755
REFERENCE   2  (bases 1 to 4743)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName: "Nat
            Methods. 2013 Jun 16. doi: 10.1038/nmeth.2521."

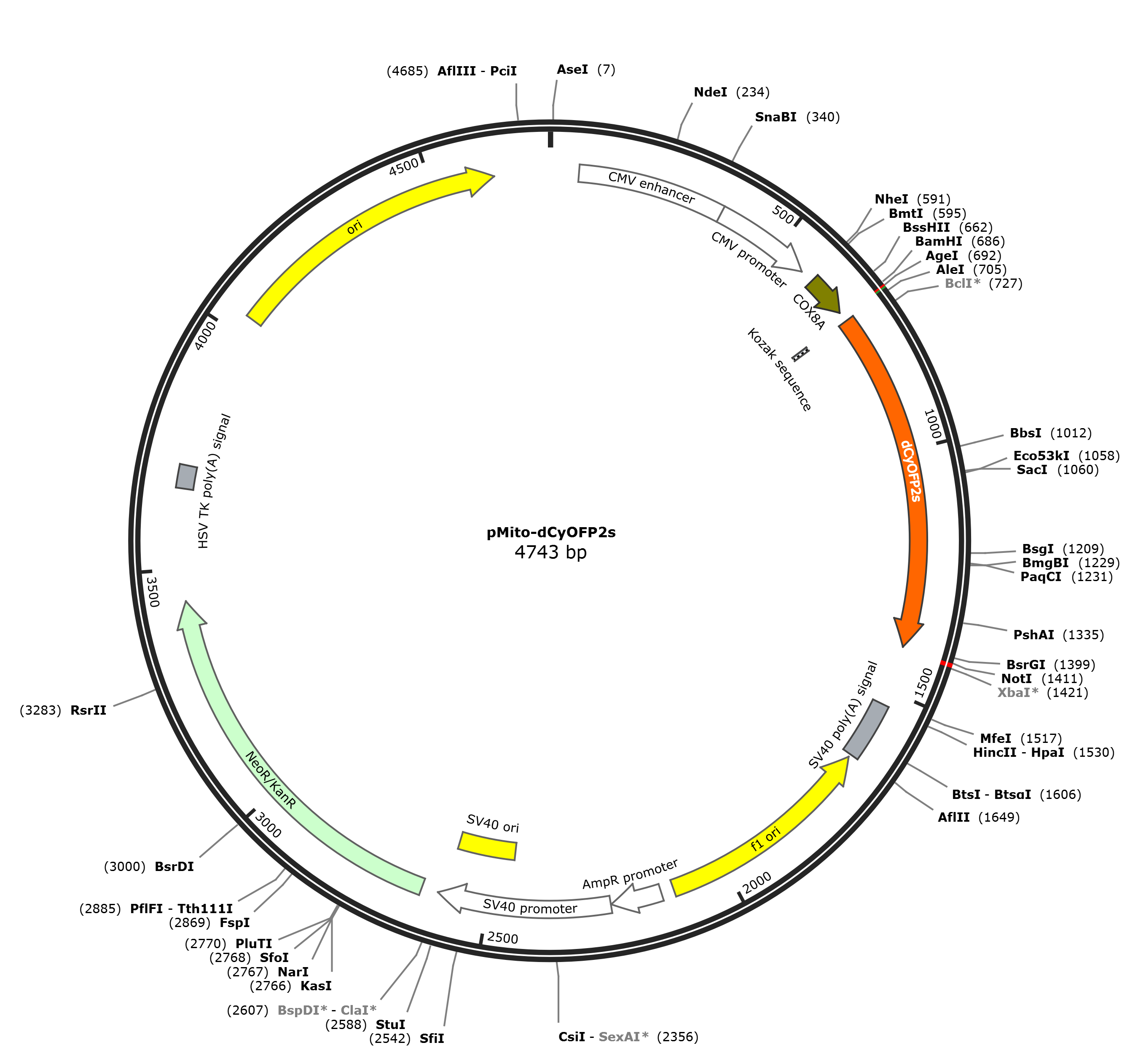

FEATURES             Location/Qualifiers
     source          1..4743
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     519..539
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     CDS             597..683
                     /codon_start=1
                     /label=COX8A
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAKIHSL"
     regulatory      699..708
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             705..1406
                     /codon_start=1
                     /product="orange-red fluorescent protein that is excitable
                     by cyan light and suitable as an acceptor for blue-emitting
                     luciferase (Chu et al., 2016)"
                     /label=dCyOFP2s
                     /translation="MVSKGEELIKENMRSKLYLEGSVNGHQFKCTHEGEGKPYEGKQTN
                     RIKVVEGGPLPFAFDILATHFMYGSKVFIKYPADLPDYFKQSFPEGFTWERVMVFEDGG
                     VLTATQDTSLQDGELIYNVKVRGVNFPANGPVMQKKTLGWEPSTETMYPADGGLEGRCD
                     KALKLVGGGHLHVSFKTTYKSKKPVKMPGVHYVDRRLERIKEADNETYVEQYEHAVARY
                     SNLGGGMDELYK"
     polyA_signal    1531..1652
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(1568..1587)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     1622..1641
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(1659..2114)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1796..1817)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2008..2027
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2141..2245
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2247..2604
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2270..2290)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      2455..2590
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2517..2536
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     complement(2540..2551)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2639..3433
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2693..2712)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3303..3322
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(3621..3640)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    3665..3712
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4041..4629
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     4530..4549
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgt
      601 ccgtcctgac gccgctgctg ctgcggggct tgacaggctc ggcccggcgg ctcccagtgc
      661 cgcgcgccaa gatccattcg ttgggggatc caccggtcgc caccatggtg agcaagggcg
      721 aggagctgat caaggagaac atgagaagca agctgtacct ggaaggcagc gtgaacggcc
      781 accagttcaa gtgcacccac gaaggggagg gcaagcccta cgagggcaag cagaccaaca
      841 ggatcaaggt ggtggaggga ggccccctgc cgttcgcatt cgacatcctg gccacccact
      901 ttatgtacgg gagcaaggtg ttcatcaagt accccgccga cctccccgat tattttaagc
      961 agtccttccc tgagggcttc acatgggaga gagtcatggt gttcgaagac gggggcgtgc
     1021 tgaccgccac ccaggacacc agcctccagg acggcgagct catctacaac gtcaaggtca
     1081 gaggggtgaa cttcccagcc aacggccccg tgatgcagaa gaaaacactg ggctgggagc
     1141 ccagcaccga gaccatgtac cccgctgacg gcggcctgga aggcagatgc gacaaggccc
     1201 tgaagctcgt gggcgggggc cacctgcacg tcagcttcaa gaccacatac aagtccaaga
     1261 aacccgtgaa gatgcccggc gtccactacg tggaccgcag actggaaaga atcaaggagg
     1321 ccgacaacga gacctacgtc gagcagtacg agcacgctgt ggccagatac tccaacctgg
     1381 gcggaggcat ggacgagctg tacaagtaag cggccgcgac tctagatcat aatcagccat
     1441 accacatttg tagaggtttt acttgcttta aaaaacctcc cacacctccc cctgaacctg
     1501 aaacataaaa tgaatgcaat tgttgttgtt aacttgttta ttgcagctta taatggttac
     1561 aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt
     1621 tgtggtttgt ccaaactcat caatgtatct taaggcgtaa attgtaagcg ttaatatttt
     1681 gttaaaattc gcgttaaatt tttgttaaat cagctcattt tttaaccaat aggccgaaat
     1741 cggcaaaatc ccttataaat caaaagaata gaccgagata gggttgagtg ttgttccagt
     1801 ttggaacaag agtccactat taaagaacgt ggactccaac gtcaaagggc gaaaaaccgt
     1861 ctatcagggc gatggcccac tacgtgaacc atcaccctaa tcaagttttt tggggtcgag
     1921 gtgccgtaaa gcactaaatc ggaaccctaa agggagcccc cgatttagag cttgacgggg
     1981 aaagccggcg aacgtggcga gaaaggaagg gaagaaagcg aaaggagcgg gcgctagggc
     2041 gctggcaagt gtagcggtca cgctgcgcgt aaccaccaca cccgccgcgc ttaatgcgcc
     2101 gctacagggc gcgtcaggtg gcacttttcg gggaaatgtg cgcggaaccc ctatttgttt
     2161 atttttctaa atacattcaa atatgtatcc gctcatgaga caataaccct gataaatgct
     2221 tcaataatat tgaaaaagga agagtcctga ggcggaaaga accagctgtg gaatgtgtgt
     2281 cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca aagcatgcat
     2341 ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     2401 caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg
     2461 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     2521 tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt
     2581 tttggaggcc taggcttttg caaagatcga tcaagagaca ggatgaggat cgtttcgcat
     2641 gattgaacaa gatggattgc acgcaggttc tccggccgct tgggtggaga ggctattcgg
     2701 ctatgactgg gcacaacaga caatcggctg ctctgatgcc gccgtgttcc ggctgtcagc
     2761 gcaggggcgc ccggttcttt ttgtcaagac cgacctgtcc ggtgccctga atgaactgca
     2821 agacgaggca gcgcggctat cgtggctggc cacgacgggc gttccttgcg cagctgtgct
     2881 cgacgttgtc actgaagcgg gaagggactg gctgctattg ggcgaagtgc cggggcagga
     2941 tctcctgtca tctcaccttg ctcctgccga gaaagtatcc atcatggctg atgcaatgcg
     3001 gcggctgcat acgcttgatc cggctacctg cccattcgac caccaagcga aacatcgcat
     3061 cgagcgagca cgtactcgga tggaagccgg tcttgtcgat caggatgatc tggacgaaga
     3121 gcatcagggg ctcgcgccag ccgaactgtt cgccaggctc aaggcgagca tgcccgacgg
     3181 cgaggatctc gtcgtgaccc atggcgatgc ctgcttgccg aatatcatgg tggaaaatgg
     3241 ccgcttttct ggattcatcg actgtggccg gctgggtgtg gcggaccgct atcaggacat
     3301 agcgttggct acccgtgata ttgctgaaga gcttggcggc gaatgggctg accgcttcct
     3361 cgtgctttac ggtatcgccg ctcccgattc gcagcgcatc gccttctatc gccttcttga
     3421 cgagttcttc tgagcgggac tctggggttc gaaatgaccg accaagcgac gcccaacctg
     3481 ccatcacgag atttcgattc caccgccgcc ttctatgaaa ggttgggctt cggaatcgtt
     3541 ttccgggacg ccggctggat gatcctccag cgcggggatc tcatgctgga gttcttcgcc
     3601 caccctaggg ggaggctaac tgaaacacgg aaggagacaa taccggaagg aacccgcgct
     3661 atgacggcaa taaaaagaca gaataaaacg cacggtgttg ggtcgtttgt tcataaacgc
     3721 ggggttcggt cccagggctg gcactctgtc gataccccac cgagacccca ttggggccaa
     3781 tacgcccgcg tttcttcctt ttccccaccc caccccccaa gttcgggtga aggcccaggg
     3841 ctcgcagcca acgtcggggc ggcaggccct gccatagcct caggttactc atatatactt
     3901 tagattgatt taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat
     3961 aatctcatga ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta
     4021 gaaaagatca aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa
     4081 acaaaaaaac caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt
     4141 tttccgaagg taactggctt cagcagagcg cagataccaa atactgtcct tctagtgtag
     4201 ccgtagttag gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta
     4261 atcctgttac cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca
     4321 agacgatagt taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag
     4381 cccagcttgg agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa
     4441 agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga
     4501 acaggagagc gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc
     4561 gggtttcgcc acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc
     4621 ctatggaaaa acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt
     4681 gctcacatgt tctttcctgc gttatcccct gattctgtgg ataaccgtat taccgccatg
     4741 cat
//
