pQL80

LOCUS       pQL80                7628 bp DNA     circular SYN 16-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7628)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 29, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

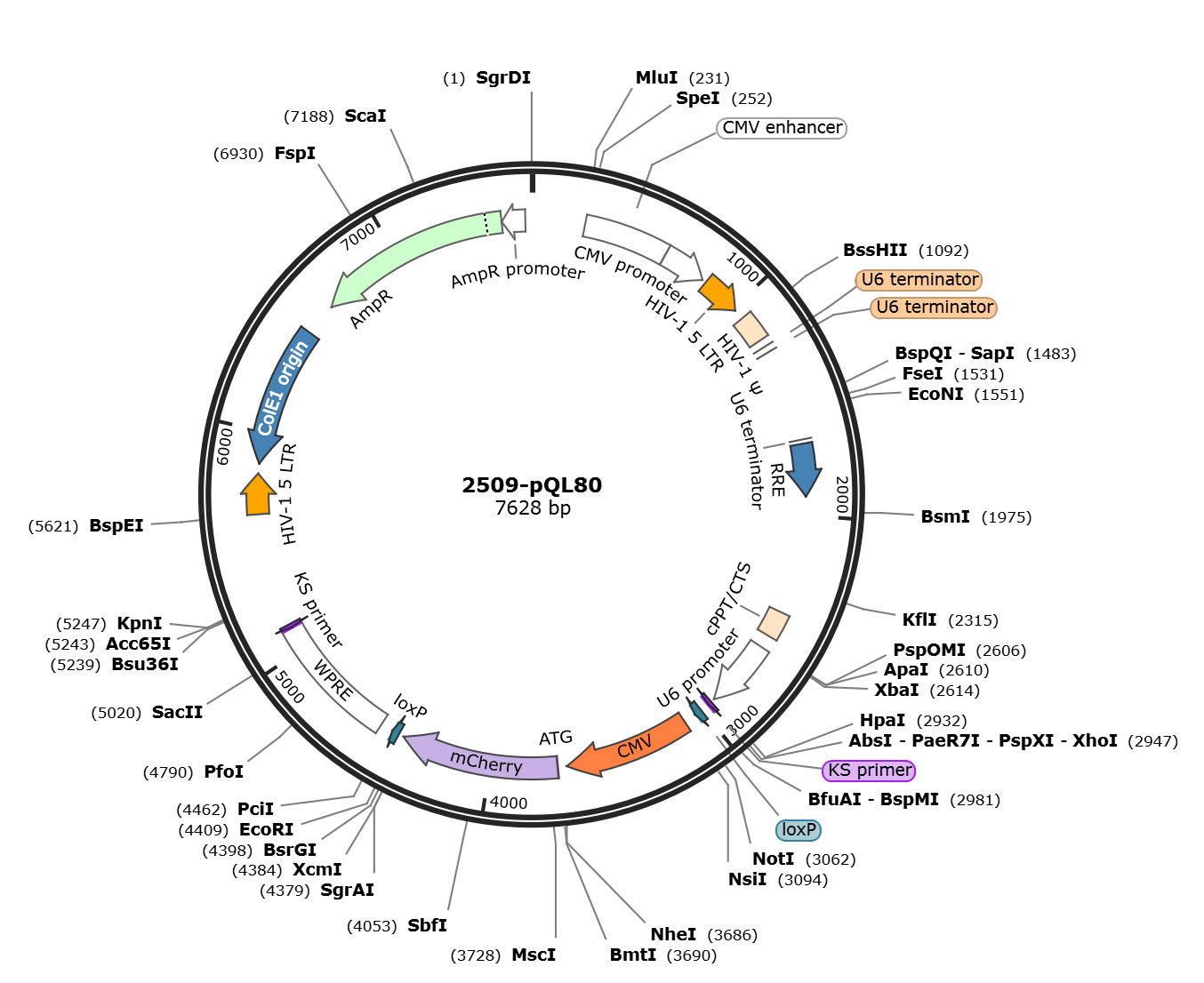

FEATURES             Location/Qualifiers
     source          1..7628
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        238..617
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        619..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     LTR             835..1015
                     /label=HIV-1 5 LTR
     misc_feature    1062..1187
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1222..1227
                     /label=U6 terminator
     misc_feature    1251..1256
                     /label=U6 terminator
     misc_feature    1665..1670
                     /label=U6 terminator
     misc_feature    1684..1917
                     /label=RRE
     primer_bind     1685..1705
                     /label=For-RRE
     primer_bind     2194..2216
                     /label=oPLL3.7-6
     misc_feature    2444..2561
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     2444..2461
                     /label=oYW187
                     /note="3'PPT-F"
     primer_bind     2572..2589
                     /label=oPLL3.7-1
     promoter        2620..2932
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for mouse U6 snRNA (Das
                     et al., 1988)"
     primer_bind     2949..2965
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(2994..3008)
                     /label=QL144-R
     protein_bind    3007..3040
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    3096..3659
                     /label=CMV
     primer_bind     3671..3718
                     /label=QL147-F
     primer_bind     3696..3718
                     /label=QL454 F
     CDS             3698
                     /codon_start=1
                     /product="start codon"
                     /label=ATG
                     /translation=""
     CDS             3701..4405
                     /codon_start=1
                     /label=mCherry
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     primer_bind     complement(4385..4409)
                     /label=QL138-R
     primer_bind     complement(4386..4406)
                     /label=QL10 mCherry-R
     primer_bind     complement(4388..4429)
                     /label=QL144-R
     primer_bind     complement(4388..4408)
                     /label=QL455 R
     protein_bind    4428..4461
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    4517..5105
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4879..4897)
                     /label=oPLL3.7-5
     primer_bind     complement(5108..5124)
                     /label=KS primer
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     5282..5310
                     /label=oYW187
                     /note="3'PPT-F"
     LTR             5634..5814
                     /label=HIV-1 5 LTR
     primer_bind     complement(5831..5850)
                     /label=oYW207
                     /note="pLL3.7 PCR R"
     rep_origin      complement(5858..6486)
                     /direction=LEFT
                     /label=ColE1 origin
     primer_bind     complement(6015..6034)
                     /label=W5CF0703-P099-D09
                     /note="Sequencing primer"
     primer_bind     6479..6498
                     /label=oPLL3.7-8
     CDS             complement(6635..7495)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(6652..6671)
                     /label=W4CF0701-P099-E08
                     /note="Sequencing primer"
     primer_bind     complement(7316..7335)
                     /label=W3CF0630-P099-D08
                     /note="Sequencing primer"
     primer_bind     complement(7372..7391)
                     /label=W3CF0630-P099-A08
                     /note="Sequencing primer"
     primer_bind     complement(7372..7391)
                     /label=W3CF0630-P099-F07
                     /note="Sequencing primer"
     primer_bind     7466..7485
                     /label=oYW24
                     /note="Forward seq primer of AmpR"
     promoter        complement(7496..7600)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(7540..7563)
                     /label=oPLL3.7-7
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgttgac
      241 attgattatt gactagttat taatagtaat caattacggg gtcattagtt catagcccat
      301 atatggagtt ccgcgttaca taacttacgg taaatggccc gcctggctga ccgcccaacg
      361 acccccgccc attgacgtca ataatgacgt atgttcccat agtaacgcca atagggactt
      421 tccattgacg tcaatgggtg gagtatttac ggtaaactgc ccacttggca gtacatcaag
      481 tgtatcatat gccaagtacg ccccctattg acgtcaatga cggtaaatgg cccgcctggc
      541 attatgccca gtacatgacc ttatgggact ttcctacttg gcagtacatc tacgtattag
      601 tcatcgctat taccatggtg atgcggtttt ggcagtacat caatgggcgt ggatagcggt
      661 ttgactcacg gggatttcca agtctccacc ccattgacgt caatgggagt ttgttttggc
      721 accaaaatca acgggacttt ccaaaatgtc gtaacaactc cgccccattg acgcaaatgg
      781 gcggtaggcg tgtacggtgg gaggtctata taagcagcgc gttttgcctg tactgggtct
      841 ctctggttag accagatctg agcctgggag ctctctggct aactagggaa cccactgctt
      901 aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct gttgtgtgac
      961 tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc tagcagtggc
     1021 gcccgaacag ggacttgaaa gcgaaaggga aaccagagga gctctctcga cgcaggactc
     1081 ggcttgctga agcgcgcacg gcaagaggcg aggggcggcg actggtgagt acgccaaaaa
     1141 ttttgactag cggaggctag aaggagagag atgggtgcga gagcgtcagt attaagcggg
     1201 ggagaattag atcgcgatgg gaaaaaattc ggttaaggcc agggggaaag aaaaaatata
     1261 aattaaaaca tatagtatgg gcaagcaggg agctagaacg attcgcagtt aatcctggcc
     1321 tgttagaaac atcagaaggc tgtagacaaa tactgggaca gctacaacca tcccttcaga
     1381 caggatcaga agaacttaga tcattatata atacagtagc aaccctctat tgtgtgcatc
     1441 aaaggataga gataaaagac accaaggaag ctttagacaa gatagaggaa gagcaaaaca
     1501 aaagtaagac caccgcacag caagcggccg gccgctgatc ttcagacctg gaggaggaga
     1561 tatgagggac aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt
     1621 aggagtagca cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg
     1681 aataggagct ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc
     1741 aatgacgctg acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa
     1801 tttgctgagg gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa
     1861 gcagctccag gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg
     1921 gatttggggt tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg
     1981 gagtaataaa tctctggaac agatttggaa tcacacgacc tggatggagt gggacagaga
     2041 aattaacaat tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga
     2101 aaagaatgaa caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa
     2161 cataacaaat tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg
     2221 tttaagaata gtttttgctg tactttctat agtgaataga gttaggcagg gatattcacc
     2281 attatcgttt cagacccacc tcccaacccc gaggggaccc gacaggcccg aaggaataga
     2341 agaagaaggt ggagagagag acagagacag atccattcga ttagtgaacg gatcggcact
     2401 gcgtgcgcca attctgcaga caaatggcag tattcatcca caattttaaa agaaaagggg
     2461 ggattggggg gtacagtgca ggggaaagaa tagtagacat aatagcaaca gacatacaaa
     2521 ctaaagaatt acaaaaacaa attacaaaaa ttcaaaattt tcgggtttat tacagggaca
     2581 gcagagatcc agtttggtta gtaccgggcc cgctctagag atccgacgcg ccatctctag
     2641 gcccgcgccg gccccctcgc acagacttgt gggagaagct cggctactcc cctgccccgg
     2701 ttaatttgca tataatattt cctagtaact atagaggctt aatgtgcgat aaaagacaga
     2761 taatctgttc tttttaatac tagctacatt ttacatgata ggcttggatt tctataagag
     2821 atacaaatac taaattatta ttttaaaaaa cagcacaaaa ggaaactcac cctaactgta
     2881 aagtaattgt gtgttttgag actataaata tcccttggag aaaagccttg ttaacgcgcg
     2941 gtgaccctcg aggtcgacgg tatcgataag ctcgcttcac gagattccag caggtcgagg
     3001 gacctaataa cttcgtatag catacattat acgaagttat attaagggtt ccaagcttaa
     3061 gcggccgcgt ggataaccgt attaccgcca tgcattagtt attaatagta atcaattacg
     3121 gggtcattag ttcatagccc atatatggag ttccgcgtta cataacttac ggtaaatggc
     3181 ccgcctggct gaccgcccaa cgacccccgc ccattgacgt caataatgac gtatgttccc
     3241 atagtaacgc caatagggac tttccattga cgtcaatggg tggagtattt acggtaaact
     3301 gcccacttgg cagtacatca agtgtatcat atgccaagta cgccccctat tgacgtcaat
     3361 gacggtaaat ggcccgcctg gcattatgcc cagtacatga ccttatggga ctttcctact
     3421 tggcagtaca tctacgtatt agtcatcgct attaccatgg tgatgcggtt ttggcagtac
     3481 atcaatgggc gtggatagcg gtttgactca cggggatttc caagtctcca ccccattgac
     3541 gtcaatggga gtttgttttg gcaccaaaat caacgggact ttccaaaatg tcgtaacaac
     3601 tccgccccat tgacgcaaat gggcggtagg cgtgtacggt gggaggtcta tataagcaga
     3661 gctggtttag tgaaccgtca gatccgctag cgccaccatg gtgagcaagg gcgaggagga
     3721 taacatggcc atcatcaagg agttcatgcg cttcaaggtg cacatggagg gctccgtgaa
     3781 cggccacgag ttcgagatcg agggcgaggg cgagggccgc ccctacgagg gcacccagac
     3841 cgccaagctg aaggtgacca agggtggccc cctgcccttc gcctgggaca tcctgtcccc
     3901 tcagttcatg tacggctcca aggcctacgt gaagcacccc gccgacatcc ccgactactt
     3961 gaagctgtcc ttccccgagg gcttcaagtg ggagcgcgtg atgaacttcg aggacggcgg
     4021 cgtggtgacc gtgacccagg actcctccct gcaggacggc gagttcatct acaaggtgaa
     4081 gctgcgcggc accaacttcc cctccgacgg ccccgtaatg cagaagaaga ccatgggctg
     4141 ggaggcctcc tccgagcgga tgtaccccga ggacggcgcc ctgaagggcg agatcaagca
     4201 gaggctgaag ctgaaggacg gcggccacta cgacgctgag gtcaagacca cctacaaggc
     4261 caagaagccc gtgcagctgc ccggcgccta caacgtcaac atcaagttgg acatcacctc
     4321 ccacaacgag gactacacca tcgtggaaca gtacgaacgc gccgagggcc gccactccac
     4381 cggcggcatg gacgagctgt acaagtaaga attcgtcgag ggacctaata acttcgtata
     4441 gcatacatta tacgaagtta tacatgttta agggttccgg ttccactagg tacaattcga
     4501 tatcaagctt atcgataatc aacctctgga ttacaaaatt tgtgaaagat tgactggtat
     4561 tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc ctttgtatca
     4621 tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct ggttgctgtc
     4681 tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca ctgtgtttgc
     4741 tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt ccgggacttt
     4801 cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg cccgctgctg
     4861 gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga aatcatcgtc
     4921 ctttccttgg ctgctcgcct gtgttgccac ctggattctg cgcgggacgt ccttctgcta
     4981 cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc cggctctgcg
     5041 gcctcttccg cgtcttcgcc ttcgccctca gacgagtcgg atctcccttt gggccgcctc
     5101 cccgcatcga taccgtcgac ctcgatcgag acctagaaaa acatggagca atcacaagta
     5161 gcaatacagc agctaccaat gctgattgtg cctggctaga agcacaagag gaggaggagg
     5221 tgggttttcc agtcacacct caggtacctt taagaccaat gacttacaag gcagctgtag
     5281 atcttagcca ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa
     5341 gacaagatat ccttgatctg tggatctacc acacacaagg ctacttccct gattggcaga
     5401 actacacacc agggccaggg atcagatatc cactgacctt tggatggtgc tacaagctag
     5461 taccagttga gcaagagaag gtagaagaag ccaatgaagg agagaacacc cgcttgttac
     5521 accctgtgag cctgcatggg atggatgacc cggagagaga agtattagag tggaggtttg
     5581 acagccgcct agcatttcat cacatggccc gagagctgca tccggactgt actgggtctc
     5641 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
     5701 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
     5761 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagcatgt
     5821 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     5881 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     5941 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     6001 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     6061 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     6121 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     6181 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     6241 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     6301 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     6361 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtggttttt
     6421 ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc tcaagaagat cctttgatct
     6481 tttctacggg gtctgacgct cagtggaacg aaaactcacg ttaagggatt ttggtcatga
     6541 gattatcaaa aaggatcttc acctagatcc ttttaaatta aaaatgaagt tttaaatcaa
     6601 tctaaagtat atatgagtaa acttggtctg acagttacca atgcttaatc agtgaggcac
     6661 ctatctcagc gatctgtcta tttcgttcat ccatagttgc ctgactcccc gtcgtgtaga
     6721 taactacgat acgggagggc ttaccatctg gccccagtgc tgcaatgata ccgcgagacc
     6781 cacgctcacc ggctccagat ttatcagcaa taaaccagcc agccggaagg gccgagcgca
     6841 gaagtggtcc tgcaacttta tccgcctcca tccagtctat taattgttgc cgggaagcta
     6901 gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt tgccattgct acaggcatcg
     6961 tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc cggttcccaa cgatcaaggc
     7021 gagttacatg atcccccatg ttgtgcaaaa aagcggttag ctccttcggt cctccgatcg
     7081 ttgtcagaag taagttggcc gcagtgttat cactcatggt tatggcagca ctgcataatt
     7141 ctcttactgt catgccatcc gtaagatgct tttctgtgac tggtgagtac tcaaccaagt
     7201 cattctgaga atagtgtatg cggcgaccga gttgctcttg cccggcgtca atacgggata
     7261 ataccgcgcc acatagcaga actttaaaag tgctcatcat tggaaaacgt tcttcggggc
     7321 gaaaactctc aaggatctta ccgctgttga gatccagttc gatgtaaccc actcgtgcac
     7381 ccaactgatc ttcagcatct tttactttca ccagcgtttc tgggtgagca aaaacaggaa
     7441 ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa atgttgaata ctcatactct
     7501 tcctttttca atattattga agcatttatc agggttattg tctcatgagc ggatacatat
     7561 ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg cacatttccc cgaaaagtgc
     7621 cacctgac
//
