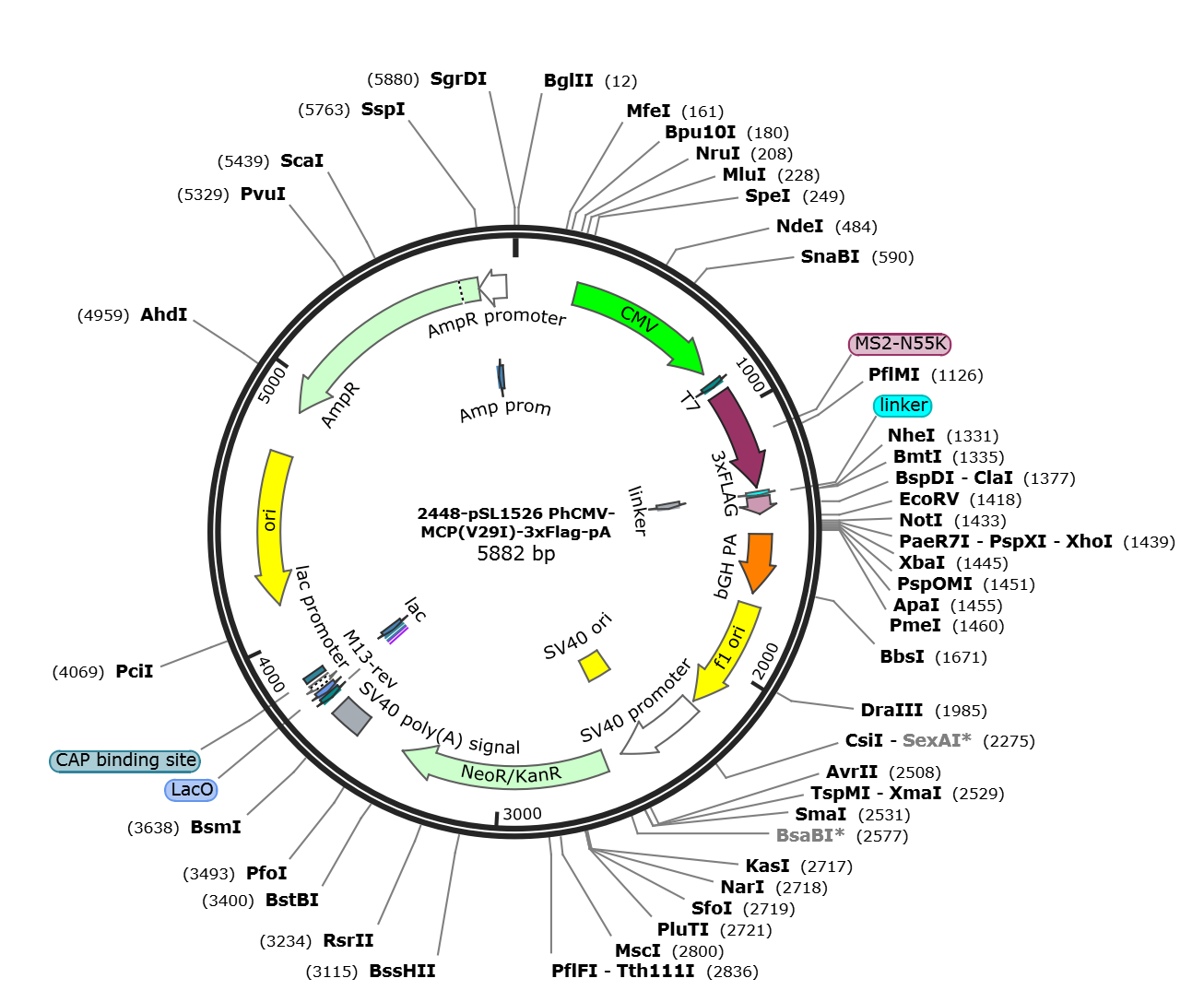

pSL1526

LOCUS       pSL1526           5882 bp DNA     circular SYN 09-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5882)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5882
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     213..232
                     /label=oSCL771
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     886..922
                     /label=oSCL1118
     primer_bind     903..922
                     /label=Oscl32-1
     primer_bind     903..922
                     /label=Oscl42-1
     CDS             914..1300
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGIAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(975..1020)
                     /label=oSCL1156
     primer_bind     1001..1021
                     /label=oSCL1157
     primer_bind     complement(1280..1330)
                     /label=oSCL093
     primer_bind     complement(1280..1300)
                     /label=Oscl32-2
     primer_bind     1300..1320
                     /label=oLZ048 NSP3-F
     misc_feature    1301..1331
                     /label=linker
     misc_feature    1301..1331
                     /label=linker
     primer_bind     1301..1330
                     /label=oSCL388
     primer_bind     1301..1330
                     /label=oSCL388a
     primer_bind     1301..1320
                     /label=oSCL1192
     primer_bind     1301..1318
                     /label=oLZ147 NS3a F
     primer_bind     1301..1317
                     /label=oYF0033
     primer_bind     1310..1330
                     /label=oSCL327
     primer_bind     complement(1311..1350)
                     /label=oSCL2071
     primer_bind     complement(1311..1331)
                     /label=oSCL1119
     primer_bind     complement(1311..1330)
                     /label=oSCL075
     CDS             1317..1331
                     /codon_start=1
                     /label=linker
                     /translation="GGDV"
     CDS             1337..1402
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     terminator      1479..1706
                     /label=bGH PA
     rep_origin      1752..2180
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2194..2523
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2374..2509
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2374..2451
                     /label=SV40 ORI
     CDS             2590..3384
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3558..3679
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3724..3744)
                     /label=M13-rev
     primer_bind     complement(3728..3744)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(3750..3772)
                     /label=LacO
     protein_bind    3752..3768
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3776..3806)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(3777..3806)
                     /label=lac
     protein_bind    3821..3842
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4130..4715)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4886..5746)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5747..5851)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(5788..5816)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagg
      901 aattcccacc atggcttcaa actttactca gttcgtgctc gtggacaatg gtgggacagg
      961 ggatgtgaca gtggctcctt ctaatttcgc taatgggatc gcagagtgga tcagctccaa
     1021 ctcacggagc caggcctaca aggtgacatg cagcgtcagg cagtctagtg cccagaagag
     1081 aaagtatacc atcaaggtgg aggtccccaa agtggctacc cagacagtgg gcggagtcga
     1141 actgcctgtc gccgcttgga ggtcctacct gaacatggag ctcactatcc caattttcgc
     1201 taccaattct gactgtgaac tcatcgtgaa ggcaatgcag gggctcctca aagacggtaa
     1261 tcctatccct tccgccatcg ccgctaactc aggtatctac gccagcggaa gtggcggagg
     1321 aggcgacgtc gctagcgact acaaagacca tgacggtgat tataaagatc atgacatcga
     1381 ttacaaggat gacgatgaca agtaagaatt ctgcagatat ccagcacagt ggcggccgct
     1441 cgagtctaga gggcccgttt aaacccgctg atcagcctcg actgtgcctt ctagttgcca
     1501 gccatctgtt gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac
     1561 tgtcctttcc taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat
     1621 tctggggggt ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca
     1681 tgctggggat gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag
     1741 ggggtatccc cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
     1801 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
     1861 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
     1921 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
     1981 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
     2041 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
     2101 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
     2161 acaaaaattt aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc
     2221 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg
     2281 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2341 tcagcaacca tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc
     2401 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc
     2461 tctgcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc
     2521 aaaaagctcc cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga
     2581 tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag
     2641 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc
     2701 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg
     2761 aatgaactgc aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc
     2821 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg
     2881 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct
     2941 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg
     3001 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat
     3061 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc
     3121 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg
     3181 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc
     3241 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct
     3301 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat
     3361 cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga
     3421 cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct
     3481 tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg
     3541 agttcttcgc ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata
     3601 gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca
     3661 aactcatcaa tgtatcttat catgtctgta taccgtcgac ctctagctag agcttggcgt
     3721 aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt ccacacaaca
     3781 tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc taactcacat
     3841 taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt
     3901 aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct tccgcttcct
     3961 cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca gctcactcaa
     4021 aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac atgtgagcaa
     4081 aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc
     4141 tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga
     4201 caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc
     4261 cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc gtggcgcttt
     4321 ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc aagctgggct
     4381 gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac tatcgtcttg
     4441 agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt aacaggatta
     4501 gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct aactacggct
     4561 acactagaag aacagtattt ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa
     4621 gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtttt tttgtttgca
     4681 agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg
     4741 ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa
     4801 aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta
     4861 tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag
     4921 cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga
     4981 tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac
     5041 cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc
     5101 ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta
     5161 gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac
     5221 gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat
     5281 gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa
     5341 gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg
     5401 tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag
     5461 aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc
     5521 cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct
     5581 caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat
     5641 cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg
     5701 ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc
     5761 aatattattg aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta
     5821 tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg
     5881 tc
//
