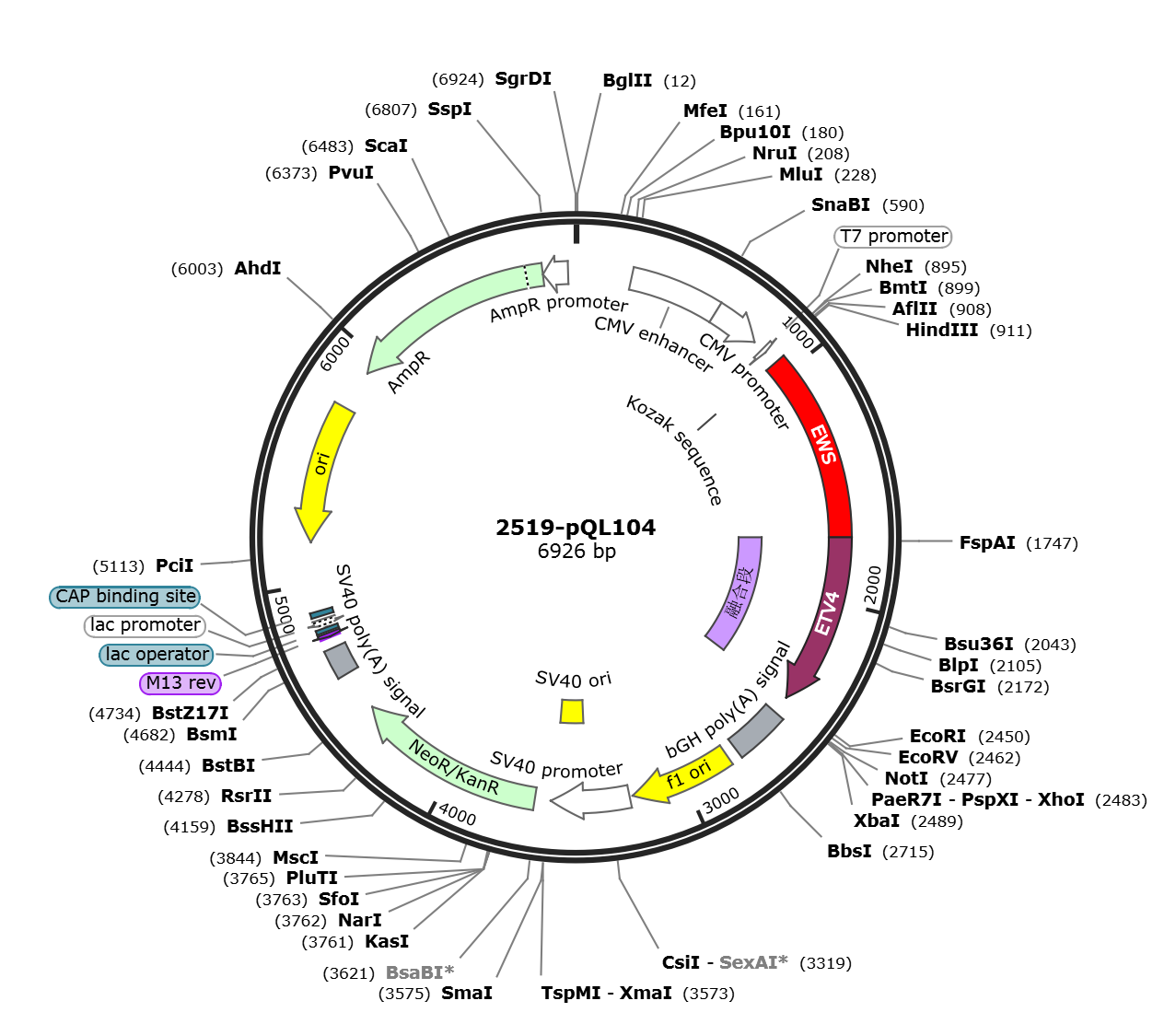

pQL104

LOCUS      pQL104          6926 bp DNA     circular SYN 06-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6926)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6926
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     897..961
                     /label=QL166 EWS-FL1-F
     primer_bind     913..961
                     /label=QL141-F
     primer_bind     914..961
                     /label=QL79 EWS-FLI1-F QL171-F
     primer_bind     939..961
                     /label=QL107 EWS-F
     primer_bind     939..961
                     /label=QL168-F
     regulatory      939..944
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    941..1732
                     /label=EWS
     primer_bind     1245..1266
                     /label=QL184 EWS-F
     primer_bind     complement(1349..1370)
                     /label=QL185 EWS-R
     primer_bind     1496..1518
                     /label=QL148
     primer_bind     complement(1579..1601)
                     /label=QL149
     primer_bind     1645..1667
                     /label=QL150
     primer_bind     1674..1695
                     /label=QL188 EF-F
     primer_bind     complement(1712..1751)
                     /label=QL195 EWS-R
     primer_bind     complement(1712..1732)
                     /label=QL 108 EWS-R
     primer_bind     complement(1712..1732)
                     /label=QL172-R
     CDS             1733..2449
                     /codon_start=1
                     /label=ETV4
                     /translation="DVTGCASMYLHTEGFSGPSPGDGAMGYGYEKPLRPFPDDVCVVPE
                     KFEGDIKQEGVGAFREGPPYQRRGALQLWQFLVALLDDPTNAHFIAWTGRGMEFKLIEP
                     EEVARLWGIQKNRPAMNYDKLSRSLRYYYEKGIMQKVAGERYVYKFVCEPEALFSLAFP
                     DNQRPALKAEFDRPVSEEDTVPLSHLDESPAYLPELAGPAQPFGPKGGYSYGSDYKDHD
                     GDYKDHDIDYKDDDDK"
     misc_feature    1733..2449
                     /label=融合段
     primer_bind     1733..1752
                     /label=QL196 ETV4-F
     CDS             2381..2446
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     primer_bind     complement(2429..2470)
                     /label=QL159-R
     primer_bind     complement(2489..2508)
                     /label=QL 108 EWS-R
     primer_bind     2509..2527
                     /label=oQZ311
     polyA_signal    2526..2750
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2747..2769)
                     /label=oQZ312
     primer_bind     2755..2769
                     /label=oQZ313
     rep_origin      2796..3224
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3238..3567
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3418..3553
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3634..4428
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4602..4723
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4772..4788)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4796..4812
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4820..4850)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4865..4886
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5174..5759)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5930..6790)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6791..6895)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggcgtcca cggattacag
      961 tacctatagc caagctgcag cgcagcaggg ctacagtgct tacaccgccc agcccactca
     1021 aggatatgca cagaccaccc aggcatatgg gcaacaaagc tatggaacct atggacagcc
     1081 cactgatgtc agctataccc aggctcagac cactgcaacc tatgggcaga ccgcctatgc
     1141 aacttcttat ggacagcctc ccactggtta tactactcca actgcccccc aggcatacag
     1201 ccagcctgtc caggggtatg gcactggtgc ttatgatacc accactgcta cagtcaccac
     1261 cacccaggcc tcctatgcag ctcagtctgc atatggcact cagcctgctt atccagccta
     1321 tgggcagcag ccagcagcca ctgcacctac aagaccgcag gatggaaaca agcccactga
     1381 gactagtcaa cctcaatcta gcacaggggg ttacaaccag cccagcctag gatatggaca
     1441 gagtaactac agttatcccc aggtacctgg gagctacccc atgcagccag tcactgcacc
     1501 tccatcctac cctcctacca gctattcctc tacacagccg actagttatg atcagagcag
     1561 ttactctcag cagaacacct atgggcaacc gagcagctat ggacagcaga gtagctatgg
     1621 tcaacaaagc agctatgggc agcagcctcc cactagttac ccaccccaaa ctggatccta
     1681 cagccaagct ccaagtcaat atagccaaca gagcagcagc tacgggcagc aggatgtcac
     1741 cgggtgcgca tcaatgtacc tccacacaga gggcttctct gggccctctc caggtgacgg
     1801 ggccatgggc tatggctatg agaaacctct gcgaccattc ccagatgatg tctgcgttgt
     1861 ccctgagaaa tttgaaggag acatcaagca ggaaggggtc ggtgcatttc gagaggggcc
     1921 gccctaccag cgccggggtg ccctgcagct gtggcaattt ctggtggcct tgctggatga
     1981 cccaacaaat gcccatttca ttgcctggac gggccgggga atggagttca agctcattga
     2041 gcctgaggag gtcgccaggc tctggggcat ccagaagaac cggccagcca tgaattacga
     2101 caagctgagc cgctcgctcc gatactatta tgagaaaggc atcatgcaga aggtggctgg
     2161 tgagcgttac gtgtacaagt ttgtgtgtga gcccgaggcc ctcttctctt tggccttccc
     2221 ggacaatcag cgtccagctc tcaaggctga gtttgaccgg cctgtcagtg aggaggacac
     2281 agtccctttg tcccacttgg atgagagccc cgcctacctc ccagagctgg ctggccccgc
     2341 ccagccattt ggccccaagg gtggctactc ttacggatcc gactacaaag accatgacgg
     2401 tgattataaa gatcatgaca tcgactacaa ggatgacgat gacaagtagg aattctgcag
     2461 atatccagca cagtggcggc cgctcgagtc tagagggccc gtttaaaccc gctgatcagc
     2521 ctcgactgtg ccttctagtt gccagccatc tgttgtttgc ccctcccccg tgccttcctt
     2581 gaccctggaa ggtgccactc ccactgtcct ttcctaataa aatgaggaaa ttgcatcgca
     2641 ttgtctgagt aggtgtcatt ctattctggg gggtggggtg gggcaggaca gcaaggggga
     2701 ggattgggaa gacaatagca ggcatgctgg ggatgcggtg ggctctatgg cttctgaggc
     2761 ggaaagaacc agctggggct ctagggggta tccccacgcg ccctgtagcg gcgcattaag
     2821 cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg ccctagcgcc
     2881 cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc cccgtcaagc
     2941 tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc tcgaccccaa
     3001 aaaacttgat tagggtgatg gttcacgtag tgggccatcg ccctgataga cggtttttcg
     3061 ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa ctggaacaac
     3121 actcaaccct atctcggtct attcttttga tttataaggg attttgccga tttcggccta
     3181 ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattaattct gtggaatgtg
     3241 tgtcagttag ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     3301 catctcaatt agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt
     3361 atgcaaagca tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc
     3421 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     3481 atttatgcag aggccgaggc cgcctctgcc tctgagctat tccagaagta gtgaggaggc
     3541 ttttttggag gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc cattttcgga
     3601 tctgatcaag agacaggatg aggatcgttt cgcatgattg aacaagatgg attgcacgca
     3661 ggttctccgg ccgcttgggt ggagaggcta ttcggctatg actgggcaca acagacaatc
     3721 ggctgctctg atgccgccgt gttccggctg tcagcgcagg ggcgcccggt tctttttgtc
     3781 aagaccgacc tgtccggtgc cctgaatgaa ctgcaggacg aggcagcgcg gctatcgtgg
     3841 ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg
     3901 gactggctgc tattgggcga agtgccgggg caggatctcc tgtcatctca ccttgctcct
     3961 gccgagaaag tatccatcat ggctgatgca atgcggcggc tgcatacgct tgatccggct
     4021 acctgcccat tcgaccacca agcgaaacat cgcatcgagc gagcacgtac tcggatggaa
     4081 gccggtcttg tcgatcagga tgatctggac gaagagcatc aggggctcgc gccagccgaa
     4141 ctgttcgcca ggctcaaggc gcgcatgccc gacggcgagg atctcgtcgt gacccatggc
     4201 gatgcctgct tgccgaatat catggtggaa aatggccgct tttctggatt catcgactgt
     4261 ggccggctgg gtgtggcgga ccgctatcag gacatagcgt tggctacccg tgatattgct
     4321 gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc
     4381 gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc gggactctgg
     4441 ggttcgaaat gaccgaccaa gcgacgccca acctgccatc acgagatttc gattccaccg
     4501 ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc tggatgatcc
     4561 tccagcgcgg ggatctcatg ctggagttct tcgcccaccc caacttgttt attgcagctt
     4621 ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac
     4681 tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tgtataccgt
     4741 cgacctctag ctagagcttg gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt
     4801 atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa gcctggggtg
     4861 cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg
     4921 gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc
     4981 gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc
     5041 ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata
     5101 acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg
     5161 cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct
     5221 caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa
     5281 gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc
     5341 tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt
     5401 aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg
     5461 ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg
     5521 cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct acagagttct
     5581 tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc tgcgctctgc
     5641 tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg
     5701 ctggtagcgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag
     5761 aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac tcacgttaag
     5821 ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta aattaaaaat
     5881 gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt taccaatgct
     5941 taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata gttgcctgac
     6001 tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc agtgctgcaa
     6061 tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac cagccagccg
     6121 gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag tctattaatt
     6181 gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac gttgttgcca
     6241 ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc agctccggtt
     6301 cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg gttagctcct
     6361 tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc atggttatgg
     6421 cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct gtgactggtg
     6481 agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc tcttgcccgg
     6541 cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc atcattggaa
     6601 aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc agttcgatgt
     6661 aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc gtttctgggt
     6721 gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt
     6781 gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt tattgtctca
     6841 tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt ccgcgcacat
     6901 ttccccgaaa agtgccacct gacgtc
//
