pYSJ1

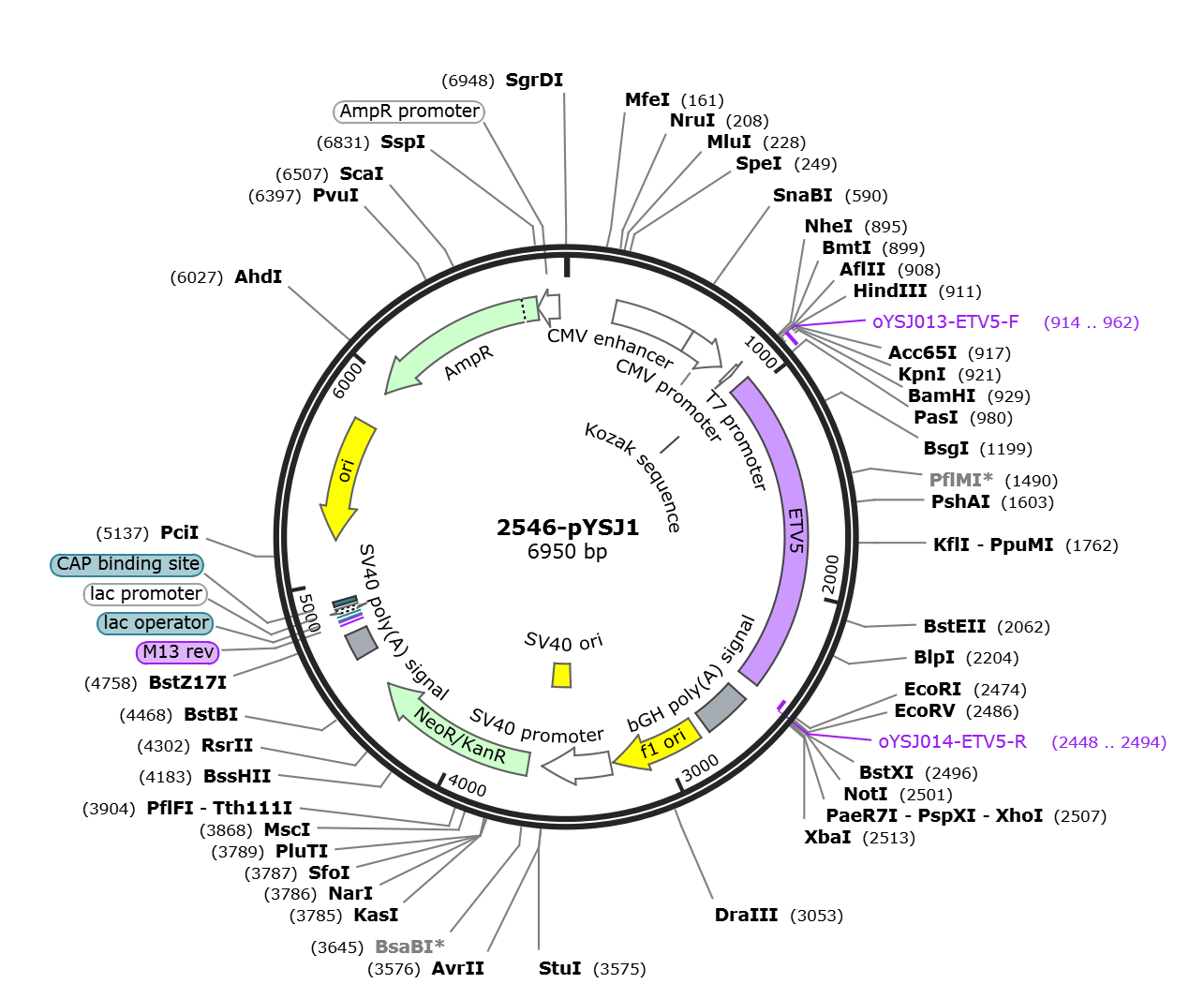

LOCUS       pYSJ1       6950 bp DNA     circular SYN 22-SEP-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6950)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6950
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..962
                     /label=oYSJ013-ETV5-F
     regulatory      935..944
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    941..2469
                     /label=ETV5
     primer_bind     complement(2448..2494)
                     /label=oYSJ014-ETV5-R
     polyA_signal    2550..2774
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2820..3248
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3262..3591
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3442..3577
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3658..4452
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4626..4747
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4796..4812)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4820..4836
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4844..4874)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4889..4910
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5198..5783)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5954..6814)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6815..6919)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggacgggt tttatgatca
      961 gcaagtccct tttatggtcc cagggaaatc tcgatctgag gaatgcagag ggcggcctgt
     1021 gattgacaga aagaggaagt ttttggacac agatctggct cacgattctg aagagctatt
     1081 tcaggatctc agtcaacttc aagaggcttg gttagctgaa gcacaagttc ctgatgatga
     1141 acagtttgtc ccagattttc agtctgataa cctggtgctt catgccccac ctccaaccaa
     1201 gatcaaacgg gagctgcaca gcccctcctc tgagctgtcg tcttgtagcc atgagcaggc
     1261 tcttggtgct aactatggag aaaagtgcct ctacaactat tgtgcctatg ataggaagcc
     1321 tccctctggg ttcaagccat taacccctcc tacaaccccc ctctcaccca cccatcagaa
     1381 tcccctattt cccccacctc aggcaactct gcccacctca gggcatgccc ctgcagctgg
     1441 cccagttcaa ggtgtgggcc ccgcccccgc cccccattcg cttccagagc ctggaccaca
     1501 gcagcaaaca tttgcggtcc cccgaccacc acatcagccc ctgcagatgc caaagatgat
     1561 gcctgaaaac cagtatccat cagaacagag atttcagaga caactgtctg aaccctgcca
     1621 ccccttccct cctcagccag gagttcctgg agataatcgc cccagttacc atcggcaaat
     1681 gtcagaacct attgtccctg cagctccccc gccccctcag ggattcaaac aagaatacca
     1741 tgacccactc tatgaacatg gggtcccggg catgccaggg cccccagcac acgggttcca
     1801 gtcaccaatg ggaatcaagc aggagcctcg ggattactgc gtcgattcag aagtgcctaa
     1861 ctgccagtca tcctacatga gagggggtta tttctccagc agccatgaag gtttttcata
     1921 tgaaaaagat ccccgattat actttgacga cacttgtgtt gtgcctgaga gactggaagg
     1981 caaagtcaaa caggagccta ccatgtatcg agaggggccc ccttaccaga ggcgaggttc
     2041 ccttcagctg tggcagttcc tggtcaccct tcttgatgac ccagccaatg cccacttcat
     2101 tgcctggaca ggtcgaggca tggagttcaa gctgatagaa ccggaagagg ttgctcggcg
     2161 ctggggcatc cagaagaacc ggccagccat gaactatgac aagctgagcc gctctctccg
     2221 ctattactat gaaaagggca tcatgcagaa ggtggctgga gagcgatacg tctacaaatt
     2281 tgtctgtgac ccagatgccc tcttctccat ggctttcccg gataaccagc gtccgttcct
     2341 gaaggcagag tccgagtgcc acctcagcga ggaggacacc ctgccgctga cccactttga
     2401 agacagcccc gcttacctcc tggacatgga ccgctgcagc agcctcccct atgccgaagg
     2461 ctttgcttat taagaattct gcagatatcc agcacagtgg cggccgctcg agtctagagg
     2521 gcccgtttaa acccgctgat cagcctcgac tgtgccttct agttgccagc catctgttgt
     2581 ttgcccctcc cccgtgcctt ccttgaccct ggaaggtgcc actcccactg tcctttccta
     2641 ataaaatgag gaaattgcat cgcattgtct gagtaggtgt cattctattc tggggggtgg
     2701 ggtggggcag gacagcaagg gggaggattg ggaagacaat agcaggcatg ctggggatgc
     2761 ggtgggctct atggcttctg aggcggaaag aaccagctgg ggctctaggg ggtatcccca
     2821 cgcgccctgt agcggcgcat taagcgcggc gggtgtggtg gttacgcgca gcgtgaccgc
     2881 tacacttgcc agcgccctag cgcccgctcc tttcgctttc ttcccttcct ttctcgccac
     2941 gttcgccggc tttccccgtc aagctctaaa tcgggggctc cctttagggt tccgatttag
     3001 tgctttacgg cacctcgacc ccaaaaaact tgattagggt gatggttcac gtagtgggcc
     3061 atcgccctga tagacggttt ttcgcccttt gacgttggag tccacgttct ttaatagtgg
     3121 actcttgttc caaactggaa caacactcaa ccctatctcg gtctattctt ttgatttata
     3181 agggattttg ccgatttcgg cctattggtt aaaaaatgag ctgatttaac aaaaatttaa
     3241 cgcgaattaa ttctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc aggctcccca
     3301 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccaggtg tggaaagtcc
     3361 ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccata
     3421 gtcccgcccc taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg
     3481 ccccatggct gactaatttt ttttatttat gcagaggccg aggccgcctc tgcctctgag
     3541 ctattccaga agtagtgagg aggctttttt ggaggcctag gcttttgcaa aaagctcccg
     3601 ggagcttgta tatccatttt cggatctgat caagagacag gatgaggatc gtttcgcatg
     3661 attgaacaag atggattgca cgcaggttct ccggccgctt gggtggagag gctattcggc
     3721 tatgactggg cacaacagac aatcggctgc tctgatgccg ccgtgttccg gctgtcagcg
     3781 caggggcgcc cggttctttt tgtcaagacc gacctgtccg gtgccctgaa tgaactgcag
     3841 gacgaggcag cgcggctatc gtggctggcc acgacgggcg ttccttgcgc agctgtgctc
     3901 gacgttgtca ctgaagcggg aagggactgg ctgctattgg gcgaagtgcc ggggcaggat
     3961 ctcctgtcat ctcaccttgc tcctgccgag aaagtatcca tcatggctga tgcaatgcgg
     4021 cggctgcata cgcttgatcc ggctacctgc ccattcgacc accaagcgaa acatcgcatc
     4081 gagcgagcac gtactcggat ggaagccggt cttgtcgatc aggatgatct ggacgaagag
     4141 catcaggggc tcgcgccagc cgaactgttc gccaggctca aggcgcgcat gcccgacggc
     4201 gaggatctcg tcgtgaccca tggcgatgcc tgcttgccga atatcatggt ggaaaatggc
     4261 cgcttttctg gattcatcga ctgtggccgg ctgggtgtgg cggaccgcta tcaggacata
     4321 gcgttggcta cccgtgatat tgctgaagag cttggcggcg aatgggctga ccgcttcctc
     4381 gtgctttacg gtatcgccgc tcccgattcg cagcgcatcg ccttctatcg ccttcttgac
     4441 gagttcttct gagcgggact ctggggttcg aaatgaccga ccaagcgacg cccaacctgc
     4501 catcacgaga tttcgattcc accgccgcct tctatgaaag gttgggcttc ggaatcgttt
     4561 tccgggacgc cggctggatg atcctccagc gcggggatct catgctggag ttcttcgccc
     4621 accccaactt gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt
     4681 tcacaaataa agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg
     4741 tatcttatca tgtctgtata ccgtcgacct ctagctagag cttggcgtaa tcatggtcat
     4801 agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata cgagccggaa
     4861 gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta attgcgttgc
     4921 gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc
     4981 aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact
     5041 cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac
     5101 ggttatccac agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa
     5161 aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg
     5221 acgagcatca caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa
     5281 gataccaggc gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc
     5341 ttaccggata cctgtccgcc tttctccctt cgggaagcgt ggcgctttct catagctcac
     5401 gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac
     5461 cccccgttca gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg
     5521 taagacacga cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt
     5581 atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagaa
     5641 cagtatttgg tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct
     5701 cttgatccgg caaacaaacc accgctggta gcggtttttt tgtttgcaag cagcagatta
     5761 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     5821 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
     5881 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
     5941 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
     6001 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
     6061 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
     6121 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
     6181 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
     6241 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
     6301 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
     6361 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
     6421 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
     6481 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
     6541 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
     6601 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
     6661 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
     6721 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
     6781 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
     6841 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     6901 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
//
