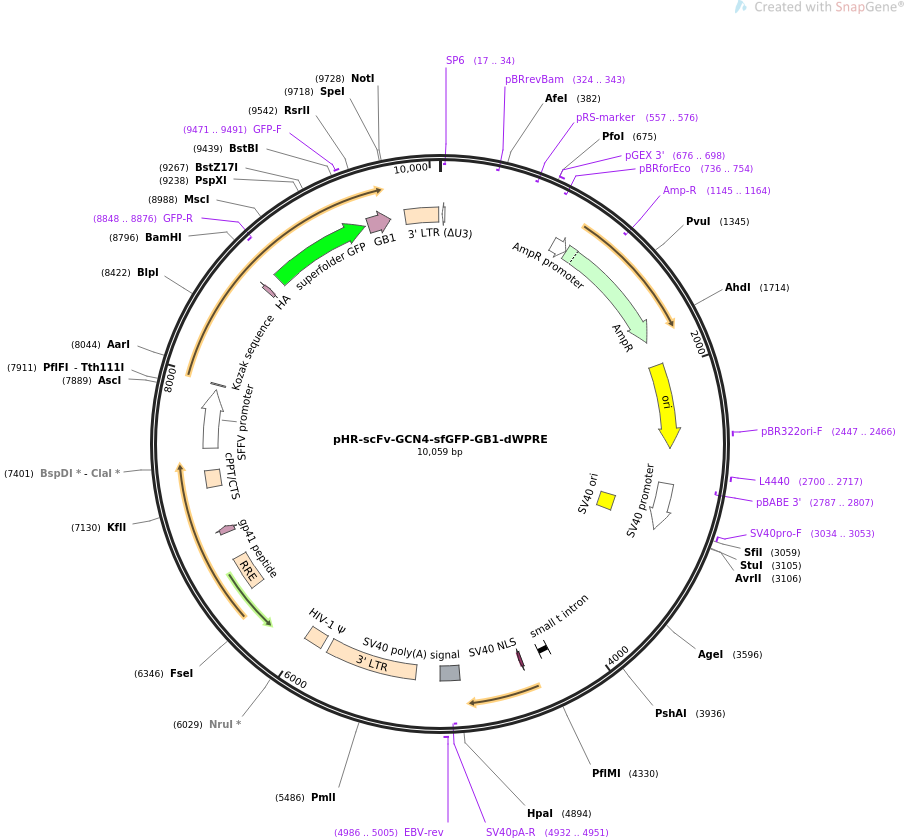

pHR-scFv-GCN4-sfGFP-GB1-dWPRE

LOCUS       pHR-scFv-GCN4-sfGFP-GB1-dWPRE               10059 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  The plasmid encodes an antibody that binds to the GCN4 peptide from
            the SunTag system, and is fused to sfGFP for imaging.
ACCESSION   .
VERSION     .
KEYWORDS    pHR-scFv-GCN4-sfGFP-GB1-dWPRE
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 10059)
  AUTHORS   Tanenbaum ME, Gilbert LA, Qi LS, Weissman JS, Vale RD
  TITLE     A Protein-Tagging System for Signal Amplification in Gene Expression
            and Fluorescence Imaging.
  JOURNAL   Cell. 2014 Oct 8. pii: S0092-8674(14)01227-6. doi:
            10.1016/j.cell.2014.09.039.
  PUBMED    25307933
REFERENCE   2  (bases 1 to 10059)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..10059
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        complement(16..34)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(17..34)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(324..343)
                     /label=pBRrevBam
                     /note="pBR322 vectors, tet region, downstream of BamHI,
                     reverse primer"
     primer_bind     complement(557..576)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     676..698
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(736..754)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        822..926
                     /gene="bla"
                     /label=AmpR promoter
     CDS             927..1787
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(1145..1164)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      1958..2546
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2447..2466
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     2700..2717
                     /label=L4440
                     /note="L4440 vector, forward primer"
     primer_bind     complement(2787..2807)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2792..3121
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2972..3107
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3034..3053
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     intron          4255..4320
                     /label=small t intron
                     /note="SV40 (simian virus 40) small t antigen intron"
     CDS             4450..4470
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     polyA_signal    4895..5029
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4932..4951)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4986..5005
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     LTR             5197..5830
                     /label=3' LTR
                     /note="3' long terminal repeat (LTR) from HIV-1"
     misc_feature    5877..6002
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    6499..6732
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             6917..6961
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    7246..7363
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        7516..7923
                     /label=SFFV promoter
                     /note="spleen focus-forming virus long terminal repeat
                     (LTR) promoter"
     regulatory      7957..7966
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             8704..8730
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             8821..9531
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="SKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLKF
                     ICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDGT
                     YKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKAN
                     FKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLEF
                     VTAAGITHGMDELYK"
     primer_bind     complement(8848..8876)
                     /label=GFP-R
                     /note="GFP, reverse primer. Does NOT anneal to EGFP"
     primer_bind     9471..9491
                     /label=GFP-F
                     /note="GFP, forward primer. Does NOT anneal to EGFP"
     CDS             9553..9714
                     /codon_start=1
                     /product="B1 domain of Streptococcal protein G   "
                     /label=GB1
                     /note="effective as a solubilizing fusion partner (Cheng
                     and Patel, 2004)"
                     /translation="YKLILNGKTLKGETTTEAVDAATAEKVFKQYANDNGVDGEWTYDD
                     ATKTFTVTE"
     LTR             9817..10050
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
ORIGIN
        1 attaattccg tgtattctat agtgtcacct aaatcgtatg tgtatgatac ataaggttat
       61 gtattaattg tagccgcgtt ctaacgacaa tatgtacaag cctaattgtg tagcatctgg
      121 cttactgaag cagaccctat catctctctc gtaaactgcc gtcagagtcg gtttggttgg
      181 acgaaccttc tgagtttctg gtaacgccgt cccgcacccg gaaatggtca gcgaaccaat
      241 cagcagggtc atcgctagcc agatcctcta cgccggacgc atcgtggccg gcatcaccgg
      301 cgccacaggt gcggttgctg gcgcctatat cgccgacatc accgatgggg aagatcgggc
      361 tcgccacttc gggctcatga gcgcttgttt cggcgtgggt atggtggcag gccccgtggc
      421 cgggggactg ttgggcgcca tctccttgca tgcaccattc cttgcggcgg cggtgctcaa
      481 cggcctcaac ctactactgg gctgcttcct aatgcaggag tcgcataagg gagagcgtcg
      541 aatggtgcac tctcagtaca atctgctctg atgccgcata gttaagccag ccccgacacc
      601 cgccaacacc cgctgacgcg ccctgacggg cttgtctgct cccggcatcc gcttacagac
      661 aagctgtgac cgtctccggg agctgcatgt gtcagaggtt ttcaccgtca tcaccgaaac
      721 gcgcgagacg aaagggcctc gtgatacgcc tatttttata ggttaatgtc atgataataa
      781 tggtttctta gacgtcaggt ggcacttttc ggggaaatgt gcgcggaacc cctatttgtt
      841 tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc tgataaatgc
      901 ttcaataata ttgaaaaagg aagagtatga gtattcaaca tttccgtgtc gcccttattc
      961 ccttttttgc ggcattttgc cttcctgttt ttgctcaccc agaaacgctg gtgaaagtaa
     1021 aagatgctga agatcagttg ggtgcacgag tgggttacat cgaactggat ctcaacagcg
     1081 gtaagatcct tgagagtttt cgccccgaag aacgttttcc aatgatgagc acttttaaag
     1141 ttctgctatg tggcgcggta ttatcccgta ttgacgccgg gcaagagcaa ctcggtcgcc
     1201 gcatacacta ttctcagaat gacttggttg agtactcacc agtcacagaa aagcatctta
     1261 cggatggcat gacagtaaga gaattatgca gtgctgccat aaccatgagt gataacactg
     1321 cggccaactt acttctgaca acgatcggag gaccgaagga gctaaccgct tttttgcaca
     1381 acatggggga tcatgtaact cgccttgatc gttgggaacc ggagctgaat gaagccatac
     1441 caaacgacga gcgtgacacc acgatgcctg tagcaatggc aacaacgttg cgcaaactat
     1501 taactggcga actacttact ctagcttccc ggcaacaatt aatagactgg atggaggcgg
     1561 ataaagttgc aggaccactt ctgcgctcgg cccttccggc tggctggttt attgctgata
     1621 aatctggagc cggtgagcgt gggtctcgcg gtatcattgc agcactgggg ccagatggta
     1681 agccctcccg tatcgtagtt atctacacga cggggagtca ggcaactatg gatgaacgaa
     1741 atagacagat cgctgagata ggtgcctcac tgattaagca ttggtaactg tcagaccaag
     1801 tttactcata tatactttag attgatttaa aacttcattt ttaatttaaa aggatctagg
     1861 tgaagatcct ttttgataat ctcatgacca aaatccctta acgtgagttt tcgttccact
     1921 gagcgtcaga ccccgtagaa aagatcaaag gatcttcttg agatcctttt tttctgcgcg
     1981 taatctgctg cttgcaaaca aaaaaaccac cgctaccagc ggtggtttgt ttgccggatc
     2041 aagagctacc aactcttttt ccgaaggtaa ctggcttcag cagagcgcag ataccaaata
     2101 ctgttcttct agtgtagccg tagttaggcc accacttcaa gaactctgta gcaccgccta
     2161 catacctcgc tctgctaatc ctgttaccag tggctgctgc cagtggcgat aagtcgtgtc
     2221 ttaccgggtt ggactcaaga cgatagttac cggataaggc gcagcggtcg ggctgaacgg
     2281 ggggttcgtg cacacagccc agcttggagc gaacgaccta caccgaactg agatacctac
     2341 agcgtgagct atgagaaagc gccacgcttc ccgaagggag aaaggcggac aggtatccgg
     2401 taagcggcag ggtcggaaca ggagagcgca cgagggagct tccaggggga aacgcctggt
     2461 atctttatag tcctgtcggg tttcgccacc tctgacttga gcgtcgattt ttgtgatgct
     2521 cgtcaggggg gcggagccta tggaaaaacg ccagcaacgc ggccttttta cggttcctgg
     2581 ccttttgctg gccttttgct cacatgttct ttcctgcgtt atcccctgat tctgtggata
     2641 accgtattac cgcctttgag tgagctgata ccgctcgccg cagccgaacg accgagcgca
     2701 gcgagtcagt gagcgaggaa gcggaagagc gcccaatacg caaaccgcct ctccccgcgc
     2761 gttggccgat tcattaatgc agctgtggaa tgtgtgtcag ttagggtgtg gaaagtcccc
     2821 aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccaggtg
     2881 tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc tcaattagtc
     2941 agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc ccagttccgc
     3001 ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg aggccgcctc
     3061 ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag gcttttgcaa
     3121 aaagcttgga cacaagacag gcttgcgaga tatgtttgag aataccactt tatcccgcgt
     3181 cagggagagg cagtgcgtaa aaagacgcgg actcatgtga aatactggtt tttagtgcgc
     3241 cagatctcta taatctcgcg caacctattt tcccctcgaa cactttttaa gccgtagata
     3301 aacaggctgg gacacttcac atgagcgaaa aatacatcgt cacctgggac atgttgcaga
     3361 tccatgcacg taaactcgca agccgactga tgccttctga acaatggaaa ggcattattg
     3421 ccgtaagccg tggcggtctg taccgggtgc gttactggcg cgtgaactgg gtattcgtca
     3481 tgtcgatacc gtttgtattt ccagctacga tcacgacaac cagcgcgagc ttaaagtgct
     3541 gaaacgcgca gaaggcgatg gcgaaggctt catcgttatt gatgacctgg tggataccgg
     3601 tggtactgcg gttgcgattc gtgaaatgta tccaaaagcg cactttgtca ccatcttcgc
     3661 aaaaccggct ggtcgtccgc tggttgatga ctatgttgtt gatatcccgc aagatacctg
     3721 gattgaacag ccgtgggata tgggcgtcgt attcgtcccg ccaatctccg gtcgctaatc
     3781 ttttcaacgc ctggcactgc cgggcgttgt tctttttaac ttcaggcggg ttacaatagt
     3841 ttccagtaag tattctggag gctgcatcca tgacacaggc aaacctgagc gaaaccctgt
     3901 tcaaaccccg ctttaaacat cctgaaacct cgacgctagt ccgccgcttt aatcacggcg
     3961 cacaaccgcc tgtgcagtcg gcccttgatg gtaaaaccat ccctcactgg tatcgcatga
     4021 ttaaccgtct gatgtggatc tggcgcggca ttgacccacg cgaaatcctc gacgtccagg
     4081 cacgtattgt gatgagcgat gccgaacgta ccgacgatga tttatacgat acggtgattg
     4141 gctaccgtgg cggcaactgg atttatgagt gggccccgga tctttgtgaa ggaaccttac
     4201 ttctgtggtg tgacataatt ggacaaacta cctacagaga tttaaagctc taaggtaaat
     4261 ataaaatttt taagtgtata atgtgttaaa ctactgattc taattgtttg tgtattttag
     4321 attccaacct atggaactga tgaatgggag cagtggtgga atgcctttaa tgaggaaaac
     4381 ctgttttgct cagaagaaat gccatctagt gatgatgagg ctactgctga ctctcaacat
     4441 tctactcctc caaaaaagaa gagaaaggta gaagacccca aggactttcc ttcagaattg
     4501 ctaagttttt tgagtcatgc tgtgtttagt aatagaactc ttgcttgctt tgctatttac
     4561 accacaaagg aaaaagctgc actgctatac aagaaaatta tggaaaaata ttctgtaacc
     4621 tttataagta ggcataacag ttataatcat aacatactgt tttttcttac tccacacagg
     4681 catagagtgt ctgctattaa taactatgct caaaaattgt gtacctttag ctttttaatt
     4741 tgtaaagggg ttaataagga atatttgatg tatagtgcct tgactagaga tcataatcag
     4801 ccataccaca tttgtagagg ttttacttgc tttaaaaaac ctcccacacc tccccctgaa
     4861 cctgaaacat aaaatgaatg caattgttgt tgttaacttg tttattgcag cttataatgg
     4921 ttacaaataa agcaatagca tcacaaattt cacaaataaa gcattttttt cactgcattc
     4981 tagttgtggt ttgtccaaac tcatcaatgt atcttatcat gtctggatca actggataac
     5041 tcaagctaac caaaatcatc ccaaacttcc caccccatac cctattacca ctgccaatta
     5101 cctgtggttt catttactct aaacctgtga ttcctctgaa ttattttcat tttaaagaaa
     5161 ttgtatttgt taaatatgta ctacaaactt agtagttgga agggctaatt cactcccaaa
     5221 gaagacaaga tatccttgat ctgtggatct accacacaca aggctacttc cctgattagc
     5281 agaactacac accagggcca ggggtcagat atccactgac ctttggatgg tgctacaagc
     5341 tagtaccagt tgagccagat aaggtagaag aggccaataa aggagagaac accagcttgt
     5401 tacaccctgt gagcctgcat gggatggatg acccggagag agaagtgtta gagtggaggt
     5461 ttgacagccg cctagcattt catcacgtgg cccgagagct gcatccggag tacttcaaga
     5521 actgctgata tcgagcttgc tacaagggac tttccgctgg ggactttcca gggaggcgtg
     5581 gcctgggcgg gactggggag tggcgagccc tcagatcctg catataagca gctgcttttt
     5641 gcctgtactg ggtctctctg gttagaccag atctgagcct gggagctctc tggctaacta
     5701 gggaacccac tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt agtgtgtgcc
     5761 cgtctgttgt gtgactctgg taactagaga tccctcagac ccttttagtc agtgtggaaa
     5821 atctctagca gtggcgcccg aacagggact tgaaagcgaa agggaaacca gaggagctct
     5881 ctcgacgcag gactcggctt gctgaagcgc gcacggcaag aggcgagggg cggcgactgg
     5941 tgagtacgcc aaaaattttg actagcggag gctagaagga gagagatggg tgcgagagcg
     6001 tcagtattaa gcgggggaga attagatcgc gatgggaaaa aattcggtta aggccagggg
     6061 gaaagaaaaa atataaatta aaacatatag tatgggcaag cagggagcta gaacgattcg
     6121 cagttaatcc tggcctgtta gaaacatcag aaggctgtag acaaatactg ggacagctac
     6181 aaccatccct tcagacagga tcagaagaac ttagatcatt atataataca gtagcaaccc
     6241 tctattgtgt gcatcaaagg atagagataa aagacaccaa ggaagcttta gacaagatag
     6301 aggaagagca aaacaaaagt aagaccaccg cacagcaagc ggccggccgc tgatcttcag
     6361 acctggagga ggagatatga gggacaattg gagaagtgaa ttatataaat ataaagtagt
     6421 aaaaattgaa ccattaggag tagcacccac caaggcaaag agaagagtgg tgcagagaga
     6481 aaaaagagca gtgggaatag gagctttgtt ccttgggttc ttgggagcag caggaagcac
     6541 tatgggcgca gcgtcaatga cgctgacggt acaggccaga caattattgt ctggtatagt
     6601 gcagcagcag aacaatttgc tgagggctat tgaggcgcaa cagcatctgt tgcaactcac
     6661 agtctggggc atcaagcagc tccaggcaag aatcctggct gtggaaagat acctaaagga
     6721 tcaacagctc ctggggattt ggggttgctc tggaaaactc atttgcacca ctgctgtgcc
     6781 ttggaatgct agttggagta ataaatctct ggaacagatt tggaatcaca cgacctggat
     6841 ggagtgggac agagaaatta acaattacac aagcttaata cactccttaa ttgaagaatc
     6901 gcaaaaccag caagaaaaga atgaacaaga attattggaa ttagataaat gggcaagttt
     6961 gtggaattgg tttaacataa caaattggct gtggtatata aaattattca taatgatagt
     7021 aggaggcttg gtaggtttaa gaatagtttt tgctgtactt tctatagtga atagagttag
     7081 gcagggatat tcaccattat cgtttcagac ccacctccca accccgaggg gacccgacag
     7141 gcccgaagga atagaagaag aaggtggaga gagagacaga gacagatcca ttcgattagt
     7201 gaacggatct cgacggtatc gccaaatggc agtattcatc cacaatttta aaagaaaagg
     7261 ggggattggg gggtacagtg caggggaaag aatagtagac ataatagcaa cagacataca
     7321 aactaaagaa ttacaaaaac aaattacaaa aattcaaaat tttcgggttt attacaggga
     7381 cagcagagat ccagtttgga tcgataagct tgatatcgaa ttcctgcagc cccgataaaa
     7441 taaaagattt tatttagtct ccagaaaaag gggggaatga aagaccccac ctgtaggttt
     7501 ggcaagctag ctgcagtaac gccattttgc aaggcatgga aaaataccaa accaagaata
     7561 gagaagttca gatcaagggc gggtacatga aaatagctaa cgttgggcca aacaggatat
     7621 ctgcggtgag cagtttcggc cccggcccgg ggccaagaac agatggtcac cgcagtttcg
     7681 gccccggccc gaggccaaga acagatggtc cccagatatg gcccaaccct cagcagtttc
     7741 ttaagaccca tcagatgttt ccaggctccc ccaaggacct gaaatgaccc tgcgccttat
     7801 ttgaattaac caatcagcct gcttctcgct tctgttcgcg cgcttctgct tcccgagctc
     7861 tataaaagag ctcacaaccc ctcactcggc gcgccagtcc tccgacagac tgagtcgccc
     7921 gggggggatc tggagctctc gagaattctc acgcgtgcca ccatgggccc cgacatcgtg
     7981 atgacccaga gccccagcag cctgagcgcc agcgtgggcg accgcgtgac catcacctgc
     8041 cgcagcagca ccggcgccgt gaccaccagc aactacgcca gctgggtgca ggagaagccc
     8101 ggcaagctgt tcaagggcct gatcggcggc accaacaacc gcgcccccgg cgtgcccagc
     8161 cgcttcagcg gcagcctgat cggcgacaag gccaccctga ccatcagcag cctgcagccc
     8221 gaggacttcg ccacctactt ctgcgccctg tggtacagca accactgggt gttcggccag
     8281 ggcaccaagg tggagctgaa gcgcggcggc ggcggcagcg gcggcggcgg cagcggcggc
     8341 ggcggcagca gcggcggcgg cagcgaggtg aagctgctgg agagcggcgg cggcctggtg
     8401 cagcccggcg gcagcctgaa gctgagctgc gccgtgagcg gcttcagcct gaccgactac
     8461 ggcgtgaact gggtgcgcca ggcccccggc cgcggcctgg agtggatcgg cgtgatctgg
     8521 ggcgacggca tcaccgacta caacagcgcc ctgaaggacc gcttcatcat cagcaaggac
     8581 aacggcaaga acaccgtgta cctgcagatg agcaaggtgc gcagcgacga caccgccctg
     8641 tactactgcg tgaccggcct gttcgactac tggggccagg gcaccctggt gaccgtgagc
     8701 agctacccat acgatgttcc agattacgct ggtggaggcg gaggttctgg gggaggaggt
     8761 agtggcggtg gtggttcagg aggcggcgga agcttggatc caggtggagg tggaagcggt
     8821 agcaaaggag aagaactttt cactggagtt gtcccaattc ttgttgaatt agatggtgat
     8881 gttaatgggc acaaattttc tgtccgtgga gagggtgaag gtgatgctac aaacggaaaa
     8941 ctcaccctta aatttatttg cactactgga aaactacctg ttccgtggcc aacacttgtc
     9001 actactctga cctatggtgt tcaatgcttt tcccgttatc cggatcacat gaaacggcat
     9061 gactttttca agagtgccat gcccgaaggt tatgtacagg aacgcactat atctttcaaa
     9121 gatgacggga cctacaagac gcgtgctgaa gtcaagtttg aaggtgatac ccttgttaat
     9181 cgtatcgagt taaagggtat tgattttaaa gaagatggaa acattcttgg acacaaactc
     9241 gagtacaact ttaactcaca caatgtatac atcacggcag acaaacaaaa gaatggaatc
     9301 aaagctaact tcaaaattcg ccacaacgtt gaagatggtt ccgttcaact agcagaccat
     9361 tatcaacaaa atactccaat tggcgatggc cctgtccttt taccagacaa ccattacctg
     9421 tcgacacaat ctgtcctttc gaaagatccc aacgaaaagc gtgaccacat ggtccttctt
     9481 gagtttgtaa ctgctgctgg gattacacat ggcatggatg agctctacaa aggtggaggt
     9541 cggaccgaag agtacaagct tatcctgaac ggtaaaaccc tgaaaggtga aaccaccacc
     9601 gaagctgttg acgctgctac cgcggaaaaa gttttcaaac agtacgctaa cgacaacggt
     9661 gttgacggtg aatggaccta cgacgacgct accaaaacct tcacggtaac cgaataaact
     9721 agttaagcgg ccgcgactct agagtcgacc ctttaagacc aatgacttac aaggcagctg
     9781 tagatcttag ccacttttta aaagaaaagg ggggactgga agggctaatt cactcccaac
     9841 gaagacaaga tctgcttttt gcttgtactg ggtctctctg gttagaccag atctgagcct
     9901 gggagctctc tggctaacta gggaacccac tgcttaagcc tcaataaagc ttgccttgag
     9961 tgcttcaagt agtgtgtgcc cgtctgttgt gtgactctgg taactagaga tccctcagac
    10021 ccttttagtc agtgtggaaa atctctagca gcatctaga
//
