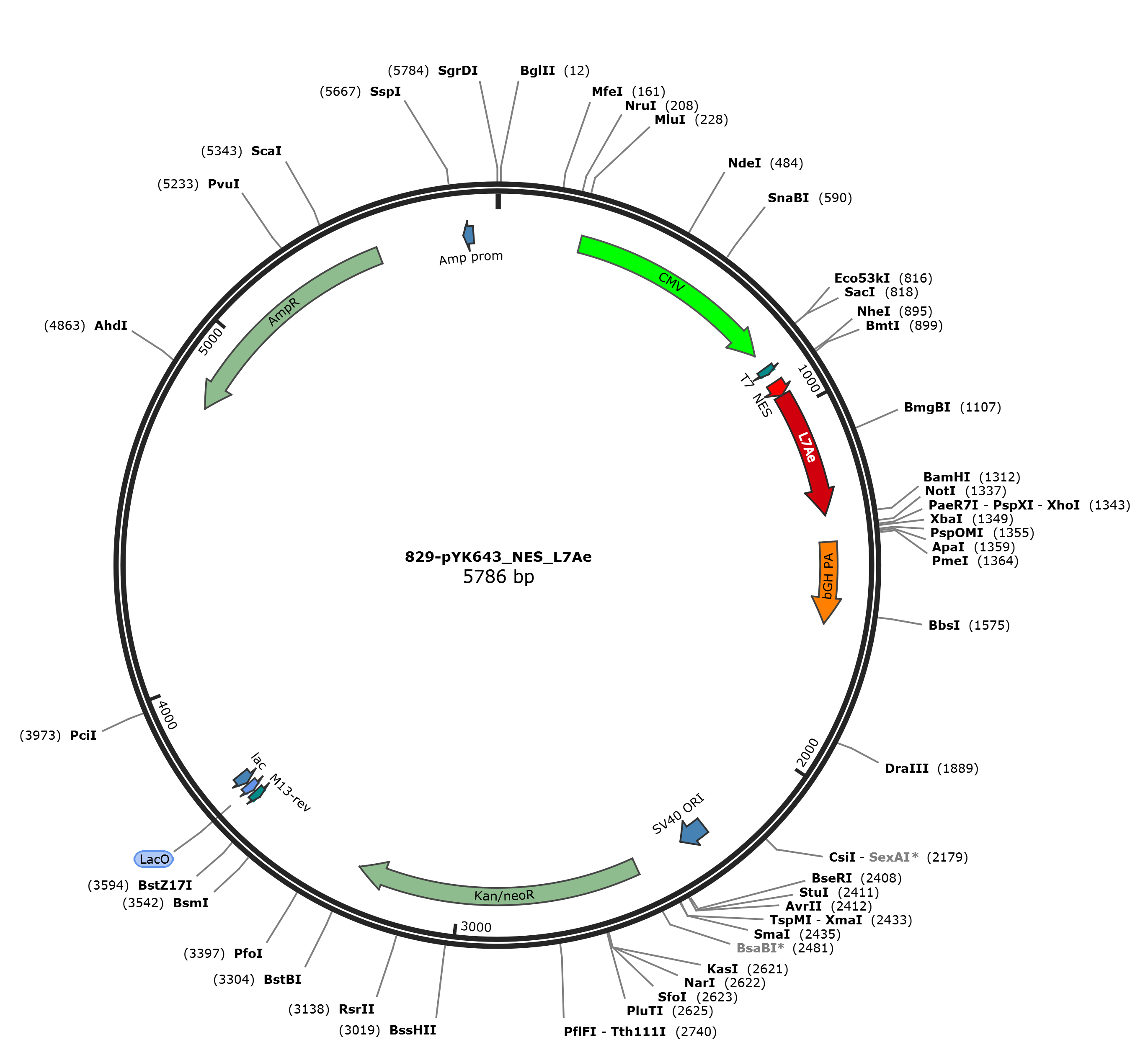

pYK643

LOCUS       pYK643               5789 bp DNA     circular SYN 11-FEB-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5789)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5789
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     877..932
                     /label=oSCL1612
     misc_feature    910..951
                     /label=NES
     primer_bind     complement(926..951)
                     /label=oYK641_NES_R
     primer_bind     932..970
                     /label=oYK643_L7Ae_F
     primer_bind     950..972

     primer_bind     950..972
                     /label=DDL7AeF
                     /note="KpnI"
     primer_bind     950..967
                     /label=oDJ197-1
     primer_bind     951..970
                     /label=oYK641_L7Ae_F
     misc_feature    952..1308
                     /label=L7Ae
     primer_bind     952..972
                     /label=L7Ae FLP
     primer_bind     1272..1284
                     /label=oyk03-03-F
     primer_bind     1272..1284
                     /label=oYK04-ns3a-F
     primer_bind     1272..1282
                     /label=oYK25-NS3a-F
     primer_bind     complement(1284..1308)
                     /label=DDL7AeR
                     /note="EcoRI"
     primer_bind     complement(1288..1330)
                     /label=oYK642_L7Ae_R
     primer_bind     complement(1288..1317)
                     /label=L7Ae RLE
     primer_bind     1312..1349
                     /label=oYK641_XhoIBam_F
     primer_bind     complement(1312..1334)
                     /label=oYK57-MCP-mCherry-R
     primer_bind     complement(1357..1375)
                     /label=oYW306
     terminator      1383..1610
                     /label=bGH PA
     misc_feature    2278..2355
                     /label=SV40 ORI
     CDS             2497..3288
                     /label=Kan/neoR
     primer_bind     complement(3628..3648)
                     /label=M13-rev
     misc_binding    complement(3654..3676)
                     /label=LacO
     promoter        complement(3681..3710)
                     /label=lac
     CDS             complement(4796..5455)
                     /label=AmpR
     primer_bind     5112..5123
                     /label=oyk03-03-F
     primer_bind     5112..5123
                     /label=oYK04-ns3a-F
     promoter        complement(5695..5723)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgc ttcaactgcc tccacttgaa agactgacac tgggtagttc catgtacgtg
      961 cgcttcgagg tgcccgagga catgcagaac gaggccctga gcctgctgga aaaagtgcgc
     1021 gagagcggca aagtgaagaa gggcaccaac gaaaccacca aggccgtgga acggggcctg
     1081 gccaagctgg tgtatatcgc cgaggacgtg gacccccccg agattgtggc ccatctgccc
     1141 ctgctgtgcg aagagaagaa cgtgccctac atctacgtga agtccaagaa cgacctgggc
     1201 agagccgtgg gcatcgaggt gccatgtgcc tctgccgcca tcatcaacga gggcgagctg
     1261 cggaaagaac tgggcagcct ggtggaaaag atcaagggcc tgcagaagta aggatccact
     1321 agtccagtgt ggtgggcggc cgctcgagtc tagagggccc gtttaaaccc gctgatcagc
     1381 ctcgactgtg ccttctagtt gccagccatc tgttgtttgc ccctcccccg tgccttcctt
     1441 gaccctggaa ggtgccactc ccactgtcct ttcctaataa aatgaggaaa ttgcatcgca
     1501 ttgtctgagt aggtgtcatt ctattctggg gggtggggtg gggcaggaca gcaaggggga
     1561 ggattgggaa gacaatagca ggcatgctgg ggatgcggtg ggctctatgg cttctgaggc
     1621 ggaaagaacc agctggggct ctagggggta tccccacgcg ccctgtagcg gcgcattaag
     1681 cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg ccctagcgcc
     1741 cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc cccgtcaagc
     1801 tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc tcgaccccaa
     1861 aaaacttgat tagggtgatg gttcacgtag tgggccatcg ccctgataga cggtttttcg
     1921 ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa ctggaacaac
     1981 actcaaccct atctcggtct attcttttga tttataaggg attttgccga tttcggccta
     2041 ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattaattct gtggaatgtg
     2101 tgtcagttag ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     2161 catctcaatt agtcagcaac caggtgtgga aagtccccag gctccccagc aggcagaagt
     2221 atgcaaagca tgcatctcaa ttagtcagca accatagtcc cgcccctaac tccgcccatc
     2281 ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact aatttttttt
     2341 atttatgcag aggccgaggc cgcctctgcc tctgagctat tccagaagta gtgaggaggc
     2401 ttttttggag gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc cattttcgga
     2461 tctgatcaag agacaggatg aggatcgttt cgcatgattg aacaagatgg attgcacgca
     2521 ggttctccgg ccgcttgggt ggagaggcta ttcggctatg actgggcaca acagacaatc
     2581 ggctgctctg atgccgccgt gttccggctg tcagcgcagg ggcgcccggt tctttttgtc
     2641 aagaccgacc tgtccggtgc cctgaatgaa ctgcaggacg aggcagcgcg gctatcgtgg
     2701 ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg
     2761 gactggctgc tattgggcga agtgccgggg caggatctcc tgtcatctca ccttgctcct
     2821 gccgagaaag tatccatcat ggctgatgca atgcggcggc tgcatacgct tgatccggct
     2881 acctgcccat tcgaccacca agcgaaacat cgcatcgagc gagcacgtac tcggatggaa
     2941 gccggtcttg tcgatcagga tgatctggac gaagagcatc aggggctcgc gccagccgaa
     3001 ctgttcgcca ggctcaaggc gcgcatgccc gacggcgagg atctcgtcgt gacccatggc
     3061 gatgcctgct tgccgaatat catggtggaa aatggccgct tttctggatt catcgactgt
     3121 ggccggctgg gtgtggcgga ccgctatcag gacatagcgt tggctacccg tgatattgct
     3181 gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc
     3241 gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc gggactctgg
     3301 ggttcgaaat gaccgaccaa gcgacgccca acctgccatc acgagatttc gattccaccg
     3361 ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc tggatgatcc
     3421 tccagcgcgg ggatctcatg ctggagttct tcgcccaccc caacttgttt attgcagctt
     3481 ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac
     3541 tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tgtataccgt
     3601 cgacctctag ctagagcttg gcgtaatcat ggtcatagct gtttcctgtg tgaaattgtt
     3661 atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa gcctggggtg
     3721 cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct ttccagtcgg
     3781 gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga ggcggtttgc
     3841 gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc gttcggctgc
     3901 ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa tcaggggata
     3961 acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt aaaaaggccg
     4021 cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa aatcgacgct
     4081 caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt ccccctggaa
     4141 gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg tccgcctttc
     4201 tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc agttcggtgt
     4261 aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc gaccgctgcg
     4321 ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta tcgccactgg
     4381 cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct acagagttct
     4441 tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc tgcgctctgc
     4501 tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa caaaccaccg
     4561 ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa aaaggatctc
     4621 aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa aactcacgtt
     4681 aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt ttaaattaaa
     4741 aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac agttaccaat
     4801 gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc atagttgcct
     4861 gactccccgt cgtgtagata actacgatac gggagggctt accatctggc cccagtgctg
     4921 caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata aaccagccag
     4981 ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc cagtctatta
     5041 attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc aacgttgttg
     5101 ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca ttcagctccg
     5161 gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa gcggttagct
     5221 ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca ctcatggtta
     5281 tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt tctgtgactg
     5341 gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt tgctcttgcc
     5401 cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg ctcatcattg
     5461 gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga tccagttcga
     5521 tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc agcgtttctg
     5581 ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg acacggaaat
     5641 gttgaatact catactcttc ctttttcaat attattgaag catttatcag ggttattgtc
     5701 tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg gttccgcgca
     5761 catttccccg aaaagtgcca cctgacgtc
//
