| 质粒名称: | pHybrid-mBlueberry2 |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0000206 |
| 产品用途: | Dual-expression vector. Expresses mBlueberry2 in bacterial cells and co-expresses mBlueberry2 with mScarlet in mammalian cells |
| 存储实验室: | KIRYL PIATKEVICH Lab |
|
载体骨架基本信息 |
|
| 载体名称: | pHybrid |
| 表达系统: | 哺乳动物表达、细菌表达 |
| 启动子: | rhaB, CMV, SV40 |
| 拷贝数: | 高拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | DH5a，TOP10 |
|
插入基因信息 |
|
| 插入基因名称: | mBlueberry2, mScarlet |
| 物种来源: | Synthetic, Synthetic |
| 密码子优化: | 哺乳细胞表达优化 |
|
文献引用方法 |
|
| 参考文献部分: |
Dual-expression system for blue fluorescent protein optimization
Papadaki S., Wang X., Wang Y., Zhang H., Jia S., Liu S., Yang M., Zhang D., Jia J., Köster R.W., Namikawa K., Piatkevich K.D.
Sci. Reports 2022 121 12, 1–16 (2022)
|
买家导航
pHybrid-mBlueberry2载体质粒基本信息

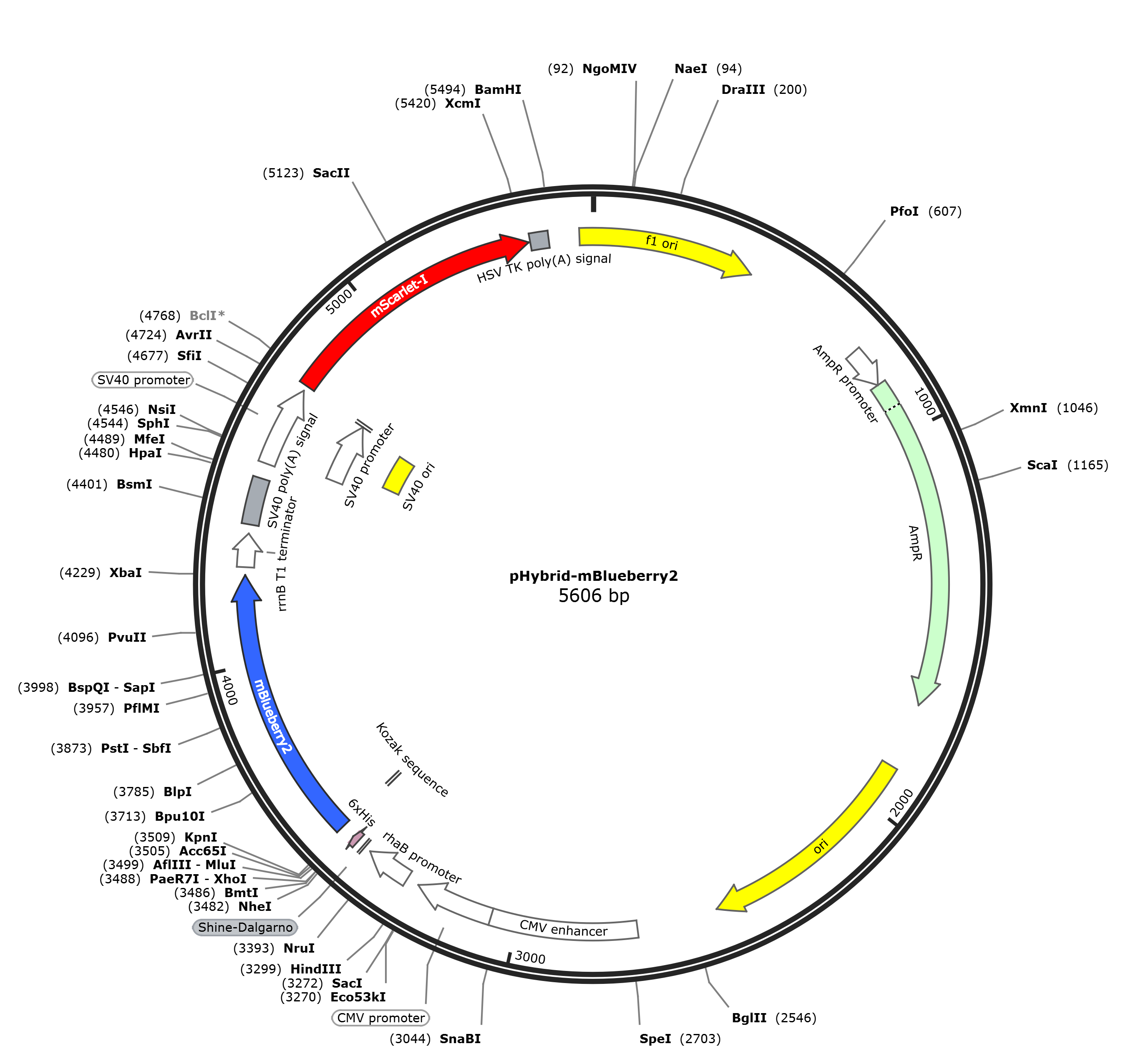

pHybrid-mBlueberry2质粒图谱载体图谱和pHybrid-mBlueberry2载体序列质粒序列多克隆位点信息
pHybrid-mBlueberry2质粒载体简介
pHybrid-mBlueberry2质粒序列载体序列
LOCUS pHybrid-mBlueberry2 5606 bp DNA circular SYN 14-JUN-2023
DEFINITION 72.Electra1TSN20211022-0571-00003_1023-ban2_H09_H09_i7.1.
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5606)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Apr 14, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5606
/mol_type="other DNA"
/organism="synthetic DNA construct"
promoter 754..858
/gene="bla"
/label=AmpR promoter
CDS 859..1719
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
rep_origin 1890..2478
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
enhancer 2689..3068
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer"
promoter 3069..3272
/label=CMV promoter
/note="human cytomegalovirus (CMV) immediate early
promoter"
promoter 3305..3423
/label=rhaB promoter
/note="promoter of the E. coli rhaBAD operon, conferring
tight induction with L-rhamnose and repression with
D-glucose in the presence of RhaR and RhaS (Giacalone et
al., 2006)"
misc_feature 3441..3446
/label=Shine-Dalgarno
CDS 3464..3481
/codon_start=1
/product="6xHis affinity tag"
/label=6xHis
/translation="HHHHHH"
primer_bind 3487..3530
/label=1216-pCI-mBlueberry2-F
primer_bind 3487..3530
/label=1216-pCI-EBFP2/mBlueberry2-F
primer_bind 3487..3520
/label=1216-pCI-mTagBFP2-F
regulatory 3512..3521
/label=Kozak sequence
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
/regulatory_class="other"
CDS 3518..4228
/codon_start=1
/label=mBlueberry2
/translation="MVSKGEENNVAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
TQTAKLKVTKGGPLPFAWDILSPQFLFGSKVYIKHPADIPDYFKLSFPEGFKWERVMNF
EDGGVVTVTQDSSLQDGVFIYKVKLRGTNFPSDGPVMQKKTMGWEAFSERMYPEDGALK
SEIKTRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDIVSHNEDYTIVEQYERA
EGRHSTGGMDELYK"
primer_bind 3518..3547
/label=mBlueberry2-FW-BglII
primer_bind complement(4199..4228)
/label=mBlueberry2-Rv-EcoRI-HindIII
primer_bind complement(4205..4252)
/label=1216-pCI-mBlueberry2-R
primer_bind complement(4205..4252)
/label=1216-pCI-EBFP2/mBlueberry2-R
primer_bind complement(4226..4252)
/label=1216-pCI-mTagBFP2-R
terminator 4249..4335
/gene="Escherichia coli rrnB"
/label=rrnB T1 terminator
/note="transcription terminator T1 from the E. coli rrnB
gene"
polyA_signal 4359..4480
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
promoter 4521..4731
/label=SV40 promoter
/note="SV40 early promoter"
promoter 4543..4739
/label=SV40 promoter
/note="SV40 early promoter"
rep_origin 4590..4725
/label=SV40 ori
/note="SV40 origin of replication"
primer_bind complement(4729..4749)
/label=WKG204-R
primer_bind 4739..4758
/label=1216-pCI-mBlueberry2-F
primer_bind 4739..4758
/label=1216-pCI-EBFP2/mBlueberry2-F
regulatory 4740..4749
/label=Kozak sequence
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
/regulatory_class="other"
CDS 4746..5441
/codon_start=1
/product="bright monomeric red fluorescent protein evolved
from a synthetic template (Bindels et al., 2016)"
/label=mScarlet-I
/note="matures faster than mScarlet"
/translation="MVSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTA
KLKVTKGGPLPFSWDILSPQFMYGSRAFIKHPADIPDYYKQSFPEGFKWERVMNFEDGG
AVTVTQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASTERLYPEDGVLKGDIK
MALRLKDGGRYLADFKTTYKAKKPVQMPGAYNVDRKLDITSHNEDYTVVEQYERSEGRH
STGGMDELYK"
primer_bind 4746..4764
/label=mBlueberry2-FW-BglII
primer_bind complement(5415..5442)
/label=mBlueberry2-Rv-EcoRI-HindIII
primer_bind complement(5421..5442)
/label=1216-pCI-mBlueberry2-R
primer_bind complement(5421..5442)
/label=1216-pCI-EBFP2/mBlueberry2-R
polyA_signal 5446..5493
/label=HSV TK poly(A) signal
/note="herpes simplex virus thymidine kinase
polyadenylation signal (Cole and Stacy, 1985)"
rep_origin join(5573..5606,1..422)
/direction=RIGHT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
ORIGIN
1 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
61 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
121 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
181 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
241 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
301 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
361 aaatgagctg atttaacaaa aatttaacgc gaattttaac aaaatattaa cgcttacaat
421 ttcctgatgc ggtattttct ccttacgcat ctgtgcggta tttcacaccg catatggtgc
481 actctcagta caatctgctc tgatgccgca tagttaagcc agccccgaca cccgccaaca
541 cccgctgacg cgccctgacg ggcttgtctg ctcccggcat ccgcttacag acaagctgtg
601 accgtctccg ggagctgcat gtgtcagagg ttttcaccgt catcaccgaa acgcgcgaga
661 cgaaagggcc tcgtgatacg cctattttta taggttaatg tcatgataat aatggtttct
721 tagacgtcag gtggcacttt tcggggaaat gtgcgcggaa cccctatttg tttatttttc
781 taaatacatt caaatatgta tccgctcatg agacaataac cctgataaat gcttcaataa
841 tattgaaaaa ggaagagtat gagtattcaa catttccgtg tcgcccttat tccctttttt
901 gcggcatttt gccttcctgt ttttgctcac ccagaaacgc tggtgaaagt aaaagatgct
961 gaagatcagt tgggtgcacg agtgggttac atcgaactgg atctcaacag cggtaagatc
1021 cttgagagtt ttcgccccga agaacgtttt ccaatgatga gcacttttaa agttctgcta
1081 tgtggcgcgg tattatcccg tattgacgcc gggcaagagc aactcggtcg ccgcatacac
1141 tattctcaga atgacttggt tgagtactca ccagtcacag aaaagcatct tacggatggc
1201 atgacagtaa gagaattatg cagtgctgcc ataaccatga gtgataacac tgcggccaac
1261 ttacttctga caacgatcgg aggaccgaag gagctaaccg cttttttgca caacatgggg
1321 gatcatgtaa ctcgccttga tcgttgggaa ccggagctga atgaagccat accaaacgac
1381 gagcgtgaca ccacgatgcc tgtagcaatg gcaacaacgt tgcgcaaact attaactggc
1441 gaactactta ctctagcttc ccggcaacaa ttaatagact ggatggaggc ggataaagtt
1501 gcaggaccac ttctgcgctc ggcccttccg gctggctggt ttattgctga taaatctgga
1561 gccggtgagc gtggctctcg cggtatcatt gcagcactgg ggccagatgg taagccctcc
1621 cgtatcgtag ttatctacac gacggggagt caggcaacta tggatgaacg aaatagacag
1681 atcgctgaga taggtgcctc actgattaag cattggtaac tgtcagacca agtttactca
1741 tatatacttt agattgattt aaaacttcat ttttaattta aaaggatcta ggtgaagatc
1801 ctttttgata atctcatgac caaaatccct taacgtgagt tttcgttcca ctgagcgtca
1861 gaccccgtag aaaagatcaa aggatcttct tgagatcctt tttttctgcg cgtaatctgc
1921 tgcttgcaaa caaaaaaacc accgctacca gcggtggttt gtttgccgga tcaagagcta
1981 ccaactcttt ttccgaaggt aactggcttc agcagagcgc agataccaaa tactgttctt
2041 ctagtgtagc cgtagttagg ccaccacttc aagaactctg tagcaccgcc tacatacctc
2101 gctctgctaa tcctgttacc agtggctgct gccagtggcg ataagtcgtg tcttaccggg
2161 ttggactcaa gacgatagtt accggataag gcgcagcggt cgggctgaac ggggggttcg
2221 tgcacacagc ccagcttgga gcgaacgacc tacaccgaac tgagatacct acagcgtgag
2281 ctatgagaaa gcgccacgct tcccgaaggg agaaaggcgg acaggtatcc ggtaagcggc
2341 agggtcggaa caggagagcg cacgagggag cttccagggg gaaacgcctg gtatctttat
2401 agtcctgtcg ggtttcgcca cctctgactt gagcgtcgat ttttgtgatg ctcgtcaggg
2461 gggcggagcc tatggaaaaa cgccagcaac gcggcctttt tacggttcct ggccttttgc
2521 tggccttttg ctcacatggc tcgacagatc ttcaatattg gccattagcc atattattca
2581 ttggttatat agcataaatc aatattggct attggccatt gcatacgttg tatctatatc
2641 ataatatgta catttatatt ggctcatgtc caatatgacc gccatgttgg cattgattat
2701 tgactagtta ttaatagtaa tcaattacgg ggtcattagt tcatagccca tatatggagt
2761 tccgcgttac ataacttacg gtaaatggcc cgcctggctg accgcccaac gacccccgcc
2821 cattgacgtc aataatgacg tatgttccca tagtaacgcc aatagggact ttccattgac
2881 gtcaatgggt ggagtattta cggtaaactg cccacttggc agtacatcaa gtgtatcata
2941 tgccaagtcc gccccctatt gacgtcaatg acggtaaatg gcccgcctgg cattatgccc
3001 agtacatgac cttacgggac tttcctactt ggcagtacat ctacgtatta gtcatcgcta
3061 ttaccatggt gatgcggttt tggcagtaca ccaatgggcg tggatagcgg tttgactcac
3121 ggggatttcc aagtctccac cccattgacg tcaatgggag tttgttttgg caccaaaatc
3181 aacgggactt tccaaaatgt cgtaataacc ccgccccgtt gacgcaaatg ggcggtaggc
3241 gtgtacggtg ggaggtctat ataagcagag ctcgtttagt gaaccgtcag atcactagaa
3301 gcttcaccac aattcagcaa attgtgaaca tcatcacgtt catctttccc tggttgccaa
3361 tggcccattt tcctgtcagt aacgagaagg tcgcgaattc aggcgctttt tagactggtc
3421 gtaacccgtt tttggctaac aggaggaatt aaccatgggg agccaccatc accatcacca
3481 tgctagcctc gagaattcac gcgtggtacc agccaccatg gtgagcaagg gcgaggagaa
3541 caacgtggcc atcatcaagg agttcatgag attcaaggtg cacatggagg gcagcgtgaa
3601 cggccacgag ttcgagatcg agggcgaggg cgagggcaga ccctacgagg gcacccagac
3661 cgccaagctg aaggtgacca agggcggccc cctgcccttc gcctgggaca tcctgagccc
3721 ccagttcctg ttcggcagca aggtgtacat caagcacccc gccgacatcc ccgactactt
3781 caagctgagc ttccccgagg gcttcaagtg ggagagagtg atgaacttcg aggacggcgg
3841 cgtggtgacc gtgacccagg acagcagcct gcaggacggc gtgttcatct acaaggtgaa
3901 gctgagaggc accaacttcc ccagcgacgg ccccgtgatg cagaagaaga ccatgggctg
3961 ggaggccttc agcgagagaa tgtaccccga ggacggcgcc ctgaagagcg agatcaagac
4021 cagactgaag ctgaaggacg gcggccacta cgacgccgag gtgaagacca cctacaaggc
4081 caagaagccc gtgcagctgc ccggcgccta caacgtgaac atcaagctgg acatcgtgag
4141 ccacaacgag gactacacca tcgtggagca gtacgagaga gccgagggca gacacagcac
4201 cggcggcatg gacgagctgt acaagtaatc tagagtcgac ccaggcatca aataaaacga
4261 aaggctcagt cgaaagactg ggcctttcgt tttatctgtt gtttgtcggt gaacgctctc
4321 ctgagtagga caaatgcggc cgcttcgagc agacatgata agatacattg atgagtttgg
4381 acaaaccaca actagaatgc agtgaaaaaa atgctttatt tgtgaaattt gtgatgctat
4441 tgctttattt gtaaccatta taagctgcaa taaacaagtt aacaacaaca attgggtgtg
4501 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag
4561 caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc
4621 attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg
4681 cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaag
4741 ccaccatggt gagcaagggc gaggcagtga tcaaggagtt catgcggttc aaggtgcaca
4801 tggagggctc catgaacggc cacgagttcg agatcgaggg cgagggcgag ggccgcccct
4861 acgagggcac ccagaccgcc aagctgaagg tgaccaaggg tggccccctg cccttctcct
4921 gggacatcct gtcccctcag ttcatgtacg gctccagggc cttcatcaag caccccgccg
4981 acatccccga ctactataag cagtccttcc ccgagggctt caagtgggag cgcgtgatga
5041 acttcgagga cggcggcgcc gtgaccgtga cccaggacac ctccctggag gacggcaccc
5101 tgatctacaa ggtgaagctc cgcggcacca acttccctcc tgacggcccc gtaatgcaga
5161 agaagacaat gggctgggaa gcgtccaccg agcggttgta ccccgaggac ggcgtgctga
5221 agggcgacat taagatggcc ctgcgcctga aggacggcgg ccgctacctg gcggacttca
5281 agaccaccta caaggccaag aagcccgtgc agatgcccgg cgcctacaac gtcgaccgca
5341 agttggacat cacctcccac aacgaggact acaccgtggt ggaacagtac gaacgctccg
5401 agggccgcca ctccaccggc ggcatggacg agctgtacaa gtgaccggca ataaaaagac
5461 agaataaaac gcacggtgtt gggtcgtttg ttcggatccg ggctggcgta atagcgaaga
5521 ggcccgcacc gatcgccctt cccaacagtt gcgcagcctg aatggcgaat ggacgcgccc
5581 tgtagcggcg cattaagcgc ggcggg
//
pHybrid-mBlueberry2载体图谱质粒图谱pdf版和pHybrid-mBlueberry2载体序列质粒序列等相关资料下载
pHybrid-mBlueberry2质粒载体应用举例
- 上一篇：pHybrid-EBFP2
- 下一篇：没有了
