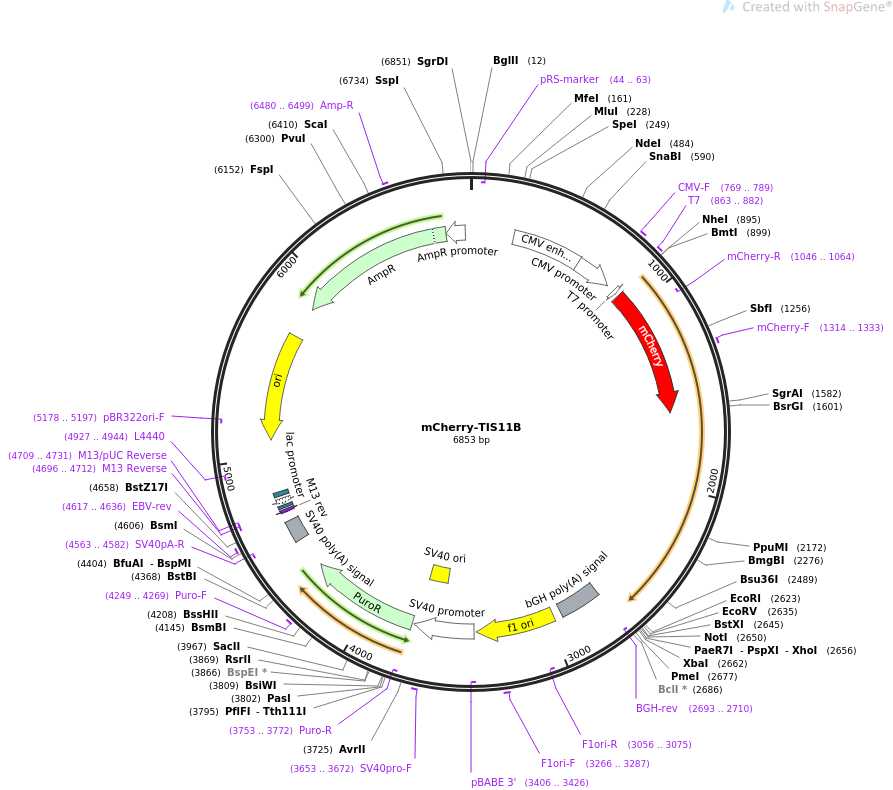

mCherry-TIS11B

LOCUS      mCherry-TIS11B                6853 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Mammalian expression of mCherry tagged TIS11B.
ACCESSION   .
VERSION     .
KEYWORDS    mCherry-TIS11B
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6853)
  AUTHORS   Ma W, Mayr C
  TITLE     A Membraneless Organelle Associated with the Endoplasmic Reticulum
            Enables 3'UTR-Mediated Protein-Protein Interactions.
  JOURNAL   Cell. 2018 Oct 30. pii: S0092-8674(18)31315-1. doi:
            10.1016/j.cell.2018.10.007.
  PUBMED    30449617
REFERENCE   2  (bases 1 to 6853)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6853
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             901..1608
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1046..1064)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     1314..1333
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     complement(2693..2710)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    2699..2923
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2969..3397
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3056..3075)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3266..3287
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3406..3426)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3411..3740
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3591..3726
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3653..3672
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3753..4352
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     primer_bind     complement(3753..3772)
                     /label=Puro-R
                     /note="Puromycin resistance gene, reverse primer. Also
                     called puro-variant-R"
     primer_bind     4249..4269
                     /label=Puro-F
                     /note="Puromycin resistance gene, forward primer"
     polyA_signal    4526..4647
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4563..4582)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4617..4636
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4696..4712)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4696..4712)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4709..4731)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4720..4736
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4744..4774)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4789..4810
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4927..4944)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5098..5686)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5178..5197)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5857..6717)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6480..6499
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6718..6822)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 atggtgagca agggcgagga ggataacatg gccatcatca aggagttcat gcgcttcaag
      961 gtgcacatgg agggctccgt gaacggccac gagttcgaga tcgagggcga gggcgagggc
     1021 cgcccctacg agggcaccca gaccgccaag ctgaaggtga ccaagggtgg ccccctgccc
     1081 ttcgcctggg acatcctgtc ccctcagttc atgtacggct ccaaggccta cgtgaagcac
     1141 cccgccgaca tccccgacta cttgaagctg tccttccccg agggcttcaa gtgggagcgc
     1201 gtgatgaact tcgaggacgg cggcgtggtg accgtgaccc aggactcctc cctgcaggac
     1261 ggcgagttca tctacaaggt gaagctgcgc ggcaccaact tcccctccga cggccccgta
     1321 atgcagaaga agaccatggg ctgggaggcc tcctccgagc ggatgtaccc cgaggacggc
     1381 gccctgaagg gcgagatcaa gcagaggctg aagctgaagg acggcggcca ctacgacgct
     1441 gaggtcaaga ccacctacaa ggccaagaag cccgtgcagc tgcccggcgc ctacaacgtc
     1501 aacatcaagt tggacatcac ctcccacaac gaggactaca ccatcgtgga acagtacgaa
     1561 cgcgccgagg gccgccactc caccggcggc atggacgagc tgtacaagac caccaccctc
     1621 gtgtctgcca ccatcttcga cttgagcgaa gttttatgca agggtaacaa gatgctcaac
     1681 tatagtgctc ccagtgcagg gggttgcctg ctggacagaa aggcagtggg cacccctgct
     1741 ggtgggggct tccctcggag gcactcagtc accctgccca gctccaagtt ccaccagaac
     1801 cagctcctca gcagcctcaa gggtgagcca gcccccgctc tgagctcgcg agacagccgc
     1861 ttccgagacc gctccttctc ggaagggggc gagcggctgc tgcccaccca gaagcagccc
     1921 gggggcggcc aggtcaactc cagccgctac aagacggagc tgtgccgccc ctttgaggaa
     1981 aacggtgcct gtaagtacgg ggacaagtgc cagttcgcac acggcatcca cgagctccgc
     2041 agcctgaccc gccaccccaa gtacaagacg gagctgtgcc gcaccttcca caccatcggc
     2101 ttttgcccct acgggccccg ctgccacttc atccacaacg ctgaagagcg ccgtgccctg
     2161 gccggggccc gggacctctc cgctgaccgt ccccgcctcc agcatagctt tagctttgct
     2221 gggtttccca gtgccgctgc caccgccgct gccaccgggc tgctggacag ccccacgtcc
     2281 atcaccccac cccctattct gagcgccgat gacctcctgg gctcacctac cctgcccgat
     2341 ggcaccaata acccttttgc cttctccagc caggagctgg caagcctctt tgcccctagc
     2401 atggggctgc ccgggggtgg ctccccgacc accttcctct tccggcccat gtccgagtcc
     2461 cctcacatgt ttgactctcc ccccagccct caggattctc tctcggacca ggagggctac
     2521 ctgagcagct ccagcagcag ccacagtggc tcagactccc cgaccttgga caactcaaga
     2581 cgcctgccca tcttcagcag actttccatc tcagatgact aagaattctg cagatatcca
     2641 gcacagtggc ggccgctcga gtctagaggg cccgtttaaa cccgctgatc agcctcgact
     2701 gtgccttcta gttgccagcc atctgttgtt tgcccctccc ccgtgccttc cttgaccctg
     2761 gaaggtgcca ctcccactgt cctttcctaa taaaatgagg aaattgcatc gcattgtctg
     2821 agtaggtgtc attctattct ggggggtggg gtggggcagg acagcaaggg ggaggattgg
     2881 gaagacaata gcaggcatgc tggggatgcg gtgggctcta tggcttctga ggcggaaaga
     2941 accagctggg gctctagggg gtatccccac gcgccctgta gcggcgcatt aagcgcggcg
     3001 ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc gcccgctcct
     3061 ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca agctctaaat
     3121 cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc caaaaaactt
     3181 gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt tcgccctttg
     3241 acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac aacactcaac
     3301 cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc ctattggtta
     3361 aaaaatgagc tgatttaaca aaaatttaac gcgaattaat tctgtggaat gtgtgtcagt
     3421 tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca
     3481 attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa
     3541 gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc
     3601 taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg
     3661 cagaggccga ggccgcctct gcctctgagc tattccagaa gtagtgagga ggcttttttg
     3721 gaggcctagg cttttgcaaa aagctcccaa ccatgaccga gtacaagccc acggtgcgcc
     3781 tcgccacccg cgacgacgtc cccagggccg tacgcaccct cgccgccgcg ttcgccgact
     3841 accccgccac gcgccacacc gtcgatccgg accgccacat cgagcgggtc accgagctgc
     3901 aagaactctt cctcacgcgc gtcgggctcg acatcggcaa ggtgtgggtc gcggacgacg
     3961 gcgccgcggt ggcggtctgg accacgccgg agagcgtcga agcgggggcg gtgttcgccg
     4021 agatcggccc gcgcatggcc gagttgagcg gttcccggct ggccgcgcag caacagatgg
     4081 aaggcctcct ggcgccgcac cggcccaagg agcccgcgtg gttcctggcc accgtcggcg
     4141 tctcgcccga ccaccagggc aagggtctgg gcagcgccgt cgtgctcccc ggagtggagg
     4201 cggccgagcg cgccggggtg cccgccttcc tggagacctc cgcgccccgc aacctcccct
     4261 tctacgagcg gctcggcttc accgtcaccg ccgacgtcga ggtgcccgaa ggaccgcgca
     4321 cctggtgcat gacccgcaag cccggtgcct gagcgggact ctggggttcg aaatgaccga
     4381 ccaagcgacg cccaacctgc catcacgaga tttcgattcc accgccgcct tctatgaaag
     4441 gttgggcttc ggaatcgttt tccgggacgc cggctggatg atcctccagc gcggggatct
     4501 catgctggag ttcttcgccc accccaactt gtttattgca gcttataatg gttacaaata
     4561 aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg
     4621 tttgtccaaa ctcatcaatg tatcttatca tgtctgtata ccgtcgacct ctagctagag
     4681 cttggcgtaa tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc
     4741 acacaacata cgagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgagcta
     4801 actcacatta attgcgttgc gctcactgcc cgctttccag tcgggaaacc tgtcgtgcca
     4861 gctgcattaa tgaatcggcc aacgcgcggg gagaggcggt ttgcgtattg ggcgctcttc
     4921 cgcttcctcg ctcactgact cgctgcgctc ggtcgttcgg ctgcggcgag cggtatcagc
     4981 tcactcaaag gcggtaatac ggttatccac agaatcaggg gataacgcag gaaagaacat
     5041 gtgagcaaaa ggccagcaaa aggccaggaa ccgtaaaaag gccgcgttgc tggcgttttt
     5101 ccataggctc cgcccccctg acgagcatca caaaaatcga cgctcaagtc agaggtggcg
     5161 aaacccgaca ggactataaa gataccaggc gtttccccct ggaagctccc tcgtgcgctc
     5221 tcctgttccg accctgccgc ttaccggata cctgtccgcc tttctccctt cgggaagcgt
     5281 ggcgctttct catagctcac gctgtaggta tctcagttcg gtgtaggtcg ttcgctccaa
     5341 gctgggctgt gtgcacgaac cccccgttca gcccgaccgc tgcgccttat ccggtaacta
     5401 tcgtcttgag tccaacccgg taagacacga cttatcgcca ctggcagcag ccactggtaa
     5461 caggattagc agagcgaggt atgtaggcgg tgctacagag ttcttgaagt ggtggcctaa
     5521 ctacggctac actagaagaa cagtatttgg tatctgcgct ctgctgaagc cagttacctt
     5581 cggaaaaaga gttggtagct cttgatccgg caaacaaacc accgctggta gcggtggttt
     5641 ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat
     5701 cttttctacg gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat
     5761 gagattatca aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc
     5821 aatctaaagt atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc
     5881 acctatctca gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta
     5941 gataactacg atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga
     6001 cccacgctca ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg
     6061 cagaagtggt cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc
     6121 tagagtaagt agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat
     6181 cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag
     6241 gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat
     6301 cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa
     6361 ttctcttact gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa
     6421 gtcattctga gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga
     6481 taataccgcg ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg
     6541 gcgaaaactc tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc
     6601 acccaactga tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg
     6661 aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact
     6721 cttccttttt caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat
     6781 atttgaatgt atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt
     6841 gccacctgac gtc
//
