pCytERM-emiRFP703-N1

LOCUS       pCytERM-emiRFP703-N1               5019 bp DNA     circular SYN 27-MAY-2024
DEFINITION  Vector for fusing EGFP to the C-terminus of a partner protein. For
            other reading frames, use pEGFP-N2 or pEGFP-N3.
ACCESSION   U55762
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5019)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

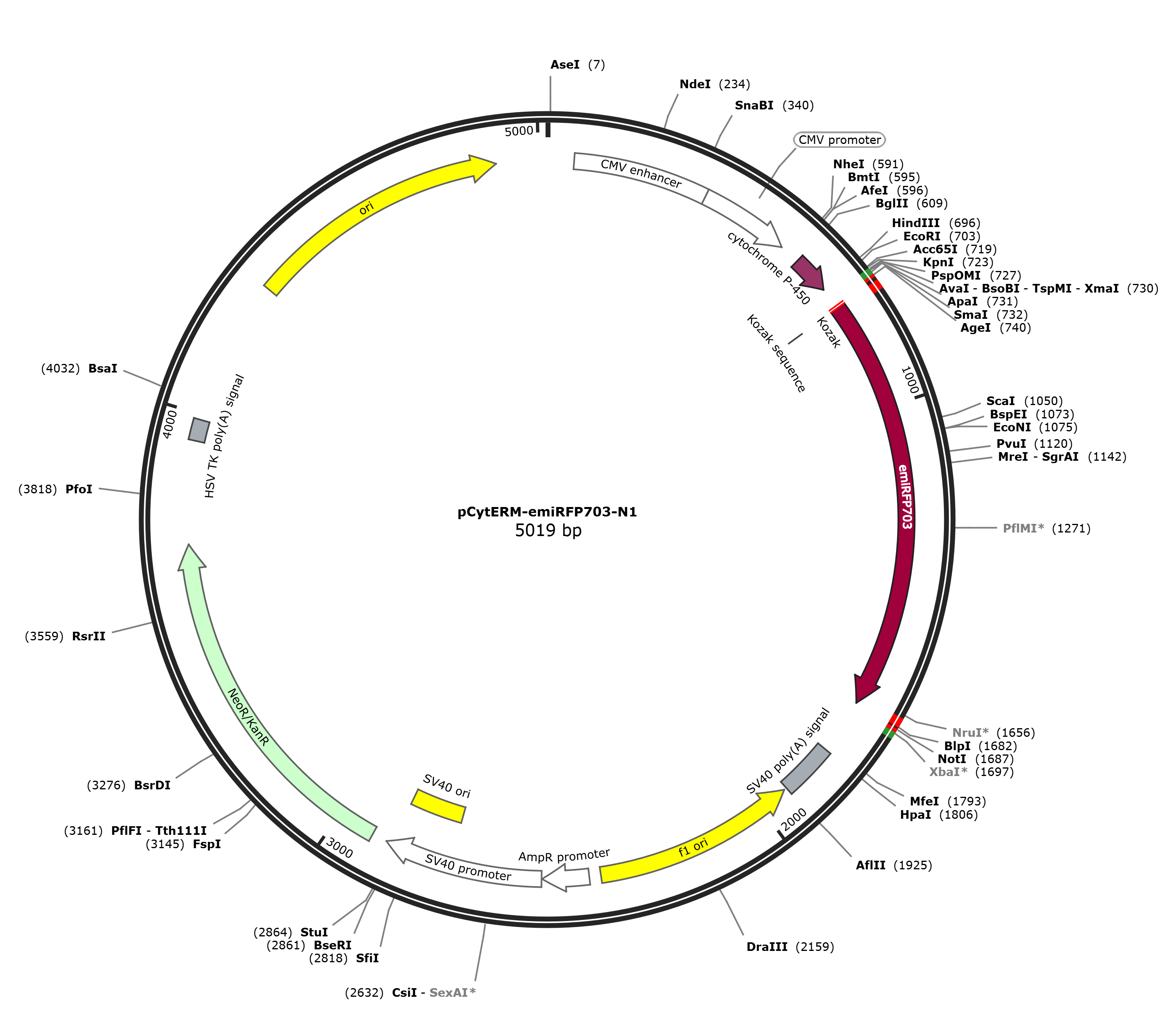

FEATURES             Location/Qualifiers
     source          1..5019
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             615..701
                     /codon_start=1
                     /product="cytochrome P-450 IIC1, partial [Oryctolagus
                     cuniculus]
                     Sequence ID: AAA31436.1Length: 56Number of Matches: 1"
                     /label=cytochrome P-450
                     /translation="MDPVVVLGLCLSCLLLLSLWKQSYGGGKL"
     primer_bind     725..772
                     /label=PM376-F
     misc_feature    747..752
                     /label=Kozak
     CDS             753..1682
                     /codon_start=1
                     /product="bright monomeric near-infrared fluorescent
                     protein engineered from a bacterial phytochrome, with an
                     emission maximum of 703 nm (Shcherbakova et al., 2016)"
                     /label=emiRFP703
                     /label=ORF frame 1
                     /translation="MAEGSVARQPDLLTCEHEEIHLAGSIQPHGALLVVSEHDHRVIQA
                     SANAAEFLNLGSVLGVPLAEIDGDLLIKILPHLDPTAEGMPVAVRCRIGNPSTEYCGLM
                     HRPPEGGLIIELERAGPSIDLSGTLAPALERIRTAGSLRALCDDTVLLFQQCTGYDRVM
                     VYRFDEQGHGLVFSECHVPGLESYFGNRYPSSLVPQMARQLYVRQRVRVLVDVTYQPVP
                     LEPRLSPLTGRDLDMSGCFLRSMSPIHLQFLKDMGVRATLAVSLVVGGKLWGLVVCHHY
                     LPRFIRFELRAICKRLAERIATRITALES"
     regulatory      753..756
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(1663..1708)
                     /label=PM376-R
     polyA_signal    1807..1928
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1935..2390)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2417..2521
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2523..2880
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2731..2866
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2915..3709
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     3103..3113
                     /label=PM376-F
     misc_feature    3941..3988
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4317..4905
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctatggac cctgtggtgg tgctggggct ctgtctctcc tgtttgcttc
      661 tcctttcact ctggaaacag agctatgggg gagggaagct tcgaattctg cagtcgacgg
      721 taccgcgggc ccgggatcca ccggtcgcca ccatggccga gggcagcgtg gccagacagc
      781 ccgacctgct gacctgcgaa catgaagaga tccacctcgc cggctcgatc cagccgcatg
      841 gcgcgcttct ggtcgtcagc gaacatgatc atcgcgtcat ccaggccagc gccaacgccg
      901 cggaatttct gaatctcgga agcgtactcg gcgttccgct cgccgagatc gacggcgatc
      961 tgttgatcaa gatcctaccg catctcgatc ccaccgccga aggcatgccg gtcgcggtgc
     1021 gctgccggat cggcaatccc tctacggagt actgcggtct gatgcatcgg cctccggaag
     1081 gcgggctgat catcgaactc gaacgtgccg gcccgtcgat cgatctgtca ggcacgctgg
     1141 cgccggcgct ggagcggatc cgcacggcgg gttcactgcg cgcgctgtgc gatgacaccg
     1201 tgctgctgtt tcagcagtgc accggctacg accgggtgat ggtgtatcgt ttcgatgagc
     1261 aaggccacgg cctggtattc tccgagtgcc atgtgcctgg gctcgaatcc tatttcggca
     1321 accgctatcc gtcgtcgctg gtcccgcaga tggcgcggca gctgtacgtg cggcagcgcg
     1381 tccgcgtgct ggtcgacgtc acctatcagc cggtgccgct ggagccgcgg ctgtcgccgc
     1441 tgaccgggcg cgatctcgac atgtcgggct gcttcctgcg ctcgatgtcg ccgatccatc
     1501 tgcagttcct gaaggacatg ggcgtgcgcg ccaccctggc ggtgtcgctg gtggtcggcg
     1561 gcaagctgtg gggcctggtt gtctgtcacc attatctgcc gcgcttcatc cgtttcgagc
     1621 tgcgggcgat ctgcaaacgg ctcgccgaaa ggatcgcgac gcggatcacc gcgcttgaga
     1681 gctaagcggc cgcgactcta gatcataatc agccatacca catttgtaga ggttttactt
     1741 gctttaaaaa acctcccaca cctccccctg aacctgaaac ataaaatgaa tgcaattgtt
     1801 gttgttaact tgtttattgc agcttataat ggttacaaat aaagcaatag catcacaaat
     1861 ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa actcatcaat
     1921 gtatcttaag gcgtaaattg taagcgttaa tattttgtta aaattcgcgt taaatttttg
     1981 ttaaatcagc tcatttttta accaataggc cgaaatcggc aaaatccctt ataaatcaaa
     2041 agaatagacc gagatagggt tgagtgttgt tccagtttgg aacaagagtc cactattaaa
     2101 gaacgtggac tccaacgtca aagggcgaaa aaccgtctat cagggcgatg gcccactacg
     2161 tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc cgtaaagcac taaatcggaa
     2221 ccctaaaggg agcccccgat ttagagcttg acggggaaag ccggcgaacg tggcgagaaa
     2281 ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg gcaagtgtag cggtcacgct
     2341 gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta cagggcgcgt caggtggcac
     2401 ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac attcaaatat
     2461 gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagag
     2521 tcctgaggcg gaaagaacca gctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     2581 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     2641 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     2701 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     2761 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctcg
     2821 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     2881 gatcgatcaa gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc
     2941 aggttctccg gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat
     3001 cggctgctct gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt
     3061 caagaccgac ctgtccggtg ccctgaatga actgcaagac gaggcagcgc ggctatcgtg
     3121 gctggccacg acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag
     3181 ggactggctg ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc
     3241 tgccgagaaa gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc
     3301 tacctgccca ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga
     3361 agccggtctt gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga
     3421 actgttcgcc aggctcaagg cgagcatgcc cgacggcgag gatctcgtcg tgacccatgg
     3481 cgatgcctgc ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg
     3541 tggccggctg ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc
     3601 tgaagagctt ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc
     3661 cgattcgcag cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg
     3721 gggttcgaaa tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc
     3781 gccgccttct atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc
     3841 ctccagcgcg gggatctcat gctggagttc ttcgcccacc ctagggggag gctaactgaa
     3901 acacggaagg agacaatacc ggaaggaacc cgcgctatga cggcaataaa aagacagaat
     3961 aaaacgcacg gtgttgggtc gtttgttcat aaacgcgggg ttcggtccca gggctggcac
     4021 tctgtcgata ccccaccgag accccattgg ggccaatacg cccgcgtttc ttccttttcc
     4081 ccaccccacc ccccaagttc gggtgaaggc ccagggctcg cagccaacgt cggggcggca
     4141 ggccctgcca tagcctcagg ttactcatat atactttaga ttgatttaaa acttcatttt
     4201 taatttaaaa ggatctaggt gaagatcctt tttgataatc tcatgaccaa aatcccttaa
     4261 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     4321 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     4381 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     4441 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
     4501 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     4561 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     4621 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     4681 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     4741 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     4801 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     4861 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     4921 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     4981 tcccctgatt ctgtggataa ccgtattacc gccatgcat
//
