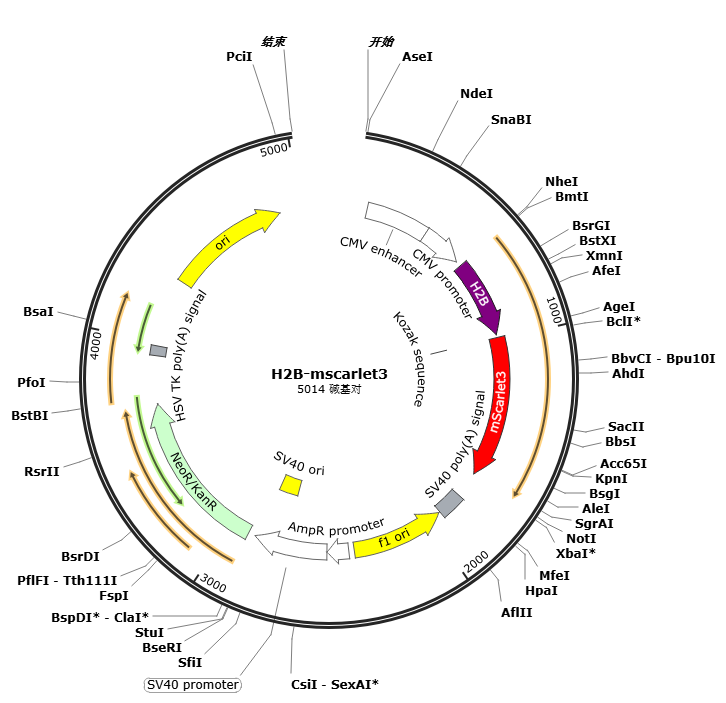

pH2B-mScarlet3

LOCUS       pH2B-mScarlet3             5014 bp DNA     circular SYN 19-AUG-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5014)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5014
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             597..974
                     /codon_start=1
                     /label=H2B
                     /translation="MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKV
                     LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLP
                     GELAKHAVSEGTKAVTKYTSSK"
     CDS             990..1676
                     /codon_start=1
                     /label=mScarlet3
                     /translation="MDSTEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTAK
                     LRVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYWKQSFPEGFKWERVMNFEDGGA
                     VSVAQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASTERLYPEDVVLKGDIKM
                     ALRLKDGGRYLADFKTTYRAKKPVQMPGAFNIDRKLDITSHNEDYTVVEQYERSVARHS
                     TGGSGGS"
     regulatory      990..993
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(1287..1296)
                     /label=M164DE RE
     primer_bind     complement(1446..1475)
                     /label=M164DE RE
     polyA_signal    1802..1923
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1930..2385)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2412..2516
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2518..2875
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2726..2861
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2910..3704
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3936..3983
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4312..4900
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgc
      601 ctgaaccggc aaaatccgct ccggccccta aaaagggctc caagaaagcc gtcaccaaag
      661 cccagaagaa agacggcaag aagcgcaagc gcagccgcaa agagagctac tccatctacg
      721 tgtacaaggt gctgaagcag gtccaccccg acaccggcat ctcgtccaag gccatgggca
      781 tcatgaactc cttcgtcaac gacatcttcg agcgcatcgc gggagaggct tcccgcctgg
      841 cgcactacaa caagcgctcc accatcacat cccgcgagat ccagacggcc gtgcgcctgc
      901 tgctgcccgg cgagctggcc aagcacgccg tgtccgaggg caccaaggcg gtcaccaagt
      961 acaccagctc caagccaccg gtcgccacca tggatagcac cgaggcagtg atcaaggagt
     1021 tcatgcggtt caaggtgcac atggagggct ccatgaacgg ccacgagttc gagatcgagg
     1081 gcgagggcga gggccgcccc tacgagggca cccagaccgc caagctgagg gtgaccaagg
     1141 gtggccccct gcccttctcc tgggacatcc tgtcccctca gttcatgtac ggctccaggg
     1201 ccttcacgaa gcaccccgcc gacatccccg actactggaa gcagtccttc cccgagggct
     1261 tcaagtggga gcgcgtgatg aacttcgagg acggcggcgc cgtgtccgtg gcccaggaca
     1321 cctccctgga ggacggcacc ctgatctaca aggtgaagct ccgcggcacc aacttccctc
     1381 ctgacggccc cgtaatgcag aagaagacaa tgggctggga agcatccacc gagcggttgt
     1441 accccgagga cgtcgtgctg aagggcgaca ttaagatggc cctgcgcctg aaggacggcg
     1501 gccggtacct ggcggacttc aagaccacct acagggccaa gaagcccgtg cagatgcccg
     1561 gcgccttcaa catcgaccgc aagttggaca tcacatccca caacgaggac tacaccgtgg
     1621 tggaacagta cgaacgctcc gtggcccgcc actccaccgg cggctccggt ggctcctaaa
     1681 gcggccgcga ctctagatca taatcagcca taccacattt gtagaggttt tacttgcttt
     1741 aaaaaacctc ccacacctcc ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt
     1801 taacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     1861 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     1921 ttaaggcgta aattgtaagc gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa
     1981 tcagctcatt ttttaaccaa taggccgaaa tcggcaaaat cccttataaa tcaaaagaat
     2041 agaccgagat agggttgagt gttgttccag tttggaacaa gagtccacta ttaaagaacg
     2101 tggactccaa cgtcaaaggg cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac
     2161 catcacccta atcaagtttt ttggggtcga ggtgccgtaa agcactaaat cggaacccta
     2221 aagggagccc ccgatttaga gcttgacggg gaaagccggc gaacgtggcg agaaaggaag
     2281 ggaagaaagc gaaaggagcg ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg
     2341 taaccaccac acccgccgcg cttaatgcgc cgctacaggg cgcgtcaggt ggcacttttc
     2401 ggggaaatgt gcgcggaacc cctatttgtt tatttttcta aatacattca aatatgtatc
     2461 cgctcatgag acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtcctg
     2521 aggcggaaag aaccagctgt ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc
     2581 cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca ggtgtggaaa
     2641 gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac
     2701 catagtcccg cccctaactc cgcccatccc gcccctaact ccgcccagtt ccgcccattc
     2761 tccgccccat ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc
     2821 tgagctattc cagaagtagt gaggaggctt ttttggaggc ctaggctttt gcaaagatcg
     2881 atcaagagac aggatgagga tcgtttcgca tgattgaaca agatggattg cacgcaggtt
     2941 ctccggccgc ttgggtggag aggctattcg gctatgactg ggcacaacag acaatcggct
     3001 gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg cccggttctt tttgtcaaga
     3061 ccgacctgtc cggtgccctg aatgaactgc aagacgaggc agcgcggcta tcgtggctgg
     3121 ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg ggaagggact
     3181 ggctgctatt gggcgaagtg ccggggcagg atctcctgtc atctcacctt gctcctgccg
     3241 agaaagtatc catcatggct gatgcaatgc ggcggctgca tacgcttgat ccggctacct
     3301 gcccattcga ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg atggaagccg
     3361 gtcttgtcga tcaggatgat ctggacgaag agcatcaggg gctcgcgcca gccgaactgt
     3421 tcgccaggct caaggcgagc atgcccgacg gcgaggatct cgtcgtgacc catggcgatg
     3481 cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc tggattcatc gactgtggcc
     3541 ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc tacccgtgat attgctgaag
     3601 agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt
     3661 cgcagcgcat cgccttctat cgccttcttg acgagttctt ctgagcggga ctctggggtt
     3721 cgaaatgacc gaccaagcga cgcccaacct gccatcacga gatttcgatt ccaccgccgc
     3781 cttctatgaa aggttgggct tcggaatcgt tttccgggac gccggctgga tgatcctcca
     3841 gcgcggggat ctcatgctgg agttcttcgc ccaccctagg gggaggctaa ctgaaacacg
     3901 gaaggagaca ataccggaag gaacccgcgc tatgacggca ataaaaagac agaataaaac
     3961 gcacggtgtt gggtcgtttg ttcataaacg cggggttcgg tcccagggct ggcactctgt
     4021 cgatacccca ccgagacccc attggggcca atacgcccgc gtttcttcct tttccccacc
     4081 ccacccccca agttcgggtg aaggcccagg gctcgcagcc aacgtcgggg cggcaggccc
     4141 tgccatagcc tcaggttact catatatact ttagattgat ttaaaacttc atttttaatt
     4201 taaaaggatc taggtgaaga tcctttttga taatctcatg accaaaatcc cttaacgtga
     4261 gttttcgttc cactgagcgt cagaccccgt agaaaagatc aaaggatctt cttgagatcc
     4321 tttttttctg cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt
     4381 ttgtttgccg gatcaagagc taccaactct ttttccgaag gtaactggct tcagcagagc
     4441 gcagatacca aatactgtcc ttctagtgta gccgtagtta ggccaccact tcaagaactc
     4501 tgtagcaccg cctacatacc tcgctctgct aatcctgtta ccagtggctg ctgccagtgg
     4561 cgataagtcg tgtcttaccg ggttggactc aagacgatag ttaccggata aggcgcagcg
     4621 gtcgggctga acggggggtt cgtgcacaca gcccagcttg gagcgaacga cctacaccga
     4681 actgagatac ctacagcgtg agctatgaga aagcgccacg cttcccgaag ggagaaaggc
     4741 ggacaggtat ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg agcttccagg
     4801 gggaaacgcc tggtatcttt atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg
     4861 atttttgtga tgctcgtcag gggggcggag cctatggaaa aacgccagca acgcggcctt
     4921 tttacggttc ctggcctttt gctggccttt tgctcacatg ttctttcctg cgttatcccc
     4981 tgattctgtg gataaccgta ttaccgccat gcat
//
