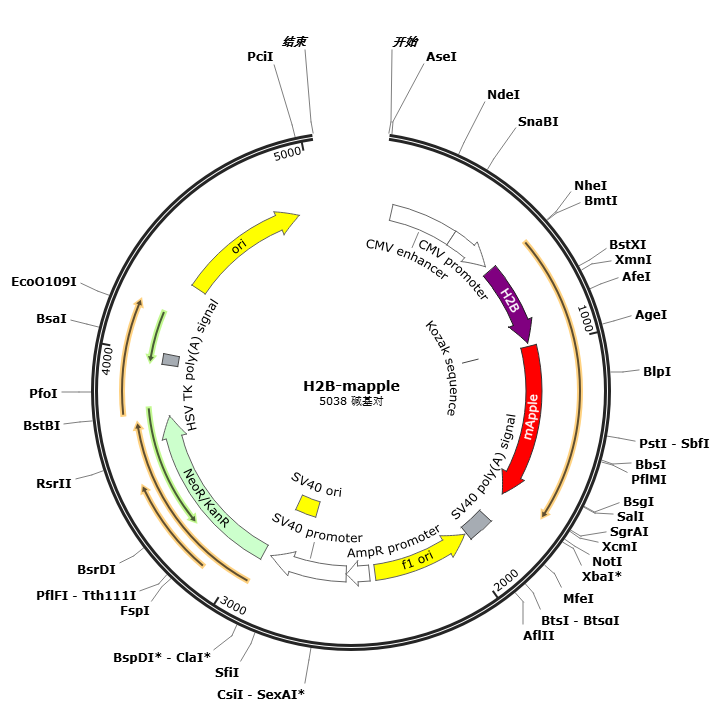

pH2B-mApple

LOCUS       pH2B-mApple              5038 bp DNA     circular SYN 19-AUG-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5038)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 10, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5038
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             597..974
                     /codon_start=1
                     /label=H2B
                     /translation="MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSIYVYKV
                     LKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLP
                     GELAKHAVSEGTKAVTKYTSSK"
     CDS             990..1700
                     /codon_start=1
                     /product="photostable monomeric derivative of DsRed (Shaner
                     et al., 2008)"
                     /label=mApple
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEENNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEA
                     FQTAKLKVTKGGPLPFAWDILSPQFMYGSKVYIKHPADIPDYFKLSFPEGFRWERVMNF
                     EDGGIIHVNQDSSLQDGVFIYKVKLRGTNFPSDGPVMQKKTMGWEASEERMYPEDGALK
                     SEIKKRLKLKDGGHYAAEVKTTYKAKKPVQLPGAYIVDIKLDIVSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     regulatory      990..993
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(1302..1311)
                     /label=M164DE RE
     primer_bind     complement(1461..1470)
                     /label=M164DE RE
     polyA_signal    1826..1947
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1954..2409)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2436..2540
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2542..2899
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2750..2885
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2934..3728
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3960..4007
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4336..4924
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcatgc
      601 ctgaaccggc aaaatccgct ccggccccta aaaagggctc caagaaagcc gtcaccaaag
      661 cccagaagaa agacggcaag aagcgcaagc gcagccgcaa agagagctac tccatctacg
      721 tgtacaaggt gctgaagcag gtccaccccg acaccggcat ctcgtccaag gccatgggca
      781 tcatgaactc cttcgtcaac gacatcttcg agcgcatcgc gggagaggct tcccgcctgg
      841 cgcactacaa caagcgctcc accatcacat cccgcgagat ccagacggcc gtgcgcctgc
      901 tgctgcccgg cgagctggcc aagcacgccg tgtccgaggg caccaaggcg gtcaccaagt
      961 acaccagctc caagccaccg gtcgccacca tggtgagcaa gggcgaggag aataacatgg
     1021 ccatcatcaa ggagttcatg cgcttcaagg tgcacatgga gggctccgtg aacggccacg
     1081 agttcgagat cgagggcgag ggcgagggcc gcccctacga ggcctttcag accgctaagc
     1141 tgaaggtgac caagggtggc cccctgccct tcgcctggga catcctgtcc cctcagttca
     1201 tgtacggctc caaggtctac attaagcacc cagccgacat ccccgactac ttcaagctgt
     1261 ccttccccga gggcttcagg tgggagcgcg tgatgaactt cgaggacggc ggcattattc
     1321 acgttaacca ggactcctcc ctgcaggacg gcgtgttcat ctacaaggtg aagctgcgcg
     1381 gcaccaactt cccctccgac ggccccgtaa tgcagaagaa gaccatgggc tgggaggcct
     1441 ccgaggagcg gatgtacccc gaggacggcg ccctgaagag cgagatcaag aagaggctga
     1501 agctgaagga cggcggccac tacgccgccg aggtcaagac cacctacaag gccaagaagc
     1561 ccgtgcagct gcccggcgcc tacatcgtcg acatcaagtt ggacatcgtg tcccacaacg
     1621 aggactacac catcgtggaa cagtacgaac gcgccgaggg ccgccactcc accggcggca
     1681 tggacgagct gtacaagtaa taaagcggcc gcgactctag atcataatca gccataccac
     1741 atttgtagag gttttacttg ctttaaaaaa cctcccacac ctccccctga acctgaaaca
     1801 taaaatgaat gcaattgttg ttgttaactt gtttattgca gcttataatg gttacaaata
     1861 aagcaatagc atcacaaatt tcacaaataa agcatttttt tcactgcatt ctagttgtgg
     1921 tttgtccaaa ctcatcaatg tatcttaagg cgtaaattgt aagcgttaat attttgttaa
     1981 aattcgcgtt aaatttttgt taaatcagct cattttttaa ccaataggcc gaaatcggca
     2041 aaatccctta taaatcaaaa gaatagaccg agatagggtt gagtgttgtt ccagtttgga
     2101 acaagagtcc actattaaag aacgtggact ccaacgtcaa agggcgaaaa accgtctatc
     2161 agggcgatgg cccactacgt gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc
     2221 gtaaagcact aaatcggaac cctaaaggga gcccccgatt tagagcttga cggggaaagc
     2281 cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct agggcgctgg
     2341 caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac
     2401 agggcgcgtc aggtggcact tttcggggaa atgtgcgcgg aacccctatt tgtttatttt
     2461 tctaaataca ttcaaatatg tatccgctca tgagacaata accctgataa atgcttcaat
     2521 aatattgaaa aaggaagagt cctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt
     2581 agggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa
     2641 ttagtcagca accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
     2701 catgcatctc aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct
     2761 aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc
     2821 agaggccgag gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg
     2881 aggcctaggc ttttgcaaag atcgatcaag agacaggatg aggatcgttt cgcatgattg
     2941 aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg
     3001 actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg
     3061 ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaagacg
     3121 aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg
     3181 ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc
     3241 tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc
     3301 tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc
     3361 gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc
     3421 aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gagcatgccc gacggcgagg
     3481 atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct
     3541 tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt
     3601 tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc
     3661 tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt
     3721 tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc
     3781 acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg
     3841 ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc
     3901 tagggggagg ctaactgaaa cacggaagga gacaataccg gaaggaaccc gcgctatgac
     3961 ggcaataaaa agacagaata aaacgcacgg tgttgggtcg tttgttcata aacgcggggt
     4021 tcggtcccag ggctggcact ctgtcgatac cccaccgaga ccccattggg gccaatacgc
     4081 ccgcgtttct tccttttccc caccccaccc cccaagttcg ggtgaaggcc cagggctcgc
     4141 agccaacgtc ggggcggcag gccctgccat agcctcaggt tactcatata tactttagat
     4201 tgatttaaaa cttcattttt aatttaaaag gatctaggtg aagatccttt ttgataatct
     4261 catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc ccgtagaaaa
     4321 gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct tgcaaacaaa
     4381 aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa ctctttttcc
     4441 gaaggtaact ggcttcagca gagcgcagat accaaatact gtccttctag tgtagccgta
     4501 gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc tgctaatcct
     4561 gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg actcaagacg
     4621 atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca cacagcccag
     4681 cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat gagaaagcgc
     4741 cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg tcggaacagg
     4801 agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc ctgtcgggtt
     4861 tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc ggagcctatg
     4921 gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc cttttgctca
     4981 catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg ccatgcat
//
