pFB-Luc

价格:3000元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Agilent
载体名称: pFB-Luc
质粒类型: 逆病毒载体
高拷贝/低拷贝: 低拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: --
载体大小: 6768 bp
5' 测序引物及序列: --
3' 测序引物及序列: --
载体标签: --
载体抗性: 氨苄青霉素
筛选标记:
克隆菌株: DH5α 等
宿主细胞(系): 常规细胞系(293、CV-1、CHO等)
备注: --
产品目录号: --
稳定性: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 逆转录病毒

载体质粒图谱和多克隆位点信息

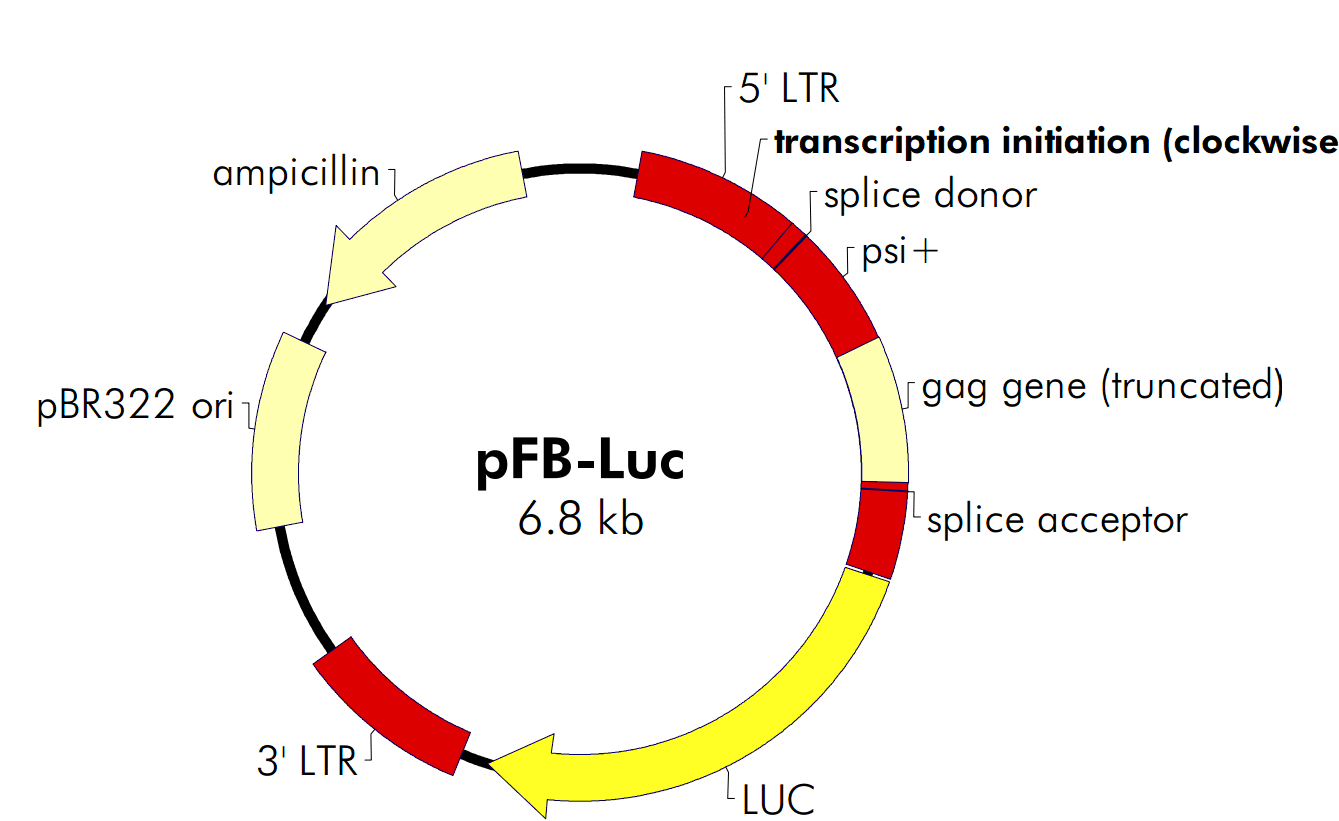

pFB-Luc载体图谱

载体简介

pFB-Luc载体限制性酶切位点

pFB-Luc, 6768 bp			     version 013001


Enzymes with 1-10 cleavage sites:

            #sites   --  Bp position of recognition site --

  AatII          2      978,   6694
  Acc65I         3      647,   1846,   4294
  AccI           3     1967,   2057,   4654
  AccIII         2     2759,   3275
  AflII          3      202,   1265,   3849
  AflIII         3      164,   2557,   4883
  AgeI           1     1840
  AhdI           6      687,    733,   1274,   4334,   4380
                       5771
  Alw44I         4     1054,   4699,   5197,   6443
  AlwNI          5      323,    398,   3970,   4045,   5294
  ApaI           1     1238
  ApoI           5       87,   1128,   2467,   2651,   2905
  AvaI          10      577,    610,    643,   1241,   2018
                       3120,   3725,   4224,   4257,   4290
  BamHI          1     3720
  BanII          8      580,    593,    764,   1238,   3084
                       4227,   4240,   4411
  BbeI           4      615,   1656,   2096,   4262
  BbsI           4     2067,   3345,   3475,   6761
  BbvCI          2      453,   4100
  BciVI          8      656,   1986,   2762,   3067,   3191
                       4303,   5092,   6619
  BglI           1     5890
  BglII          1     1678
  BpmI           5     1799,   2128,   3322,   3797,   5861
  Bpu10I         7      337,    412,    453,   1548,   3984
                       4059,   4100
  BsaAI          4     1816,   2000,   2216,   4635
  BsaHI          9      615,    978,   1656,   2070,   2096
                       3489,   4262,   6312,   6694
  BsaI           9      694,    715,    782,   1414,   1802
                       4341,   4362,   4429,   5843
  BsaWI          9      138,   1840,   2759,   3258,   3275
                       3642,   5089,   5236,   6067
  BseRI          6      718,   1068,   1561,   1600,   3604
                       4365
  BsiEI          9      961,   1034,   1838,   3145,   3731
                       4796,   5220,   6143,   6292
  BsiHKAI        8      580,   1054,   3525,   4227,   4699
                       5197,   6358,   6443
  BsiWI          1     2218
  BsmBI          6      976,   1093,   1337,   1396,   1582
                       4532
  Bsp120I        1     1238
  BspHI          3     5603,   6611,   6716
  BspLU11I       2      164,   4883
  BspMI          1     3471
  BsrBI          5     1299,   3728,   3753,   4814,   6615
  BsrDI          2     5830,   6012
  BsrGI          2     1541,   2554
  BssHII         2      563,   4210
  BssSI          3     5056,   6440,   6747
  Bst1107I       1     4654
  BstAPI         5      322,    397,   3969,   4044,   4701
  BstBI          2     2232,   3020
  BstEII         2     1346,   2671
  Bsu36I         2     1276,   2676
  Cfr10I         4     1840,   2333,   3492,   5856
  ClaI           1     3428
  DraI           3     5640,   5659,   6351
  DraIII         1     1873
  DrdI           2     4572,   4985
  DsaI           3      151,    931,   2062
  EaeI           7      827,    961,   1368,   1389,   1668
                       3731,   6164
  EarI           7     1334,   1564,   2153,   2317,   2871
                       4761,   6565
  Ecl136II       2      580,   4227
  Eco52I         2      961,   3731
  Eco57I         3     2892,   5410,   6458
  Eco72I         1     2000
  EcoNI          2     1647,   3677
  EcoO109I       6      499,   1477,   1924,   3242,   4146
                       6751
  EcoRI          1     2651
  EcoRV          5      308,    383,   3400,   3955,   4030
  EheI           4      615,   1656,   2096,   4262
  FspI           1     5996
  HaeII          6      615,   1656,   2096,   4262,   4757
                       5127
  HincII         3     2057,   3366,   6315
  KasI           4      615,   1656,   2096,   4262
  KpnI           3      647,   1846,   4294
  MscI           3      827,   1368,   1668
  MslI           4      159,   6024,   6183,   6542
  MunI           4       11,     21,   2179,   2635
  NarI           4      615,   1656,   2096,   4262
  NcoI           1     2062
  NdeI           3     1664,   1672,   4705
  NheI           5        6,     16,     26,    197,   3844
  NotI           1     3730
  NspI           4      164,   2723,   4518,   4883
  PacI           1     3384
  PpuMI          5      499,   1477,   1924,   3242,   4146
  PshAI          1     1015
  Psp1406I       2     6001,   6374
  PstI           3     1178,   1360,   6017
  PvuI           2     1034,   6143
  PvuII          4      286,    361,   3933,   4008
  SacI           2      580,   4227
  SacII          1      151
  SalI           1     2057
  SapI           2     2871,   4760
  ScaI           1     6254
  SexAI          1     1474
  SfcI           7      182,   1178,   1360,   3829,   5148
                       5339,   6017
  SgrAI          1     3491
  SmaI           4      643,   1241,   2018,   4290
  SmlI           8      202,   1265,   3725,   3849,   4989
                       5251,   5528,   6396
  SpeI           1      897
  SphI           1     2723
  SrfI           1     1240
  SspI           1     6578
  StyI           6      496,    706,   1504,   2062,   4143
                       4353
  TatI           4     1541,   2554,   4689,   6254
  TfiI           5     2293,   2520,   2716,   3426,   4858
  Tsp45I         8     1282,   1491,   2565,   2626,   4538
                       4633,   6033,   6244
  Tth111I        4      633,   1473,   4280,   4627
  VspI           1     5947
  XbaI           4      464,   2036,   2111,   4111
  XcmI           1     2792
  XhoI           1     3725
  XmaI           4      643,   1241,   2018,   4290
  XmnI           1     6371





Enzymes that do NOT cut molecule:

AscI        BclI        BlnI        Bpu1102I    BsaBI
BsgI        BsmI        BstXI       Eco47III    FseI
HindIII     HpaI        MluI        NaeI        NgoMIV
NruI        NsiI        PmeI        Ppu10I      RsrII
SanDI       SbfI        SfiI        SgfI        SnaBI
StuI        SwaI        Van91I



载体序列

pFB-Luc, 6768 bp                              version 013001

NOTE: The following sequence has been verified for accuracy
at the junctions. The remainder of the sequence has been
obtained from existing data.

   1  GAATTGCTAG CAATTGCTAG CAATTGCTAG CAATTCATAC CAGATCACCG
  51  AAAACTGTCC TCCAAATGTG TCCCCCTCAC ACTCCCAAAT TCGCGGGCTT
 101  CTGCCTCTTA GACCACTCTA CCCTATTCCC CACACTCACC GGAGCCAAAG
 151  CCGCGGGACA TATACATGTG AAAGACCCCA CCTGTAGGTT TGGCAAGCTA
 201  GCTTAAGTAA CGCCATTTTG CAAGGCATGG AAAAATACAT AACTGAGAAT
 251  AGAAAAGTTC AGATCAAGGT CAGGAACAGA TGGAACAGCT GAATATGGGC
 301  CAAAGCGGAT ATCTGTGGTA AGCAGTTCCT GCCCCGGCTC AGGGCCAAGA
 351  ACAGATGGAA CAGCTGAATA TGGGCCAAAC AGGATATCTG TGGTAAGCAG
 401  TTCCTGCCCC GGCTCAGGGC CAAGAACAGA TGGTCCCCAG ATGCGGTCCA
 451  GCCCTCAGCA GTTTCTAGAG AACCATCAGA TGTTTCCAGG GTGCCCCAAG
 501  GACCTGAAAT GACCCTGTGC CTTATTTGAA CTAACCAATC AGTTCGCTTC
 551  TCGCTTCTGT TCGCGCGCTT CTGCTCCCCG AGCTCAATAA AAGAGCCCAC
 601  AACCCCTCAC TCGGGGCGCC AGTCCTCCGA TTGACTGAGT CGCCCGGGTA
 651  CCCGTGTATC CAATAAACCC TCTTGCAGTT GCATCCGACT TGTGGTCTCG
 701  CTGTTCCTTG GGAGGGTCTC CTCTGAGTGA TTGACTACCC GTCAGCGGGG
 751  GTCTTTCATT TGGGGGCTCG TCCGGGATCG GGAGACCCCT GCCCAGGGAC
 801  CACCGACCCA CCACCGGGAG GTAAGCTGGC CAGCAACTTA TCTGTGTCTG
 851  TCCGATTGTC TAGTGTCTAT GACTGATTTT ATGCGCCTGC GTCGGTACTA
 901  GTTAGCTAAC TAGCTCTGTA TCTGGCGGAC CCGTGGTGGA ACTGACGAGT
 951  TCGGAACACC CGGCCGCAAC CCTGGGAGAC GTCCCAGGGA CTTCGGGGGC
1001  CGTTTTTGTG GCCCGACCTG AGTCCAAAAA TCCCGATCGT TTTGGACTCT
1051  TTGGTGCACC CCCCTTAGAG GAGGGATATG TGGTTCTGGT AGGAGACGAG
1101  AACCTAAAAC AGTTCCCGCC TCCGTCTGAA TTTTTGCTTT CGGTTTGGGA
1151  CCGAAGCCGC GCCGCGCGTC TTGTCTGCTG CAGCATCGTT CTGTGTTGTC
1201  TCTGTCTGAC TGTGTTTCTG TATTTGTCTG AAAATATGGG CCCGGGCCAG
1251  ACTGTTACCA CTCCCTTAAG TTTGACCTTA GGTCACTGGA AAGATGTCGA
1301  GCGGATCGCT CACAACCAGT CGGTAGATGT CAAGAAGAGA CGTTGGGTTA
1351  CCTTCTGCTC TGCAGAATGG CCAACCTTTA ACGTCGGATG GCCGCGAGAC
1401  GGCACCTTTA ACCGAGACCT CATCACCCAG GTTAAGATCA AGGTCTTTTC
1451  ACCTGGCCCG CATGGACACC CAGACCAGGT CCCCTACATC GTGACCTGGG
1501  AAGCCTTGGC TTTTGACCCC CCTCCCTGGG TCAAGCCCTT TGTACACCCT
1551  AAGCCTCCGC CTCCTCTTCC TCCATCCGCC CCGTCTCTCC CCCTTGAACC
1601  TCCTCGTTCG ACCCCGCCTC GATCCTCCCT TTATCCAGCC CTCACTCCTT
1651  CTCTAGGCGC CCCCATATGG CCATATGAGA TCTTATATGG GGCACCCCCG
1701  CCCCTTGTAA ACTTCCCTGA CCCTGACATG ACAAGAGTTA CTAACAGCCC
1751  CTCTCTCCAA GCTCACTTAC AGGCTCTCTA CTTAGTCCAG CACGAAGTCT
1801  GGAGACCTCT GGCGGCACGT ACCAAGAACA ACTGGACCGA CCGGTGGTAC
1851  CTCACCCTTA CCGAGTCGGC GACACAGTGT GGGTCCGCCG ACACCAGACT
1901  AAGAACCTAG AACCTCGCTG GAAAGGACCT TACACAGTCC TGCTGACCAC
1951  CCCCACCGCC CTCAAAGTAG ACGGCATCGC AGCTTGGATA CACGCCGCCC
2001  ACGTGAAGGC TGCCGACCCC GGGGGTGGAC CATCCTCTAG ACTGCCGGAT
2051  CGAATTGTCG ACCATGGAAG ACGCCAAAAA CATAAAGAAA GGCCCGGCGC
2101  CATTCTATCC TCTAGAGGAT GGAACCGCTG GAGAGCAACT GCATAAGGCT
2151  ATGAAGAGAT ACGCCCTGGT TCCTGGAACA ATTGCTTTTA CAGATGCACA
2201  TATCGAGGTG AACATCACGT ACGCGGAATA CTTCGAAATG TCCGTTCGGT
2251  TGGCAGAAGC TATGAAACGA TATGGGCTGA ATACAAATCA CAGAATCGTC
2301  GTATGCAGTG AAAACTCTCT TCAATTCTTT ATGCCGGTGT TGGGCGCGTT
2351  ATTTATCGGA GTTGCAGTTG CGCCCGCGAA CGACATTTAT AATGAACGTG
2401  AATTGCTCAA CAGTATGAAC ATTTCGCAGC CTACCGTAGT GTTTGTTTCC
2451  AAAAAGGGGT TGCAAAAAAT TTTGAACGTG CAAAAAAAAT TACCAATAAT
2501  CCAGAAAATT ATTATCATGG ATTCTAAAAC GGATTACCAG GGATTTCAGT
2551  CGATGTACAC GTTCGTCACA TCTCATCTAC CTCCCGGTTT TAATGAATAC
2601  GATTTTGTAC CAGAGTCCTT TGATCGTGAC AAAACAATTG CACTGATAAT
2651  GAATTCCTCT GGATCTACTG GGTTACCTAA GGGTGTGGCC CTTCCGCATA
2701  GAACTGCCTG CGTCAGATTC TCGCATGCCA GAGATCCTAT TTTTGGCAAT
2751  CAAATCATTC CGGATACTGC GATTTTAAGT GTTGTTCCAT TCCATCACGG
2801  TTTTGGAATG TTTACTACAC TCGGATATTT GATATGTGGA TTTCGAGTCG
2851  TCTTAATGTA TAGATTTGAA GAAGAGCTGT TTTTACGATC CCTTCAGGAT
2901  TACAAAATTC AAAGTGCGTT GCTAGTACCA ACCCTATTTT CATTCTTCGC
2951  CAAAAGCACT CTGATTGACA AATACGATTT ATCTAATTTA CACGAAATTG
3001  CTTCTGGGGG CGCACCTCTT TCGAAAGAAG TCGGGGAAGC GGTTGCAAAA
3051  CGCTTCCATC TTCCAGGGAT ACGACAAGGA TATGGGCTCA CTGAGACTAC
3101  ATCAGCTATT CTGATTACAC CCGAGGGGGA TGATAAACCG GGCGCGGTCG
3151  GTAAAGTTGT TCCATTTTTT GAAGCGAAGG TTGTGGATCT GGATACCGGG
3201  AAAACGCTGG GCGTTAATCA GAGAGGCGAA TTATGTGTCA GAGGACCTAT
3251  GATTATGTCC GGTTATGTAA ACAATCCGGA AGCGACCAAC GCCTTGATTG
3301  ACAAGGATGG ATGGCTACAT TCTGGAGACA TAGCTTACTG GGACGAAGAC
3351  GAACACTTCT TCATAGTTGA CCGCTTGAAG TCTTTAATTA AATACAAAGG
3401  ATATCAGGTG GCCCCCGCTG AATTGGAATC GATATTGTTA CAACACCCCA
3451  ACATCTTCGA CGCGGGCGTG GCAGGTCTTC CCGACGATGA CGCCGGTGAA
3501  CTTCCCGCCG CCGTTGTTGT TTTGGAGCAC GGAAAGACGA TGACGGAAAA
3551  AGAGATCGTG GATTACGTCG CCAGTCAAGT AACAACCGCG AAAAAGTTGC
3601  GCGGAGGAGT TGTGTTTGTG GACGAAGTAC CGAAAGGTCT TACCGGAAAA
3651  CTCGACGCAA GAAAAATCAG AGAGATCCTC ATAAAGGCCA AGAAGGGCGG
3701  AAAGTCCAAA TTGTAATGAG GATCCTCGAG CGGCCGCGAT CCGAGTTCTT
3751  CTGAGCGGGA CTCTGGGGTT CGATAAAATA AAAGATTTTA TTTAGTCTCC
3801  AGAAAAAGGG GGGAATGAAA GACCCCACCT GTAGGTTTGG CAAGCTAGCT
3851  TAAGTAACGC CATTTTGCAA GGCATGGAAA AATACATAAC TGAGAATAGA
3901  GAAGTTCAGA TCAAGGTCAG GAACAGATGG AACAGCTGAA TATGGGCCAA
3951  ACAGGATATC TGTGGTAAGC AGTTCCTGCC CCGGCTCAGG GCCAAGAACA
4001  GATGGAACAG CTGAATATGG GCCAAACAGG ATATCTGTGG TAAGCAGTTC
4051  CTGCCCCGGC TCAGGGCCAA GAACAGATGG TCCCCAGATG CGGTCCAGCC
4101  CTCAGCAGTT TCTAGAGAAC CATCAGATGT TTCCAGGGTG CCCCAAGGAC
4151  CTGAAATGAC CCTGTGCCTT ATTTGAACTA ACCAATCAGT TCGCTTCTCG
4201  CTTCTGTTCG CGCGCTTCTG CTCCCCGAGC TCAATAAAAG AGCCCACAAC
4251  CCCTCACTCG GGGCGCCAGT CCTCCGATTG ACTGAGTCGC CCGGGTACCC
4301  GTGTATCCAA TAAACCCTCT TGCAGTTGCA TCCGACTTGT GGTCTCGCTG
4351  TTCCTTGGGA GGGTCTCCTC TGAGTGATTG ACTACCCGTC AGCGGGGGTC
4401  TTTCATTTGG GGGCTCGTCC GGGATCGGGA GACCCCTGCC CAGGGACCAC
4451  CGACCCACCA CCGGGAGGTA AGCTGGCTGC CTCGCGCGTT TCGGTGATGA
4501  CGGTGAAAAC CTCTGACACA TGCAGCTCCC GGAGACGGTC ACAGCTTGTC
4551  TGTAAGCGGA TGCCGGGAGC AGACAAGCCC GTCAGGGCGC GTCAGCGGGT
4601  GTTGGCGGGT GTCGGGGCGC AGCCATGACC CAGTCACGTA GCGATAGCGG
4651  AGTGTATACT GGCTTAACTA TGCGGCATCA GAGCAGATTG TACTGAGAGT
4701  GCACCATATG CGGTGTGAAA TACCGCACAG ATGCGTAAGG AGAAAATACC
4751  GCATCAGGCG CTCTTCCGCT TCCTCGCTCA CTGACTCGCT GCGCTCGGTC
4801  GTTCGGCTGC GGCGAGCGGT ATCAGCTCAC TCAAAGGCGG TAATACGGTT
4851  ATCCACAGAA TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC
4901  AGCAAAAGGC CAGGAACCGT AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT
4951  AGGCTCCGCC CCCCTGACGA GCATCACAAA AATCGACGCT CAAGTCAGAG
5001  GTGGCGAAAC CCGACAGGAC TATAAAGATA CCAGGCGTTT CCCCCTGGAA
5051  GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC CGGATACCTG
5101  TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCATA GCTCACGCTG
5151  TAGGTATCTC AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC
5201  ACGAACCCCC CGTTCAGCCC GACCGCTGCG CCTTATCCGG TAACTATCGT
5251  CTTGAGTCCA ACCCGGTAAG ACACGACTTA TCGCCACTGG CAGCAGCCAC
5301  TGGTAACAGG ATTAGCAGAG CGAGGTATGT AGGCGGTGCT ACAGAGTTCT
5351  TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT ATTTGGTATC
5401  TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG
5451  ATCCGGCAAA CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC
5501  AGCAGATTAC GCGCAGAAAA AAAGGATCTC AAGAAGATCC TTTGATCTTT
5551  TCTACGGGGT CTGACGCTCA GTGGAACGAA AACTCACGTT AAGGGATTTT
5601  GGTCATGAGA TTATCAAAAA GGATCTTCAC CTAGATCCTT TTAAATTAAA
5651  AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC TTGGTCTGAC
5701  AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT
5751  TCGTTCATCC ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC
5801  GGGAGGGCTT ACCATCTGGC CCCAGTGCTG CAATGATACC GCGAGACCCA
5851  CGCTCACCGG CTCCAGATTT ATCAGCAATA AACCAGCCAG CCGGAAGGGC
5901  CGAGCGCAGA AGTGGTCCTG CAACTTTATC CGCCTCCATC CAGTCTATTA
5951  ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA TAGTTTGCGC
6001  AACGTTGTTG CCATTGCTGC AGGCATCGTG GTGTCACGCT CGTCGTTTGG
6051  TATGGCTTCA TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT
6101  CCCCCATGTT GTGCAAAAAA GCGGTTAGCT CCTTCGGTCC TCCGATCGTT
6151  GTCAGAAGTA AGTTGGCCGC AGTGTTATCA CTCATGGTTA TGGCAGCACT
6201  GCATAATTCT CTTACTGTCA TGCCATCCGT AAGATGCTTT TCTGTGACTG
6251  GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG GCGACCGAGT
6301  TGCTCTTGCC CGGCGTCAAC ACGGGATAAT ACCGCGCCAC ATAGCAGAAC
6351  TTTAAAAGTG CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA
6401  GGATCTTACC GCTGTTGAGA TCCAGTTCGA TGTAACCCAC TCGTGCACCC
6451  AACTGATCTT CAGCATCTTT TACTTTCACC AGCGTTTCTG GGTGAGCAAA
6501  AACAGGAAGG CAAAATGCCG CAAAAAAGGG AATAAGGGCG ACACGGAAAT
6551  GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG CATTTATCAG
6601  GGTTATTGTC TCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA
6651  ACAAATAGGG GTTCCGCGCA CATTTCCCCG AAAAGTGCCA CCTGACGTCT
6701  AAGAAACCAT TATTATCATG ACATTAACCT ATAAAAATAG GCGTATCACG
6751  AGGCCCTTTC GTCTTCAA

载体质粒图谱pdf版和相关资料下载

载体应用举例

分享到:
Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng
