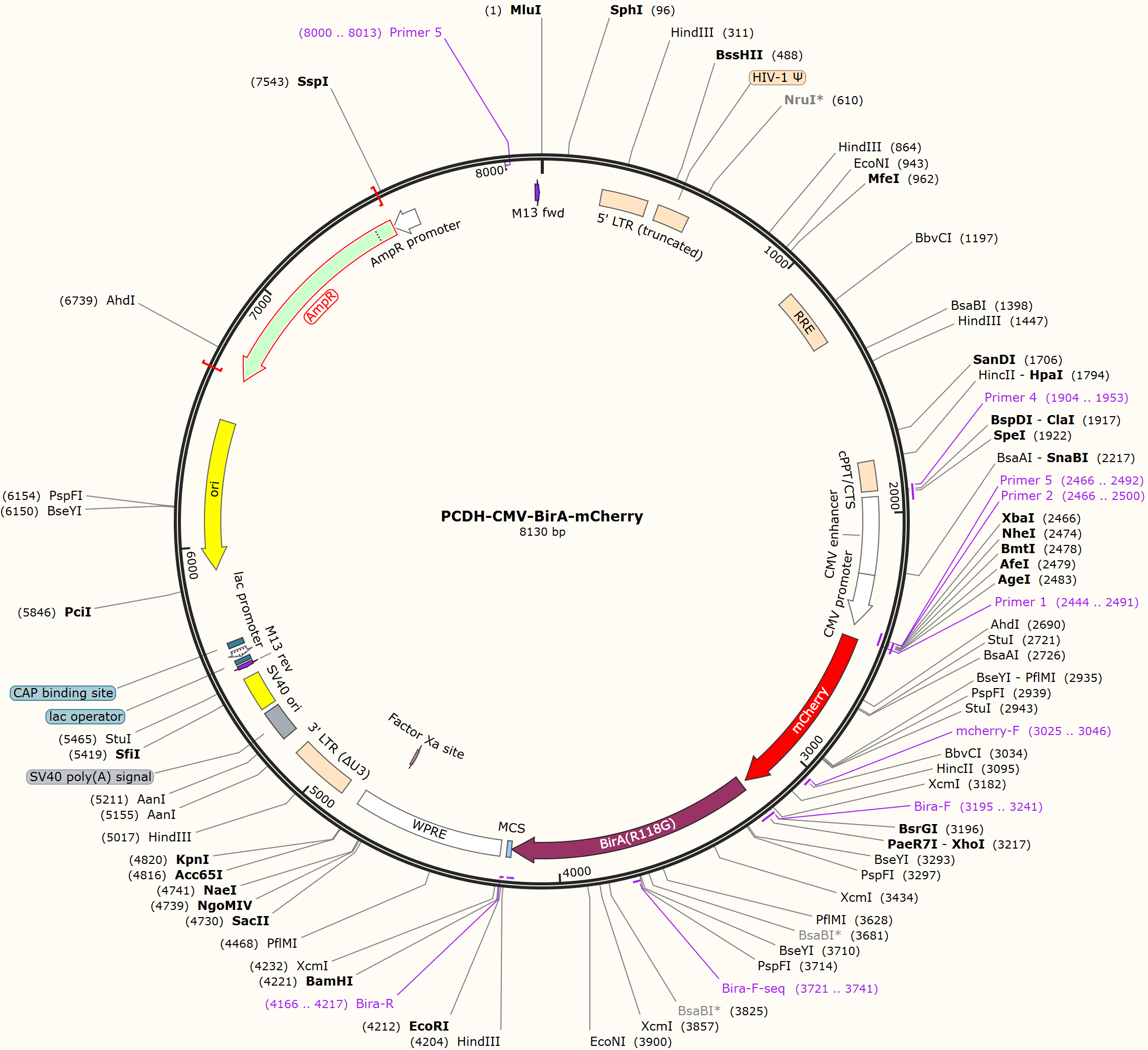

PCDH-CMV-BirA-mCherry

LOCUS      PCDH-CMV-BirA-mCherry               8130 bp DNA     circular SYN 24-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8130)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 12, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8130
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     primer_bind     3195..3241
                     /label=Bira-F
     CDS             3225..4184
                     /codon_start=1
                     /product="promiscuous R118G mutant of the E. coli biotin
                     protein ligase (Cronan, 2005)"
                     /label=BirA(R118G)
                     /note="also known as BirA* or BioID"
                     /translation="KDNTVPLKLIALLANGEFHSGEQLGETLGMSRAAINKHIQTLRDW
                     GVDVFTVPGKGYSLPEPIQLLNAKQILGQLDGGSVAVLPVIDSTNQYLLDRIGELKSGD
                     ACIAEYQQAGRGRRGRKWFSPFGANLYLSMFWRLEQGPAAAIGLSLVIGIVMAEVLRKL
                     GADKVRVKWPNDLYLQDRKLAGILVELTGKTGDAAQIVIGAGINMAMRRVEESVVNQGW
                     ITLQEAGINLDRNTLAAMLIRELRAALELFEQEGLAPYLSRWEKLDNFINRPVKLIIGD
                     KEIFGISRGIDKQGALLLEQDGIIKPWMGGEISLRSAEK"
     primer_bind     3721..3741
                     /label=Bira-F-seq
     primer_bind     complement(4166..4217)
                     /label=Bira-R
     misc_feature    4185..4202
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    4227..4814
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4698..4709)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4887..5120
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5192..5313
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5332..5467
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5505..5521)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5529..5545
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5553..5583)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5598..5619
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5907..6495)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6666..7526)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7527..7631)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8000..8013)
                     /label=Primer 5
     primer_bind     8105..8121
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctaaggac aacaccgtgc
     3241 ccctgaagct gatcgccctg ctggccaacg gcgagttcca ctctggcgag cagctgggag
     3301 agaccctggg aatgagcaga gccgccatca acaagcacat ccagacactg agagactggg
     3361 gagtggacgt gttcaccgtg cctggcaagg gctacagcct gcctgagcct atccagctgc
     3421 tgaacgccaa gcagatcctg ggacagctgg atggcggaag cgtggccgtg ctgcctgtga
     3481 tcgactccac caatcagtac ctgctggaca gaatcggaga gctgaagtcc ggcgacgcct
     3541 gcatcgccga gtaccagcag gctggcagag gacgcagagg acggaagtgg ttcagcccat
     3601 tcggagccaa cctgtacctg tccatgttct ggagactgga gcagggacct gctgctgcca
     3661 tcggactgag tctggtgatc ggaatcgtga tggccgaggt gctgagaaag ctgggagccg
     3721 acaaggtgag agtgaagtgg cctaatgacc tgtacctcca ggaccgcaag ctggctggca
     3781 tcctggtgga gctgacaggc aagacaggcg atgccgctca gatcgtgatc ggagccggaa
     3841 tcaacatggc catgagaaga gtggaggaga gcgtggtgaa ccagggctgg atcaccctgc
     3901 aggaggctgg catcaacctg gaccggaaca ccctggccgc catgctgatc agagagctga
     3961 gagccgctct ggagctgttc gagcaggagg gactggctcc ttacctgagc agatgggaga
     4021 agctggacaa cttcatcaac agacctgtga agctgatcat cggcgacaag gaaatcttcg
     4081 gcatctccag aggaatcgac aagcagggag ctctgctgct ggagcaggac ggaatcatca
     4141 agccctggat gggcggagaa atctccctga gaagcgcaga gaagggtgga agcagtggag
     4201 ctcaagcttc ggaattctag ggatccaatc aacctctgga ttacaaaatt tgtgaaagat
     4261 tgactggtat tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc
     4321 ctttgtatca tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct
     4381 ggttgctgtc tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca
     4441 ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt
     4501 ccgggacttt cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg
     4561 cccgctgctg gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga
     4621 agctgacgtc ctttccatgg ctgctcgcct gtgttgccac ctggattctg cgcgggacgt
     4681 ccttctgcta cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc
     4741 cggctctgcg gcctcttccg cgtctccgcc ttcgccctca gacgagtcgg atctcccttt
     4801 ggccgcctcc ccgccggtac ctttaagacc aatgacttac aaggcagctg tagatcttag
     4861 ccacttttta aaagaaaagg ggggactgga agggctaatt cactcccaac gaaaataaga
     4921 tctgcttttt gcttgtactg ggtctctctg gttagaccag atctgagcct gggagctctc
     4981 tggctaacta gggaacccac tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt
     5041 agtgtgtgcc cgtctgttgt gtgactctgg taactagaga tccctcagac ccttttagtc
     5101 agtgtggaaa atctctagca gtagtagttc atgtcatctt attattcagt atttataact
     5161 tgcaaagaaa tgaatatcag agagtgagag gaacttgttt attgcagctt ataatggtta
     5221 caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac tgcattctag
     5281 ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tggctctagc tatcccgccc
     5341 ctaactccgc ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat
     5401 gcagaggccg aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt
     5461 ggaggcctag acttttgcag agacggccca aattcgtaat catggtcata gctgtttcct
     5521 gtgtgaaatt gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt
     5581 aaagcctggg gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc
     5641 gctttccagt cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg
     5701 agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg
     5761 gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca
     5821 gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac
     5881 cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac
     5941 aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg
     6001 tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac
     6061 ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat
     6121 ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag
     6181 cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac
     6241 ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt
     6301 gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaaggac agtatttggt
     6361 atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc
     6421 aaacaaacca ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga
     6481 aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac
     6541 gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc
     6601 cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct
     6661 gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     6721 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     6781 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     6841 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     6901 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     6961 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     7021 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     7081 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     7141 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     7201 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     7261 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     7321 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     7381 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     7441 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     7501 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     7561 cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata
     7621 ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tctaagaaac cattattatc
     7681 atgacattaa cctataaaaa taggcgtatc acgaggccct ttcgtctcgc gcgtttcggt
     7741 gatgacggtg aaaacctctg acacatgcag ctcccggaga cggtcacagc ttgtctgtaa
     7801 gcggatgccg ggagcagaca agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg
     7861 ggctggctta actatgcggc atcagagcag attgtactga gagtgcacca tatgcggtgt
     7921 gaaataccgc acagatgcgt aaggagaaaa taccgcatca ggcgccattc gccattcagg
     7981 ctgcgcaact gttgggaagg gcgatcggtg cgggcctctt cgctattacg ccagctggcg
     8041 aaagggggat gtgctgcaag gcgattaagt tgggtaacgc cagggttttc ccagtcacga
     8101 cgttgtaaaa cgacggccag tgccaagctg
//
