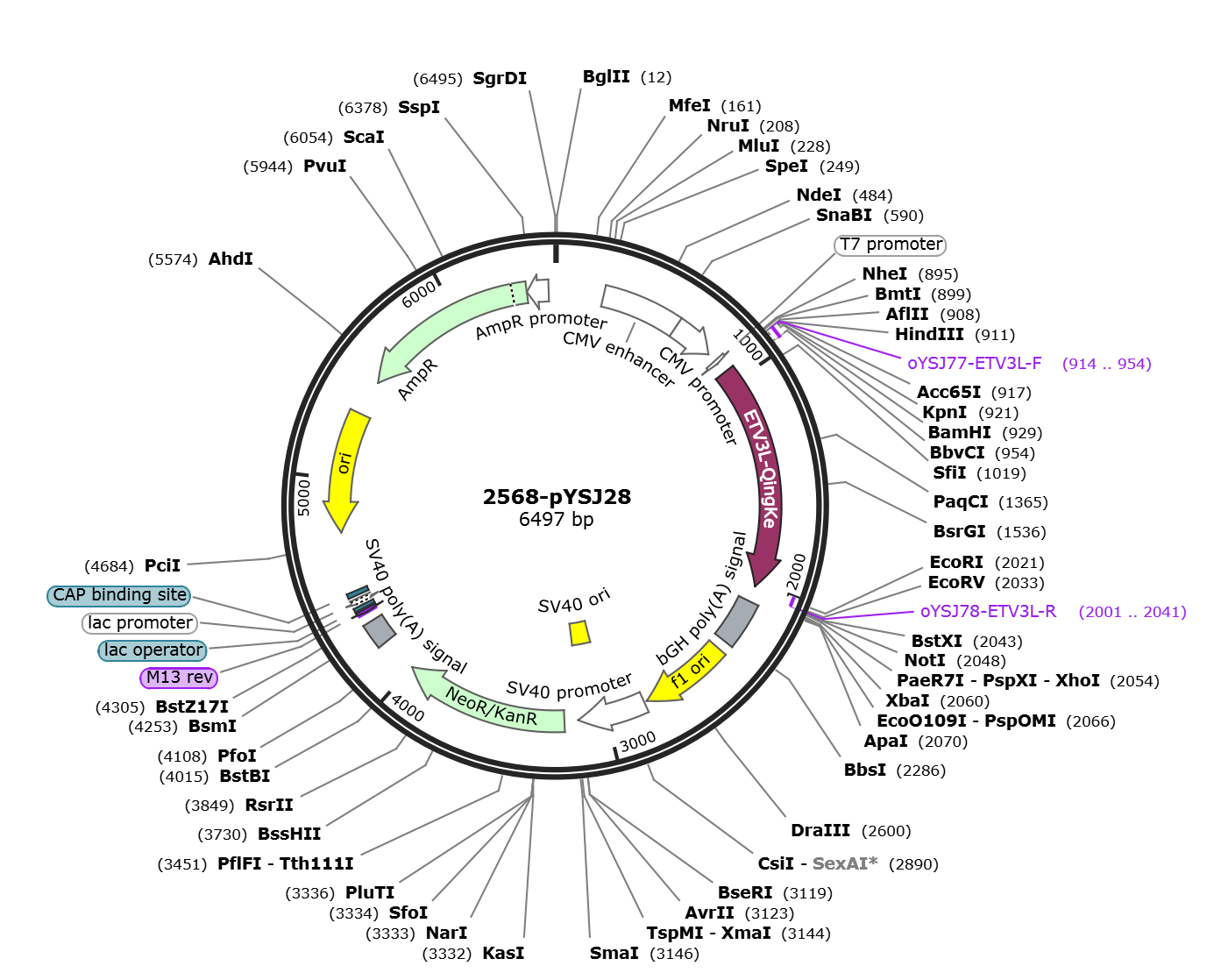

pYSJ28

LOCUS       pYSJ28               6497 bp DNA     circular SYN 19-OCT-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6497)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6497
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..954
                     /label=oYSJ77-ETV3L-F
     CDS             935..2020
                     /codon_start=1
                     /label=ETV3L-QingKe
                     /translation="MHCSCLAEGIPANPGNWISGLAFPDWAYKAESSPGSRQIQLWHFI
                     LELLQKEEFRHVIAWQQGEYGEFVIKDPDEVARLWGRRKCKPQMNYDKLSRALRYYYNK
                     RILHKTKGKRFTYKFNFSKLIVVNYPLWEVRAPPSPHLLLGAPALCRPALVPVGVQSEL
                     LHSMLFAHQAMVEQLTGQQTPRGPPETSGDKKGSSSSVYRLGSAPGPCRLGLCCHLGSV
                     QGELPGVASFTPPLPPPLPSNWTCLSGPFLPPLPSEQQLPGAFKPDILLPGPRSLPGAW
                     HFPGLPLLAGLGQGAGERLWLLSLRPEGLEVKPAPMMEAKGGLDPREVFCPETRRLKTG
                     EESLTSPNLENLKAVWPLDPP"
     primer_bind     complement(2001..2041)
                     /label=oYSJ78-ETV3L-R
     polyA_signal    2097..2321
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2367..2795
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2809..3138
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2989..3124
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3205..3999
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4173..4294
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4343..4359)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4367..4383
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4391..4421)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4436..4457
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4745..5330)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5501..6361)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6362..6466)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgcac tgctcttgtc tggctgaggg
      961 aatacctgct aaccctggca actggatcag cggcttggcc tttccagact gggcctacaa
     1021 ggccgaaagc agtccaggca gcagacagat ccagctgtgg cacttcattc tggagctgtt
     1081 gcagaaagaa gagttcaggc atgtcatcgc ttggcagcag ggtgagtacg gtgagttcgt
     1141 catcaaagat ccagatgagg tggccagact ctggggcaga agaaagtgca agcctcagat
     1201 gaactacgac aagctgagca gagccttgag gtactactac aacaagcgga tcttgcacaa
     1261 gaccaagggc aagaggttca cctacaagtt caacttcagc aagctgatcg tcgtgaacta
     1321 tccactgtgg gaagtgagag caccaccttc tccacacctg ctgttgggtg ctccagctct
     1381 gtgcagacct gctctggttc cagtgggtgt tcagtctgag ttgctgcaca gcatgctctt
     1441 cgctcaccag gctatggtgg aacagctgac cggacagcag acacctcgcg gaccacctga
     1501 gacaagcgga gacaagaagg gctccagcag cagcgtgtac agattgggat ctgcacctgg
     1561 accttgcaga ctgggactgt gctgtcacct gggatctgtg cagggtgaat tgcctggtgt
     1621 cgccagcttc acacctccac ttccacctcc attgcctagc aactggacct gtctgtctgg
     1681 accattcttg ccacctctgc ctagtgagca gcagttgcct ggagctttca agcctgacat
     1741 tctgctgcct ggacctcgga gtctgcctgg tgcttggcac tttccaggct tgcctctgct
     1801 ggctggcttg ggtcagggag ctggagagag actgtggttg ctgagcctga ggcctgaggg
     1861 attggaggtg aagcctgcac ctatgatgga ggctaaggga ggtttggacc ctagagaggt
     1921 gttctgtcca gagacaagac ggctgaaaac aggcgaagag tctctgacct ctccaaacct
     1981 ggagaacctg aaggctgtgt ggcctctcga tccaccttga gaattctgca gatatccagc
     2041 acagtggcgg ccgctcgagt ctagagggcc cgtttaaacc cgctgatcag cctcgactgt
     2101 gccttctagt tgccagccat ctgttgtttg cccctccccc gtgccttcct tgaccctgga
     2161 aggtgccact cccactgtcc tttcctaata aaatgaggaa attgcatcgc attgtctgag
     2221 taggtgtcat tctattctgg ggggtggggt ggggcaggac agcaaggggg aggattggga
     2281 agacaatagc aggcatgctg gggatgcggt gggctctatg gcttctgagg cggaaagaac
     2341 cagctggggc tctagggggt atccccacgc gccctgtagc ggcgcattaa gcgcggcggg
     2401 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
     2461 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
     2521 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
     2581 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
     2641 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
     2701 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
     2761 aaatgagctg atttaacaaa aatttaacgc gaattaattc tgtggaatgt gtgtcagtta
     2821 gggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat
     2881 tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     2941 atgcatctca attagtcagc aaccatagtc ccgcccctaa ctccgcccat cccgccccta
     3001 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     3061 gaggccgagg ccgcctctgc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     3121 ggcctaggct tttgcaaaaa gctcccggga gcttgtatat ccattttcgg atctgatcaa
     3181 gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg
     3241 gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat cggctgctct
     3301 gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac
     3361 ctgtccggtg ccctgaatga actgcaggac gaggcagcgc ggctatcgtg gctggccacg
     3421 acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg
     3481 ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa
     3541 gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca
     3601 ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt
     3661 gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc
     3721 aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc
     3781 ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg
     3841 ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt
     3901 ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag
     3961 cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa
     4021 tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct
     4081 atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg
     4141 gggatctcat gctggagttc ttcgcccacc ccaacttgtt tattgcagct tataatggtt
     4201 acaaataaag caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta
     4261 gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg tcgacctcta
     4321 gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca
     4381 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag
     4441 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt
     4501 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc
     4561 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     4621 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     4681 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     4741 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     4801 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     4861 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     4921 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     4981 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     5041 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     5101 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     5161 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     5221 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     5281 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     5341 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     5401 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     5461 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     5521 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     5581 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     5641 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     5701 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     5761 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     5821 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     5881 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     5941 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     6001 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     6061 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     6121 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     6181 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     6241 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     6301 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     6361 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     6421 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     6481 aagtgccacc tgacgtc
//
