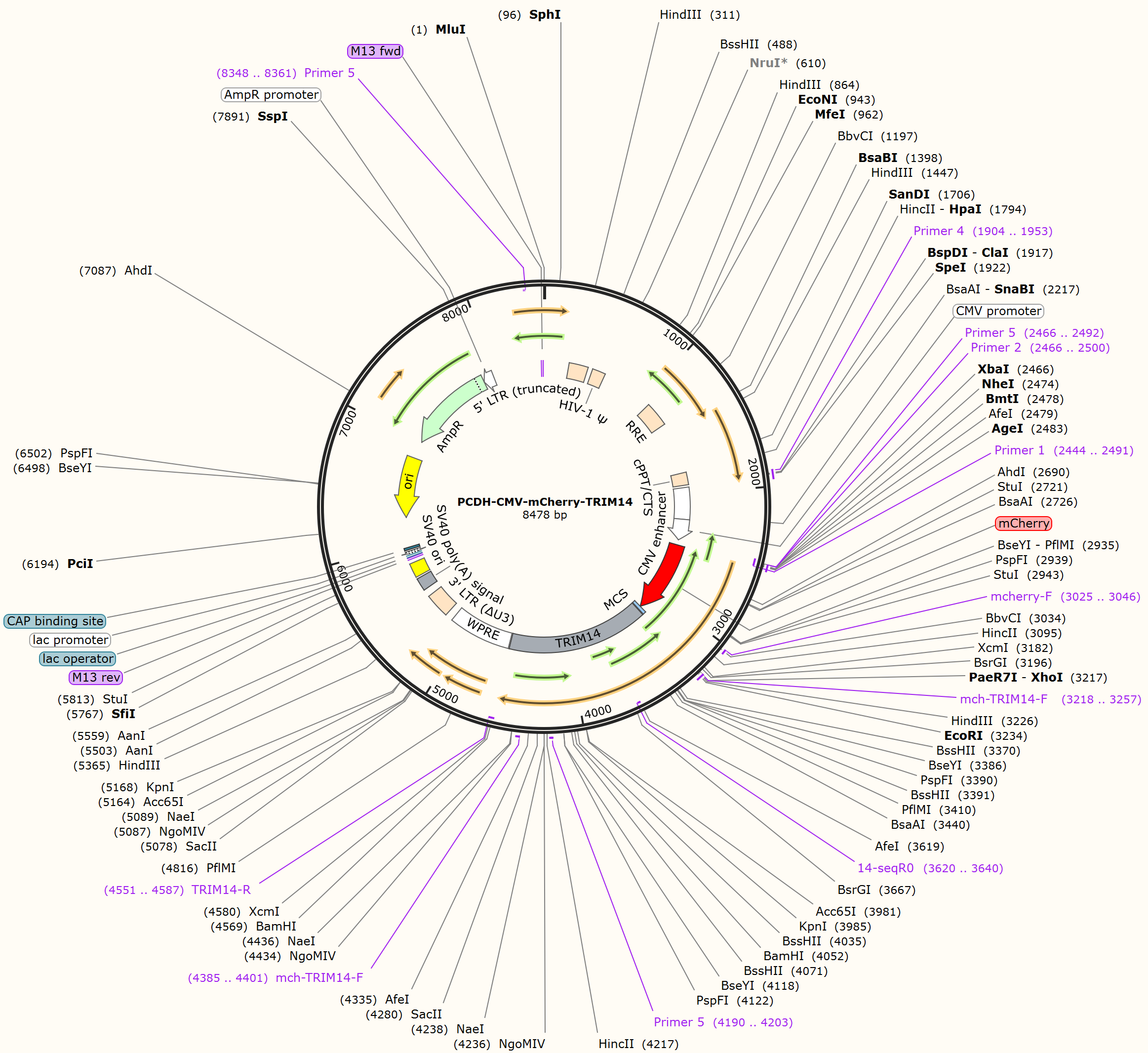

PCDH-CMV-mCherry-TRIM14

LOCUS       PCDH-CMV-mCherry-TRIM14               8478 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8478)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8478
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3257
                     /label=mch-TRIM14-F
     misc_feature    3240..4565
                     /label=TRIM14
     primer_bind     complement(3620..3640)
                     /label=14-seqR0
     primer_bind     4190..4203
                     /label=Primer 5
     primer_bind     4385..4401
                     /label=mch-TRIM14-F
     primer_bind     complement(4551..4587)
                     /label=TRIM14-R
     misc_feature    4575..5162
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5046..5057)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5235..5468
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5540..5661
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5680..5815
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5853..5869)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5877..5893
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5901..5931)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5946..5967
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6255..6843)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7014..7874)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7875..7979)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8348..8361)
                     /label=Primer 5
     primer_bind     8453..8469
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcgggcgc ggcgaccggg agccggaccc ctgggaggtc ggagcttgtc gagggatgcg
     3301 gctggcgctg cccggagcat ggcgaccgcg tggctgagct cttctgtcgc cgctgccgcc
     3361 gctgcgtgtg cgcgctttgc ccggtgctgg gcgcgcaccg tggccaccct gtgggcctgg
     3421 cgctggaggc agcggtgcac gtgcagaaac tcagccaaga atgtttaaag cagctggcaa
     3481 tcaagaagca gcagcacatt gacaacataa cccagataga agatgccacc gagaagctca
     3541 aggctaatgc agagtcaagt aaaacctggc tgaaggggaa attcactgaa ctcagattac
     3601 tacttgacga agaggaagcg ctggccaaga aattcattga taaaaacacg cagcttaccc
     3661 tccaggtgta cagggaacaa gctgactctt gcagagagca acttgacatc atgaatgatc
     3721 tctccaacag ggtctggagt atcagccagg agcccgatcc tgtccagagg cttcaggcat
     3781 acacggccac cgagcaggag atgcagcagc agatgagcct cggggagctg tgccatcccg
     3841 tgcccctctc ctttgagccc gtcaagagct tctttaaggg cctcgtggaa gccgtggaga
     3901 gtacattaca gacgccattg gacattcgcc ttaaggaaag cataaactgc cagctctcag
     3961 acccttccag caccaagcca ggtaccttgt tgaaaaccag cccctcacca gagcgatcgc
     4021 tattgctgaa atacgcgcgc acgcccacgc tggatcctga cacgatgcac gcgcgcctgc
     4081 gcctgtccgc cgatcgcctg acggtgcgct gcggcctgct gggcagcctg gggcccgtgc
     4141 ccgtgctgcg gttcgacgcg ctctggcaag tgctggctcg tgactgcttc gccaccggcc
     4201 gccactactg ggaggttgac gtgcaggagg cgggcgccgg ctggtgggtg ggcgcggcct
     4261 acgcctccct tcggcgccgc ggggcctcgg ccgccgcccg cctgggctgc aaccgccagt
     4321 cctggtgcct caagcgctac gaccttgagt actgggcctt ccacgacggc cagcgcagcc
     4381 gcctgcggcc ccgcgacgac ctcgaccggc tcggcgtctt cctggactac gaggccggcg
     4441 tcctcgcctt ctacgacgtg acgggcggca tgagccacct gcataccttc cgcgccacgt
     4501 tccaggagcc gctctacccg gccctgcggc tctgggaggg ggccatcagc atcccccggc
     4561 tgccctaggg atccaatcaa cctctggatt acaaaatttg tgaaagattg actggtattc
     4621 ttaactatgt tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg
     4681 ctattgcttc ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc
     4741 tttatgagga gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg
     4801 acgcaacccc cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg
     4861 ctttccccct ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga
     4921 caggggctcg gctgttgggc actgacaatt ccgtggtgtt gtcggggaag ctgacgtcct
     4981 ttccatggct gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg
     5041 tcccttcggc cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc
     5101 ctcttccgcg tctccgcctt cgccctcaga cgagtcggat ctccctttgg ccgcctcccc
     5161 gccggtacct ttaagaccaa tgacttacaa ggcagctgta gatcttagcc actttttaaa
     5221 agaaaagggg ggactggaag ggctaattca ctcccaacga aaataagatc tgctttttgc
     5281 ttgtactggg tctctctggt tagaccagat ctgagcctgg gagctctctg gctaactagg
     5341 gaacccactg cttaagcctc aataaagctt gccttgagtg cttcaagtag tgtgtgcccg
     5401 tctgttgtgt gactctggta actagagatc cctcagaccc ttttagtcag tgtggaaaat
     5461 ctctagcagt agtagttcat gtcatcttat tattcagtat ttataacttg caaagaaatg
     5521 aatatcagag agtgagagga acttgtttat tgcagcttat aatggttaca aataaagcaa
     5581 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     5641 caaactcatc aatgtatctt atcatgtctg gctctagcta tcccgcccct aactccgccc
     5701 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     5761 gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctagac
     5821 ttttgcagag acggcccaaa ttcgtaatca tggtcatagc tgtttcctgt gtgaaattgt
     5881 tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt
     5941 gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg
     6001 ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg
     6061 cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg
     6121 cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat
     6181 aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc
     6241 gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc
     6301 tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga
     6361 agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt
     6421 ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg
     6481 taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc
     6541 gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg
     6601 gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc
     6661 ttgaagtggt ggcctaacta cggctacact agaaggacag tatttggtat ctgcgctctg
     6721 ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc
     6781 gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct
     6841 caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt
     6901 taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa
     6961 aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa
     7021 tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc
     7081 tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct
     7141 gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca
     7201 gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt
     7261 aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt
     7321 gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc
     7381 ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc
     7441 tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt
     7501 atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact
     7561 ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc
     7621 ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt
     7681 ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg
     7741 atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct
     7801 gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa
     7861 tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt
     7921 ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc
     7981 acatttcccc gaaaagtgcc acctgacgtc taagaaacca ttattatcat gacattaacc
     8041 tataaaaata ggcgtatcac gaggcccttt cgtctcgcgc gtttcggtga tgacggtgaa
     8101 aacctctgac acatgcagct cccggagacg gtcacagctt gtctgtaagc ggatgccggg
     8161 agcagacaag cccgtcaggg cgcgtcagcg ggtgttggcg ggtgtcgggg ctggcttaac
     8221 tatgcggcat cagagcagat tgtactgaga gtgcaccata tgcggtgtga aataccgcac
     8281 agatgcgtaa ggagaaaata ccgcatcagg cgccattcgc cattcaggct gcgcaactgt
     8341 tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa agggggatgt
     8401 gctgcaaggc gattaagttg ggtaacgcca gggttttccc agtcacgacg ttgtaaaacg
     8461 acggccagtg ccaagctg
//
