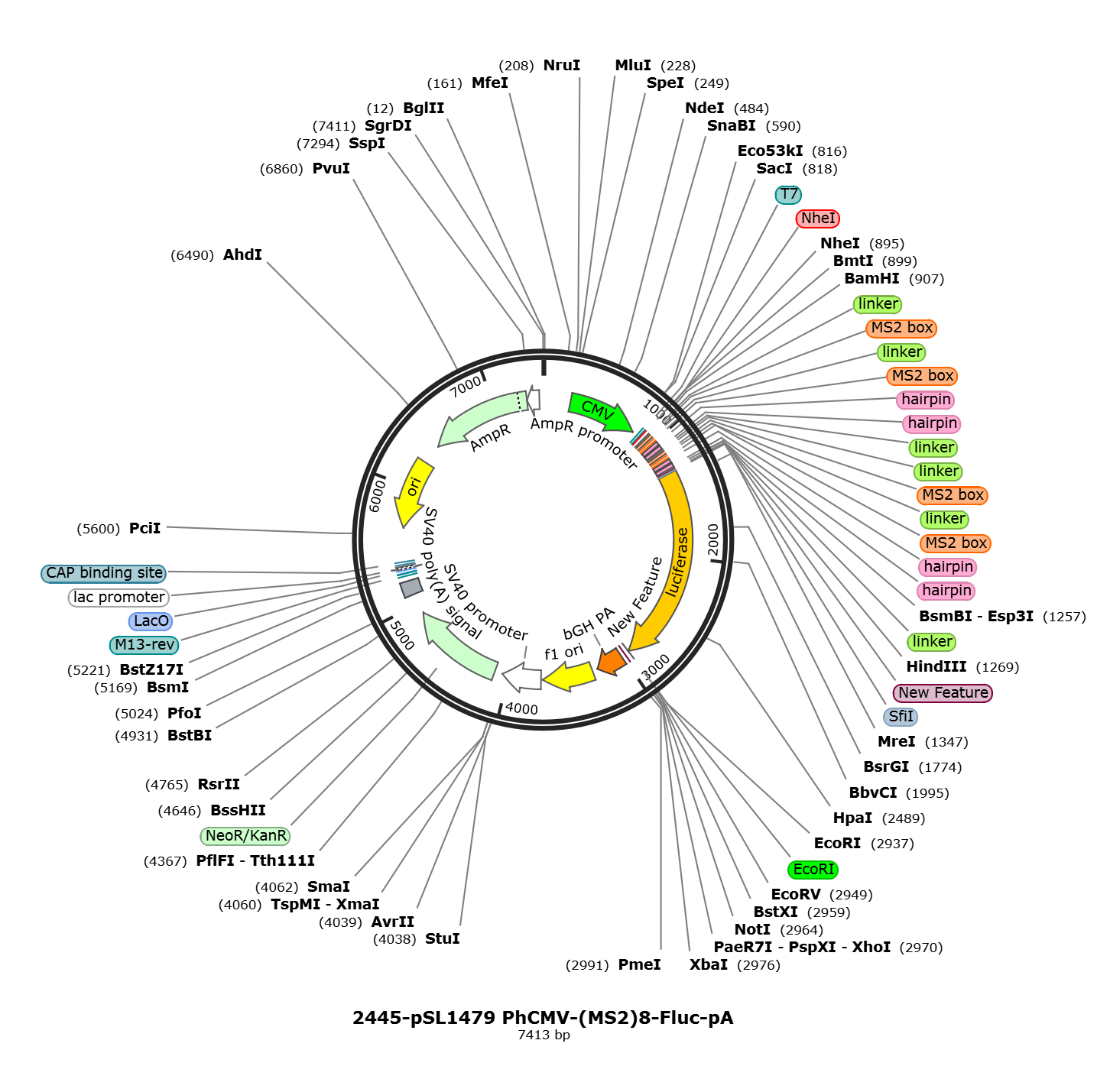

pSL1479

LOCUS      pSL1479                7413 bp DNA     circular SYN 06-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7413)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7413
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..883
                     /label=oSCL2289
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     880..942
                     /label=oSCL2270
     misc_feature    895
                     /label=NheI
     misc_feature    924..936
                     /label=linker
     misc_feature    942..960
                     /label=MS2 box
     misc_feature    966..975
                     /label=linker
     misc_feature    981..999
                     /label=MS2 box
     misc_feature    1005..1014
                     /label=linker
     misc_feature    1005..1014
                     /label=linker
     misc_feature    1013..1043
                     /label=hairpin
     misc_feature    1019..1037
                     /label=MS2 box
     misc_feature    1042..1054
                     /label=linker
     misc_feature    1053..1083
                     /label=hairpin
     misc_feature    1059..1077
                     /label=MS2 box
     primer_bind     complement(1076..1093)
                     /label=oSCL2271
     primer_bind     1085..1111
                     /label=oSCL2270
     misc_feature    1087..1088
                     /label=linker
     misc_feature    1093..1105
                     /label=linker
     misc_feature    1111..1129
                     /label=MS2 box
     misc_feature    1135..1144
                     /label=linker
     misc_feature    1150..1168
                     /label=MS2 box
     misc_feature    1174..1183
                     /label=linker
     misc_feature    1174..1183
                     /label=linker
     misc_feature    1182..1212
                     /label=hairpin
     misc_feature    1188..1206
                     /label=MS2 box
     misc_feature    1211..1223
                     /label=linker
     misc_feature    1222..1252
                     /label=hairpin
     misc_feature    1228..1246
                     /label=MS2 box
     primer_bind     complement(1245..1274)
                     /label=oSCL2271
     primer_bind     1255..1295
                     /label=oSCL2479
     misc_feature    1256..1261
                     /label=linker
     misc_feature    1270..1273
                     /label=New Feature
     misc_feature    1270..1273
                     /label=New Feature
     misc_feature    1273
                     /label=EGFP
                     /note="note=""Fragment extracted from OWS233-Kpn1-EGFP-Xba1
                     [758  nt] : (KpnI[4] / XbaI[766])"
     primer_bind     1278..1310
                     /label=oSCL2289
     primer_bind     1278..1295
                     /label=oYS28
     regulatory      1278..1287
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    1278..1280
                     /label=SfiI
     CDS             1284..2936
                     /codon_start=1
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="synthetic luc2 version of the luciferase gene"
                     /translation="MEDAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     misc_feature    1284..2933
                     /label=Luciferase
                     /label=nonstandard type:  reporter
     primer_bind     1904..1921
                     /label=Luc seq mid FP
     primer_bind     complement(2917..2956)
                     /label=oSCL2480
     misc_feature    2938..2942
                     /label=EcoRI
     misc_feature    2976..2981
                     /label=New Feature
     misc_feature    2976..2981
                     /label=New Feature
     primer_bind     complement(2977..2996)
                     /label=oSCL2271
     terminator      3010..3237
                     /label=bGH PA
     polyA_signal    3013..3237
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3283..3711
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3725..4054
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3905..4040
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    3905..3982
                     /label=SV40 ORI
     CDS             4121..4915
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             4124..4915
                     /label=Kan/neoR
     polyA_signal    5089..5210
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5255..5275)
                     /label=M13-rev
     primer_bind     complement(5259..5275)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(5281..5303)
                     /label=LacO
     protein_bind    5283..5299
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5307..5337)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(5308..5337)
                     /label=lac
     protein_bind    5352..5373
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5661..6246)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6417..7277)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(6420..7079)
                     /label=AmpR
     promoter        complement(7278..7382)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(7319..7347)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 accggtggat ccggtctcaa actgcaacaa acaaatcacc accgtgagga tcacccacgg
      961 tggtgaaagc cttagcctag ccgtgaggat cacccacggt aggcacaaga aattctaccc
     1021 gtgaggatca cccacgggta gaatcacaaa gactacagcc gtgaggatca cccacggctg
     1081 tagactcaaa ctgcaacaaa caaatcacca ccgtgaggat cacccacggt ggtgaaagcc
     1141 ttagcctagc cgtgaggatc acccacggta ggcacaagaa attctacccg tgaggatcac
     1201 ccacgggtag aatcacaaag actacagccg tgaggatcac ccacggctgt agactcaaac
     1261 tggagacgaa gcttagcgcc accatggaag atgccaaaaa cattaagaag ggcccagcgc
     1321 cattctaccc actcgaagac gggaccgccg gcgagcagct gcacaaagcc atgaagcgct
     1381 acgccctggt gcccggcacc atcgccttta ccgacgcaca tatcgaggtg gacattacct
     1441 acgccgagta cttcgagatg agcgttcggc tggcagaagc tatgaagcgc tatgggctga
     1501 atacaaacca tcggatcgtg gtgtgcagcg agaatagctt gcagttcttc atgcccgtgt
     1561 tgggtgccct gttcatcggt gtggctgtgg ccccagctaa cgacatctac aacgagcgcg
     1621 agctgctgaa cagcatgggc atcagccagc ccaccgtcgt attcgtgagc aagaaagggc
     1681 tgcaaaagat cctcaacgtg caaaagaagc taccgatcat acaaaagatc atcatcatgg
     1741 atagcaagac cgactaccag ggcttccaaa gcatgtacac cttcgtgact tcccatttgc
     1801 cacccggctt caacgagtac gacttcgtgc ccgagagctt cgaccgggac aaaaccatcg
     1861 ccctgatcat gaacagtagt ggcagtaccg gattgcccaa gggcgtagcc ctaccgcacc
     1921 gcaccgcttg tgtccgattc agtcatgccc gcgaccccat cttcggcaac cagatcatcc
     1981 ccgacaccgc tatcctcagc gtggtgccat ttcaccacgg cttcggcatg ttcaccacgc
     2041 tgggctactt gatctgcggc tttcgggtcg tgctcatgta ccgcttcgag gaggagctat
     2101 tcttgcgcag cttgcaagac tataagattc aatctgccct gctggtgccc acactattta
     2161 gcttcttcgc taagagcact ctcatcgaca agtacgacct aagcaacttg cacgagatcg
     2221 ccagcggcgg ggcgccgctc agcaaggagg taggtgaggc cgtggccaaa cgcttccacc
     2281 taccaggcat ccgccagggc tacggcctga cagaaacaac cagcgccatt ctgatcaccc
     2341 ccgaagggga cgacaagcct ggcgcagtag gcaaggtggt gcccttcttc gaggctaagg
     2401 tggtggactt ggacaccggt aagacactgg gtgtgaacca gcgcggcgag ctgtgcgtcc
     2461 gtggccccat gatcatgagc ggctacgtta acaaccccga ggctacaaac gctctcatcg
     2521 acaaggacgg ctggctgcac agcggcgaca tcgcctactg ggacgaggac gagcacttct
     2581 tcatcgtgga ccggctgaag agcctgatca aatacaaggg ctaccaggta gccccagccg
     2641 aactggagag catcctgctg caacacccca acatcttcga cgccggggtc gccggcctgc
     2701 ccgacgacga tgccggcgag ctgcccgccg cagtcgtcgt gctggaacac ggtaaaacca
     2761 tgaccgagaa ggagatcgtg gactatgtgg ccagccaggt tacaaccgcc aagaagctgc
     2821 gcggtggtgt tgtgttcgtg gacgaggtgc ctaaaggact gaccggcaag ttggacgccc
     2881 gcaagatccg cgagattctc attaaggcca agaagggcgg caagatcgcc gtgtaagaat
     2941 tctgcagata tccagcacag tggcggccgc tcgagtctag agggcccgtt taaacccgct
     3001 gatcagcctc gactgtgcct tctagttgcc agccatctgt tgtttgcccc tcccccgtgc
     3061 cttccttgac cctggaaggt gccactccca ctgtcctttc ctaataaaat gaggaaattg
     3121 catcgcattg tctgagtagg tgtcattcta ttctgggggg tggggtgggg caggacagca
     3181 agggggagga ttgggaagac aatagcaggc atgctgggga tgcggtgggc tctatggctt
     3241 ctgaggcgga aagaaccagc tggggctcta gggggtatcc ccacgcgccc tgtagcggcg
     3301 cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt gccagcgccc
     3361 tagcgcccgc tcctttcgct ttcttccctt cctttctcgc cacgttcgcc ggctttcccc
     3421 gtcaagctct aaatcggggg ctccctttag ggttccgatt tagtgcttta cggcacctcg
     3481 accccaaaaa acttgattag ggtgatggtt cacgtagtgg gccatcgccc tgatagacgg
     3541 tttttcgccc tttgacgttg gagtccacgt tctttaatag tggactcttg ttccaaactg
     3601 gaacaacact caaccctatc tcggtctatt cttttgattt ataagggatt ttgccgattt
     3661 cggcctattg gttaaaaaat gagctgattt aacaaaaatt taacgcgaat taattctgtg
     3721 gaatgtgtgt cagttagggt gtggaaagtc cccaggctcc ccagcaggca gaagtatgca
     3781 aagcatgcat ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg
     3841 cagaagtatg caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc
     3901 gcccatcccg cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat
     3961 tttttttatt tatgcagagg ccgaggccgc ctctgcctct gagctattcc agaagtagtg
     4021 aggaggcttt tttggaggcc taggcttttg caaaaagctc ccgggagctt gtatatccat
     4081 tttcggatct gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt
     4141 gcacgcaggt tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca
     4201 gacaatcggc tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct
     4261 ttttgtcaag accgacctgt ccggtgccct gaatgaactg caggacgagg cagcgcggct
     4321 atcgtggctg gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc
     4381 gggaagggac tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct
     4441 tgctcctgcc gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga
     4501 tccggctacc tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg
     4561 gatggaagcc ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc
     4621 agccgaactg ttcgccaggc tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac
     4681 ccatggcgat gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat
     4741 cgactgtggc cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga
     4801 tattgctgaa gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc
     4861 cgctcccgat tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg
     4921 actctggggt tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat
     4981 tccaccgccg ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg
     5041 atgatcctcc agcgcgggga tctcatgctg gagttcttcg cccaccccaa cttgtttatt
     5101 gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt
     5161 ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgt
     5221 ataccgtcga cctctagcta gagcttggcg taatcatggt catagctgtt tcctgtgtga
     5281 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
     5341 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
     5401 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
     5461 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     5521 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     5581 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     5641 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     5701 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     5761 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     5821 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
     5881 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     5941 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     6001 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     6061 gagttcttga agtggtggcc taactacggc tacactagaa gaacagtatt tggtatctgc
     6121 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     6181 accaccgctg gtagcggttt ttttgtttgc aagcagcaga ttacgcgcag aaaaaaagga
     6241 tctcaagaag atcctttgat cttttctacg gggtctgacg ctcagtggaa cgaaaactca
     6301 cgttaaggga ttttggtcat gagattatca aaaaggatct tcacctagat ccttttaaat
     6361 taaaaatgaa gttttaaatc aatctaaagt atatatgagt aaacttggtc tgacagttac
     6421 caatgcttaa tcagtgaggc acctatctca gcgatctgtc tatttcgttc atccatagtt
     6481 gcctgactcc ccgtcgtgta gataactacg atacgggagg gcttaccatc tggccccagt
     6541 gctgcaatga taccgcgaga cccacgctca ccggctccag atttatcagc aataaaccag
     6601 ccagccggaa gggccgagcg cagaagtggt cctgcaactt tatccgcctc catccagtct
     6661 attaattgtt gccgggaagc tagagtaagt agttcgccag ttaatagttt gcgcaacgtt
     6721 gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc ttcattcagc
     6781 tccggttccc aacgatcaag gcgagttaca tgatccccca tgttgtgcaa aaaagcggtt
     6841 agctccttcg gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt atcactcatg
     6901 gttatggcag cactgcataa ttctcttact gtcatgccat ccgtaagatg cttttctgtg
     6961 actggtgagt actcaaccaa gtcattctga gaatagtgta tgcggcgacc gagttgctct
     7021 tgcccggcgt caatacggga taataccgcg ccacatagca gaactttaaa agtgctcatc
     7081 attggaaaac gttcttcggg gcgaaaactc tcaaggatct taccgctgtt gagatccagt
     7141 tcgatgtaac ccactcgtgc acccaactga tcttcagcat cttttacttt caccagcgtt
     7201 tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa agggaataag ggcgacacgg
     7261 aaatgttgaa tactcatact cttccttttt caatattatt gaagcattta tcagggttat
     7321 tgtctcatga gcggatacat atttgaatgt atttagaaaa ataaacaaat aggggttccg
     7381 cgcacatttc cccgaaaagt gccacctgac gtc
//
