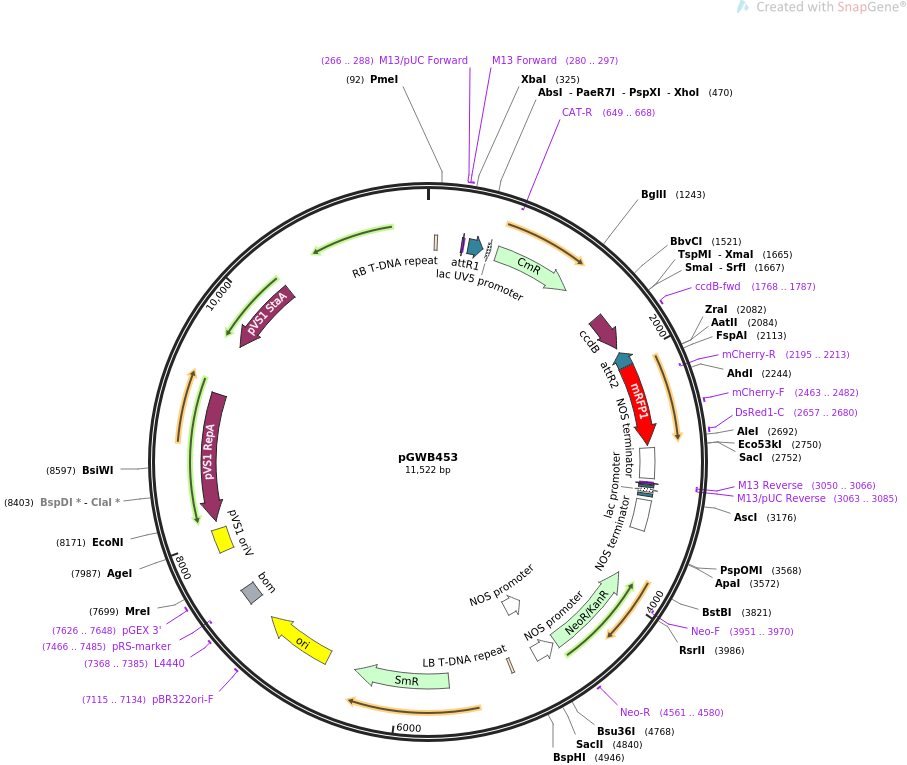

pGWB453

LOCUS       pGWB453               11522 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Gateway cloning compatible binary vector for C-terminal fusion with
            mRFP (no promoter)..
ACCESSION   .
VERSION     .
KEYWORDS    pGWB453
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 11522)
  AUTHORS   Nakagawa T, Suzuki T, Murata S, Nakamura S, Hino T, Maeo K, Tabata
            R, Kawai T, Tanaka K, Niwa Y, Watanabe Y, Nakamura K, Kimura T,
            Ishiguro S
  TITLE     Improved Gateway binary vectors: high-performance vectors for
            creation of fusion constructs in transgenic analysis of plants.
  JOURNAL   Biosci Biotechnol Biochem. 2007 Aug;71(8):2095-100. Epub 2007 Aug 7.
  PUBMED    17690442
REFERENCE   2  (bases 1 to 11522)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..11522
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    54..78
                     /label=RB T-DNA repeat
                     /note="right border repeat from nopaline C58 T-DNA"
     primer_bind     266..288
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     280..297
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     281..297
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    338..462
                     /gene="mutant version of attR"
                     /label=attR1
                     /bound_moiety="LR Clonase(TM)"
                     /note="recombination site for the Gateway(R) LR reaction"
     promoter        499..529
                     /label=lac UV5 promoter
                     /note="E. coli lac promoter with an ""up"" mutation"
     CDS             583..1242
                     /codon_start=1
                     /gene="cat"
                     /product="chloramphenicol acetyltransferase"
                     /label=CmR
                     /note="confers resistance to chloramphenicol"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAFL
                     KTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETFSS
                     LWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNVANM
                     DNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGGA"
     primer_bind     complement(649..668)
                     /label=CAT-R
                     /note="Chloramphenicol resistance gene, reverse primer"
     CDS             1584..1889
                     /codon_start=1
                     /gene="ccdB"
                     /product="CcdB, a bacterial toxin that poisons DNA gyrase"
                     /label=ccdB
                     /note="Plasmids containing the ccdB gene cannot be
                     propagated in standard E. coli strains."
                     /translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK
                     VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
     primer_bind     1768..1787
                     /label=ccdB-fwd
                     /note="ccdB gene, forward primer"
     protein_bind    complement(1930..2054)
                     /gene="mutant version of attR"
                     /label=attR2
                     /bound_moiety="LR Clonase(TM)"
                     /note="recombination site for the Gateway(R) LR reaction"
     CDS             2065..2742
                     /codon_start=1
                     /product="monomeric derivative of DsRed (Campbell et al.,
                     2002)"
                     /label=mRFP1
                     /note="mammalian codon-optimized"
                     /translation="MASSEDVIKEFMRFKVRMEGSVNGHEFEIEGEGEGRPYEGTQTAK
                     LKVTKGGPLPFAWDILSPQFQYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFEDGGV
                     VTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASTERMYPEDGALKGEIKM
                     RLKLKDGGHYDAEVKTTYMAKKPVQLPGAYKTDIKLDITSHNEDYTIVEQYERAEGRHS
                     TGA"
     primer_bind     complement(2195..2213)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2463..2482
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     2657..2680
                     /label=DsRed1-C
                     /note="DsRed1, forward primer"
     terminator      2764..3016
                     /label=NOS terminator
                     /note="nopaline synthase terminator and poly(A) signal"
     primer_bind     complement(3050..3066)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3050..3066)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3063..3085)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3074..3090
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3098..3128)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3143..3164
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     terminator      3198..3450
                     /label=NOS terminator
                     /note="nopaline synthase terminator and poly(A) signal"
     CDS             complement(3840..4634)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGDDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3951..3970)
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     4561..4580
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     promoter        complement(4655..4838)
                     /function="NOS promoter"
                     /label=NOS promoter
                     /note="nopaline synthase promoter"
     promoter        complement(4691..4870)
                     /label=NOS promoter
                     /note="nopaline synthase promoter"
     misc_feature    5044..5068
                     /label=LB T-DNA repeat
                     /note="left border repeat from nopaline C58 T-DNA"
     CDS             5589..6380
                     /codon_start=1
                     /gene="aadA"
                     /product="aminoglycoside adenylyltransferase (Murphy,
                     1985)"
                     /label=SmR
                     /note="confers resistance to spectinomycin and
                     streptomycin"
                     /translation="MGEAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH
                     SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK
                     RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF
                     EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP
                     VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK"
     rep_origin      6626..7214
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     7115..7134
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     7368..7385
                     /label=L4440
                     /note="L4440 vector, forward primer"
     misc_feature    7400..7540
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     complement(7466..7485)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     7626..7648
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     rep_origin      7884..8078
                     /label=pVS1 oriV
                     /note="origin of replication for the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
     CDS             complement(8144..9217)
                     /codon_start=1
                     /product="replication protein from the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
                     /label=pVS1 RepA
                     /translation="MSGRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESW
                     QAAADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLS
                     KRDRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKP
                     GRVFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGE
                     ALISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYR
                     LARRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPI
                     LVMRYRNLIEGEASAGS"
     CDS             complement(9646..10275)
                     /codon_start=1
                     /product="stability protein from the Pseudomonas plasmid
                     pVS1 (Heeb et al., 2000)"
                     /label=pVS1 StaA
                     /translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR
                     DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP
                     VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI
                     LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI"
ORIGIN
        1 tttcacgccc ttttaaatat ccgattattc taataaacgc tcttttctct taggtttacc
       61 cgccaatata tcctgtcaaa cactgatagt ttaaactgaa ggcgggaaac gacaatctga
      121 tccaagctca agctgctcta gcattcgcca ttcaggctgc gcaactgttg ggaagggcga
      181 tcggtgcggg cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga
      241 ttaagttggg taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc
      301 aagcttgcat gcctgcaggt cgactctaga gttatcaaca agtttgtaca aaaaagctga
      361 acgagaaacg taaaatgata taaatatcaa tatattaaat tagattttgc ataaaaaaca
      421 gactacataa tactgtaaaa cacaacatat ccagtcacta tggcggcccc tcgaggggcc
      481 gcattaggca ccccaggctt tacactttat gcttccggct cgtataatgt gtggattttg
      541 agttaggatc cggcgagatt ttcaggagct aaggaagcta aaatggagaa aaaaatcact
      601 ggatatacca ccgttgatat atcccaatgg catcgtaaag aacattttga ggcatttcag
      661 tcagttgctc aatgtaccta taaccagacc gttcagctgg atattacggc ctttttaaag
      721 accgtaaaga aaaataagca caagttttat ccggccttta ttcacattct tgcccgcctg
      781 atgaatgctc atccggaatt ccgtatggca atgaaagacg gtgagctggt gatatgggat
      841 agtgttcacc cttgttacac cgttttccat gagcaaactg aaacgttttc atcgctctgg
      901 agtgaatacc acgacgattt ccggcagttt ctacacatat attcgcaaga tgtggcgtgt
      961 tacggtgaaa acctggccta tttccctaaa gggtttattg agaatatgtt tttcgtctca
     1021 gccaatccct gggtgagttt caccagtttt gatttaaacg tggccaatat ggacaacttc
     1081 ttcgcccccg ttttcaccat gggcaaatat tatacgcaag gcgacaaggt gctgatgccg
     1141 ctggcgattc aggttcatca tgccgtctgt gatggcttcc atgtcggcag aatgcttaat
     1201 gaattacaac agtactgcga tgagtggcag ggcggggcgt aaagatctgg atccggctta
     1261 ctaaaagcca gataacagta tgcgtatttg cgcgctgatt tttgcggtat aagaatatat
     1321 actgatatgt atacccgaag tatgtcaaaa agaggtgtgc tatgaagcag cgtattacag
     1381 tgacagttga cagcgacagc tatcagttgc tcaaggcata tatgatgtca atatctccgg
     1441 tctggtaagc acaaccatgc agaatgaagc ccgtcgtctg cgtgccgaac gctggaaagc
     1501 ggaaaatcag gaagggatgg ctgaggtcgc ccggtttatt gaaatgaacg gctcttttgc
     1561 tgacgagaac agggactggt gaaatgcagt ttaaggttta cacctataaa agagagagcc
     1621 gttatcgtct gtttgtggat gtacagagtg atattattga cacgcccggg cgacggatgg
     1681 tgatccccct ggccagtgca cgtctgctgt cagataaagt ctcccgtgaa ctttacccgg
     1741 tggtgcatat cggggatgaa agctggcgca tgatgaccac cgatatggcc agtgtgccgg
     1801 tctccgttat cggggaagaa gtggctgatc tcagccaccg cgaaaatgac atcaaaaacg
     1861 ccattaacct gatgttctgg ggaatataaa tgtcaggctc ccttatacac agccagtctg
     1921 caggtcgacc atagtgactg gatatgttgt gttttacagt attatgtagt ctgtttttta
     1981 tgcaaaatct aatttaatat attgatattt atatcatttt acgtttctcg ttcagctttc
     2041 ttgtacaaag tggttgataa cagcatggcc tcctccgagg acgtcatcaa ggagttcatg
     2101 cgcttcaagg tgcgcatgga gggctccgtg aacggccacg agttcgagat cgagggcgag
     2161 ggcgagggcc gcccctacga gggcacccag accgccaagc tgaaggtgac caagggcggc
     2221 cccctgccct tcgcctggga catcctgtcc cctcagttcc agtacggctc caaggcctac
     2281 gtgaagcacc ccgccgacat ccccgactac ttgaagctgt ccttccccga gggcttcaag
     2341 tgggagcgcg tgatgaactt cgaggacggc ggcgtggtga ccgtgaccca ggactcctcc
     2401 ctgcaggacg gcgagttcat ctacaaggtg aagctgcgcg gcaccaactt cccctccgac
     2461 ggccccgtaa tgcagaagaa gaccatgggc tgggaggcct ccaccgagcg gatgtacccc
     2521 gaggacggcg ccctgaaggg cgagatcaag atgaggctga agctgaagga cggcggccac
     2581 tacgacgccg aggtcaagac cacctacatg gccaagaagc ccgtgcagct gcccggcgcc
     2641 tacaagaccg acatcaagct ggacatcacc tcccacaacg aggactacac catcgtggaa
     2701 cagtacgagc gcgccgaggg ccgccactcc accggcgcct aagcttagag ctcgaatttc
     2761 cccgatcgtt caaacatttg gcaataaagt ttcttaagat tgaatcctgt tgccggtctt
     2821 gcgatgatta tcatataatt tctgttgaat tacgttaagc atgtaataat taacatgtaa
     2881 tgcatgacgt tatttatgag atgggttttt atgattagag tcccgcaatt atacatttaa
     2941 tacgcgatag aaaacaaaat atagcgcgca aactaggata aattatcgcg cgcggtgtca
     3001 tctatgttac tagatcggga attggttccg gaaccaattc gtaatcatgg tcatagctgt
     3061 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa
     3121 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaggctga attaggcgcg
     3181 cctatttctg aattcccgat ctagtaacat agatgacacc gcgcgcgata atttatccta
     3241 gtttgcgcgc tatattttgt tttctatcgc gtattaaatg tataattgcg ggactctaat
     3301 cataaaaacc catctcataa ataacgtcat gcattacatg ttaattatta catgcttaac
     3361 gtaattcaac agaaattata tgataatcat cgcaagaccg gcaacaggat tcaatcttaa
     3421 gaaactttat tgccaaatgt ttgaacgatc ggggatcatc cgggtctgtg gcgggaactc
     3481 cacgaaaata tccgaacgca gcaagatatc gcggtgcatc tcggtcttgc ctgggcagtc
     3541 gccgccgacg ccgttgatgt ggacgccggg cccgatcata ttgtcgctca ggatcgtggc
     3601 gttgtgcttg tcggccgttg ctgtcgtaat gatatcggca ccttcgaccg cctgttccgc
     3661 agagatcccg tgggcgaaga actccagcat gagatccccg cgctggagga tcatccagcc
     3721 ggcgtcccgg aaaacgattc cgaagcccaa cctttcatag aaggcggcgg tggaatcgaa
     3781 atctcgtgat ggcaggttgg gcgtcgcttg gtcggtcatt tcgaacccca gagtcccgct
     3841 cagaagaact cgtcaagaag gcgatagaag gcgatgcgct gcgaatcggg agcggcgata
     3901 ccgtaaagca cgaggaagcg gtcagcccat tcgccgccaa gctcttcagc aatatcacgg
     3961 gtagccaacg ctatgtcctg atagcggtcc gccacaccca gccggccaca gtcgatgaat
     4021 ccagaaaagc ggccattttc caccatgata ttcggcaagc aggcatcgcc atgggtcacg
     4081 acgagatcat cgccgtcggg catgcgcgcc ttgagcctgg cgaacagttc ggctggcgcg
     4141 agcccctgat gctcttcgtc cagatcatcc tgatcgacaa gaccggcttc catccgagta
     4201 cgtgctcgct cgatgcgatg tttcgcttgg tggtcgaatg ggcaggtagc cggatcaagc
     4261 gtatgcagcc gccgcattgc atcagccatg atggatactt tctcggcagg agcaaggtga
     4321 gatgacagga gatcctgccc cggcacttcg cccaatagca gccagtccct tcccgcttca
     4381 gtgacaacgt cgagcacagc tgcgcaagga acgcccgtcg tggccagcca cgatagccgc
     4441 gctgcctcgt cctgcagttc attcagggca ccggacaggt cggtcttgac aaaaagaacc
     4501 gggcgcccct gcgctgacag ccggaacacg gcggcatcag agcagccgat tgtctgttgt
     4561 gcccagtcat agccgaatag cctctccacc caagcggccg gagaacctgc gtgcaatcca
     4621 tcttgttcaa tcatgcgaaa cgatccagat ccggtgcaga ttatttggat tgagagtgaa
     4681 tatgagactc taattggata ccgaggggaa tttatggaac gtcagtggag catttttgac
     4741 aagaaatatt tgctagctga tagtgacctt aggcgacttt tgaacgcgca ataatggttt
     4801 ctgacgtatg tgcttagctc attaaactcc agaaacccgc ggctgagtgg ctccttcaac
     4861 gttgcggttc tgtcagttcc aaacgtaaaa cggcttgtcc cgcgtcatcg gcgggggtca
     4921 taacgtgact cccttaattc tccgctcatg atgaattcag aaataaattc agcctaattc
     4981 ggcgttaatt cagtacatta aaaacgtccg caatgtgtta ttaagttgtc taagcgtcaa
     5041 tttgtttaca ccacaatata tcctgccacc agccagccaa cagctccccg accggcagct
     5101 cggcacaaaa tcaccactcg atacaggcag cccatcagtc cgggacggcg tcagcgggag
     5161 agccgttgta aggcggcaga ctttgctcat gttaccgatg ctattcggaa gaacggcaac
     5221 taagctgccg ggtttgaaac acggatgatc tcgcggaggg tagcatgttg attgtaacga
     5281 tgacagagcg ttgctgcctg tgatcaattc gggcacgaac ccagtggaca taagcctgtt
     5341 cggttcgtaa gctgtaatgc aagtagcgta tgcgctcacg caactggtcc agaaccttga
     5401 ccgaacgcag cggtggtaac ggcgcagtgg cggttttcat ggcttgttat gactgttttt
     5461 ttggggtaca gtctatgcct cgggcatcca agcagcaagc gcgttacgcc gtgggtcgat
     5521 gtttgatgtt atggagcagc aacgatgtta cgcagcaggg cagtcgccct aaaacaaagt
     5581 taaacatcat gggggaagcg gtgatcgccg aagtatcgac tcaactatca gaggtagttg
     5641 gcgtcatcga gcgccatctc gaaccgacgt tgctggccgt acatttgtac ggctccgcag
     5701 tggatggcgg cctgaagcca cacagtgata ttgatttgct ggttacggtg accgtaaggc
     5761 ttgatgaaac aacgcggcga gctttgatca acgacctttt ggaaacttcg gcttcccctg
     5821 gagagagcga gattctccgc gctgtagaag tcaccattgt tgtgcacgac gacatcattc
     5881 cgtggcgtta tccagctaag cgcgaactgc aatttggaga atggcagcgc aatgacattc
     5941 ttgcaggtat cttcgagcca gccacgatcg acattgatct ggctatcttg ctgacaaaag
     6001 caagagaaca tagcgttgcc ttggtaggtc cagcggcgga ggaactcttt gatccggttc
     6061 ctgaacagga tctatttgag gcgctaaatg aaaccttaac gctatggaac tcgccgcccg
     6121 actgggctgg cgatgagcga aatgtagtgc ttacgttgtc ccgcatttgg tacagcgcag
     6181 taaccggcaa aatcgcgccg aaggatgtcg ctgccgactg ggcaatggag cgcctgccgg
     6241 cccagtatca gcccgtcata cttgaagcta gacaggctta tcttggacaa gaagaagatc
     6301 gcttggcctc gcgcgcagat cagttggaag aatttgtcca ctacgtgaaa ggcgagatca
     6361 ccaaggtagt cggcaaataa tgtctagcta gaaattcgtt caagccgacg ccgcttcgcg
     6421 gcgcggctta actcaagcgt tagatgcact aagcacataa ttgctcacag ccaaactatc
     6481 aggtcaagtc tgcttttatt atttttaagc gtgcataata agccctacac aaattgggag
     6541 atatatcatg catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc
     6601 ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct
     6661 tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa
     6721 ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact gtccttctag
     6781 tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc
     6841 tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg
     6901 actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca
     6961 cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat
     7021 gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg
     7081 tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc
     7141 ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc
     7201 ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc ttttgctggc
     7261 cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg
     7321 cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc gagtcagtga
     7381 gcgaggaagc ggaagagcgc ctgatgcggt attttctcct tacgcatctg tgcggtattt
     7441 cacaccgcat atggtgcact ctcagtacaa tctgctctga tgccgcatag ttaagccagt
     7501 atacactccg ctatcgctac gtgactgggt catggctgcg ccccgacacc cgccaacacc
     7561 cgctgacgcg ccctgacggg cttgtctgct cccggcatcc gcttacagac aagctgtgac
     7621 cgtctccggg agctgcatgt gtcagaggtt ttcaccgtca tcaccgaaac gcgcgaggca
     7681 gggtgccttg atgtgggcgc cggcggtcga gtggcgacgg cgcggcttgt ccgcgccctg
     7741 gtagattgcc tggccgtagg ccagccattt ttgagcggcc agcggccgcg ataggccgac
     7801 gcgaagcggc ggggcgtagg gagcgcagcg accgaagggt aggcgctttt tgcagctctt
     7861 cggctgtgcg ctggccagac agttatgcac aggccaggcg ggttttaaga gttttaataa
     7921 gttttaaaga gttttaggcg gaaaaatcgc cttttttctc ttttatatca gtcacttaca
     7981 tgtgtgaccg gttcccaatg tacggctttg ggttcccaat gtacgggttc cggttcccaa
     8041 tgtacggctt tgggttccca atgtacgtgc tatccacagg aaagagacct tttcgacctt
     8101 tttcccctgc tagggcaatt tgccctagca tctgctccgt acattaggaa ccggcggatg
     8161 cttcgccctc gatcaggttg cggtagcgca tgactaggat cgggccagcc tgccccgcct
     8221 cctccttcaa atcgtactcc ggcaggtcat ttgacccgat cagcttgcgc acggtgaaac
     8281 agaacttctt gaactctccg gcgctgccac tgcgttcgta gatcgtcttg aacaaccatc
     8341 tggcttctgc cttgcctgcg gcgcggcgtg ccaggcggta gagaaaacgg ccgatgccgg
     8401 gatcgatcaa aaagtaatcg gggtgaaccg tcagcacgtc cgggttcttg ccttctgtga
     8461 tctcgcggta catccaatca gctagctcga tctcgatgta ctccggccgc ccggtttcgc
     8521 tctttacgat cttgtagcgg ctaatcaagg cttcaccctc ggataccgtc accaggcggc
     8581 cgttcttggc cttcttcgta cgctgcatgg caacgtgcgt ggtgtttaac cgaatgcagg
     8641 tttctaccag gtcgtctttc tgctttccgc catcggctcg ccggcagaac ttgagtacgt
     8701 ccgcaacgtg tggacggaac acgcggccgg gcttgtctcc cttcccttcc cggtatcggt
     8761 tcatggattc ggttagatgg gaaaccgcca tcagtaccag gtcgtaatcc cacacactgg
     8821 ccatgccggc cggccctgcg gaaacctcta cgtgcccgtc tggaagctcg tagcggatca
     8881 cctcgccagc tcgtcggtca cgcttcgaca gacggaaaac ggccacgtcc atgatgctgc
     8941 gactatcgcg ggtgcccacg tcatagagca tcggaacgaa aaaatctggt tgctcgtcgc
     9001 ccttgggcgg cttcctaatc gacggcgcac cggctgccgg cggttgccgg gattctttgc
     9061 ggattcgatc agcggccgct tgccacgatt caccggggcg tgcttctgcc tcgatgcgtt
     9121 gccgctgggc ggcctgcgcg gccttcaact tctccaccag gtcatcaccc agcgccgcgc
     9181 cgatttgtac cgggccggat ggtttgcgac cgctcacgcc gattcctcgg gcttgggggt
     9241 tccagtgcca ttgcagggcc ggcagacaac ccagccgctt acgcctggcc aaccgcccgt
     9301 tcctccacac atggggcatt ccacggcgtc ggtgcctggt tgttcttgat tttccatgcc
     9361 gcctccttta gccgctaaaa ttcatctact catttattca tttgctcatt tactctggta
     9421 gctgcgcgat gtattcagat agcagctcgg taatggtctt gccttggcgt accgcgtaca
     9481 tcttcagctt ggtgtgatcc tccgccggca actgaaagtt gacccgcttc atggctggcg
     9541 tgtctgccag gctggccaac gttgcagcct tgctgctgcg tgcgctcgga cggccggcac
     9601 ttagcgtgtt tgtgcttttg ctcattttct ctttacctca ttaactcaaa tgagttttga
     9661 tttaatttca gcggccagcg cctggacctc gcgggcagcg tcgccctcgg gttctgattc
     9721 aagaacggtt gtgccggcgg cggcagtgcc tgggtagctc acgcgctgcg tgatacggga
     9781 ctcaagaatg ggcagctcgt acccggccag cgcctcggca acctcaccgc cgatgcgcgt
     9841 gcctttgatc gcccgcgaca cgacaaaggc cgcttgtagc cttccatccg tgacctcaat
     9901 gcgctgctta accagctcca ccaggtcggc ggtggcccat atgtcgtaag ggcttggctg
     9961 caccggaatc agcacgaagt cggctgcctt gatcgcggac acagccaagt ccgccgcctg
    10021 gggcgctccg tcgatcacta cgaagtcgcg ccggccgatg gccttcacgt cgcggtcaat
    10081 cgtcgggcgg tcgatgccga caacggttag cggttgatct tcccgcacgg ccgcccaatc
    10141 gcgggcactg ccctggggat cggaatcgac taacagaaca tcggccccgg cgagttgcag
    10201 ggcgcgggct agatgggttg cgatggtcgt cttgcctgac ccgcctttct ggttaagtac
    10261 agcgataacc ttcatgcgtt ccccttgcgt atttgtttat ttactcatcg catcatatac
    10321 gcagcgaccg catgacgcaa gctgttttac tcaaatacac atcacctttt tagacggcgg
    10381 cgctcggttt cttcagcggc caagctggcc ggccaggccg ccagcttggc atcagacaaa
    10441 ccggccagga tttcatgcag ccgcacggtt gagacgtgcg cgggcggctc gaacacgtac
    10501 ccggccgcga tcatctccgc ctcgatctct tcggtaatga aaaacggttc gtcctggccg
    10561 tcctggtgcg gtttcatgct tgttcctctt ggcgttcatt ctcggcggcc gccagggcgt
    10621 cggcctcggt caatgcgtcc tcacggaagg caccgcgccg cctggcctcg gtgggcgtca
    10681 cttcctcgct gcgctcaagt gcgcggtaca gggtcgagcg atgcacgcca agcagtgcag
    10741 ccgcctcttt cacggtgcgg ccttcctggt cgatcagctc gcgggcgtgc gcgatctgtg
    10801 ccggggtgag ggtagggcgg gggccaaact tcacgcctcg ggccttggcg gcctcgcgcc
    10861 cgctccgggt gcggtcgatg attagggaac gctcgaactc ggcaatgccg gcgaacacgg
    10921 tcaacaccat gcggccggcc ggcgtggtgg tgtcggccca cggctctgcc aggctacgca
    10981 ggcccgcgcc ggcctcctgg atgcgctcgg caatgtccag taggtcgcgg gtgctgcggg
    11041 ccaggcggtc tagcctggtc actgtcacaa cgtcgccagg gcgtaggtgg tcaagcatcc
    11101 tggccagctc cgggcggtcg cgcctggtgc cggtgatctt ctcggaaaac agcttggtgc
    11161 agccggccgc gtgcagttcg gcccgttggt tggtcaagtc ctggtcgtcg gtgctgacgc
    11221 gggcatagcc cagcaggcca gcggcggcgc tcttgttcat ggcgtaatgt ctccggttct
    11281 agtcgcaagt attctacttt atgcgactaa aacacgcgac aagaaaacgc caggaaaagg
    11341 gcagggcggc agcctgtcgc gtaacttagg acttgtgcga catgtcgttt tcagaagacg
    11401 gctgcactga acgtcagaag ccgactgcac tatagcagcg gaggggttgg atcaaagtac
    11461 tttgatcccg aggggaaccc tgtggttggc atgcacatac aaatggacga acggataaac
    11521 ct
//
