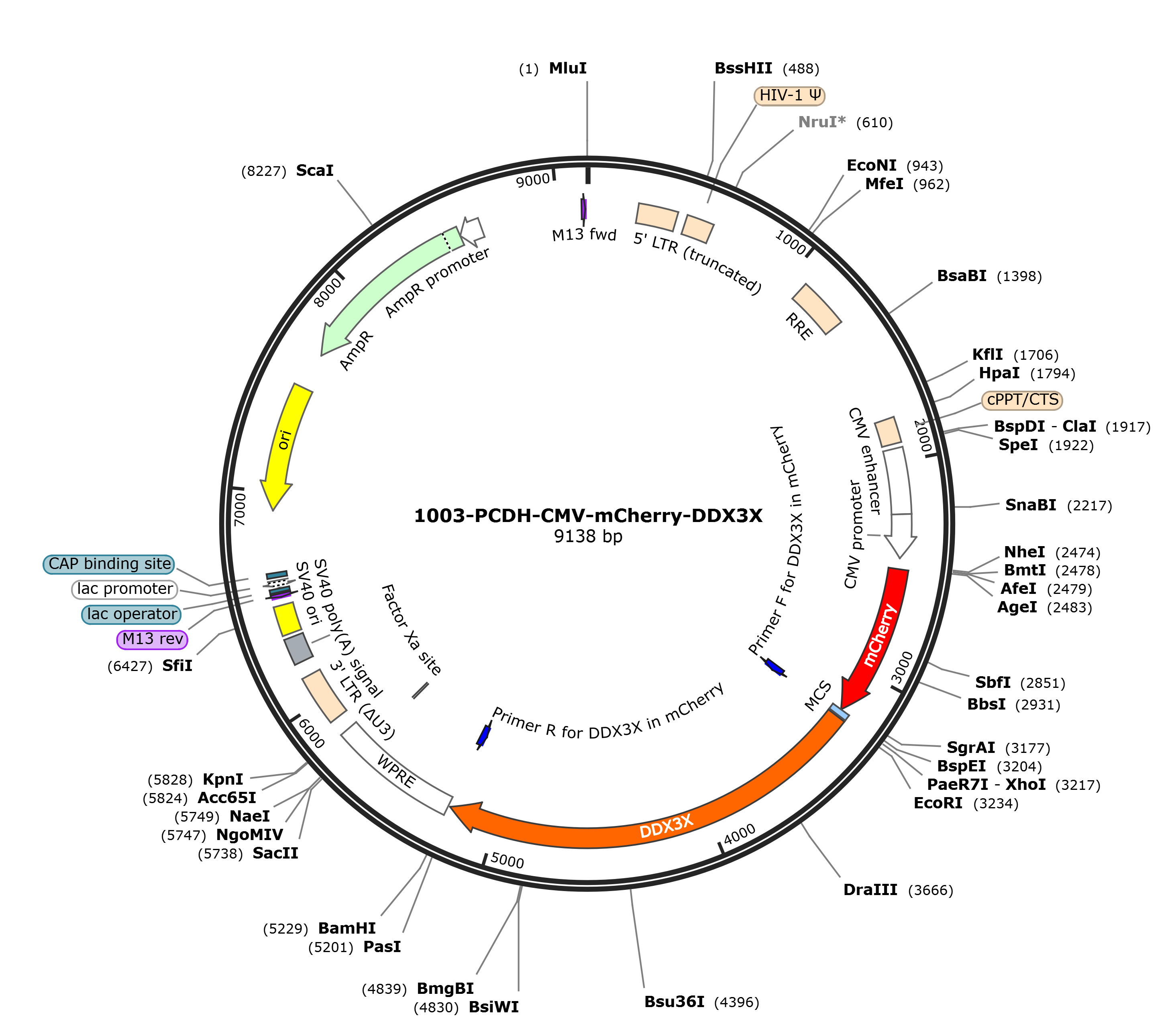

pCDH-CMV-mCherry-DDX3X

LOCUS       pCDH-CMV-mCherry-DDX3X                9138 bp DNA     circular SYN 14-FEB-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9138)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9138
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3219..3257
                     /label=Primer F for DDX3X in mCherry
     CDS             3240..5225
                     /codon_start=1
                     /label=DDX3X
                     /translation="MSHVAVENALGLDQQFAGLDLNSSDNQSGGSTASKGRYIPPHLRN
                     REATKGFYDKDSSGWSSSKDKDAYSSFGSRSDSRGKSSFFSDRGSGSRGRFDDRGRSDY
                     DGIGSRGDRSGFGKFERGGNSRWCDKSDEDDWSKPLPPSERLEQELFSGGNTGINFEKY
                     DDIPVEATGNNCPPHIESFSDVEMGEIIMGNIELTRYTRPTPVQKHAIPIIKEKRDLMA
                     CAQTGSGKTAAFLLPILSQIYSDGPGEALRAMKENGRYGRRKQYPISLVLAPTRELAVQ
                     IYEEARKFSYRSRVRPCVVYGGADIGQQIRDLERGCHLLVATPGRLVDMMERGKIGLDF
                     CKYLVLDEADRMLDMGFEPQIRRIVEQDTMPPKGVRHTMMFSATFPKEIQMLARDFLDE
                     YIFLAVGRVGSTSENITQKVVWVEESDKRSFLLDLLNATGKDSLTLVFVETKKGADSLE
                     DFLYHEGYACTSIHGDRSQRDREEALHQFRSGKSPILVATAVAARGLDISNVKHVINFD
                     LPSDIEEYVHRIGRTGRVGNLGLATSFFNERNINITKDLLDLLVEAKQEVPSWLENMAY
                     EHHYKGSSRGRSKSSRFSGGFGARDYRQSSGASSSSFSSSRASSSRSGGGGHGSSRGFG
                     GGGYGGFYNSDGYGGNYNSQGVDWWGN"
     primer_bind     4074..4091
                     /label=YZY-P766
     misc_feature    complement(5208..5246)
                     /label=Primer R for DDX3X in mCherry
     misc_feature    5235..5822
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5706..5717)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5895..6128
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6200..6321
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6340..6475
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6513..6529)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6537..6553
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6561..6591)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6606..6627
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6915..7503)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7674..8534)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8535..8639)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     9113..9129
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgagtcatgt ggcagtggaa aatgcgctcg ggctggacca gcagtttgct ggcctagacc
     3301 tgaactcttc agataatcag agtggaggaa gtacagccag caaagggcgc tatattcctc
     3361 ctcatttaag gaaccgagaa gctactaaag gtttctacga taaagacagt tcagggtgga
     3421 gttctagcaa agataaggat gcgtatagca gttttggatc tcgtagtgat tcaagaggga
     3481 agtctagctt cttcagtgat cgtggaagtg gatcaagggg aaggtttgat gatcgtggac
     3541 ggagtgatta cgatggcatt ggcagccgtg gtgacagaag tggctttggc aaatttgaac
     3601 gtggtggaaa cagtcgctgg tgtgacaaat cagatgaaga tgattggtca aaaccactcc
     3661 caccaagtga acgcttggaa caggaactct tttctggagg caacactggg attaattttg
     3721 agaaatacga tgacattcca gttgaggcaa caggcaacaa ctgtcctcca catattgaaa
     3781 gtttcagtga tgttgagatg ggagaaatta tcatgggaaa cattgagctt actcgttata
     3841 ctcgcccaac tccagtgcaa aagcatgcta ttcctattat caaagagaaa agagacttga
     3901 tggcttgtgc ccaaacaggg tctggaaaaa ctgcagcatt tctgttgccc atcttgagtc
     3961 agatttattc agatggtcca ggcgaggctt tgagggccat gaaggaaaat ggaaggtatg
     4021 ggcgccgcaa acaataccca atctccttgg tattagcacc aacgagagag ttggcagtac
     4081 agatctacga ggaagccaga aaattttcat accgatctag agttcgtcct tgcgtggttt
     4141 atggtggtgc cgatattggt cagcagattc gagacttgga acgtggatgc catttgttag
     4201 tagccactcc aggacgtcta gtggatatga tggaaagagg aaagattgga ttagactttt
     4261 gcaaatactt ggtgttagat gaagctgatc ggatgttgga tatggggttt gagcctcaga
     4321 ttcgtagaat agtcgaacaa gatactatgc ctccaaaggg tgtccgccac actatgatgt
     4381 ttagtgctac ttttcctaag gaaatacaga tgctggctcg tgatttctta gatgaatata
     4441 tcttcttggc tgtaggaaga gttggctcta cctctgaaaa catcacacag aaagtagttt
     4501 gggtggaaga atcagacaaa cggtcatttc tgcttgacct cctaaatgca acaggcaagg
     4561 attcactgac cttagtgttt gtggagacca aaaagggtgc agattctctg gaggatttct
     4621 tataccatga aggatacgca tgtaccagca tccatggaga ccgttctcag agggatagag
     4681 aagaggccct tcaccagttc cgctcaggaa aaagcccaat tttagtggct acagcagtag
     4741 cagcaagagg actggacatt tcaaatgtga aacatgttat caattttgac ttgccaagtg
     4801 atattgaaga atatgtacat cgtattggtc gtacgggacg tgtaggaaac cttggcctgg
     4861 caacctcatt ctttaacgag aggaacataa atattactaa ggatttgttg gatcttcttg
     4921 ttgaagctaa acaagaagtg ccgtcttggt tagaaaacat ggcttatgaa caccactaca
     4981 agggtagcag tcgtggacgt tctaagagta gcagatttag tggagggttt ggtgccagag
     5041 actaccgaca aagtagcggt gccagcagtt ccagcttcag cagcagccgc gcaagcagca
     5101 gccgcagtgg cggaggtggc cacggtagca gcagaggatt tggtggaggt ggctatggag
     5161 gcttttacaa cagtgatgga tatggaggaa attataactc ccagggggtt gactggtggg
     5221 gtaactaggg atccaatcaa cctctggatt acaaaatttg tgaaagattg actggtattc
     5281 ttaactatgt tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg
     5341 ctattgcttc ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc
     5401 tttatgagga gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg
     5461 acgcaacccc cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg
     5521 ctttccccct ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga
     5581 caggggctcg gctgttgggc actgacaatt ccgtggtgtt gtcggggaag ctgacgtcct
     5641 ttccatggct gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg
     5701 tcccttcggc cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc
     5761 ctcttccgcg tctccgcctt cgccctcaga cgagtcggat ctccctttgg ccgcctcccc
     5821 gccggtacct ttaagaccaa tgacttacaa ggcagctgta gatcttagcc actttttaaa
     5881 agaaaagggg ggactggaag ggctaattca ctcccaacga aaataagatc tgctttttgc
     5941 ttgtactggg tctctctggt tagaccagat ctgagcctgg gagctctctg gctaactagg
     6001 gaacccactg cttaagcctc aataaagctt gccttgagtg cttcaagtag tgtgtgcccg
     6061 tctgttgtgt gactctggta actagagatc cctcagaccc ttttagtcag tgtggaaaat
     6121 ctctagcagt agtagttcat gtcatcttat tattcagtat ttataacttg caaagaaatg
     6181 aatatcagag agtgagagga acttgtttat tgcagcttat aatggttaca aataaagcaa
     6241 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     6301 caaactcatc aatgtatctt atcatgtctg gctctagcta tcccgcccct aactccgccc
     6361 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     6421 gccgcctcgg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctagac
     6481 ttttgcagag acggcccaaa ttcgtaatca tggtcatagc tgtttcctgt gtgaaattgt
     6541 tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt
     6601 gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg
     6661 ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg
     6721 cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg
     6781 cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat
     6841 aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc
     6901 gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc
     6961 tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga
     7021 agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt
     7081 ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg
     7141 taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc
     7201 gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg
     7261 gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc
     7321 ttgaagtggt ggcctaacta cggctacact agaaggacag tatttggtat ctgcgctctg
     7381 ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc
     7441 gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa aaaaggatct
     7501 caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga aaactcacgt
     7561 taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct tttaaattaa
     7621 aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga cagttaccaa
     7681 tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc catagttgcc
     7741 tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg ccccagtgct
     7801 gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat aaaccagcca
     7861 gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat ccagtctatt
     7921 aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg caacgttgtt
     7981 gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc attcagctcc
     8041 ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa agcggttagc
     8101 tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc actcatggtt
     8161 atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt ttctgtgact
     8221 ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag ttgctcttgc
     8281 ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt gctcatcatt
     8341 ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag atccagttcg
     8401 atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac cagcgtttct
     8461 gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc gacacggaaa
     8521 tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca gggttattgt
     8581 ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg ggttccgcgc
     8641 acatttcccc gaaaagtgcc acctgacgtc taagaaacca ttattatcat gacattaacc
     8701 tataaaaata ggcgtatcac gaggcccttt cgtctcgcgc gtttcggtga tgacggtgaa
     8761 aacctctgac acatgcagct cccggagacg gtcacagctt gtctgtaagc ggatgccggg
     8821 agcagacaag cccgtcaggg cgcgtcagcg ggtgttggcg ggtgtcgggg ctggcttaac
     8881 tatgcggcat cagagcagat tgtactgaga gtgcaccata tgcggtgtga aataccgcac
     8941 agatgcgtaa ggagaaaata ccgcatcagg cgccattcgc cattcaggct gcgcaactgt
     9001 tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa agggggatgt
     9061 gctgcaaggc gattaagttg ggtaacgcca gggttttccc agtcacgacg ttgtaaaacg
     9121 acggccagtg ccaagctg
//
