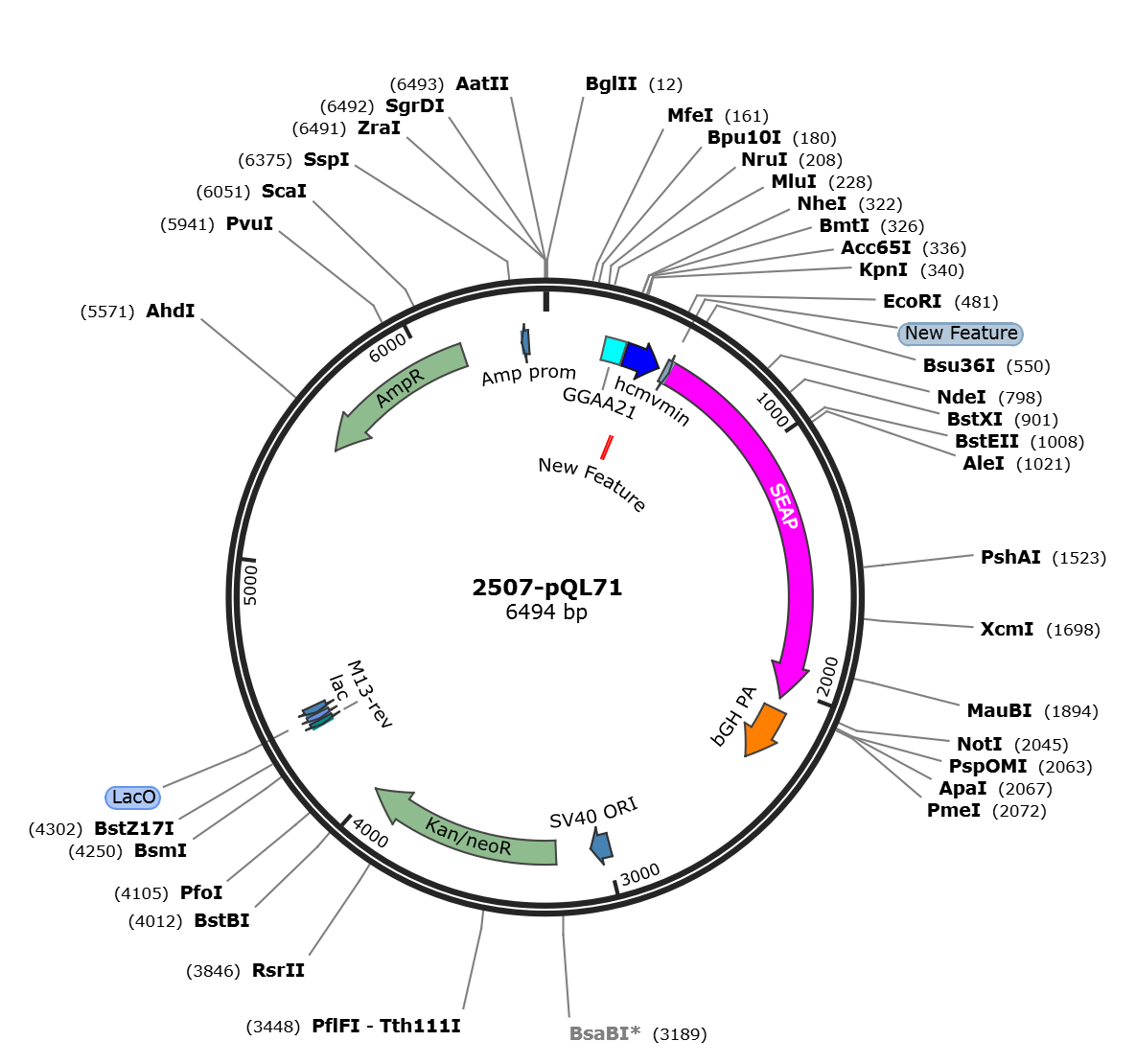

pQL71

LOCUS       pQL71             6494 bp DNA     circular SYN 15-JAN-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6494)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6494
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     174..241
                     /label=QL227
     primer_bind     218..237
                     /label=QL399 F
     misc_feature    238..321
                     /label=GGAA21
     misc_feature    328..475
                     /label=hcmvmin
     misc_feature    397..411
                     /label=New Feature
     primer_bind     complement(460..475)
                     /label=oYW11
     primer_bind     complement(466..487)
                     /label=QL228
     primer_bind     complement(472..491)
                     /label=QL400 R
     misc_feature    498..521
                     /label=New Feature
     primer_bind     522..548
                     /label=Oscl13-1
     misc_feature    523..2043
                     /label=SEAP
     primer_bind     complement(2023..2051)
                     /label=Oscl23-2
     primer_bind     complement(2025..2043)
                     /label=Oscl13-2
     terminator      2091..2318
                     /label=bGH PA
     misc_feature    2986..3063
                     /label=SV40 ORI
     CDS             3205..3996
                     /label=Kan/neoR
     primer_bind     complement(4336..4356)
                     /label=M13-rev
     misc_binding    complement(4362..4384)
                     /label=LacO
     promoter        complement(4389..4418)
                     /label=lac
     CDS             complement(5501..6160)
                     /label=AmpR
     promoter        complement(6400..6428)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgtgtacgga
      241 aggaaggaag gaaggaagga aggaaggaag gaaggaagga aggaaggaag gaaggaagga
      301 aggaaggaag gaaggaagga agctagctcg agctcggtac ccgggtcgag taggcgtgta
      361 cggtgggagg cctatataag cagagctcgt ttagtgaacc gtcagatcgc ctggagacgc
      421 catccacgct gttttgacct ccatagaaga caccgggacc gatccagcct ccgcggcccc
      481 gaattcgagc tcgcccgggg atcctctaga gtcagcttct gcatgctgct gctgctgctg
      541 ctgctgggcc tgaggctaca gctctccctg ggcatcatcc cagttgagga ggagaacccg
      601 gacttctgga accgcgaggc agccgaggcc ctgggtgccg ccaagaagct gcagcctgca
      661 cagacagccg ccaagaacct catcatcttc ctgggcgatg ggatgggggt gtctacggtg
      721 acagctgcca ggatcctaaa agggcagaag aaggacaaac tggggcctga gatacccctg
      781 gccatggacc gcttcccata tgtggctctg tccaagacat acaatgtaga caaacatgtg
      841 ccagacagtg gagccacagc cacggcctac ctgtgcgggg tcaagggcaa cttccagacc
      901 attggcttga gtgcagccgc ccgctttaac cagtgcaaca cgacacgcgg caacgaggtc
      961 atctccgtga tgaatcgggc caagaaagca gggaagtcag tgggagtggt aaccaccaca
     1021 cgagtgcagc acgcctcgcc agccggcacc tacgcccaca cggtgaaccg caactggtac
     1081 tcggacgccg acgtgcctgc ctcggcccgc caggaggggt gccaggacat cgctacgcag
     1141 ctcatctcca acatggacat tgacgtgatc ctaggtggag gccgaaagta catgtttccc
     1201 atgggaaccc cagaccctga gtacccagat gactacagcc aaggtgggac caggctggac
     1261 gggaagaatc tggtgcagga atggctggcg aagcgccagg gtgcccggta tgtgtggaac
     1321 cgcactgagc tcatgcaggc ttccctggac ccgtctgtga cccatctcat gggtctcttt
     1381 gagcctggag acatgaaata cgagatccac cgagactcca cactggaccc ctccctgatg
     1441 gagatgacag aggctgccct gcgcctgctg agcaggaacc cccgcggctt cttcctcttc
     1501 gtggagggtg gtcgcatcga ccatggtcat catgaaagca gggcttaccg ggcactgact
     1561 gagacgatca tgttcgacga cgccattgag agggcgggcc agctcaccag cgaggaggac
     1621 acgctgagcc tcgtcactgc cgaccactcc cacgtcttct ccttcggagg ctaccccctg
     1681 cgagggagct ccatcttcgg gctggcccct ggcaaggccc gggacaggaa ggcctacacg
     1741 gtcctcctat acggaaacgg tccaggctat gtgctcaagg acggcgcccg gccggatgtt
     1801 accgagagcg agagcgggag ccccgagtat cggcagcagt cagcagtgcc cctggacgaa
     1861 gagacccacg caggcgagga cgtggcggtg ttcgcgcgcg gcccgcaggc gcacctggtt
     1921 cacggcgtgc aggagcagac cttcatagcg cacgtcatgg ccttcgccgc ctgcctggag
     1981 ccctacaccg cctgcgacct ggcgcccccc gccggcacca ccgacgccgc gcacccgggt
     2041 taagcggccg ctcgagtcta gagggcccgt ttaaacccgc tgatcagcct cgactgtgcc
     2101 ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg
     2161 tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag
     2221 gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga
     2281 caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag
     2341 ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt
     2401 ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc
     2461 tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg
     2521 gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta
     2581 gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt
     2641 ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat
     2701 ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa
     2761 tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg
     2821 tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag
     2881 tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg
     2941 catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact
     3001 ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag
     3061 gccgaggccg cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc
     3121 ctaggctttt gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag
     3181 acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc
     3241 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     3301 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     3361 tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg
     3421 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     3481 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     3541 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     3601 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     3661 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     3721 ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     3781 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     3841 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     3901 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     3961 atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga
     4021 ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg
     4081 aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg
     4141 atctcatgct ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca
     4201 aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt
     4261 gtggtttgtc caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct
     4321 agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa
     4381 ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga
     4441 gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt
     4501 gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct
     4561 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
     4621 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
     4681 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
     4741 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
     4801 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
     4861 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
     4921 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
     4981 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
     5041 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
     5101 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
     5161 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
     5221 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtt
     5281 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     5341 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     5401 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     5461 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     5521 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     5581 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     5641 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     5701 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     5761 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     5821 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     5881 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     5941 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     6001 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     6061 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     6121 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     6181 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     6241 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     6301 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     6361 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     6421 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     6481 tgccacctga cgtc
//
