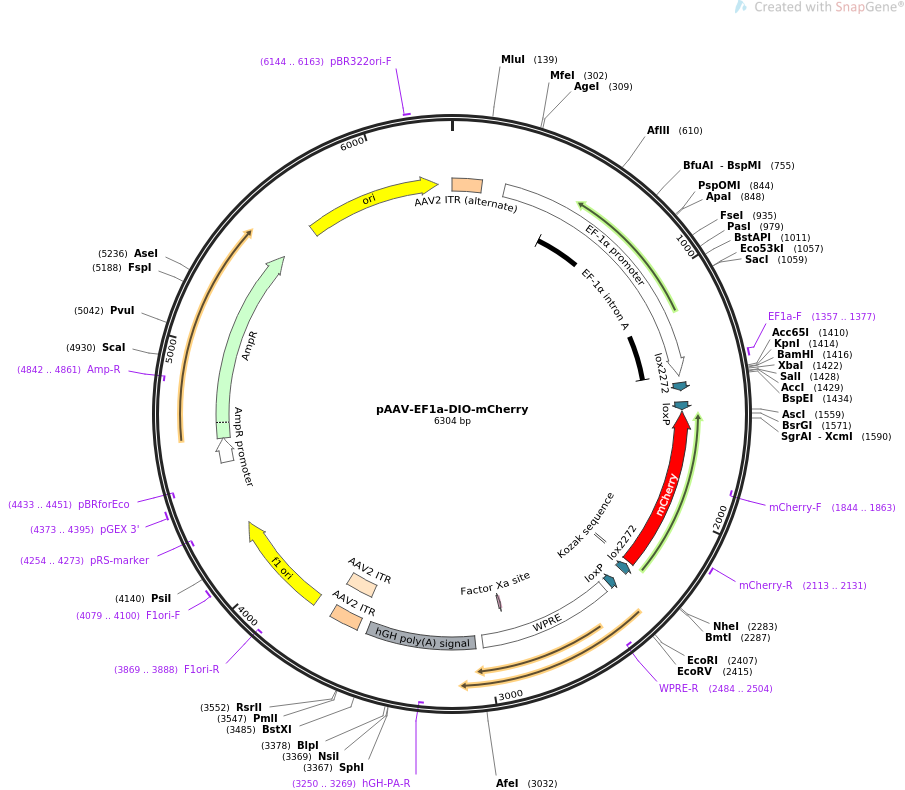

pAAV-EF1a-DIO-mCherry

LOCUS       pAAV-EF1a-DIO-mCherry                6304 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Double floxed mCherry under the control of EF1a promoter.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-EF1a-DIO-mCherry
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6304)
  AUTHORS   Bryan Roth
  TITLE     Roth lab DREADDs
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 6304)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6304
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     repeat_region   1..130
                     /label=AAV2 ITR (alternate)
                     /note="Functional equivalent of wild-type AAV2 ITR"
     promoter        231..1409
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     intron          462..1400
                     /label=EF-1-alpha intron A
                     /note="intron upstream of the start codon of human
                     EF-1-alpha"
     primer_bind     1357..1377
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     protein_bind    1440..1473
                     /label=lox2272
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GGATACTT). lox2272 sites are compatible with each
                     other, but incompatible with loxP or loxN sites."
     protein_bind    1524..1557
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     CDS             complement(1566..2276)
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1844..1863)
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     2113..2131
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     regulatory      2273..2282
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     protein_bind    complement(2289..2322)
                     /label=lox2272
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GGATACTT). lox2272 sites are compatible with each
                     other, but incompatible with loxP or loxN sites."
     protein_bind    complement(2373..2406)
                     /label=loxP
                     /bound_moiety="Cre recombinase"
                     /note="Cre-mediated recombination occurs in the 8-bp core
                     sequence (GCATACAT)."
     misc_feature    2431..3019
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2484..2504)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(2902..2913)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3051..3527
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(3250..3269)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   3567..3707
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   3567..3696
                     /label=AAV2 ITR
     rep_origin      3782..4237
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3869..3888)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4079..4100
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(4254..4273)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4373..4395
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4433..4451)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4519..4623
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4624..5484
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(4842..4861)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      5655..6243
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6144..6163
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtaagctt tgcaaagatg gataaagttt taaacagaga
      181 ggaatctttg cagctaatgg accttctagg tcttgaaagg agtgggaatt ggctccggtg
      241 cccgtcagtg ggcagagcgc acatcgccca cagtccccga gaagttgggg ggaggggtcg
      301 gcaattgaac cggtgcctag agaaggtggc gcggggtaaa ctgggaaagt gatgtcgtgt
      361 actggctccg cctttttccc gagggtgggg gagaaccgta tataagtgca gtagtcgccg
      421 tgaacgttct ttttcgcaac gggtttgccg ccagaacaca ggtaagtgcc gtgtgtggtt
      481 cccgcgggcc tggcctcttt acgggttatg gcccttgcgt gccttgaatt acttccacct
      541 ggctgcagta cgtgattctt gatcccgagc ttcgggttgg aagtgggtgg gagagttcga
      601 ggccttgcgc ttaaggagcc ccttcgcctc gtgcttgagt tgaggcctgg cctgggcgct
      661 ggggccgccg cgtgcgaatc tggtggcacc ttcgcgcctg tctcgctgct ttcgataagt
      721 ctctagccat ttaaaatttt tgatgacctg ctgcgacgct ttttttctgg caagatagtc
      781 ttgtaaatgc gggccaagat ctgcacactg gtatttcggt ttttggggcc gcgggcggcg
      841 acggggcccg tgcgtcccag cgcacatgtt cggcgaggcg gggcctgcga gcgcggccac
      901 cgagaatcgg acgggggtag tctcaagctg gccggcctgc tctggtgcct ggcctcgcgc
      961 cgccgtgtat cgccccgccc tgggcggcaa ggctggcccg gtcggcacca gttgcgtgag
     1021 cggaaagatg gccgcttccc ggccctgctg cagggagctc aaaatggagg acgcggcgct
     1081 cgggagagcg ggcgggtgag tcacccacac aaaggaaaag ggcctttccg tcctcagccg
     1141 tcgcttcatg tgactccacg gagtaccggg cgccgtccag gcacctcgat tagttctcga
     1201 gcttttggag tacgtcgtct ttaggttggg gggaggggtt ttatgcgatg gagtttcccc
     1261 acactgagtg ggtggagact gaagttaggc cagcttggca cttgatgtaa ttctccttgg
     1321 aatttgccct ttttgagttt ggatcttggt tcattctcaa gcctcagaca gtggttcaaa
     1381 gtttttttct tccatttcag gtgtcgtgag gtaccggatc ctctagagtc gactccggaa
     1441 taacttcgta taggatactt tatacgaagt tatgcagaat ggtagctgga ttgtagctgc
     1501 tattagcaat atgaaacctc ttaataactt cgtatagcat acattatacg aagttatggc
     1561 gcgccttact tgtacagctc gtccatgccg ccggtggagt ggcggccctc ggcgcgttcg
     1621 tactgttcca cgatggtgta gtcctcgttg tgggaggtga tgtccaactt gatgttgacg
     1681 ttgtaggcgc cgggcagctg cacgggcttc ttggccttgt aggtggtctt gacctcagcg
     1741 tcgtagtggc cgccgtcctt cagcttcagc ctctgcttga tctcgccctt cagggcgccg
     1801 tcctcggggt acatccgctc ggaggaggcc tcccagccca tggtcttctt ctgcattacg
     1861 gggccgtcgg aggggaagtt ggtgccgcgc agcttcacct tgtagatgaa ctcgccgtcc
     1921 tgcagggagg agtcctgggt cacggtcacc acgccgccgt cctcgaagtt catcacgcgc
     1981 tcccacttga agccctcggg gaaggacagc ttcaagtagt cggggatgtc ggcggggtgc
     2041 ttcacgtagg ccttggagcc gtacatgaac tgaggggaca ggatgtccca ggcgaagggc
     2101 agggggccac ccttggtcac cttcagcttg gcggtctggg tgccctcgta ggggcggccc
     2161 tcgccctcgc cctcgatctc gaactcgtgg ccgttcacgg agccctccat gtgcaccttg
     2221 aagcgcatga actccttgat gatggccatg ttatcctcct cgcccttgct caccatggtg
     2281 gcgctagcat aacttcgtat aaagtatcct atacgaagtt atttgcctta acccagaaat
     2341 tatcactgtt attctttaga atggtgcaaa gaataacttc gtataatgta tgctatacga
     2401 agttatgaat tcgatatcaa gcttatcgat aatcaacctc tggattacaa aatttgtgaa
     2461 agattgactg gtattcttaa ctatgttgct ccttttacgc tatgtggata cgctgcttta
     2521 atgcctttgt atcatgctat tgcttcccgt atggctttca ttttctcctc cttgtataaa
     2581 tcctggttgc tgtctcttta tgaggagttg tggcccgttg tcaggcaacg tggcgtggtg
     2641 tgcactgtgt ttgctgacgc aacccccact ggttggggca ttgccaccac ctgtcagctc
     2701 ctttccggga ctttcgcttt ccccctccct attgccacgg cggaactcat cgccgcctgc
     2761 cttgcccgct gctggacagg ggctcggctg ttgggcactg acaattccgt ggtgttgtcg
     2821 gggaaatcat cgtcctttcc ttggctgctc gcctatgttg ccacctggat tctgcgcggg
     2881 acgtccttct gctacgtccc ttcggccctc aatccagcgg accttccttc ccgcggcctg
     2941 ctgccggctc tgcggcctct tccgcgtctt cgccttcgcc ctcagacgag tcggatctcc
     3001 ctttgggccg cctccccgca tcgataccga gcgctgctcg agagatctac gggtggcatc
     3061 cctgtgaccc ctccccagtg cctctcctgg ccctggaagt tgccactcca gtgcccacca
     3121 gccttgtcct aataaaatta agttgcatca ttttgtctga ctaggtgtcc ttctataata
     3181 ttatggggtg gaggggggtg gtatggagca aggggcaagt tgggaagaca acctgtaggg
     3241 cctgcggggt ctattgggaa ccaagctgga gtgcagtggc acaatcttgg ctcactgcaa
     3301 tctccgcctc ctgggttcaa gcgattctcc tgcctcagcc tcccgagttg ttgggattcc
     3361 aggcatgcat gaccaggctc agctaatttt tgtttttttg gtagagacgg ggtttcacca
     3421 tattggccag gctggtctcc aactcctaat ctcaggtgat ctacccacct tggcctccca
     3481 aattgctggg attacaggcg tgaaccactg ctcccttccc tgtccttctg attttgtagg
     3541 taaccacgtg cggaccgagc ggccgcagga acccctagtg atggagttgg ccactccctc
     3601 tctgcgcgct cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac gcccgggctt
     3661 tgcccgggcg gcctcagtga gcgagcgagc gcgcagctgc ctgcaggggc gcctgatgcg
     3721 gtattttctc cttacgcatc tgtgcggtat ttcacaccgc atacgtcaaa gcaaccatag
     3781 tacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc
     3841 gctacacttg ccagcgcctt agcgcccgct cctttcgctt tcttcccttc ctttctcgcc
     3901 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt
     3961 agtgctttac ggcacctcga ccccaaaaaa cttgatttgg gtgatggttc acgtagtggg
     4021 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt
     4081 ggactcttgt tccaaactgg aacaacactc aactctatct cgggctattc ttttgattta
     4141 taagggattt tgccgatttc ggtctattgg ttaaaaaatg agctgattta acaaaaattt
     4201 aacgcgaatt ttaacaaaat attaacgttt acaattttat ggtgcactct cagtacaatc
     4261 tgctctgatg ccgcatagtt aagccagccc cgacacccgc caacacccgc tgacgcgccc
     4321 tgacgggctt gtctgctccc ggcatccgct tacagacaag ctgtgaccgt ctccgggagc
     4381 tgcatgtgtc agaggttttc accgtcatca ccgaaacgcg cgagacgaaa gggcctcgtg
     4441 atacgcctat ttttataggt taatgtcatg ataataatgg tttcttagac gtcaggtggc
     4501 acttttcggg gaaatgtgcg cggaacccct atttgtttat ttttctaaat acattcaaat
     4561 atgtatccgc tcatgagaca ataaccctga taaatgcttc aataatattg aaaaaggaag
     4621 agtatgagta ttcaacattt ccgtgtcgcc cttattccct tttttgcggc attttgcctt
     4681 cctgtttttg ctcacccaga aacgctggtg aaagtaaaag atgctgaaga tcagttgggt
     4741 gcacgagtgg gttacatcga actggatctc aacagcggta agatccttga gagttttcgc
     4801 cccgaagaac gttttccaat gatgagcact tttaaagttc tgctatgtgg cgcggtatta
     4861 tcccgtattg acgccgggca agagcaactc ggtcgccgca tacactattc tcagaatgac
     4921 ttggttgagt actcaccagt cacagaaaag catcttacgg atggcatgac agtaagagaa
     4981 ttatgcagtg ctgccataac catgagtgat aacactgcgg ccaacttact tctgacaacg
     5041 atcggaggac cgaaggagct aaccgctttt ttgcacaaca tgggggatca tgtaactcgc
     5101 cttgatcgtt gggaaccgga gctgaatgaa gccataccaa acgacgagcg tgacaccacg
     5161 atgcctgtag caatggcaac aacgttgcgc aaactattaa ctggcgaact acttactcta
     5221 gcttcccggc aacaattaat agactggatg gaggcggata aagttgcagg accacttctg
     5281 cgctcggccc ttccggctgg ctggtttatt gctgataaat ctggagccgg tgagcgtggg
     5341 tctcgcggta tcattgcagc actggggcca gatggtaagc cctcccgtat cgtagttatc
     5401 tacacgacgg ggagtcaggc aactatggat gaacgaaata gacagatcgc tgagataggt
     5461 gcctcactga ttaagcattg gtaactgtca gaccaagttt actcatatat actttagatt
     5521 gatttaaaac ttcattttta atttaaaagg atctaggtga agatcctttt tgataatctc
     5581 atgaccaaaa tcccttaacg tgagttttcg ttccactgag cgtcagaccc cgtagaaaag
     5641 atcaaaggat cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa
     5701 aaaccaccgc taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg
     5761 aaggtaactg gcttcagcag agcgcagata ccaaatactg ttcttctagt gtagccgtag
     5821 ttaggccacc acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg
     5881 ttaccagtgg ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga
     5941 tagttaccgg ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc
     6001 ttggagcgaa cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc
     6061 acgcttcccg aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga
     6121 gagcgcacga gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt
     6181 cgccacctct gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg
     6241 aaaaacgcca gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac
     6301 atgt
//
