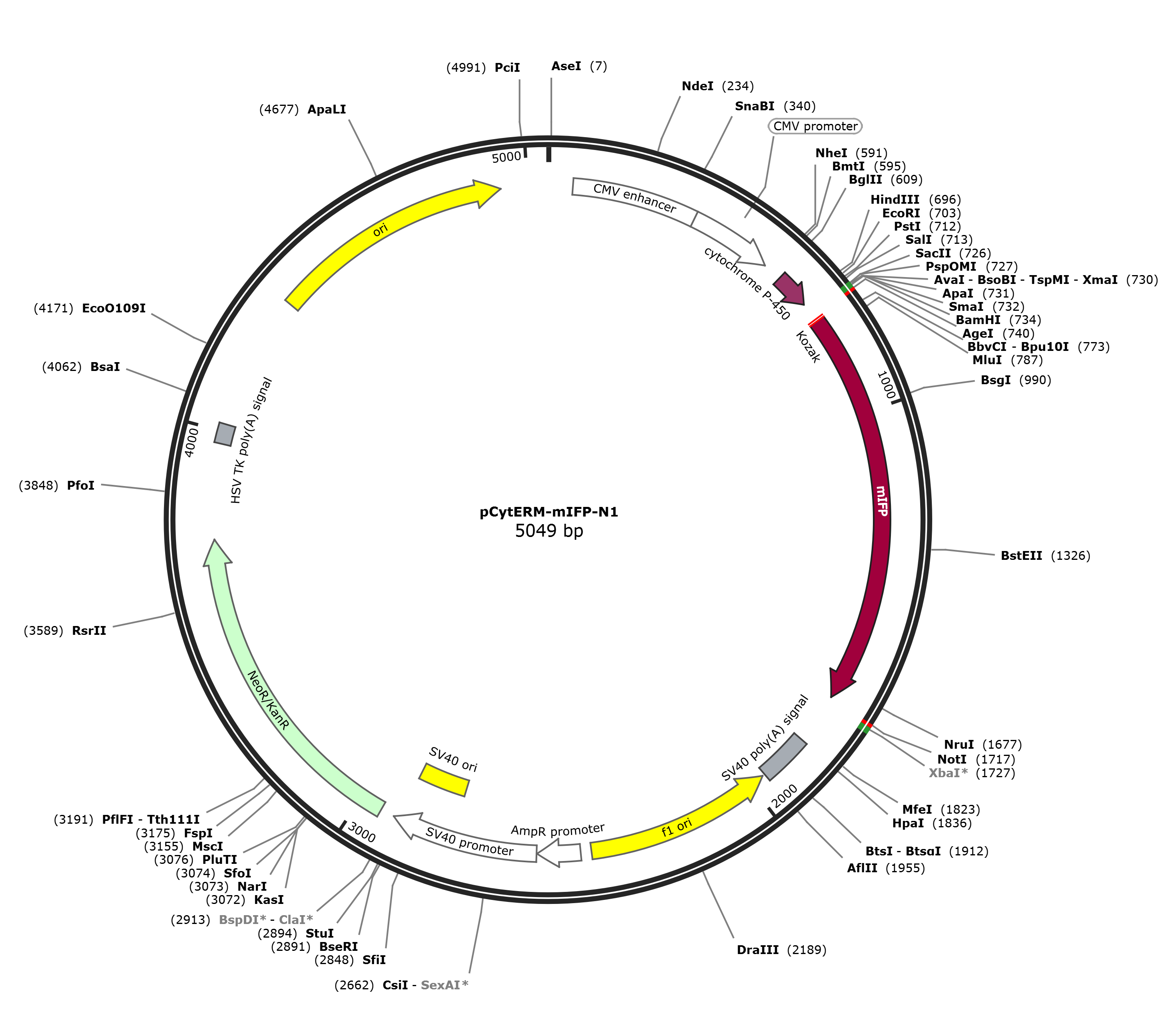

pCytERM-mIFP-N1

LOCUS       pCytERM-mIFP-N1              5049 bp DNA     circular SYN 27-MAY-2024
DEFINITION  Vector for fusing EGFP to the C-terminus of a partner protein. For
            other reading frames, use pEGFP-N2 or pEGFP-N3.
ACCESSION   U55762
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5049)
  AUTHORS   Clontech (TaKaRa)
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5049
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             615..701
                     /codon_start=1
                     /product="cytochrome P-450 IIC1, partial [Oryctolagus
                     cuniculus]
                     Sequence ID: AAA31436.1Length: 56Number of Matches: 1"
                     /label=cytochrome P-450
                     /translation="MDPVVVLGLCLSCLLLLSLWKQSYGGGKL"
     misc_feature    747..752
                     /label=Kozak
     CDS             753..1712
                     /codon_start=1
                     /product="naturally monomeric infrared fluorescent protein
                     derived from a truncated bacteriophytochrome (Yu et al.,
                     2015)"
                     /label=mIFP
                     /translation="MSVPLTTSAFGHAFLANCEREQIHLAGSIQPHGILLAVKEPDNVV
                     IQASINAAEFLNTNSVVGRPLRDLGGDLPLQILPHLNGPLHLAPMTLRCTVGSPPRRVD
                     CTIHRPSNGGLIVELEPATKTTNIAPALDGAFHRITSSSSLMGLCDETATIIREITGYD
                     RVMVVRFDEEGNGEILSERRRADLEAFLGNRYPASTIPQIARRLYEHNRVRLLVDVNYT
                     PVPLQPRISPLNGRDLDMSLSCLRSMSPIHQKYMQDMGVGATLVCSLMVSGRLWGLIAC
                     HHYEPRFVPFHIRAAGEALAETCAIRIATLESFAQSQSK"
     polyA_signal    1837..1958
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1965..2420)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2447..2551
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2553..2910
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2761..2896
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2945..3739
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3971..4018
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4347..4935
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctatggac cctgtggtgg tgctggggct ctgtctctcc tgtttgcttc
      661 tcctttcact ctggaaacag agctatgggg gagggaagct tcgaattctg cagtcgacgg
      721 taccgcgggc ccgggatcca ccggtcgcca ccatgtcggt accgctgact acctcagcat
      781 tcggccacgc gtttctggct aactgtgaac gcgagcagat ccacctggcg ggctccattc
      841 agccgcacgg tatcctgctg gctgtgaaag agccggacaa cgtggtgatc caggcttcta
      901 ttaacgctgc ggagttcctg aacaccaact ctgttgttgg ccgtccgctg cgtgacctgg
      961 gcggcgatct gcctttgcag atcctgccgc acctgaacgg cccgctgcac ctggctccga
     1021 tgaccctgcg ttgtaccgtg ggttctccgc cgcgtcgtgt ggactgtacc attcatcgtc
     1081 cgtctaacgg cggcctgatc gtagaactgg aaccagcaac caagaccact aacattgcgc
     1141 cggctctgga cggtgcgttt catcgtatca cttcttcatc ctccctgatg ggcctgtgtg
     1201 acgaaaccgc gactattatc cgtgagatta ctggctacga ccgtgtgatg gtagtacgtt
     1261 tcgatgaaga gggtaatggc gaaattctgt ccgaacgtcg tcgtgcggac ctggaagcgt
     1321 tcctgggtaa ccgctacccg gcgtctacta ttccgcagat cgctcgtcgc ctgtacgaac
     1381 ataaccgtgt tcgcctgctg gtagatgtga actatactcc ggttccgcta cagccgcgca
     1441 tcagcccgct gaacggtcgt gatctggata tgtccctgtc ttgcctgcgc tctatgtccc
     1501 cgatccacca gaaatacatg caggacatgg gcgttggcgc gaccctggtt tgctctctga
     1561 tggtgtctgg tcgtctgtgg ggtctgatcg cttgccacca ctacgaaccg cgcttcgttc
     1621 cgttccacat tcgcgctgct ggcgaagcgc tggcggaaac ttgtgcgatc cgcatcgcga
     1681 cgctggagag ctttgcacag tctcagtcca aataagcggc cgcgactcta gatcataatc
     1741 agccatacca catttgtaga ggttttactt gctttaaaaa acctcccaca cctccccctg
     1801 aacctgaaac ataaaatgaa tgcaattgtt gttgttaact tgtttattgc agcttataat
     1861 ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat
     1921 tctagttgtg gtttgtccaa actcatcaat gtatcttaag gcgtaaattg taagcgttaa
     1981 tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc
     2041 cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt
     2101 tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa
     2161 aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg
     2221 gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg
     2281 acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc
     2341 tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa
     2401 tgcgccgcta cagggcgcgt caggtggcac ttttcgggga aatgtgcgcg gaacccctat
     2461 ttgtttattt ttctaaatac attcaaatat gtatccgctc atgagacaat aaccctgata
     2521 aatgcttcaa taatattgaa aaaggaagag tcctgaggcg gaaagaacca gctgtggaat
     2581 gtgtgtcagt tagggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     2641 atgcatctca attagtcagc aaccaggtgt ggaaagtccc caggctcccc agcaggcaga
     2701 agtatgcaaa gcatgcatct caattagtca gcaaccatag tcccgcccct aactccgccc
     2761 atcccgcccc taactccgcc cagttccgcc cattctccgc cccatggctg actaattttt
     2821 tttatttatg cagaggccga ggccgcctcg gcctctgagc tattccagaa gtagtgagga
     2881 ggcttttttg gaggcctagg cttttgcaaa gatcgatcaa gagacaggat gaggatcgtt
     2941 tcgcatgatt gaacaagatg gattgcacgc aggttctccg gccgcttggg tggagaggct
     3001 attcggctat gactgggcac aacagacaat cggctgctct gatgccgccg tgttccggct
     3061 gtcagcgcag gggcgcccgg ttctttttgt caagaccgac ctgtccggtg ccctgaatga
     3121 actgcaagac gaggcagcgc ggctatcgtg gctggccacg acgggcgttc cttgcgcagc
     3181 tgtgctcgac gttgtcactg aagcgggaag ggactggctg ctattgggcg aagtgccggg
     3241 gcaggatctc ctgtcatctc accttgctcc tgccgagaaa gtatccatca tggctgatgc
     3301 aatgcggcgg ctgcatacgc ttgatccggc tacctgccca ttcgaccacc aagcgaaaca
     3361 tcgcatcgag cgagcacgta ctcggatgga agccggtctt gtcgatcagg atgatctgga
     3421 cgaagagcat caggggctcg cgccagccga actgttcgcc aggctcaagg cgagcatgcc
     3481 cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc ttgccgaata tcatggtgga
     3541 aaatggccgc ttttctggat tcatcgactg tggccggctg ggtgtggcgg accgctatca
     3601 ggacatagcg ttggctaccc gtgatattgc tgaagagctt ggcggcgaat gggctgaccg
     3661 cttcctcgtg ctttacggta tcgccgctcc cgattcgcag cgcatcgcct tctatcgcct
     3721 tcttgacgag ttcttctgag cgggactctg gggttcgaaa tgaccgacca agcgacgccc
     3781 aacctgccat cacgagattt cgattccacc gccgccttct atgaaaggtt gggcttcgga
     3841 atcgttttcc gggacgccgg ctggatgatc ctccagcgcg gggatctcat gctggagttc
     3901 ttcgcccacc ctagggggag gctaactgaa acacggaagg agacaatacc ggaaggaacc
     3961 cgcgctatga cggcaataaa aagacagaat aaaacgcacg gtgttgggtc gtttgttcat
     4021 aaacgcgggg ttcggtccca gggctggcac tctgtcgata ccccaccgag accccattgg
     4081 ggccaatacg cccgcgtttc ttccttttcc ccaccccacc ccccaagttc gggtgaaggc
     4141 ccagggctcg cagccaacgt cggggcggca ggccctgcca tagcctcagg ttactcatat
     4201 atactttaga ttgatttaaa acttcatttt taatttaaaa ggatctaggt gaagatcctt
     4261 tttgataatc tcatgaccaa aatcccttaa cgtgagtttt cgttccactg agcgtcagac
     4321 cccgtagaaa agatcaaagg atcttcttga gatccttttt ttctgcgcgt aatctgctgc
     4381 ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt tgccggatca agagctacca
     4441 actctttttc cgaaggtaac tggcttcagc agagcgcaga taccaaatac tgtccttcta
     4501 gtgtagccgt agttaggcca ccacttcaag aactctgtag caccgcctac atacctcgct
     4561 ctgctaatcc tgttaccagt ggctgctgcc agtggcgata agtcgtgtct taccgggttg
     4621 gactcaagac gatagttacc ggataaggcg cagcggtcgg gctgaacggg gggttcgtgc
     4681 acacagccca gcttggagcg aacgacctac accgaactga gatacctaca gcgtgagcta
     4741 tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca ggtatccggt aagcggcagg
     4801 gtcggaacag gagagcgcac gagggagctt ccagggggaa acgcctggta tctttatagt
     4861 cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt tgtgatgctc gtcagggggg
     4921 cggagcctat ggaaaaacgc cagcaacgcg gcctttttac ggttcctggc cttttgctgg
     4981 ccttttgctc acatgttctt tcctgcgtta tcccctgatt ctgtggataa ccgtattacc
     5041 gccatgcat
//
