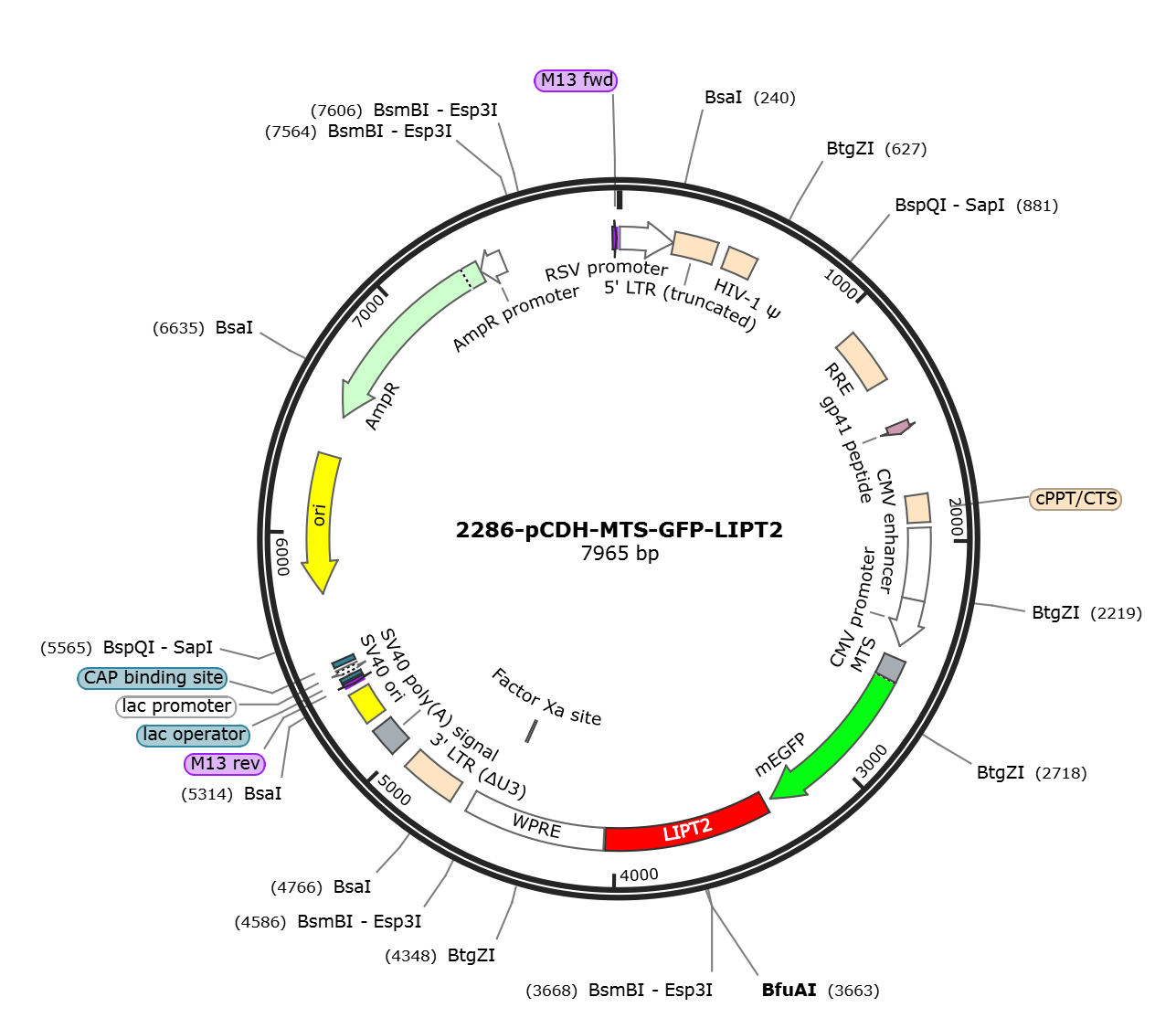

pCDH-MTS-GFP-LIPT2

LOCUS       pCDH-MTS-GFP-LIPT2               7965 bp DNA     circular SYN 09-MAY-2026
DEFINITION  contig1 circular.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7965)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7965
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        6..232
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             233..413
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    460..585
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1078..1311
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1496..1540
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    1807..1923
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1946..2249
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2250..2453
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    2507..2599
                     /label=MTS
     CDS             2600..3313
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     misc_feature    3344..4039
                     /label=LIPT2
     misc_feature    4046..4633
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4517..4528)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4706..4939
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5011..5132
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5172..5307
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5340..5356)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5364..5380
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5388..5418)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5433..5454
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5742..6330)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6501..7361)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7362..7466)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7940..7956
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacataa acgggtctct
      241 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
      301 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
      361 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtggcgc
      421 ccgaacaggg acttgaaagc gaaagggaaa ccagaggagc tctctcgacg caggactcgg
      481 cttgctgaag cgcgcacggc aagaggcgag gggcggcgac tggtgagtac gccaaaaatt
      541 ttgactagcg gaggctagaa ggagagagat gggtgcgaga gcgtcagtat taagcggggg
      601 agaattagat cgcgatggga aaaaattcgg ttaaggccag ggggaaagaa aaaatataaa
      661 ttaaaacata tagtatgggc aagcagggag ctagaacgat tcgcagttaa tcctggcctg
      721 ttagaaacat cagaaggctg tagacaaata ctgggacagc tacaaccatc ccttcagaca
      781 ggatcagaag aacttagatc attatataat acagtagcaa ccctctattg tgtgcatcaa
      841 aggatagaga taaaagacac caaggaagct ttagacaaga tagaggaaga gcaaaacaaa
      901 agtaagacca ccgcacagca agcggccact gatcttcaga cctggaggag gagatatgag
      961 ggacaattgg agaagtgaat tatataaata taaagtagta aaaattgaac cattaggagt
     1021 agcacccacc aaggcaaaga gaagagtggt gcagagagaa aaaagagcag tgggaatagg
     1081 agctttgttc cttgggttct tgggagcagc aggaagcact atgggcgcag cgtcaatgac
     1141 gctgacggta caggccagac aattattgtc tggtatagtg cagcagcaga acaatttgct
     1201 gagggctatt gaggcgcaac agcatctgtt gcaactcaca gtctggggca tcaagcagct
     1261 ccaggcaaga atcctggctg tggaaagata cctaaaggat caacagctcc tggggatttg
     1321 gggttgctct ggaaaactca tttgcaccac tgctgtgcct tggaatgcta gttggagtaa
     1381 taaatctctg gaacagattt ggaatcacac gacctggatg gagtgggaca gagaaattaa
     1441 caattacaca agcttaatac actccttaat tgaagaatcg caaaaccagc aagaaaagaa
     1501 tgaacaagaa ttattggaat tagataaatg ggcaagtttg tggaattggt ttaacataac
     1561 aaattggctg tggtatataa aattattcat aatgatagta ggaggcttgg taggtttaag
     1621 aatagttttt gctgtacttt ctatagtgaa tagagttagg cagggatatt caccattatc
     1681 gtttcagacc cacctcccaa ccccgagggg acccgacagg cccgaaggaa tagaagaaga
     1741 aggtggagag agagacagag acagatccat tcgattagtg aacggatctc gacggtatcg
     1801 gttaactttt aaaagaaaag gggggattgg ggggtacagt gcaggggaaa gaatagtaga
     1861 cataatagca acagacatac aaactaaaga attacaaaaa caaattacaa aattcaaaat
     1921 tttatcgata ctagttggag ttccgcgtta cataacttac ggtaaatggc ccgcctggct
     1981 gaccgcccaa cgacccccgc ccattgacgt caataatgac gtatgttccc atagtaacgc
     2041 caatagggac tttccattga cgtcaatggg tggagtattt acggtaaact gcccacttgg
     2101 cagtacatca agtgtatcat atgccaagta cgccccctat tgacgtcaat gacggtaaat
     2161 ggcccgcctg gcattatgcc cagtacatga ccttatggga ctttcctact tggcagtaca
     2221 tctacgtatt agtcatcgct attaccatgg tgatgcggtt ttggcagtac atcaatgggc
     2281 gtggatagcg gtttgactca cggggatttc caagtctcca ccccattgac gtcaatggga
     2341 gtttgttttg gcaccaaaat caacgggact ttccaaaatg tcgtaacaac tccgccccat
     2401 tgacgcaaat gggcggtagg cgtgtacggt gggaggtcta tataagcaga gctggtttag
     2461 tgaaccgtca gattctagac cgctagcgct accggtcgcc accatgctgt ttaatctgag
     2521 gatcctgtta aacaatgcag cttttagaaa tggtcacaac ttcatggttc gaaattttcg
     2581 gtgtggacaa ccactacaag tgagcaaggg cgaggagctg ttcaccgggg tggtgcccat
     2641 cctggtcgag ctggacggcg acgtaaacgg ccacaagttc agcgtgtccg gcgagggcga
     2701 gggcgatgcc acctacggca agctgaccct gaagttcatc tgcaccaccg gcaagctgcc
     2761 cgtgccctgg cccaccctcg tgaccaccct gacctacggc gtgcagtgct tcagccgcta
     2821 ccccgaccac atgaagcagc acgacttctt caagtccgcc atgcccgaag gctacgtcca
     2881 ggagcgcacc atcttcttca aggacgacgg caactacaag acccgcgccg aggtgaagtt
     2941 cgagggcgac accctggtga accgcatcga gctgaagggc atcgacttca aggaggacgg
     3001 caacatcctg gggcacaagc tggagtacaa ctacaacagc cacaacgtct atatcatggc
     3061 cgacaagcag aagaacggca tcaaggtgaa cttcaagatc cgccacaaca tcgaggacgg
     3121 cagcgtgcag ctcgccgacc actaccagca gaacaccccc atcggcgacg gccccgtgct
     3181 gctgcccgac aaccactacc tgagcaccca gtccaagctg agcaaagacc ccaacgagaa
     3241 gcgcgatcac atggtcctgc tggagttcgt gaccgccgcc gggatcactc tcggcatgga
     3301 cgagctgtac aagtccggac tcagatctcg agctcaagct tccatgcggc aacccgccgt
     3361 tcggttggtg cgcctgggtc gggtgccgta cgccgagcta ctggggctgc aggaccgctg
     3421 gctgcggcgg ctgcaggccg agccaggcat tgaggccccg tcggggactg aggcgggcgc
     3481 gctcctgctc tgcgagcccg cggggcccgt gtatacggcc gggctgcgcg gcggcctgac
     3541 gcccgaggaa actgcgcggc tacgggcctt gggcgccgag gtgcgcgtca caggccgcgg
     3601 tggcctggcc accttccacg gcccgggcca gctgctttgc cacccggtac tcgacctgcg
     3661 gcgtctcggc ctgcgcttgc gcatgcacgt agcgtcgctg gaggcgtgcg ccgtgcgcct
     3721 gtgcgagctc cagggcctgc aggacgcccg cgcgcggccc ccgccctaca ctggcgtctg
     3781 gctagacgat cgcaagatct gcgcgatcgg agtccgctgt ggaaggcaca tcacatccca
     3841 cggcctggct ctcaactgct ctaccgacct cacgtggttt gagcacatcg tgccctgtgg
     3901 actggttggg acaggcgtca cttccttgag taaggagctc cagaggcacg tcaccgtgga
     3961 agaagtaatg ccacctttcc ttgtggcctt taaggagatc tacaagtgca cactgatctc
     4021 agaggacagc cccaactgag gatccaatca acctctggat tacaaaattt gtgaaagatt
     4081 gactggtatt cttaactatg ttgctccttt tacgctatgt ggatacgctg ctttaatgcc
     4141 tttgtatcat gctattgctt cccgtatggc tttcattttc tcctccttgt ataaatcctg
     4201 gttgctgtct ctttatgagg agttgtggcc cgttgtcagg caacgtggcg tggtgtgcac
     4261 tgtgtttgct gacgcaaccc ccactggttg gggcattgcc accacctgtc agctcctttc
     4321 cgggactttc gctttccccc tccctattgc cacggcggaa ctcatcgccg cctgccttgc
     4381 ccgctgctgg acaggggctc ggctgttggg cactgacaat tccgtggtgt tgtcggggaa
     4441 atcatcgtcc tttccttggc tgctcgcctg tgttgccacc tggattctgc gcgggacgtc
     4501 cttctgctac gtcccttcgg ccctcaatcc agcggacctt ccttcccgcg gcctgctgcc
     4561 ggctctgcgg cctcttccgc gtctccgcct tcgccctcag acgagtcgga tctccctttg
     4621 gccgcctccc cgccggtacc tttaagacca atgacttaca aggcagctgt agatcttagc
     4681 cactttttaa aagaaaaggg gggactggaa gggctaattc actcccaacg aagataagat
     4741 ctgctttttg cttgtactgg gtctctctgg ttagaccaga tctgagcctg ggagctctct
     4801 ggctaactag ggaacccact gcttaagcct caataaagct tgccttgagt gcttcaagta
     4861 gtgtgtgccc gtctgttgtg tgactctggt aactagagat ccctcagacc cttttagtca
     4921 gtgtggaaaa tctctagcag tagtagttca tgtcatctta ttattcagta tttataactt
     4981 gcaaagaaat gaatatcaga gagtgagagg aacttgttta ttgcagctta taatggttac
     5041 aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt
     5101 tgtggtttgt ccaaactcat caatgtatct tatcatgtct ggctctagct atcccgcccc
     5161 taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct
     5221 gactaatttt ttttatttat gcagaggccg aggccgcctc ggcctctgag ctattccaga
     5281 agtagtgagg aggctttttt ggaggcctag acttttgcag agaccaaatt cgtaatcatg
     5341 tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc
     5401 ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg
     5461 ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc
     5521 ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact
     5581 gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta
     5641 atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag
     5701 caaaaggcca ggaaccttaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc
     5761 cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta
     5821 taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg
     5881 ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc
     5941 tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac
     6001 gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac
     6061 ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg
     6121 aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga
     6181 agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt
     6241 agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag
     6301 cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct
     6361 gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg
     6421 atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat
     6481 gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc
     6541 tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg
     6601 gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct
     6661 ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca
     6721 actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg
     6781 ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg
     6841 tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc
     6901 cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag
     6961 ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg
     7021 ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag
     7081 tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat
     7141 agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg
     7201 atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca
     7261 gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca
     7321 aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat
     7381 tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag
     7441 aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtctaa
     7501 gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag gccctttcgt
     7561 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
     7621 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
     7681 gttggcgggt gtcggggctg gcttaactat gcggcatcag agcagattgt actgagagtg
     7741 caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg catcaggcgc
     7801 cattcgccat tcaggctgcg caactgttgg gaagggcgat cggtgcgggc ctcttcgcta
     7861 ttacgccagc tggcgaaagg gggatgtgct gcaaggcgat taagttgggt aacgccaggg
     7921 ttttcccagt cacgacgttg taaaacgacg gccagtgcca agctg
//
