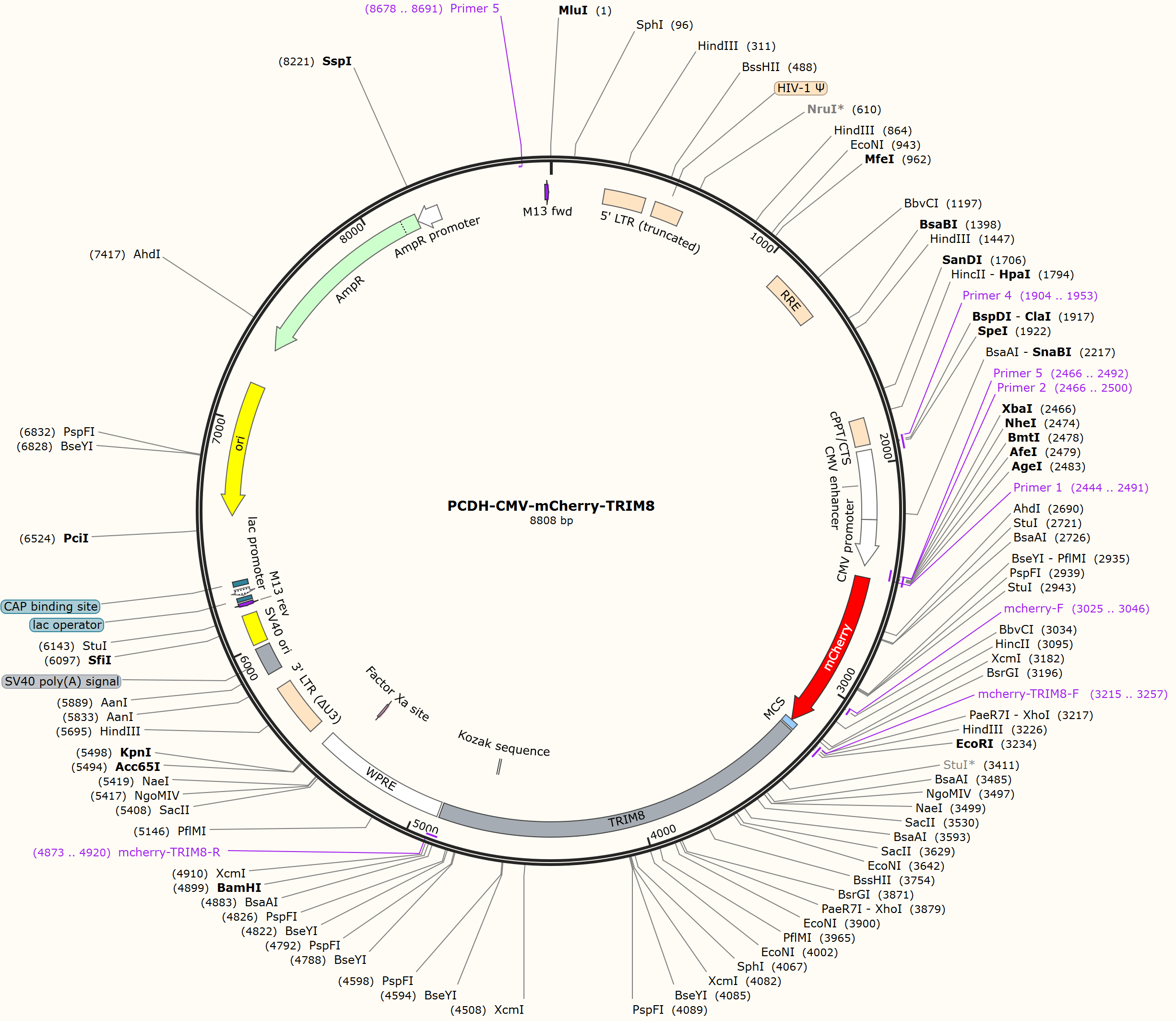

PCDH-CMV-mCherry-TRIM8

LOCUS       PCDH-CMV-mCherry-TRIM8            8808 bp DNA     circular SYN 20-JUN-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8808)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8808
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3215..3257
                     /label=mcherry-TRIM8-F
     misc_feature    3240..4895
                     /label=TRIM8
     regulatory      4679..4688
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(4873..4920)
                     /label=mcherry-TRIM8-R
     misc_feature    4905..5492
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5376..5387)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5565..5798
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5870..5991
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6010..6145
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6183..6199)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6207..6223
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6231..6261)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6276..6297
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6585..7173)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7344..8204)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8205..8309)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8678..8691)
                     /label=Primer 5
     primer_bind     8783..8799
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggcggagaa ttggaagaac tgcttcgagg aggagctcat ctgccctatc tgcctgcacg
     3301 ttttcgtgga gccagtgcag ctgccgtgca aacacaactt ctgccggggc tgcatcggcg
     3361 aggcgtgggc caaggacagc ggcctcgtac gctgcccaga gtgcaaccag gcctacaacc
     3421 agaagccggg cctggagaag aacctgaagc tcaccaacat cgtggagaag ttcaatgccc
     3481 tgcacgtgga gaagccgccg gcggcgctgc actgcgtgtt ctgccgccgc ggccccccgc
     3541 tgcccgcgca gaaggtctgc ctgcgctgcg aggcgccctg ctgccagtcc cacgtgcaga
     3601 cgcacctgca gcagccctcc accgcccgcg ggcacctcct ggtggaggcg gacgacgtgc
     3661 gggcctggag ctgcccgcag cacaacgcct accgcctcta ccactgcgag gccgagcagg
     3721 tggccgtgtg ccagtactgc tgctactaca gcggcgcgca tcagggacac tcggtgtgcg
     3781 acgtggagat ccgaaggaat gaaatccgga agatgctcat gaagcagcag gaccggctgg
     3841 aggagcgaga gcaggacatt gaggaccagc tgtacaaact cgagtcagac aagcgcctgg
     3901 tggaggagaa agtgaaccaa ctgaaggagg aagttcggct gcagtacgag aagctgcacc
     3961 agctgctgga cgaggacctg cggcagacag tggaggtcct agacaaggcc caggccaagt
     4021 tctgcagcga gaacgcagcg caggcgctgc acctcgggga gcgcatgcag gaggccaaga
     4081 agctgctggg ctccctgcag ctgctctttg ataagacgga ggatgtcagc ttcatgaaga
     4141 acaccaagtc tgtgaaaatc ctgatggaca ggacccagac ctgcacgagc agcagccttt
     4201 cccccactaa gatcggccac ctgaactcca agctcttcct gaacgaagtg gccaagaagg
     4261 agaagcagct gcggaaaatg ctagaaggcc ccttcagcac gccggtgccc ttcctgcaga
     4321 gtgtccccct gtacccttgc ggcgtgagca gctctggggc ggaaaagcgc aagcactcaa
     4381 cggccttccc agaggccagt ttcctagaga cgtcgtcggg ccctgtgggc ggccagtacg
     4441 gggcggcggg cacagccagc ggtgagggcc agtctgggca gcccctgggg ccctgcagct
     4501 ccacgcagca cttggtggcc ctgccgggcg gcgcccaacc agtgcactca agccccgtgt
     4561 tccccccatc gcagtatccc aatggctccg ccgcccagca gcccatgctc ccccagtatg
     4621 gcggccgcaa gattctcgtc tgttctgtgg acaactgtta ctgttcttcc gtggccaacc
     4681 atggcggcca ccagccctac ccccgctccg gccactttcc ctggacagtg ccctcgcagg
     4741 agtactcaca cccgctcccg cccacaccct ccgtccccca gtcccttccc agcctggcgg
     4801 tcagagactg gcttgacgcc tcccagcagc ccggccacca ggatttctac agggtgtatg
     4861 ggcagccgtc caccaaacac tacgtgacga gctaataggg atccaatcaa cctctggatt
     4921 acaaaatttg tgaaagattg actggtattc ttaactatgt tgctcctttt acgctatgtg
     4981 gatacgctgc tttaatgcct ttgtatcatg ctattgcttc ccgtatggct ttcattttct
     5041 cctccttgta taaatcctgg ttgctgtctc tttatgagga gttgtggccc gttgtcaggc
     5101 aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc cactggttgg ggcattgcca
     5161 ccacctgtca gctcctttcc gggactttcg ctttccccct ccctattgcc acggcggaac
     5221 tcatcgccgc ctgccttgcc cgctgctgga caggggctcg gctgttgggc actgacaatt
     5281 ccgtggtgtt gtcggggaag ctgacgtcct ttccatggct gctcgcctgt gttgccacct
     5341 ggattctgcg cgggacgtcc ttctgctacg tcccttcggc cctcaatcca gcggaccttc
     5401 cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg tctccgcctt cgccctcaga
     5461 cgagtcggat ctccctttgg ccgcctcccc gccggtacct ttaagaccaa tgacttacaa
     5521 ggcagctgta gatcttagcc actttttaaa agaaaagggg ggactggaag ggctaattca
     5581 ctcccaacga aaataagatc tgctttttgc ttgtactggg tctctctggt tagaccagat
     5641 ctgagcctgg gagctctctg gctaactagg gaacccactg cttaagcctc aataaagctt
     5701 gccttgagtg cttcaagtag tgtgtgcccg tctgttgtgt gactctggta actagagatc
     5761 cctcagaccc ttttagtcag tgtggaaaat ctctagcagt agtagttcat gtcatcttat
     5821 tattcagtat ttataacttg caaagaaatg aatatcagag agtgagagga acttgtttat
     5881 tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt
     5941 tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt atcatgtctg
     6001 gctctagcta tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     6061 ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct attccagaag
     6121 tagtgaggag gcttttttgg aggcctagac ttttgcagag acggcccaaa ttcgtaatca
     6181 tggtcatagc tgtttcctgt gtgaaattgt tatccgctca caattccaca caacatacga
     6241 gccggaagca taaagtgtaa agcctggggt gcctaatgag tgagctaact cacattaatt
     6301 gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt cgtgccagct gcattaatga
     6361 atcggccaac gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc
     6421 actgactcgc tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg
     6481 gtaatacggt tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc
     6541 cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc
     6601 ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga
     6661 ctataaagat accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc
     6721 ctgccgctta ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat
     6781 agctcacgct gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg
     6841 cacgaacccc ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc
     6901 aacccggtaa gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga
     6961 gcgaggtatg taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact
     7021 agaaggacag tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt
     7081 ggtagctctt gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag
     7141 cagcagatta cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg
     7201 tctgacgctc agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa
     7261 aggatcttca cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata
     7321 tatgagtaaa cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg
     7381 atctgtctat ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata
     7441 cgggagggct taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg
     7501 gctccagatt tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct
     7561 gcaactttat ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt
     7621 tcgccagtta atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc
     7681 tcgtcgtttg gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga
     7741 tcccccatgt tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt
     7801 aagttggccg cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc
     7861 atgccatccg taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa
     7921 tagtgtatgc ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca
     7981 catagcagaa ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca
     8041 aggatcttac cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct
     8101 tcagcatctt ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc
     8161 gcaaaaaagg gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa
     8221 tattattgaa gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt
     8281 tagaaaaata aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc
     8341 taagaaacca ttattatcat gacattaacc tataaaaata ggcgtatcac gaggcccttt
     8401 cgtctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct cccggagacg
     8461 gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg cgcgtcagcg
     8521 ggtgttggcg ggtgtcgggg ctggcttaac tatgcggcat cagagcagat tgtactgaga
     8581 gtgcaccata tgcggtgtga aataccgcac agatgcgtaa ggagaaaata ccgcatcagg
     8641 cgccattcgc cattcaggct gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg
     8701 ctattacgcc agctggcgaa agggggatgt gctgcaaggc gattaagttg ggtaacgcca
     8761 gggttttccc agtcacgacg ttgtaaaacg acggccagtg ccaagctg
//
