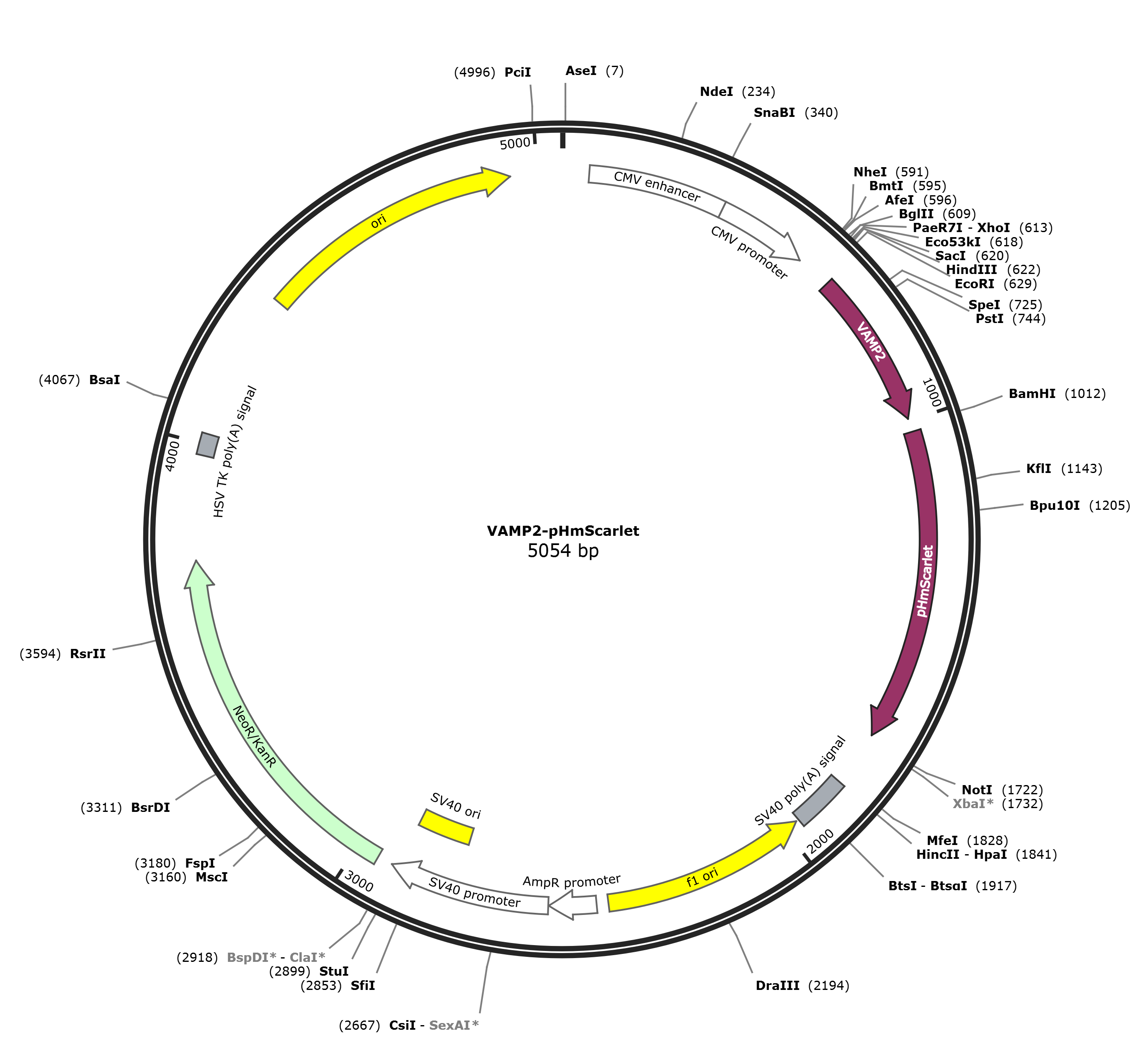

VAMP2-pHmScarlet

LOCUS       VAMP2-pHmScarlet              5054 bp DNA     circular SYN 15-JAN-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    VAMP2-pHmScarlet
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5054)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5054
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             647..994
                     /codon_start=1
                     /label=VAMP2
                     /translation="MSATAATVPPAAPAGEGGPPAPPPNLTSNRRLQQTQAQVDEVVDI
                     MRVNVDKVLERDQKLSELDDRADALQAGASQFETSAAKLKRKYWWKNLKMMIILGVICA
                     IILIIIIVYFST"
     CDS             1025..1717
                     /codon_start=1
                     /label=pHmScarlet
                     /translation="VSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTAK
                     LKVTKGGPLPFSWDILSPQFMYGSRAFIKHPADIPDYYKQSFPEGFKWERVMNFEDGGA
                     VTVTQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASCERLYPEDGVLKGDILK
                     VLRLKDGGRYLADFKTTYKAKKPVQMPGAYNVDRQLTITSHNEDYTVVEQYERSEGRHS
                     TGGMDELYK"
     polyA_signal    1842..1963
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1970..2425)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2452..2556
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2558..2915
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2766..2901
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2950..3744
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3976..4023
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4352..4940
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attcacgcgt gccaccatgt cggctaccgc
      661 tgccaccgtc ccgcctgccg ccccggccgg cgagggtggc ccccctgcac ctcctccaaa
      721 ccttactagt aacaggagac tgcagcagac ccaggcccag gtggatgagg tggtggacat
      781 catgagggtg aatgtggaca aggtcctgga gcgggaccag aagttgtcgg agctggatga
      841 ccgtgcagat gccctccagg caggggcctc ccagtttgaa acaagtgcag ccaagctcaa
      901 gcgcaaatac tggtggaaaa acctcaagat gatgatcatc ttgggagtga tctgcgccat
      961 catcctcatc atcatcatcg tttacttcag cactagcggc ggaagcggcg gggatcccac
     1021 catggtgagc aagggagagg ccgtgatcaa ggagttcatg agattcaagg tgcacatgga
     1081 gggaagcatg aacggacacg agttcgagat cgagggcgag ggcgagggaa ggccatacga
     1141 ggggacccag acagcaaagc tgaaggtgac aaagggcgga cccctgcctt ttagctggga
     1201 catcctgagc ccacaattta tgtatggcag cagagccttt attaagcacc ccgccgacat
     1261 ccccgactac tacaaacaat cctttcccga gggctttaaa tgggaacggg tgatgaactt
     1321 cgaagacggc ggcgccgtga ccgtgaccca ggataccagc ctggaagacg gaaccctgat
     1381 ctacaaagtg aagctcagag gcaccaactt cccccccgac ggccccgtta tgcagaagaa
     1441 gacaatgggt tgggaggcca gctgtgagag actctacccc gaggacggcg tgctcaaggg
     1501 cgacattttg aaagttctgc gcctgaagga cggcggaaga tacctggccg acttcaagac
     1561 cacctacaag gccaaaaagc ccgtgcagat gcccggcgca tacaacgtgg acagacagct
     1621 gacgataacc agccacaacg aagactacac cgtggtggag caatacgaga gaagcgaagg
     1681 aaggcacagc acaggaggca tggatgagct gtataaataa gcggccgcga ctctagatca
     1741 taatcagcca taccacattt gtagaggttt tacttgcttt aaaaaacctc ccacacctcc
     1801 ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt taacttgttt attgcagctt
     1861 ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac
     1921 tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttaacgcgta aattgtaagc
     1981 gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa tcagctcatt ttttaaccaa
     2041 taggccgaaa tcggcaaaat cccttataaa tcaaaagaat agaccgagat agggttgagt
     2101 gttgttccag tttggaacaa gagtccacta ttaaagaacg tggactccaa cgtcaaaggg
     2161 cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac catcacccta atcaagtttt
     2221 ttggggtcga ggtgccgtaa agcactaaat cggaacccta aagggagccc ccgatttaga
     2281 gcttgacggg gaaagccggc gaacgtggcg agaaaggaag ggaagaaagc gaaaggagcg
     2341 ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg taaccaccac acccgccgcg
     2401 cttaatgcgc cgctacaggg cgcgtcaggt ggcacttttc ggggaaatgt gcgcggaacc
     2461 cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc
     2521 tgataaatgc ttcaataata ttgaaaaagg aagagtcctg aggcggaaag aaccagctgt
     2581 ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     2641 aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc tccccagcag
     2701 gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg cccctaactc
     2761 cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat ggctgactaa
     2821 ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc cagaagtagt
     2881 gaggaggctt ttttggaggc ctaggctttt gcaaagatcg atcaagagac aggatgagga
     2941 tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag
     3001 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc
     3061 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg
     3121 aatgaactgc aagacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc
     3181 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg
     3241 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct
     3301 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg
     3361 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat
     3421 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgagc
     3481 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg
     3541 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc
     3601 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct
     3661 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat
     3721 cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga
     3781 cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct
     3841 tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg
     3901 agttcttcgc ccaccctagg gggaggctaa ctgaaacacg gaaggagaca ataccggaag
     3961 gaacccgcgc tatgacggca ataaaaagac agaataaaac gcacggtgtt gggtcgtttg
     4021 ttcataaacg cggggttcgg tcccagggct ggcactctgt cgatacccca ccgagacccc
     4081 attggggcca atacgcccgc gtttcttcct tttccccacc ccacccccca agttcgggtg
     4141 aaggcccagg gctcgcagcc aacgtcgggg cggcaggccc tgccatagcc tcaggttact
     4201 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
     4261 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
     4321 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
     4381 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
     4441 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgtcc
     4501 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
     4561 tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg
     4621 ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt
     4681 cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg
     4741 agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg
     4801 gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt
     4861 atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag
     4921 gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt
     4981 gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta
     5041 ttaccgccat gcat
//
