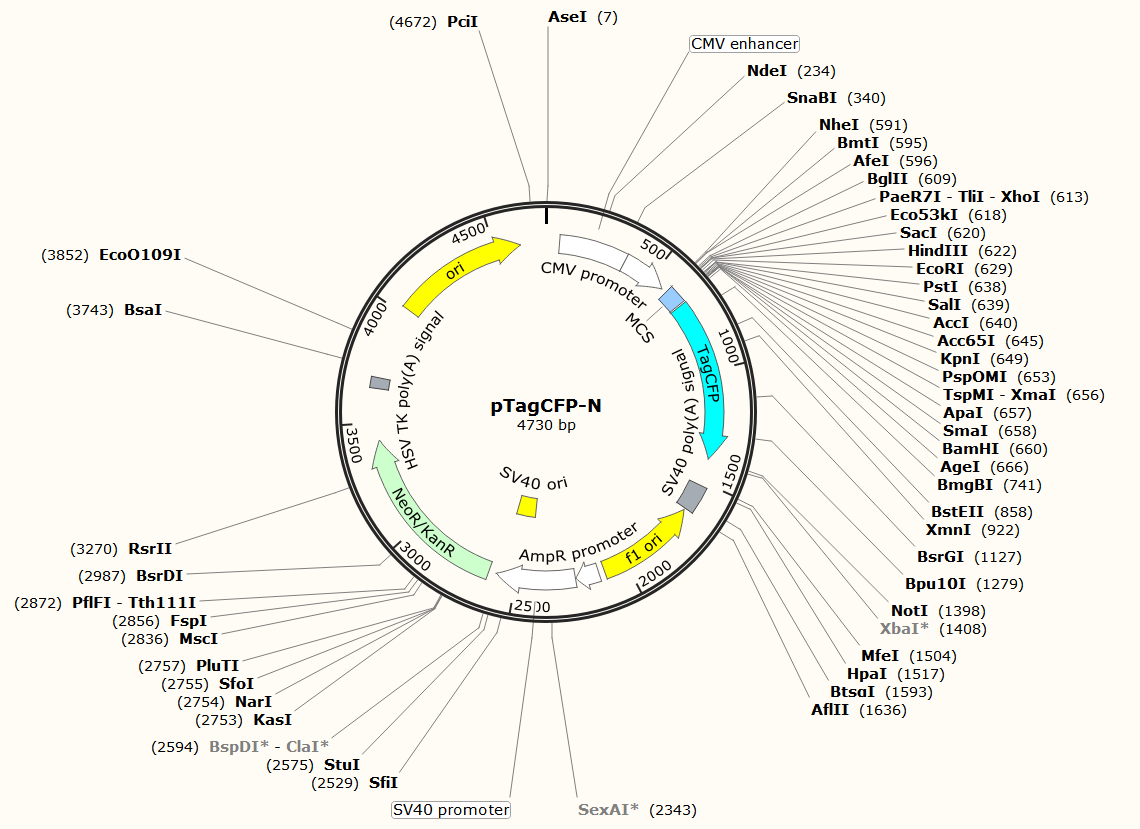

pTagCFP-N

LOCUS       pTagCFP-N                4730 bp ds-DNA     circular SYN 04-JAN-2013
DEFINITION  Vector for fusing TagCFP to the C-terminus of a partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    pTagCFP-N
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4730)
  AUTHORS   Evrogen
  TITLE     Direct Submission
  JOURNAL   Exported Tuesday, February 18, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4730
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        61..364
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    591..671
                     /note="MCS"
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     CDS             679..1395
                     /codon_start=1
                     /product="monomeric cyan fluorescent protein"
                     /note="TagCFP"
                     /note="mammalian codon-optimized"
                     /translation="MSGGEELFAGIVPVLIELDGDVHGHKFSVRGEGEGDADYGKLEIK
                     FICTTGKLPVPWPTLVTTLAWGIQCFARYPEHMKMNDFFKSAMPEGYIQERTIHFQDDG
                     KYKTRGEVKFEGDTLVNRVELKGEGFKEDGNILGHKLEYSAISDNVYIMPDKANNGLEA
                     NFKIRHNIEGGGVQLADHYQTNVPLGDGPVLIPINHYLSCQSAISKDRNEARDHMVLLE
                     SFSAYCHTHGMDELYR"
     polyA_signal    1518..1639
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1646..2101)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2128..2232
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        2234..2591
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      2442..2577
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2626..3420
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3652..3699
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      4028..4616
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggactcag atctcgagct caagcttcga attctgcagt cgacggtacc gcgggcccgg
      661 gatccaccgg tcgccaccat gagcgggggc gaggagctgt tcgctggcat cgtgcccgtg
      721 ctgatcgagc tggacggcga cgtgcacggc cacaagttca gcgtgcgcgg tgagggagag
      781 ggcgacgccg actacggcaa gctggagatc aagttcatct gcaccaccgg caagctgccc
      841 gtgccctggc ccaccctggt gaccaccctc gcctggggca tccagtgctt cgcccgctac
      901 cccgagcaca tgaagatgaa cgacttcttc aagagcgcca tgcccgaggg ctacatccag
      961 gagcgcacca tccacttcca ggacgacggc aagtacaaga cccgcggcga ggtgaagttc
     1021 gagggcgaca ccctggtgaa ccgcgtcgag ctgaagggcg agggcttcaa ggaggacggc
     1081 aacatcctgg gccacaagtt ggagtacagc gccatcagcg acaacgtgta catcatgccc
     1141 gacaaggcca acaacggcct ggaggcgaac ttcaagatcc gccacaacat cgagggcggc
     1201 ggcgtgcagc tggccgacca ctaccagacc aacgtgcccc tgggcgatgg ccccgtgctg
     1261 atccccatca accactacct gagctgccag tccgccatca gcaaggaccg caacgaagcc
     1321 cgcgaccaca tggtgctcct ggagtccttc agcgcctact gccacaccca cggcatggac
     1381 gagctgtacc gctaaagcgg ccgcgactct agatcataat cagccatacc acatttgtag
     1441 aggttttact tgctttaaaa aacctcccac acctccccct gaacctgaaa cataaaatga
     1501 atgcaattgt tgttgttaac ttgtttattg cagcttataa tggttacaaa taaagcaata
     1561 gcatcacaaa tttcacaaat aaagcatttt tttcactgca ttctagttgt ggtttgtcca
     1621 aactcatcaa tgtatcttaa ggcgtaaatt gtaagcgtta atattttgtt aaaattcgcg
     1681 ttaaattttt gttaaatcag ctcatttttt aaccaatagg ccgaaatcgg caaaatccct
     1741 tataaatcaa aagaatagac cgagataggg ttgagtgttg ttccagtttg gaacaagagt
     1801 ccactattaa agaacgtgga ctccaacgtc aaagggcgaa aaaccgtcta tcagggcgat
     1861 ggcccactac gtgaaccatc accctaatca agttttttgg ggtcgaggtg ccgtaaagca
     1921 ctaaatcgga accctaaagg gagcccccga tttagagctt gacggggaaa gccggcgaac
     1981 gtggcgagaa aggaagggaa gaaagcgaaa ggagcgggcg ctagggcgct ggcaagtgta
     2041 gcggtcacgc tgcgcgtaac caccacaccc gccgcgctta atgcgccgct acagggcgcg
     2101 tcaggtggca cttttcgggg aaatgtgcgc ggaaccccta tttgtttatt tttctaaata
     2161 cattcaaata tgtatccgct catgagacaa taaccctgat aaatgcttca ataatattga
     2221 aaaaggaaga gtcctgaggc ggaaagaacc agctgtggaa tgtgtgtcag ttagggtgtg
     2281 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag
     2341 caaccaggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc
     2401 tcaattagtc agcaaccata gtcccgcccc taactccgcc catcccgccc ctaactccgc
     2461 ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat gcagaggccg
     2521 aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt ggaggcctag
     2581 gcttttgcaa agatcgatca agagacagga tgaggatcgt ttcgcatgat tgaacaagat
     2641 ggattgcacg caggttctcc ggccgcttgg gtggagaggc tattcggcta tgactgggca
     2701 caacagacaa tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg
     2761 gttctttttg tcaagaccga cctgtccggt gccctgaatg aactgcaaga cgaggcagcg
     2821 cggctatcgt ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact
     2881 gaagcgggaa gggactggct gctattgggc gaagtgccgg ggcaggatct cctgtcatct
     2941 caccttgctc ctgccgagaa agtatccatc atggctgatg caatgcggcg gctgcatacg
     3001 cttgatccgg ctacctgccc attcgaccac caagcgaaac atcgcatcga gcgagcacgt
     3061 actcggatgg aagccggtct tgtcgatcag gatgatctgg acgaagagca tcaggggctc
     3121 gcgccagccg aactgttcgc caggctcaag gcgagcatgc ccgacggcga ggatctcgtc
     3181 gtgacccatg gcgatgcctg cttgccgaat atcatggtgg aaaatggccg cttttctgga
     3241 ttcatcgact gtggccggct gggtgtggcg gaccgctatc aggacatagc gttggctacc
     3301 cgtgatattg ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt gctttacggt
     3361 atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga
     3421 gcgggactct ggggttcgaa atgaccgacc aagcgacgcc caacctgcca tcacgagatt
     3481 tcgattccac cgccgccttc tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg
     3541 gctggatgat cctccagcgc ggggatctca tgctggagtt cttcgcccac cctaggggga
     3601 ggctaactga aacacggaag gagacaatac cggaaggaac ccgcgctatg acggcaataa
     3661 aaagacagaa taaaacgcac ggtgttgggt cgtttgttca taaacgcggg gttcggtccc
     3721 agggctggca ctctgtcgat accccaccga gaccccattg gggccaatac gcccgcgttt
     3781 cttccttttc cccaccccac cccccaagtt cgggtgaagg cccagggctc gcagccaacg
     3841 tcggggcggc aggccctgcc atagcctcag gttactcata tatactttag attgatttaa
     3901 aacttcattt ttaatttaaa aggatctagg tgaagatcct ttttgataat ctcatgacca
     3961 aaatccctta acgtgagttt tcgttccact gagcgtcaga ccccgtagaa aagatcaaag
     4021 gatcttcttg agatcctttt tttctgcgcg taatctgctg cttgcaaaca aaaaaaccac
     4081 cgctaccagc ggtggtttgt ttgccggatc aagagctacc aactcttttt ccgaaggtaa
     4141 ctggcttcag cagagcgcag ataccaaata ctgtccttct agtgtagccg tagttaggcc
     4201 accacttcaa gaactctgta gcaccgccta catacctcgc tctgctaatc ctgttaccag
     4261 tggctgctgc cagtggcgat aagtcgtgtc ttaccgggtt ggactcaaga cgatagttac
     4321 cggataaggc gcagcggtcg ggctgaacgg ggggttcgtg cacacagccc agcttggagc
     4381 gaacgaccta caccgaactg agatacctac agcgtgagct atgagaaagc gccacgcttc
     4441 ccgaagggag aaaggcggac aggtatccgg taagcggcag ggtcggaaca ggagagcgca
     4501 cgagggagct tccaggggga aacgcctggt atctttatag tcctgtcggg tttcgccacc
     4561 tctgacttga gcgtcgattt ttgtgatgct cgtcaggggg gcggagccta tggaaaaacg
     4621 ccagcaacgc ggccttttta cggttcctgg ccttttgctg gccttttgct cacatgttct
     4681 ttcctgcgtt atcccctgat tctgtggata accgtattac cgccatgcat
//
