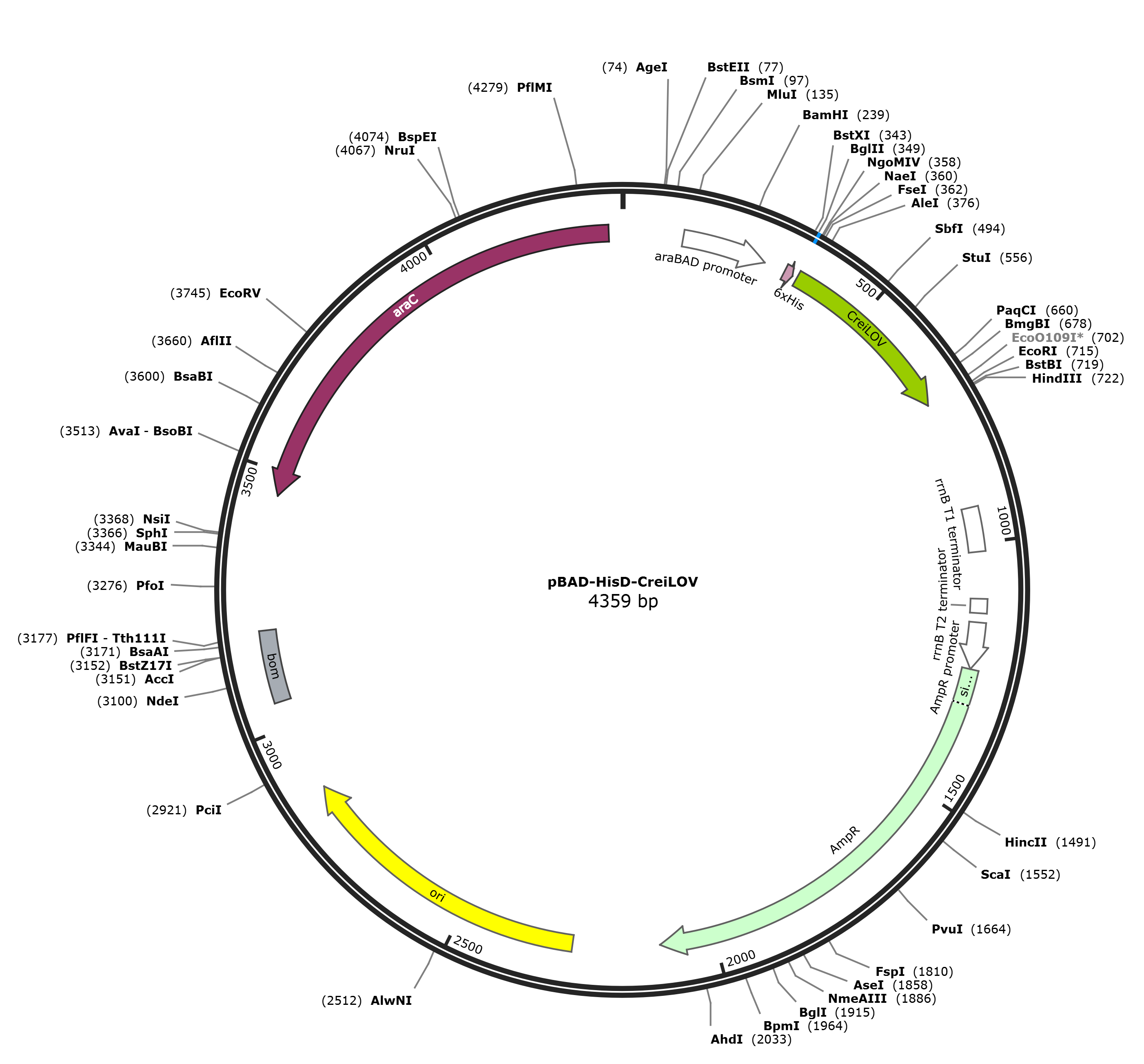

pBAD-HisD-CreiLOV

LOCUS       pBAD-HisD-CreiLOV               4359 bp DNA     circular SYN 04-OCT-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4359)
  AUTHORS   Kiryl Piatkevich
  TITLE     Direct Submission
  JOURNAL   Exported Apr 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4359
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        120..285
                     /gene="araBAD"
                     /label=araBAD promoter
                     /note="promoter of the L-arabinose operon of E. coli; the
                     araC regulatory gene is transcribed in the opposite
                     direction"
     CDS             328..345
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /label=6xHis
                     /translation="HHHHHH"
     misc_feature    355..714
                     /label=CreiLOV
     terminator      930..1016
                     /gene="Escherichia coli rrnB"
                     /label=rrnB T1 terminator
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     terminator      1108..1135
                     /label=rrnB T2 terminator
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        1154..1245
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1246..2106
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2277..2865
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     misc_feature    3051..3191
                     /label=bom
                     /note="basis of mobility region from pBR322"
     CDS             complement(3455..4333)
                     /codon_start=1
                     /gene="araC"
                     /product="L-arabinose regulatory protein"
                     /label=araC
                     /translation="MAEAQNDPLLPGYSFNAHLVAGLTPIEANGYLDFFIDRPLGMKGY
                     ILNLTIRGQGVVKNQGREFVCRPGDILLFPPGEIHHYGRHPEAREWYHQWVYFRPRAYW
                     HEWLNWPSIFANTGFFRPDEAHQPHFSDLFGQIINAGQGEGRYSELLAINLLEQLLLRR
                     MEAINESLHPPMDNRVREACQYISDHLADSNFDIASVAQHVCLSPSRLSHLFRQQLGIS
                     VLSWREDQRISQAKLLLSTTRMPIATVGRNVGFDDQLYFSRVFKKCTGASPSEFRAGCE
                     EKVNDVAVKLS"
ORIGIN
        1 aagaaaccaa ttgtccatat tgcatcagac attgccgtca ctgcgtcttt tactggctct
       61 tctcgctaac caaaccggta accccgctta ttaaaagcat tctgtaacaa agcgggacca
      121 aagccatgac aaaaacgcgt aacaaaagtg tctataatca cggcagaaaa gtccacattg
      181 attatttgca cggcgtcaca ctttgctatg ccatagcatt tttatccata agattagcgg
      241 atcctacctg acgcttttta tcgcaactct ctactgtttc tccatacccg ttttttgggc
      301 taacaggagg aattaaccat ggggagccac catcaccatc accatggcag atctatggcc
      361 ggcctgagac acaccttcgt ggtggccgac gccaccctgc ccgactgccc cctggtgtac
      421 gccagcgagg gcttctacgc catgaccggc tacggccccg acgaggtgct gggccacaac
      481 gccagattcc tgcagggcga gggcaccgac cccaaggagg tgcagaagat cagagacgcc
      541 atcaagaagg gcgaggcctg cagcgtgaga ctgctgaact acagaaagga cggcaccccc
      601 ttctggaacc tgctgaccgt gacccccatc aagacccccg acggcagagt gagcaagttc
      661 gtgggcgtgc aggtggacgt gaccagcaag accgagggca aggccctggc ctaagaattc
      721 gaagcttggc tgttttggcg gatgagagaa gattttcagc ctgatacaga ttaaatcaga
      781 acgcagaagc ggtctgataa aacagaattt gcctggcggc agtagcgcgg tggtcccacc
      841 tgaccccatg ccgaactcag aagtgaaacg ccgtagcgcc gatggtagtg tggggtctcc
      901 ccatgcgaga gtagggaact gccaggcatc aaataaaacg aaaggctcag tcgaaagact
      961 gggcctttcg ttttatctgt tgtttgtcgg tgaacgctct cctgagtagg acaaatccgc
     1021 cgggagcgga tttgaacgtt gcgaagcaac ggcccggagg gtggcgggca ggacgcccgc
     1081 cataaactgc caggcatcaa attaagcaga aggccatcct gacggatggc ctttttgcgt
     1141 ttctacaaac tcttttgttt atttttctaa atacattcaa atatgtatcc gctcatgaga
     1201 caataaccct gataaatgct tcaataatat tgaaaaagga agagtatgag tattcaacat
     1261 ttccgtgtcg cccttattcc cttttttgcg gcattttgcc ttcctgtttt tgctcaccca
     1321 gaaacgctgg tgaaagtaaa agatgctgaa gatcagttgg gtgcacgagt gggttacatc
     1381 gaactggatc tcaacagcgg taagatcctt gagagttttc gccccgaaga acgttttcca
     1441 atgatgagca cttttaaagt tctgctatgt ggcgcggtat tatcccgtgt tgacgccggg
     1501 caagagcaac tcggtcgccg catacactat tctcagaatg acttggttga gtactcacca
     1561 gtcacagaaa agcatcttac ggatggcatg acagtaagag aattatgcag tgctgccata
     1621 accatgagtg ataacactgc ggccaactta cttctgacaa cgatcggagg accgaaggag
     1681 ctaaccgctt ttttgcacaa catgggggat catgtaactc gccttgatcg ttgggaaccg
     1741 gagctgaatg aagccatacc aaacgacgag cgtgacacca cgatgcctgt agcaatggca
     1801 acaacgttgc gcaaactatt aactggcgaa ctacttactc tagcttcccg gcaacaatta
     1861 atagactgga tggaggcgga taaagttgca ggaccacttc tgcgctcggc ccttccggct
     1921 ggctggttta ttgctgataa atctggagcc ggtgagcgtg ggtctcgcgg tatcattgca
     1981 gcactggggc cagatggtaa gccctcccgt atcgtagtta tctacacgac ggggagtcag
     2041 gcaactatgg atgaacgaaa tagacagatc gctgagatag gtgcctcact gattaagcat
     2101 tggtaactgt cagaccaagt ttactcatat atactttaga ttgatttaaa acttcatttt
     2161 taatttaaaa ggatctaggt gaagatcctt tttgataatc tcatgaccaa aatcccttaa
     2221 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
     2281 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
     2341 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
     2401 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
     2461 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
     2521 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
     2581 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
     2641 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
     2701 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
     2761 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
     2821 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
     2881 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
     2941 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
     3001 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
     3061 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatggtgcac tctcagtaca
     3121 atctgctctg atgccgcata gttaagccag tatacactcc gctatcgcta cgtgactggg
     3181 tcatggctgc gccccgacac ccgccaacac ccgctgacgc gccctgacgg gcttgtctgc
     3241 tcccggcatc cgcttacaga caagctgtga ccgtctccgg gagctgcatg tgtcagaggt
     3301 tttcaccgtc atcaccgaaa cgcgcgaggc agcagatcaa ttcgcgcgcg aaggcgaagc
     3361 ggcatgcata atgtgcctgt caaatggacg aagcagggat tctgcaaacc ctatgctact
     3421 ccgtcaagcc gtcaattgtc tgattcgtta ccaattatga caacttgacg gctacatcat
     3481 tcactttttc ttcacaaccg gcacggaact cgctcgggct ggccccggtg cattttttaa
     3541 atacccgcga gaaatagagt tgatcgtcaa aaccaacatt gcgaccgacg gtggcgatag
     3601 gcatccgggt ggtgctcaaa agcagcttcg cctggctgat acgttggtcc tcgcgccagc
     3661 ttaagacgct aatccctaac tgctggcgga aaagatgtga cagacgcgac ggcgacaagc
     3721 aaacatgctg tgcgacgctg gcgatatcaa aattgctgtc tgccaggtga tcgctgatgt
     3781 actgacaagc ctcgcgtacc cgattatcca tcggtggatg gagcgactcg ttaatcgctt
     3841 ccatgcgccg cagtaacaat tgctcaagca gatttatcgc cagcagctcc gaatagcgcc
     3901 cttccccttg cccggcgtta atgatttgcc caaacaggtc gctgaaatgc ggctggtgcg
     3961 cttcatccgg gcgaaagaac cccgtattgg caaatattga cggccagtta agccattcat
     4021 gccagtaggc gcgcggacga aagtaaaccc actggtgata ccattcgcga gcctccggat
     4081 gacgaccgta gtgatgaatc tctcctggcg ggaacagcaa aatatcaccc ggtcggcaaa
     4141 caaattctcg tccctgattt ttcaccaccc cctgaccgcg aatggtgaga ttgagaatat
     4201 aacctttcat tcccagcggt cggtcgataa aaaaatcgag ataaccgttg gcctcaatcg
     4261 gcgttaaacc cgccaccaga tgggcattaa acgagtatcc cggcagcagg ggatcatttt
     4321 gcgcttcagc catacttttc atactcccgc cattcagag
//
