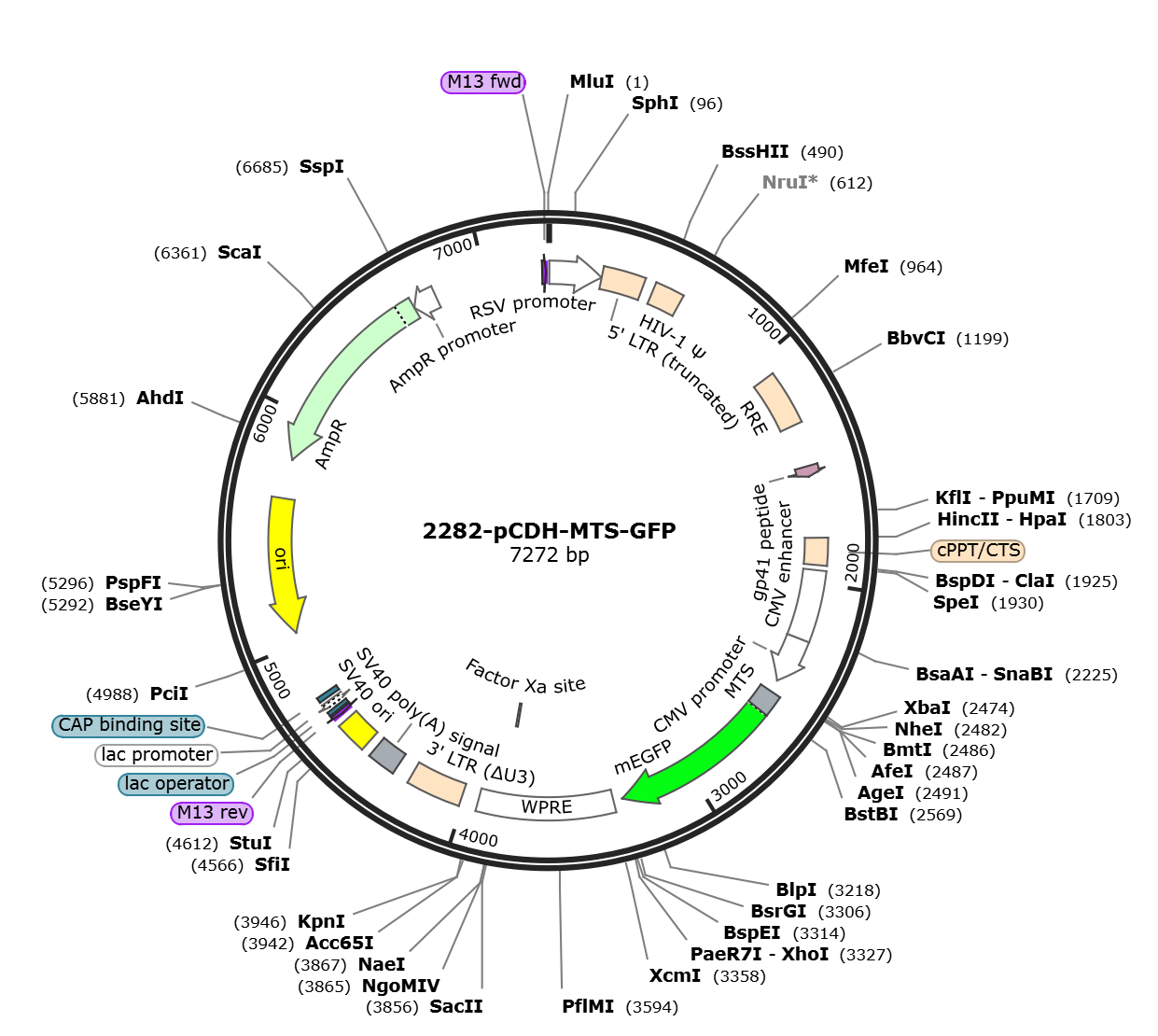

pCDH-MTS-GFP

LOCUS       pCDH-MTS-GFP             7272 bp DNA     circular SYN 09-MAY-2026
DEFINITION  contig1 circular.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7272)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7272
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        6..232
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             233..413
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    460..585
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1078..1311
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     CDS             1496..1540
                     /codon_start=1
                     /product="antigenic peptide corresponding to amino acids
                     655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik
                     et al., 2013)"
                     /label=gp41 peptide
                     /note="recognized by the 2H10 single-chain llama nanobody"
                     /translation="KNEQELLELDKWASL"
     misc_feature    1807..1923
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1946..2249
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2250..2453
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    2507..2599
                     /label=MTS
     CDS             2600..3313
                     /codon_start=1
                     /product="enhanced GFP with monomerizing A206K mutation
                     (Zacharias et al., 2002)"
                     /label=mEGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     misc_feature    3353..3940
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3824..3835)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4013..4246
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4318..4439
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4479..4614
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4647..4663)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4671..4687
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4695..4725)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4740..4761
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5049..5637)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5808..6668)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6669..6773)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7247..7263
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacataa acgggtctct
      241 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
      301 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
      361 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtggcgc
      421 ccgaacaggg acttgaaagc gaaagggaaa ccagaggagc tctctcgacg caggactcgg
      481 cttgctgaag cgcgcacggc aagaggcgag gggcggcgac tggtgagtac gccaaaaatt
      541 ttgactagcg gaggctagaa ggagagagat gggtgcgaga gcgtcagtat taagcggggg
      601 agaattagat cgcgatggga aaaaattcgg ttaaggccag ggggaaagaa aaaatataaa
      661 ttaaaacata tagtatgggc aagcagggag ctagaacgat tcgcagttaa tcctggcctg
      721 ttagaaacat cagaaggctg tagacaaata ctgggacagc tacaaccatc ccttcagaca
      781 ggatcagaag aacttagatc attatataat acagtagcaa ccctctattg tgtgcatcaa
      841 aggatagaga taaaagacac caaggaagct ttagacaaga tagaggaaga gcaaaacaaa
      901 agtaagacca ccgcacagca agcggccact gatcttcaga cctggaggag gagatatgag
      961 ggacaattgg agaagtgaat tatataaata taaagtagta aaaattgaac cattaggagt
     1021 agcacccacc aaggcaaaga gaagagtggt gcagagagaa aaaagagcag tgggaatagg
     1081 agctttgttc cttgggttct tgggagcagc aggaagcact atgggcgcag cgtcaatgac
     1141 gctgacggta caggccagac aattattgtc tggtatagtg cagcagcaga acaatttgct
     1201 gagggctatt gaggcgcaac agcatctgtt gcaactcaca gtctggggca tcaagcagct
     1261 ccaggcaaga atcctggctg tggaaagata cctaaaggat caacagctcc tggggatttg
     1321 gggttgctct ggaaaactca tttgcaccac tgctgtgcct tggaatgcta gttggagtaa
     1381 taaatctctg gaacagattt ggaatcacac gacctggatg gagtgggaca gagaaattaa
     1441 caattacaca agcttaatac actccttaat tgaagaatcg caaaaccagc aagaaaagaa
     1501 tgaacaagaa ttattggaat tagataaatg ggcaagtttg tggaattggt ttaacataac
     1561 aaattggctg tggtatataa aattattcat aatgatagta ggaggcttgg taggtttaag
     1621 aatagttttt gctgtacttt ctatagtgaa tagagttagg cagggatatt caccattatc
     1681 gtttcagacc cacctcccaa ccccgagggg acccgacagg cccgaaggaa tagaagaaga
     1741 aggtggagag agagacagag acagatccat tcgattagtg aacggatctc gacggtatcg
     1801 gttaactttt aaaagaaaag gggggattgg ggggtacagt gcaggggaaa gaatagtaga
     1861 cataatagca acagacatac aaactaaaga attacaaaaa caaattacaa aattcaaaat
     1921 tttatcgata ctagttggag ttccgcgtta cataacttac ggtaaatggc ccgcctggct
     1981 gaccgcccaa cgacccccgc ccattgacgt caataatgac gtatgttccc atagtaacgc
     2041 caatagggac tttccattga cgtcaatggg tggagtattt acggtaaact gcccacttgg
     2101 cagtacatca agtgtatcat atgccaagta cgccccctat tgacgtcaat gacggtaaat
     2161 ggcccgcctg gcattatgcc cagtacatga ccttatggga ctttcctact tggcagtaca
     2221 tctacgtatt agtcatcgct attaccatgg tgatgcggtt ttggcagtac atcaatgggc
     2281 gtggatagcg gtttgactca cggggatttc caagtctcca ccccattgac gtcaatggga
     2341 gtttgttttg gcaccaaaat caacgggact ttccaaaatg tcgtaacaac tccgccccat
     2401 tgacgcaaat gggcggtagg cgtgtacggt gggaggtcta tataagcaga gctggtttag
     2461 tgaaccgtca gattctagac cgctagcgct accggtcgcc accatgctgt ttaatctgag
     2521 gatcctgtta aacaatgcag cttttagaaa tggtcacaac ttcatggttc gaaattttcg
     2581 gtgtggacaa ccactacaag tgagcaaggg cgaggagctg ttcaccgggg tggtgcccat
     2641 cctggtcgag ctggacggcg acgtaaacgg ccacaagttc agcgtgtccg gcgagggcga
     2701 gggcgatgcc acctacggca agctgaccct gaagttcatc tgcaccaccg gcaagctgcc
     2761 cgtgccctgg cccaccctcg tgaccaccct gacctacggc gtgcagtgct tcagccgcta
     2821 ccccgaccac atgaagcagc acgacttctt caagtccgcc atgcccgaag gctacgtcca
     2881 ggagcgcacc atcttcttca aggacgacgg caactacaag acccgcgccg aggtgaagtt
     2941 cgagggcgac accctggtga accgcatcga gctgaagggc atcgacttca aggaggacgg
     3001 caacatcctg gggcacaagc tggagtacaa ctacaacagc cacaacgtct atatcatggc
     3061 cgacaagcag aagaacggca tcaaggtgaa cttcaagatc cgccacaaca tcgaggacgg
     3121 cagcgtgcag ctcgccgacc actaccagca gaacaccccc atcggcgacg gccccgtgct
     3181 gctgcccgac aaccactacc tgagcaccca gtccaagctg agcaaagacc ccaacgagaa
     3241 gcgcgatcac atggtcctgc tggagttcgt gaccgccgcc gggatcactc tcggcatgga
     3301 cgagctgtac aagtccggac tcagatctcg agctcaagct tcgtagggat ccaatcaacc
     3361 tctggattac aaaatttgtg aaagattgac tggtattctt aactatgttg ctccttttac
     3421 gctatgtgga tacgctgctt taatgccttt gtatcatgct attgcttccc gtatggcttt
     3481 cattttctcc tccttgtata aatcctggtt gctgtctctt tatgaggagt tgtggcccgt
     3541 tgtcaggcaa cgtggcgtgg tgtgcactgt gtttgctgac gcaaccccca ctggttgggg
     3601 cattgccacc acctgtcagc tcctttccgg gactttcgct ttccccctcc ctattgccac
     3661 ggcggaactc atcgccgcct gccttgcccg ctgctggaca ggggctcggc tgttgggcac
     3721 tgacaattcc gtggtgttgt cggggaaatc atcgtccttt ccttggctgc tcgcctgtgt
     3781 tgccacctgg attctgcgcg ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc
     3841 ggaccttcct tcccgcggcc tgctgccggc tctgcggcct cttccgcgtc tccgccttcg
     3901 ccctcagacg agtcggatct ccctttggcc gcctccccgc cggtaccttt aagaccaatg
     3961 acttacaagg cagctgtaga tcttagccac tttttaaaag aaaagggggg actggaaggg
     4021 ctaattcact cccaacgaag ataagatctg ctttttgctt gtactgggtc tctctggtta
     4081 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
     4141 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
     4201 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtag tagttcatgt
     4261 catcttatta ttcagtattt ataacttgca aagaaatgaa tatcagagag tgagaggaac
     4321 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     4381 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     4441 catgtctggc tctagctatc ccgcccctaa ctccgcccat cccgccccta actccgccca
     4501 gttccgccca ttctccgccc catggctgac taattttttt tatttatgca gaggccgagg
     4561 ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga ggcctagact
     4621 tttgcagaga ccaaattcgt aatcatgtca tagctgtttc ctgtgtgaaa ttgttatccg
     4681 ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa
     4741 tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac
     4801 ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt
     4861 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
     4921 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
     4981 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accttaaaaa ggccgcgttg
     5041 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
     5101 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
     5161 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
     5221 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
     5281 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
     5341 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
     5401 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
     5461 tggtggccta actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag
     5521 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
     5581 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
     5641 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     5701 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     5761 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     5821 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     5881 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     5941 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     6001 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     6061 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     6121 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     6181 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     6241 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     6301 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     6361 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     6421 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     6481 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     6541 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     6601 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     6661 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
     6721 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
     6781 ccccgaaaag tgccacctga cgtctaagaa accattatta tcatgacatt aacctataaa
     6841 aataggcgta tcacgaggcc ctttcgtctc gcgcgtttcg gtgatgacgg tgaaaacctc
     6901 tgacacatgc agctcccgga gacggtcaca gcttgtctgt aagcggatgc cgggagcaga
     6961 caagcccgtc agggcgcgtc agcgggtgtt ggcgggtgtc ggggctggct taactatgcg
     7021 gcatcagagc agattgtact gagagtgcac catatgcggt gtgaaatacc gcacagatgc
     7081 gtaaggagaa aataccgcat caggcgccat tcgccattca ggctgcgcaa ctgttgggaa
     7141 gggcgatcgg tgcgggcctc ttcgctatta cgccagctgg cgaaaggggg atgtgctgca
     7201 aggcgattaa gttgggtaac gccagggttt tcccagtcac gacgttgtaa aacgacggcc
     7261 agtgccaagc tg
//
