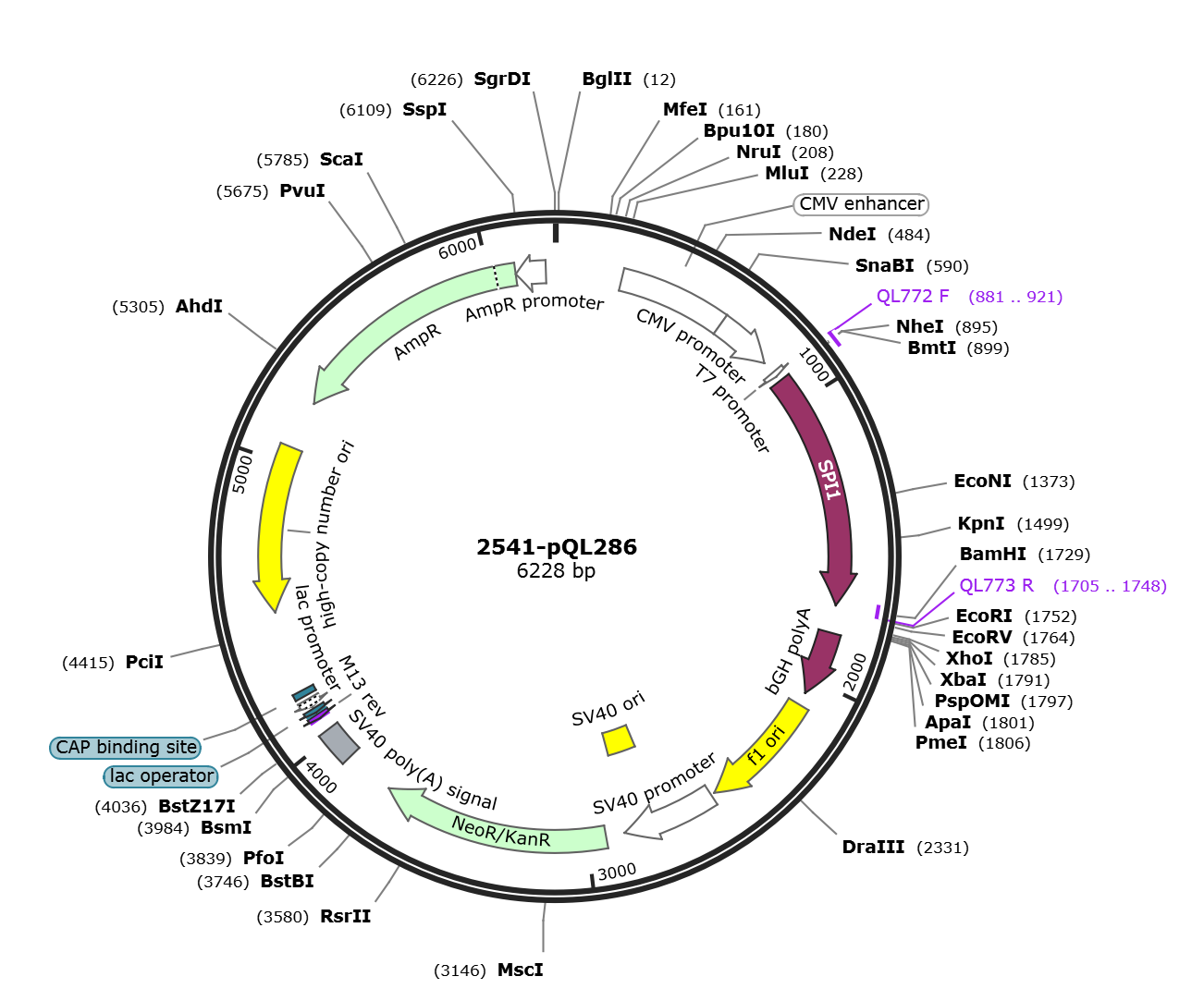

pQL286

LOCUS       pQL286           6228 bp DNA     circular SYN 18-DEC-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6228)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6228
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     881..921
                     /label=QL772 F
     CDS             901..1728
                     /codon_start=1
                     /label=SPI1
                     /translation="MLQACKMEGFSLTAPPSDDLVTYDSELYQRPMHDYYSFVGSDGES
                     HSDHYWDFSAHHVHNNEFENFPENHFTELQSVQPPQLQQLYRHMELEQMHVLDTPMVPP
                     HTGLSHQVSYMPRMCFPYQTLSPAHQQSSDEEEGERQSPPLEVSDGEADGLEPGPGLLH
                     GETGSKKKIRLYQFLLDLLRSGDMKDSIWWVDKDKGTFQFSSKHKEALAHRWGIQKGNR
                     KKMTYQKMARALRNYGKTGEVKKVKKKLTYQFSGEVLGRGGLAERRLPPHAAA"
     primer_bind     complement(1705..1748)
                     /label=QL773 R
     CDS             1825..2052
                     /codon_start=1
                     /label=bGH polyA
                     /translation="RLCLLVASHLLFAPPPCLP*PWKVPLPLSFPNKMRKLHRIV*VGV
                     ILFWGVGWGRTARGRIGKTIAGMLGMRWALW"
     rep_origin      2098..2526
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2540..2869
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2720..2855
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2772..2821
                     /codon_start=1
                     /label=P_SV40 TSS-region
                     /translation="*FFLFMQRPRPPLPLS"
     CDS             2936..3730
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3904..4025
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4074..4090)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    complement(4098..4114)
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4122..4152)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4167..4188
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4476..5061)
                     /direction=LEFT
                     /label=high-copy number ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5232..6092)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6093..6197)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 atgttacagg cgtgcaaaat ggaagggttt tccctcaccg cccctccatc ggatgacttg
      961 gttacttacg attcagagct ataccaacgt ccaatgcatg actactactc cttcgtgggc
     1021 agcgatggag aaagccatag cgatcactac tgggatttct ccgcacacca tgtccacaac
     1081 aacgagtttg agaacttccc tgagaaccac ttcacagagc tgcagagtgt gcagcccccg
     1141 cagctacagc agctctatcg ccacatggag ctggaacaga tgcacgtcct cgatactccc
     1201 atggtgccac cccacaccgg cctcagtcac caggtttcct acatgccccg gatgtgcttc
     1261 ccttatcaaa ccttgtcccc agcccaccag cagagctcag atgaggagga gggtgagagg
     1321 cagagccctc ccctggaggt gtctgatgga gaagctgatg gcttggagcc tgggccaggt
     1381 cttctgcacg gggagacagg cagcaagaaa aagattcgcc tgtaccagtt cctgctggac
     1441 ctgctgcgca gcggcgacat gaaggacagc atctggtggg tggacaagga caaaggtacc
     1501 ttccagttct cgtccaagca caaggaggcg ctggcgcacc gctggggcat ccagaagggc
     1561 aaccgcaaga agatgaccta ccagaagatg gcgcgcgcgc tgcgcaacta cggcaagaca
     1621 ggcgaggtga agaaagtcaa gaagaagctc acctaccagt tcagcggcga ggtgctgggc
     1681 cgtgggggcc tggccgagcg gcgcctcccg ccccacgcgg ccgcataggg atccactagt
     1741 ccagtgtggt ggaattctgc agatatccag cacagtggcg gccgctcgag tctagagggc
     1801 ccgtttaaac ccgctgatca gcctcgactg tgccttctag ttgccagcca tctgttgttt
     1861 gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac tcccactgtc ctttcctaat
     1921 aaaatgagga aattgcatcg cattgtctga gtaggtgtca ttctattctg gggggtgggg
     1981 tggggcagga cagcaagggg gaggattggg aagacaatag caggcatgct ggggatgcgg
     2041 tgggctctat ggcttctgag gcggaaagaa ccagctgggg ctctaggggg tatccccacg
     2101 cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc gtgaccgcta
     2161 cacttgccag cgccctagcg cccgctcctt tcgctttctt cccttccttt ctcgccacgt
     2221 tcgccggctt tccccgtcaa gctctaaatc gggggctccc tttagggttc cgatttagtg
     2281 ctttacggca cctcgacccc aaaaaacttg attagggtga tggttcacgt agtgggccat
     2341 cgccctgata gacggttttt cgccctttga cgttggagtc cacgttcttt aatagtggac
     2401 tcttgttcca aactggaaca acactcaacc ctatctcggt ctattctttt gatttataag
     2461 ggattttgcc gatttcggcc tattggttaa aaaatgagct gatttaacaa aaatttaacg
     2521 cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag gctccccagc
     2581 aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc
     2641 aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt
     2701 cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc
     2761 ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctctg cctctgagct
     2821 attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa agctcccggg
     2881 agcttgtata tccattttcg gatctgatca agagacagga tgaggatcgt ttcgcatgat
     2941 tgaacaagat ggattgcacg caggttctcc ggccgcttgg gtggagaggc tattcggcta
     3001 tgactgggca caacagacaa tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca
     3061 ggggcgcccg gttctttttg tcaagaccga cctgtccggt gccctgaatg aactgcagga
     3121 cgaggcagcg cggctatcgt ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga
     3181 cgttgtcact gaagcgggaa gggactggct gctattgggc gaagtgccgg ggcaggatct
     3241 cctgtcatct caccttgctc ctgccgagaa agtatccatc atggctgatg caatgcggcg
     3301 gctgcatacg cttgatccgg ctacctgccc attcgaccac caagcgaaac atcgcatcga
     3361 gcgagcacgt actcggatgg aagccggtct tgtcgatcag gatgatctgg acgaagagca
     3421 tcaggggctc gcgccagccg aactgttcgc caggctcaag gcgcgcatgc ccgacggcga
     3481 ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat atcatggtgg aaaatggccg
     3541 cttttctgga ttcatcgact gtggccggct gggtgtggcg gaccgctatc aggacatagc
     3601 gttggctacc cgtgatattg ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt
     3661 gctttacggt atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga
     3721 gttcttctga gcgggactct ggggttcgaa atgaccgacc aagcgacgcc caacctgcca
     3781 tcacgagatt tcgattccac cgccgccttc tatgaaaggt tgggcttcgg aatcgttttc
     3841 cgggacgccg gctggatgat cctccagcgc ggggatctca tgctggagtt cttcgcccac
     3901 cccaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc
     3961 acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta
     4021 tcttatcatg tctgtatacc gtcgacctct agctagagct tggcgtaatc atggtcatag
     4081 ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc
     4141 ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc
     4201 tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa
     4261 cgcgcgggga gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg
     4321 ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg
     4381 ttatccacag aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag
     4441 gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac
     4501 gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga
     4561 taccaggcgt ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt
     4621 accggatacc tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc
     4681 tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc
     4741 cccgttcagc ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta
     4801 agacacgact tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat
     4861 gtaggcggtg ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca
     4921 gtatttggta tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct
     4981 tgatccggca aacaaaccac cgctggtagc ggtttttttg tttgcaagca gcagattacg
     5041 cgcagaaaaa aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag
     5101 tggaacgaaa actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc
     5161 tagatccttt taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact
     5221 tggtctgaca gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt
     5281 cgttcatcca tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta
     5341 ccatctggcc ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta
     5401 tcagcaataa accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc
     5461 gcctccatcc agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat
     5521 agtttgcgca acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt
     5581 atggcttcat tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg
     5641 tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca
     5701 gtgttatcac tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta
     5761 agatgctttt ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg
     5821 cgaccgagtt gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact
     5881 ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg
     5941 ctgttgagat ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt
     6001 actttcacca gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga
     6061 ataagggcga cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc
     6121 atttatcagg gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa
     6181 caaatagggg ttccgcgcac atttccccga aaagtgccac ctgacgtc
//
