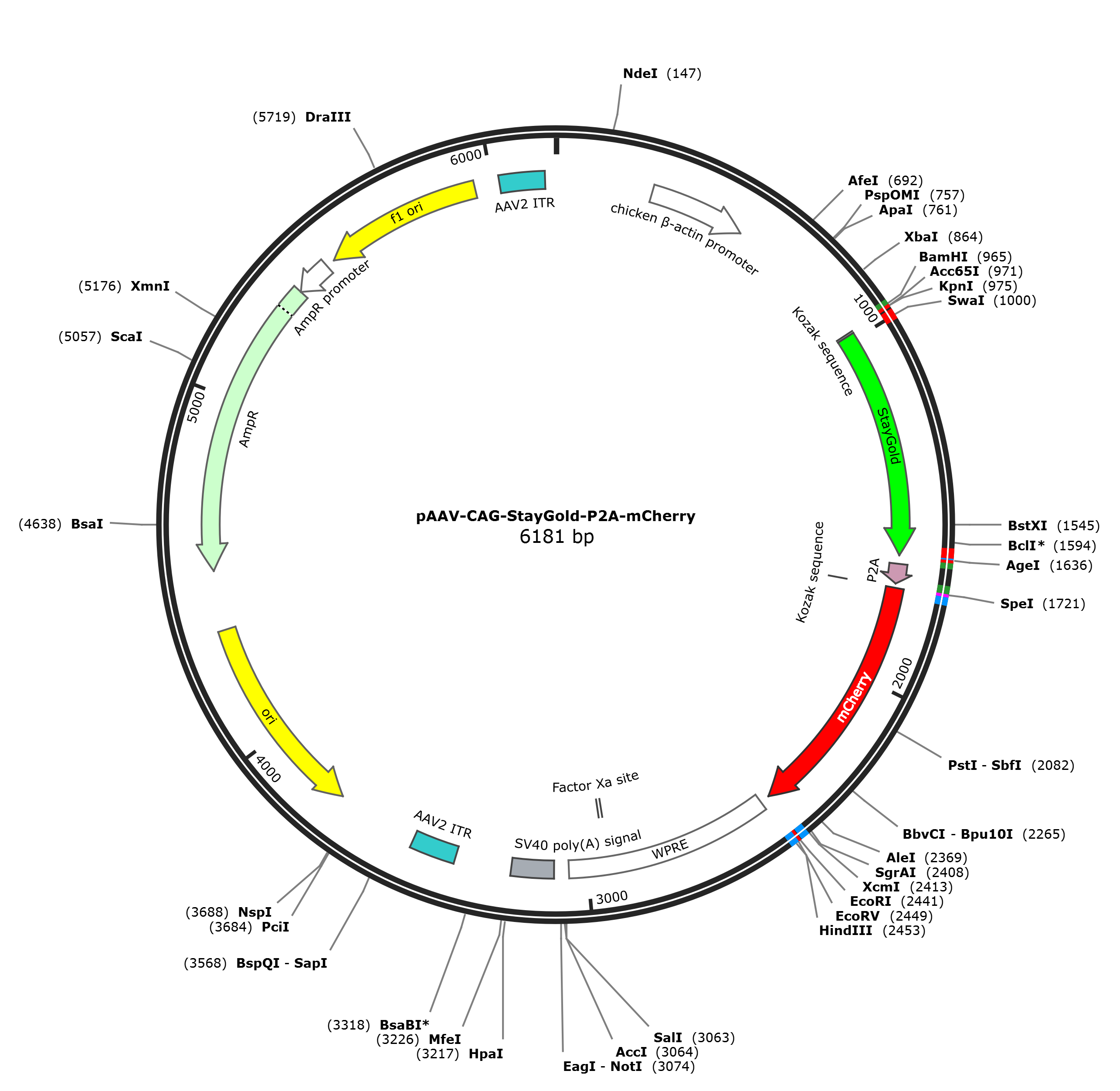

pAAV-CAG-StayGold-P2A-mCherry

LOCUS       pAAV-CAG-StayGold-P2A-mCherry             6181 bp DNA     circular SYN 01-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6181)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jul 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6181
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     misc_feature    977..982
                     /label=Kozak sequence
     CDS             983..1633
                     /codon_start=1
                     /label=StayGold
                     /translation="MASTPFKFQLKGTINGKSFTVEGEGEGNSHEGSHKGKYVCTSGKL
                     PMSWAALGTSFGYGMKYYTKYPSGLKNWFHEVMPEGFTYDRHIQYKGDGSIHAKHQHFM
                     KNGTYHNIVEFTGQDFKENSPVLTGDMNVSLPNEVQHIPRDDGVECPVTLLYPLLSDKS
                     KCVEAHQNTICKPLHNQPAPDVPYHWIRKQYTQSKDDTEERDHICQSETLEAHL"
     CDS             1658..1714
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     primer_bind     1699..1747
                     /label=0919-mCherry-F
     CDS             1727..2437
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     regulatory      1727..1730
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     complement(2415..2468)
                     /label=0919-mCherry-R
     misc_feature    2465..3053
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(2936..2947)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3096..3217
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     repeat_region   3379..3508
                     /label=AAV2 ITR
     rep_origin      complement(3745..4333)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4504..5364)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5365..5469)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5495..5950)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     repeat_region   6022..6151
                     /label=AAV2 ITR
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccatggctag tacaccattt aaatttcaac ttaaaggaac
     1021 catcaatggc aaatcgttta ccgttgaagg cgaaggtgaa ggaaattcac atgaaggttc
     1081 tcataaagga aaatatgttt gtacaagtgg aaaactaccg atgtcatggg cagcacttgg
     1141 aacatccttt ggttatggaa tgaaatatta taccaaatat cctagtggac tgaagaactg
     1201 gtttcatgaa gtaatgcctg aaggctttac ctacgatcgt catattcaat ataaaggcga
     1261 tgggagtatc catgcaaaac accaacactt tatgaaaaat gggacttatc acaacattgt
     1321 tgaatttact ggtcaggatt ttaaagaaaa tagtccagtc ttaactggag atatgaatgt
     1381 ctcattaccg aatgaagttc aacatatacc cagagatgat ggagtagaat gcccagtgac
     1441 cttgctttat cctttattat cggataaatc aaaatgcgtt gaggctcacc aaaatacaat
     1501 ctgcaagcct cttcataatc aaccagcacc tgatgtccca tatcactgga ttcgtaaaca
     1561 atacacacaa agcaaagatg ataccgagga acgtgatcat atttgtcaat cagagactct
     1621 cgaagcacac ttacgaccgg ttcacgtggg aagtggggct acaaacttct cactgctgaa
     1681 acaggccggg gatgtggagg aaaacccagg accacacgtg actagtatgg tgagcaaggg
     1741 cgaggaggat aacatggcca tcatcaagga gttcatgcgc ttcaaggtgc acatggaggg
     1801 ctccgtgaac ggccacgagt tcgagatcga gggcgagggc gagggccgcc cctacgaggg
     1861 cacccagacc gccaagctga aggtgaccaa gggtggcccc ctgcccttcg cctgggacat
     1921 cctgtcccct cagttcatgt acggctccaa ggcctacgtg aagcaccccg ccgacatccc
     1981 cgactacttg aagctgtcct tccccgaggg cttcaagtgg gagcgcgtga tgaacttcga
     2041 ggacggcggc gtggtgaccg tgacccagga ctcctccctg caggacggcg agttcatcta
     2101 caaggtgaag ctgcgcggca ccaacttccc ctccgacggc cccgtaatgc agaagaagac
     2161 catgggctgg gaggcctcct ccgagcggat gtaccccgag gacggcgccc tgaagggcga
     2221 gatcaagcag aggctgaagc tgaaggacgg cggccactac gacgctgagg tcaagaccac
     2281 ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac aacgtcaaca tcaagttgga
     2341 catcacctcc cacaacgagg actacaccat cgtggaacag tacgaacgcg ccgagggccg
     2401 ccactccacc ggcggcatgg acgagctgta caagtagtaa gaattcgata tcaagcttat
     2461 cgataatcaa cctctggatt acaaaatttg tgaaagattg actggtattc ttaactatgt
     2521 tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg ctattgcttc
     2581 ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc tttatgagga
     2641 gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg acgcaacccc
     2701 cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg ctttccccct
     2761 ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga caggggctcg
     2821 gctgttgggc actgacaatt ccgtggtgtt gtcggggaaa tcatcgtcct ttccttggct
     2881 gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg tcccttcggc
     2941 cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc ctcttccgcg
     3001 tcttcgcctt cgccctcaga cgagtcggat ctccctttgg gccgcctccc cgcatcgata
     3061 ccgtcgaccc gggcggccgc ttcgagcaga catgataaga tacattgatg agtttggaca
     3121 aaccacaact agaatgcagt gaaaaaaatg ctttatttgt gaaatttgtg atgctattgc
     3181 tttatttgta accattataa gctgcaataa acaagttaac aacaacaatt gcattcattt
     3241 tatgtttcag gttcaggggg agatgtggga ggttttttaa agcaagtaaa acctctacaa
     3301 atgtggtaaa atcgataagg atcttcctag agcatggcta cgtagataag tagcatggcg
     3361 ggttaatcat taactacaag gaacccctag tgatggagtt ggccactccc tctctgcgcg
     3421 ctcgctcgct cactgaggcc gggcgaccaa aggtcgcccg acgcccgggc tttgcccggg
     3481 cggcctcagt gagcgagcga gcgcgcagct gcattaatga atcggccaac gcgcggggag
     3541 aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt
     3601 cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga
     3661 atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg
     3721 taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa
     3781 aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt
     3841 tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct
     3901 gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct
     3961 cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc
     4021 cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt
     4081 atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc
     4141 tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag tatttggtat
     4201 ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa
     4261 acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa
     4321 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
     4381 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
     4441 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
     4501 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
     4561 catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg
     4621 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
     4681 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
     4741 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
     4801 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
     4861 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa
     4921 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
     4981 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
     5041 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
     5101 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
     5161 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
     5221 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
     5281 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
     5341 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
     5401 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
     5461 ggttccgcgc acatttcccc gaaaagtgcc acctaaattg taagcgttaa tattttgtta
     5521 aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc cgaaatcggc
     5581 aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt tccagtttgg
     5641 aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa aaccgtctat
     5701 cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg gtcgaggtgc
     5761 cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg acggggaaag
     5821 ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc tagggcgctg
     5881 gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa tgcgccgcta
     5941 cagggcgcgt cccattcgcc attcaggctg cgcaactgtt gggaagggcg atcggtgcgg
     6001 gcctcttcgc tattacgcca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag
     6061 cccgggcgtc gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag
     6121 ggagtggcca actccatcac taggggttcc ttgtagttaa tgattaaccc gccatgctac
     6181 t
//
