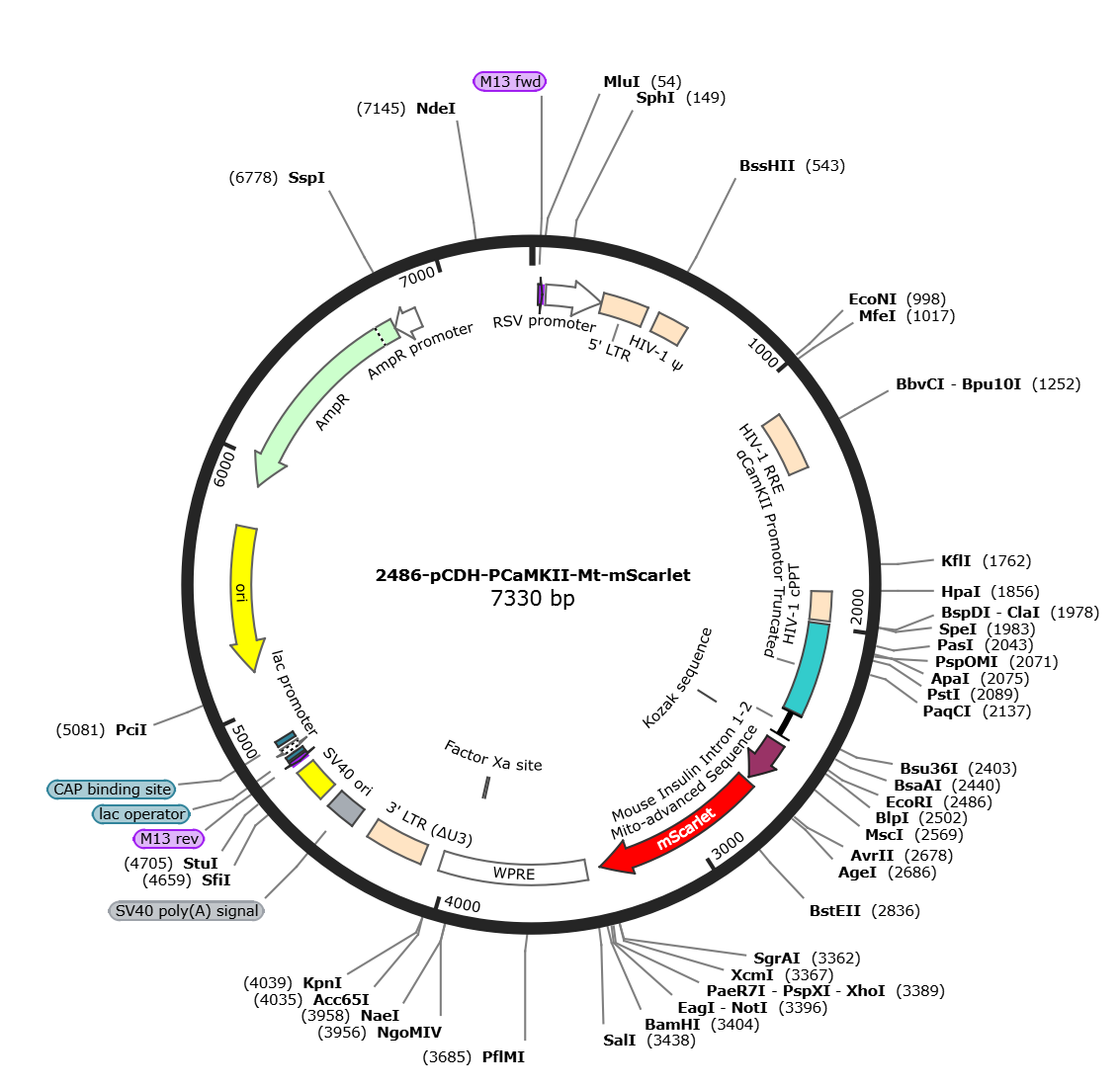

pCDH-PCaMKII-Mt-mScarlet

LOCUS       pCDH-PCaMKII-Mt-mScarlet              7330 bp DNA     circular SYN 16-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7330)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 1, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7330
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     13..35
                     /label=M13/pUC Forward
     primer_bind     28..44
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        59..285
                     /label=RSV promoter
                     /note="Rous sarcoma virus enhancer/promoter"
     LTR             286..466
                     /label=5' LTR
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    513..638
                     /label=HIV-1 psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1131..1364
                     /label=HIV-1 RRE
                     /note="The Rev response element (RRE) of human
                     immunodeficiency virus type 1 allows for Rev-dependent mRNA
                     export from the nucleus to the cytoplasm."
     misc_feature    1860..1976
                     /label=HIV-1 cPPT
                     /note="central polypurine tract from pol gene of human
                     immunodeficiency virus type 1"
     promoter        1989..2359
                     /label=alpha-CamKII Promotor Truncated
     intron          2366..2467
                     /label=Mouse Insulin Intron 1-2
     primer_bind     2466..2509
                     /label=MA_F1 EcoRI
     regulatory      2492..2501
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             2498..2677
                     /codon_start=1
                     /label=Mito-advanced Sequence
                     /translation="MAQRLLLRRFLASVISRKPSQGQWPPLTSRALQTPQCSPGGLTVT
                     PNPARTIYTTRISLT"
     primer_bind     2667..2710
                     /label=mScarlet AgeI F
     CDS             2693..3388
                     /codon_start=1
                     /product="bright monomeric red fluorescent protein evolved
                     from a synthetic template (Bindels et al., 2016)"
                     /label=mScarlet
                     /translation="MVSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTA
                     KLKVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYYKQSFPEGFKWERVMNFEDGG
                     AVTVTQDTSLEDGTLIYKVKLRGTNFPPDGPVMQKKTMGWEASTERLYPEDGVLKGDIK
                     MALRLKDGGRYLADFKTTYKAKKPVQMPGAYNVDRKLDITSHNEDYTVVEQYERSEGRH
                     STGGMDELYK"
     primer_bind     complement(2826..2844)
                     /label=mCherry-R
     primer_bind     3094..3113
                     /label=mCherry-F
     primer_bind     complement(3368..3410)
                     /label=Red XhoI_R1
     misc_feature    3444..4032
                     /label=WPRE
                     /note="woodchuck posttranscriptional regulatory element"
     primer_bind     complement(3497..3517)
                     /label=WPRE-R
     CDS             complement(3915..3926)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     4030..4043
                     /label=pBR322ori-F
     LTR             4106..4339
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4411..4532
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4448..4467)
                     /label=SV40pA-R
     primer_bind     4502..4521
                     /label=EBV Reverse
     rep_origin      4572..4707
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     4634..4653
                     /label=SV40pro-F
     primer_bind     complement(4657..4668)
                     /label=SV40pro-F
     primer_bind     complement(4740..4756)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4740..4756)
                     /label=M13 Reverse
     protein_bind    4764..4780
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4788..4818)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4833..4854
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4971..4988)
                     /label=L4440
     rep_origin      complement(5142..5730)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number colE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5222..5241)
                     /label=pBR322ori-F
     CDS             complement(5901..6761)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6524..6543
                     /label=Amp-R
     promoter        complement(6762..6866)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     6875..6892
                     /label=pQE promoter
     primer_bind     6934..6952
                     /label=pBRforEco
     primer_bind     complement(6990..7012)
                     /label=pGEX 3'
     primer_bind     7112..7131
                     /label=pRS-marker
ORIGIN
        1 cgccagggtt ttcccagtca cgacgttgta aaacgacggc cagtgccaag ctgacgcgtg
       61 tagtcttatg caatactctt gtagtcttgc aacatggtaa cgatgagtta gcaacatgcc
      121 ttacaaggag agaaaaagca ccgtgcatgc cgattggtgg aagtaaggtg gtacgatcgt
      181 gccttattag gaaggcaaca gacgggtctg acatggattg gacgaaccac tgaattgccg
      241 cattgcagag atattgtatt taagtgccta gctcgataca taaacgggtc tctctggtta
      301 gaccagatct gagcctggga gctctctggc taactaggga acccactgct taagcctcaa
      361 taaagcttgc cttgagtgct tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac
      421 tagagatccc tcagaccctt ttagtcagtg tggaaaatct ctagcagtgg cgcccgaaca
      481 gggacttgaa agcgaaaggg aaaccagagg agctctctcg acgcaggact cggcttgctg
      541 aagcgcgcac ggcaagaggc gaggggcggc gactggtgag tacgccaaaa attttgacta
      601 gcggaggcta gaaggagaga gatgggtgcg agagcgtcag tattaagcgg gggagaatta
      661 gatcgcgatg ggaaaaaatt cggttaaggc cagggggaaa gaaaaaatat aaattaaaac
      721 atatagtatg ggcaagcagg gagctagaac gattcgcagt taatcctggc ctgttagaaa
      781 catcagaagg ctgtagacaa atactgggac agctacaacc atcccttcag acaggatcag
      841 aagaacttag atcattatat aatacagtag caaccctcta ttgtgtgcat caaaggatag
      901 agataaaaga caccaaggaa gctttagaca agatagagga agagcaaaac aaaagtaaga
      961 ccaccgcaca gcaagcggcc actgatcttc agacctggag gaggagatat gagggacaat
     1021 tggagaagtg aattatataa atataaagta gtaaaaattg aaccattagg agtagcaccc
     1081 accaaggcaa agagaagagt ggtgcagaga gaaaaaagag cagtgggaat aggagctttg
     1141 ttccttgggt tcttgggagc agcaggaagc actatgggcg cagcgtcaat gacgctgacg
     1201 gtacaggcca gacaattatt gtctggtata gtgcagcagc agaacaattt gctgagggct
     1261 attgaggcgc aacagcatct gttgcaactc acagtctggg gcatcaagca gctccaggca
     1321 agaatcctgg ctgtggaaag atacctaaag gatcaacagc tcctggggat ttggggttgc
     1381 tctggaaaac tcatttgcac cactgctgtg ccttggaatg ctagttggag taataaatct
     1441 ctggaacaga tttggaatca cacgacctgg atggagtggg acagagaaat taacaattac
     1501 acaagcttaa tacactcctt aattgaagaa tcgcaaaacc agcaagaaaa gaatgaacaa
     1561 gaattattgg aattagataa atgggcaagt ttgtggaatt ggtttaacat aacaaattgg
     1621 ctgtggtata taaaattatt cataatgata gtaggaggct tggtaggttt aagaatagtt
     1681 tttgctgtac tttctatagt gaatagagtt aggcagggat attcaccatt atcgtttcag
     1741 acccacctcc caaccccgag gggacccgac aggcccgaag gaatagaaga agaaggtgga
     1801 gagagagaca gagacagatc cattcgatta gtgaacggat ctcgacggta tcggttaact
     1861 tttaaaagaa aaggggggat tggggggtac agtgcagggg aaagaatagt agacataata
     1921 gcaacagaca tacaaactaa agaattacaa aaacaaatta caaaattcaa aattttatcg
     1981 atactagtac ttgtggacta agtttgttca catccccttc tccaaccccc tcagtacatc
     2041 accctgggag aacaaggtcc acttgcttct gggcccacac agtcctgcag tattgtgtat
     2101 ataaggccag ggcaacggag gagcaggttt tgaagtgaaa ggcaggcagg tgttggggag
     2161 gcagttaccg gggcaacggg aacagggcgt ttcggaggtg gttgccatgg ggacctggat
     2221 gctgacgaag gctcgcgagg ctgtgagcag ccacagtgcc ctgctcagaa gccccaagct
     2281 cgtcaatcaa gctggttctc catttgcact caggagcacg ggcaggcgag tggcccctag
     2341 ttctgggagc agagtatcag atatcgtact cttctcagtg ggcctggctc cccagctaag
     2401 acctcaggga cttgaggtag gatatagcct cctctcttac gtgaaacttt tgctatcctc
     2461 aacccaggat atctctagtt gatcagaatt cgccaccatg gctcagcgac ttcttctgag
     2521 gaggttcctg gcctctgtca tctccaggaa gccctctcag ggtcagtggc cacccctcac
     2581 ttccagagcc ctccagaccc cacaatgcag tcctggtggc ctgactgtaa cacccaaccc
     2641 agcccggaca atatacacca cgaggatctc cttgacacct aggccaccgg ttatggtgag
     2701 caagggcgag gcagtgatca aggagttcat gcggttcaag gtgcacatgg agggctccat
     2761 gaacggccac gagttcgaga tcgagggcga gggcgagggc cgcccctacg agggcaccca
     2821 gaccgccaag ctgaaggtga ccaagggtgg ccccctgccc ttctcctggg acatcctgtc
     2881 ccctcagttc atgtacggct ccagggcctt caccaagcac cccgccgaca tccccgacta
     2941 ctataagcag tccttccccg agggcttcaa gtgggagcgc gtgatgaact tcgaggacgg
     3001 cggcgccgtg accgtgaccc aggacacctc cctggaggac ggcaccctga tctacaaggt
     3061 gaagctccgc ggcaccaact tccctcctga cggccccgta atgcagaaga agacaatggg
     3121 ctgggaagcg tccaccgagc ggttgtaccc cgaggacggc gtgctgaagg gcgacattaa
     3181 gatggccctg cgcctgaagg acggaggccg ctacctggcg gacttcaaga ccacctacaa
     3241 ggccaagaag cccgtgcaga tgcccggcgc ctacaacgtt gaccgcaagt tggacatcac
     3301 ctcccacaac gaggactaca ccgtggtgga acagtacgaa cgctccgagg gccgccactc
     3361 caccggcggc atggacgagc tgtacaagct cgaggcggcc gcaggatccg tttaactgta
     3421 catagagctg aatctaagtc gacaatcaac ctctggatta caaaatttgt gaaagattga
     3481 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     3541 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     3601 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     3661 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     3721 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     3781 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaaat
     3841 catcgtcctt tccttggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     3901 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     3961 ctctgcggcc tcttccgcgt cttcgccttc gccctcagac gagtcggatc tccctttggg
     4021 ccgcctcccc gcctggtacc tttaagacca atgacttaca aggcagctgt agatcttagc
     4081 cactttttaa aagaaaaggg gggactggaa gggctaattc actcccaacg aagataagat
     4141 ctgctttttg cttgtactgg gtctctctgg ttagaccaga tctgagcctg ggagctctct
     4201 ggctaactag ggaacccact gcttaagcct caataaagct tgccttgagt gcttcaagta
     4261 gtgtgtgccc gtctgttgtg tgactctggt aactagagat ccctcagacc cttttagtca
     4321 gtgtggaaaa tctctagcag tagtagttca tgtcatctta ttattcagta tttataactt
     4381 gcaaagaaat gaatatcaga gagtgagagg aacttgttta ttgcagctta taatggttac
     4441 aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact gcattctagt
     4501 tgtggtttgt ccaaactcat caatgtatct tatcatgtct ggctctagct atcccgcccc
     4561 taactccgcc catcccgccc ctaactccgc ccagttccgc ccattctccg ccccatggct
     4621 gactaatttt ttttatttat gcagaggccg aggccgcctc ggcctctgag ctattccaga
     4681 agtagtgagg aggctttttt ggaggcctag acttttgcag agaccaaatt cgtaatcatg
     4741 tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc
     4801 ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg
     4861 ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc
     4921 ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact
     4981 gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta
     5041 atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag
     5101 caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc
     5161 cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta
     5221 taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg
     5281 ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc
     5341 tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac
     5401 gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac
     5461 ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg
     5521 aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga
     5581 agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt
     5641 agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt ttgcaagcag
     5701 cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc tacggggtct
     5761 gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt atcaaaaagg
     5821 atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta aagtatatat
     5881 gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat ctcagcgatc
     5941 tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac tacgatacgg
     6001 gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg ctcaccggct
     6061 ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag tggtcctgca
     6121 actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt aagtagttcg
     6181 ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt gtcacgctcg
     6241 tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt tacatgatcc
     6301 cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt cagaagtaag
     6361 ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct tactgtcatg
     6421 ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt ctgagaatag
     6481 tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac cgcgccacat
     6541 agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa actctcaagg
     6601 atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa ctgatcttca
     6661 gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca aaatgccgca
     6721 aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct ttttcaatat
     6781 tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga atgtatttag
     6841 aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc tgacgtctaa
     6901 gaaaccatta ttatcatgac attaacctat aaaaataggc gtatcacgag gccctttcgt
     6961 ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca tgcagctccc ggagacggtc
     7021 acagcttgtc tgtaagcgga tgccgggagc agacaagccc gtcagggcgc gtcagcgggt
     7081 gttggcgggt gtcggggctg gcttaactat gcggcatcag agcagattgt actgagagtg
     7141 caccatatgc ggtgtgaaat accgcacaga tgcgtaagga gaaaataccg catcaggcgc
     7201 cattcgccat tcaggctgcg caactgttgg gaagggcgat cggtgcgggc ctcttcgcta
     7261 ttacgccagc tggcgaaagg gggatgtgct gcaaggcgat taagttgggt aacgccaggg
     7321 ttttccagtc
//
